600 Class Ley Bushed Chain

A is a type of that is used to transmit power and motion in a variety of industrial applications. Sometimes referred to as “Cement sleeve chain” or “intermediate carrier chain” is used extensively in Cement mills. It is a heavy-duty chain that is designed to withstand high loads and demanding operating conditions.

600 Class ley bushed chains are characterized by their use of renewable bushings. The pin holes at the closed end of the link are provided with smooth bushings, which are press-fitted into the links and keyed into place. The bushings are renewable and can be driven out and replaced when they become worn. This makes ley bushed chains a very cost-effective solution for applications where chain wear is a major concern.

600 Class ley bushed chains have a tensile strength range of 20,000 to 36,000 pounds and are available in a pitch range of 3.00 to 6.04 inches with a complete assortment of Brutaloy or cast steel sprockets. All 600 Class ley bushed chains are manufactured according to the manufacturer's standards and are completely interchangeable.

600 Class Ley Bushed Chain Dimensions:

600 Class Ley Bushed Chain Dimensions
Chain No. Pitch In Inches Weight Allowable Chain Pull Breaking Load Links Per Coil A B C D E W
603 3 7.4 3.3 20000 40 2.13 0.88 1.56 0.56 1.13 4.25
604 4 10 4580 27500 30 3.13 1 2 0.63 2 5.69
600 6.04 10.4 5000 30000 20 3 1.13 2.13 0.69 1.75 5.81
704 4.06 14.7 5850 35000 30 3.38 1.75 2.13 0.81 2.25 6.16

Advantages of 600 Class Ley Bushed Chain:

600 class Ley bushed chain is a type of heavy-duty conveyor chain that is known for its high tensile strength and durability. It is often used in applications where high loads and demanding operating conditions are present.

Some of the advantages of 600 class Ley bushed chain include:

1. High tensile strength: 600 class Ley bushed chain has a tensile strength of up to 600,000 pounds per inch, which makes it one of the strongest conveyor chains available.

2. Durability: 600 class Ley bushed chain is made from high-quality materials and is designed to withstand the most demanding operating conditions. It is resistant to wear, corrosion, and fatigue.

3. Versatility: 600 class Ley bushed chain can be used in a wide variety of applications, including conveying heavy materials, elevating materials, and driving machinery.

4. Easy maintenance: 600 class Ley bushed chain is relatively easy to maintain. The bushings are renewable, so they can be replaced when they become worn.

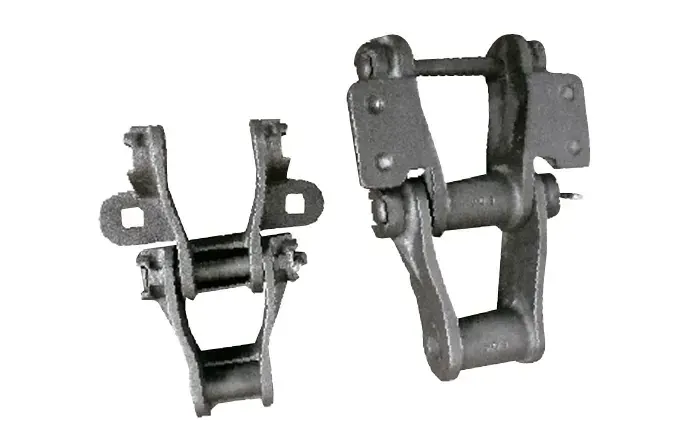

600 Class Ley Bushed Chain Advantages

Applications of 600 Class Ley Bushed Chain:

600 Class Ley Bushed Chain is a heavy-duty conveyor chain that is designed for use in a variety of demanding industrial applications. It is characterized by its high strength, durability, and resistance to wear and tear.

Here are some of the most common applications of 600 Class Ley Bushed Chain:

(1) Agricultural machinery: 600 Class Ley Bushed Chain is commonly used in agricultural machinery such as combines, harvesters, and balers. It is used to convey crops and other materials through the machine and to power various components.

(2) Construction equipment: 600 Class Ley Bushed Chain is also used in construction equipment such as excavators, bulldozers, and loaders. It is used to convey materials such as dirt, rock, and concrete, and to power various components such as tracks and buckets.

(3) Mining equipment: 600 Class Ley Bushed Chain is also used in mining equipment such as conveyors, crushers, and screens. It is used to convey ore and other materials through the mining process and to power various components.

(4) Forestry equipment: 600 Class Ley Bushed Chain is also used in forestry equipment such as sawmills and logging machines. It is used to convey logs and other wood products through the processing process and to power various components such as saw blades and conveyor belts.

(5) Other industrial applications: 600 Class Ley Bushed Chain is also used in a variety of other industrial applications, such as food processing, packaging, and manufacturing. It is used to convey materials through the production process, and to power various components such as mixers, grinders, and cutters.

600 Class Ley Bushed Chain Applications 600 Class Ley Bushed Chain Applications

600 Class Ley Bushed Chain for Sale:

Showing all 4 results
