Leaf Chain
Leaf and Hoisting Chains are a special type of chains. They are manufactured both in light-duty and heavy-duty versions.
They consist of a row of pins on which plates of adjacent links are put in various combinations along the whole length.
Leaf & Hoisting Chains
The hoisting chain comes with our standard leaf chain and multi-plate pin chains, along with our car parking chain, as well as our special leaf chain, which is designed specifically for sky stackers. All of them use high wear-resistant pin carburizing or pin-through the hardened process to improve their impact resistance.
Inquire about the leaf and hoisting chains via the inquiry form provided below. Then we will contact you and, if necessary, specify all the technical parameters, and we’ll provide you with the price of a specific product. HZPT is a leading transmission chain manufacturer in China. We offer China leaf and hoisting chains of high wear resistance at competitive prices!
Different Types of Leaf Chain
AL Series
The thickness and configuration of the plate are identical to ANSI rolling chain. The pin diameter is nearly identical to ANSI roller chain. AL leaf chain (manufactured in accordance with the standard of the ANSI B29.9 Standard) is made from American standard roller chain parts. AL Series chain is a lightweight chain that is suitable for light load lifting and machine tools.
LL Series
Leaf chain LL, made in accordance with ISO4347, DIN8152 and NFE26107 standards, is made from components of roller chains to European standards. Similar to AL chain, LL chain can be described as a light chain designed for lightweight load lifting applications, as well as machine tools.
BL Series
BL leaf chains are made up of link plates, which are more substantial and wider in the contour than AL Series link plates of the same pitch. Link plates are similar in thickness to the link plates for the next larger pitch that are found in ANSI chain rollers. In contrast, the link plates of the BL Series are thicker than those of the AL Series and share the same pin diameter with the ANSI G8 roller chains.
Showing all 15 results
-

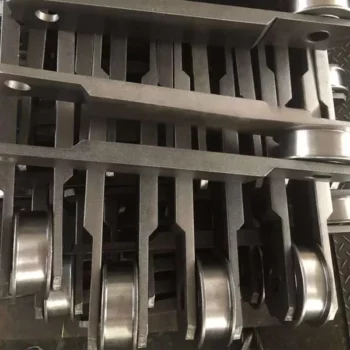

Heavy Duty Vertical Circulation Chain for Stereo Garages P460F1-SA1-00(4L)
-
BL444 Leaf Chain BL444 Hoisting Chain
-
AL Series Leaf Chain for Forklift Trucks and Material Handling
-
Rollerless Hoisting Chains 45-1/55-1/65-1/85-1/105-1/125-1/145-1/165-1
-
Multiple Plate Bearing Pin Chains LF30/MP50F2/MP50.8/MP70/MP80/MP90/MP110
-
Multiple Plate Bearing Pin Chains MP15/MP20/MP25/MP30/MP35/MP40
-
Leaf Chains For Sky Stacker LL3244/LL3266/LL3288/LL4066F5
-
Leaf Chains for Sky Stacker LH2066 LH2466 LH2844 LH2846 LH2866
-
Hollow Pin Leaf Chains FL36
-
Car Parking Chains 16ALT 20ALT 24ALT
-
LL Series Leaf Chain for Manual Hydraulic Forklifts and Small Tonnage Diesel Forklifts
-
BL Series Leaf Chain for Forklift Trucks and Material Handling
-
Leaf Conveyor Chain BC250,BC200,BC127,BC127A,P103D,P88.9D,S348,S458,S468,S678
-
Stainless Steel Leaf Chain
-
Conveyor Leaf Pin Chain 2146A 2146B 2146C B10
