Tunnel Boring Machine Hydraulic Cylinder

A tunnel boring machine is a crucial component of a tunnel boring machine, which is used for excavating tunnels in various types of soil and rock formations. It plays a vital role in the advancement and operation of the tunnel boring machine by providing the necessary thrust and support.

The hydraulic cylinder is a mechanical device that converts fluid power into linear force and motion. In the context of a tunnel boring machine, it is responsible for pushing the cutting head into the ground, applying the required force to break and remove the excavated material, and propelling the tunnel boring machine forward.

Here are some of the different types of tunnel boring machine hydraulic cylinders:

  • Thrust cylinders: Thrust cylinders are used to drive the tunnel boring machine forward. They are typically located at the rear of the tunnel boring machine and are attached to the main thrust frame.
  • Torque cylinders: Torque cylinders are used to steer the tunnel boring machine through the tunnel. They are typically smaller and less powerful than thrust cylinders.
  • Steering cylinders: Steering cylinders are used to control the direction of the tunnel boring machine. They are typically located at the front of the tunnel boring machine and are attached to the cutterhead.
  • Support cylinders: Support cylinders are used to support the tunnel face and to prevent the tunnel from collapsing. They are typically located at the front of the tunnel boring machine and are attached to the support ring.

Tunnel Boring Machine Hydraulic Cylinder Types:

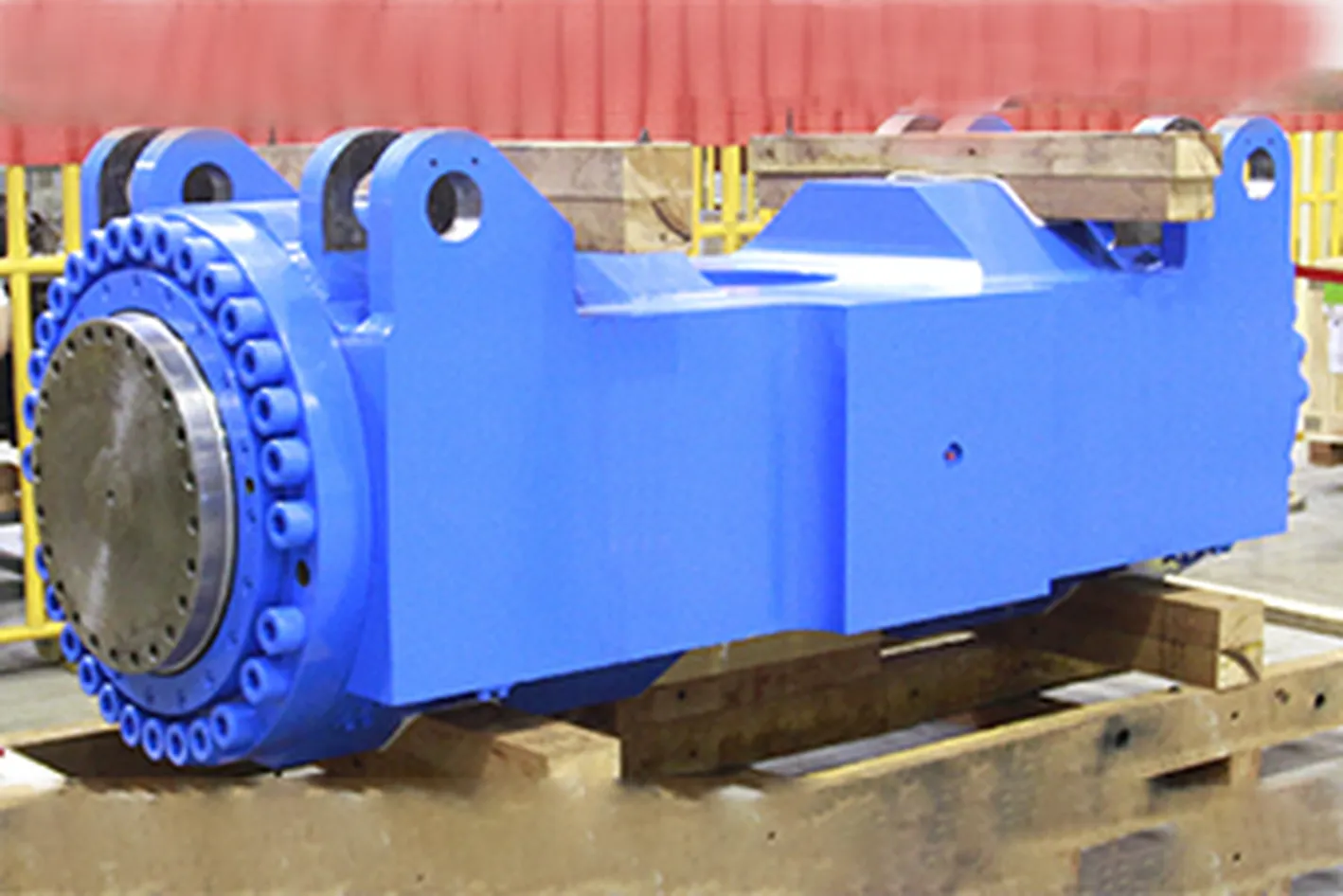

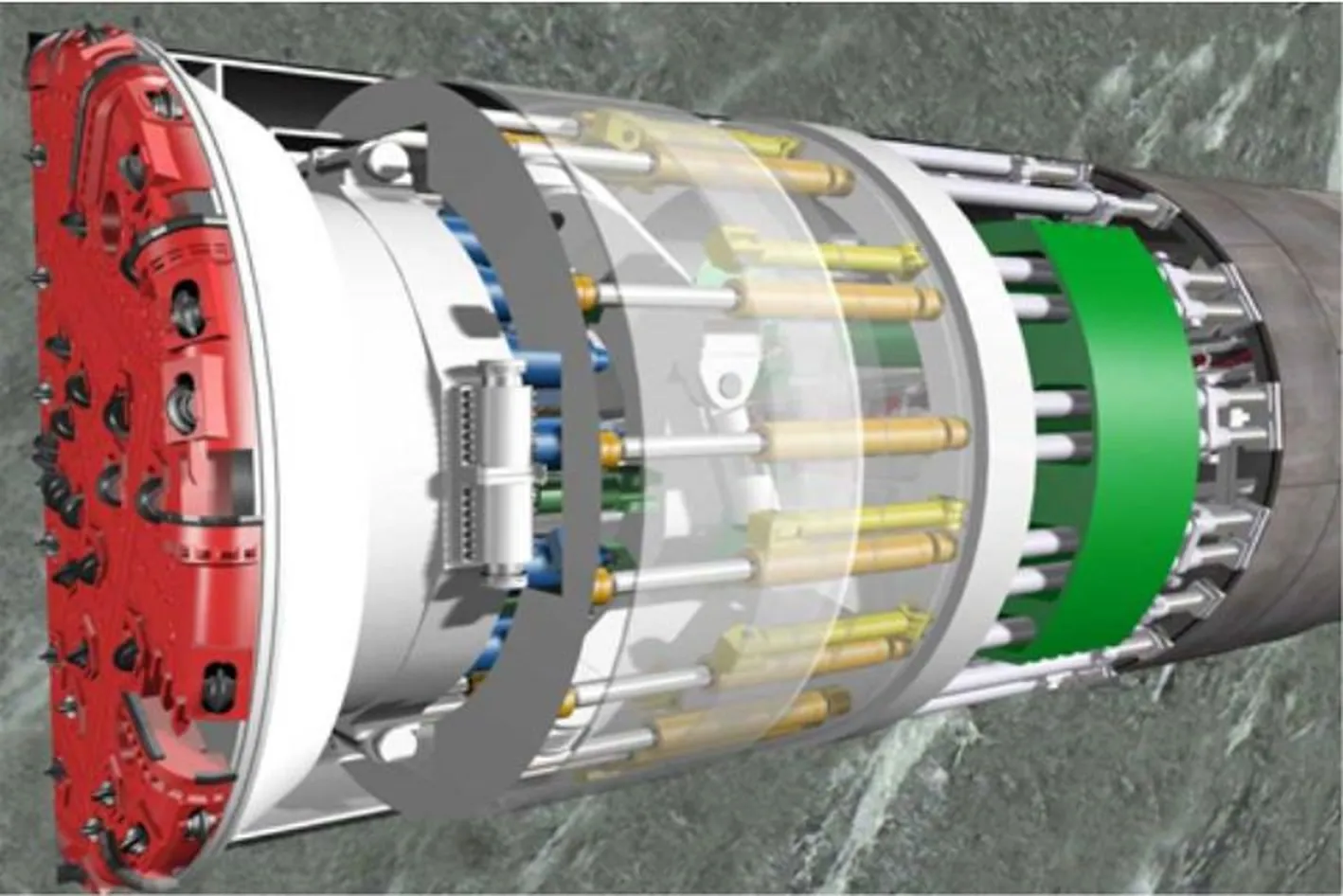

Our tunnel boring machine hydraulic cylinder types include shield machine hydraulic cylinder, open tunnel boring machine hydraulic cylinder, double shield tunnel boring machine hydraulic cylinder, etc.

Tunnel Boring Machine Hydraulic Cylinder Features:

Tunnel boring machine hydraulic cylinders must be designed to withstand the extreme conditions of tunneling, including high pressure, heavy loads, and vibration. In addition, they must be reliable and durable, as downtime can be costly and disruptive. Here are the features of tunnel boring machine hydraulic cylinders:

  • High strength and durability: Tunnel boring machine hydraulic cylinders are typically made of high-strength materials, such as alloy steel or cast iron. They are also heat-treated to improve their strength and fatigue resistance.
  • Precision manufacturing: Tunnel boring machine hydraulic cylinders must be manufactured to very precise tolerances in order to ensure smooth and reliable operation. This includes accurate bore and rod diameters, as well as precise alignment of all components.
  • Robust seals: Tunnel boring machine hydraulic cylinders must be sealed against dirt, dust, and water to prevent leakage and contamination. This is typically achieved using a combination of O-rings, gaskets, and wipers.
  • Corrosion protection: Tunnel boring machine hydraulic cylinders are exposed to a variety of corrosive substances, such as groundwater and chemicals. To protect against corrosion, they are typically coated with a durable paint or powder coating.
  • Customizable design: Tunnel boring machine hydraulic cylinders can be customized to meet the specific requirements of each Tunnel boring machine machine. This includes factors such as bore diameter, stroke length, and mounting configuration.

In addition to the above features, Tunnel boring machine hydraulic cylinders are often equipped with a variety of sensors and monitoring devices to track their performance and condition. This information can be used to identify potential problems early on and prevent unplanned downtime.

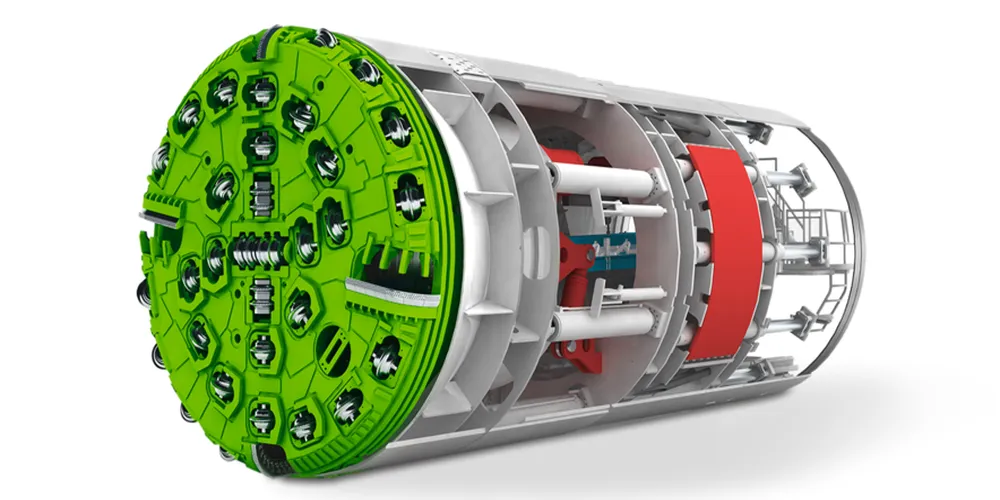

Tunnel Boring Machine Hydraulic Cylinder Features

Why Choose Hydraulic Cylinder for Tunnel Boring Machine from HZPT?:

There are several reasons why you should choose hydraulic cylinders for tunnel boring machines from HZPT:

  • High quality and durability: HZPT hydraulic cylinders are made with high-quality materials and components and are manufactured using state-of-the-art technology. This ensures that they are durable and can withstand the demanding conditions of tunnel boring applications.
  • Wide range of products: HZPT offers a wide range of hydraulic cylinders for tunnel boring machines, to suit different machine sizes and applications. This means that you can find the right cylinder for your specific needs.
  • Competitive prices: HZPT hydraulic cylinders are competitively priced, while still maintaining high quality standards. This makes them a good value for your money.
  • Excellent customer service: HZPT is committed to providing excellent customer service. Our team of experienced engineers and technicians is available to help you choose the right hydraulic cylinder for your needs and to provide support throughout the product lifecycle.
  • High thrust capacity: HZPT hydraulic cylinders are designed to generate high thrust forces, which is essential for tunnel boring applications.
  • Long service life: HZPT hydraulic cylinders are built to last and have a long service life in even the most demanding conditions.
  • Easy maintenance: HZPT hydraulic cylinders are easy to maintain, which can help to reduce downtime and costs.
  • Customizable solutions: HZPT can also provide customized hydraulic cylinders to meet your specific needs.

    Overall, HZPT is a leading manufacturer of high-quality hydraulic cylinders for tunnel boring machines. Their products offer a number of advantages, including high thrust capacity, long service life, easy maintenance, and customizable solutions. If you are looking for a reliable and durable hydraulic cylinder for your tunnel boring machine, HZPT is a good choice to consider.

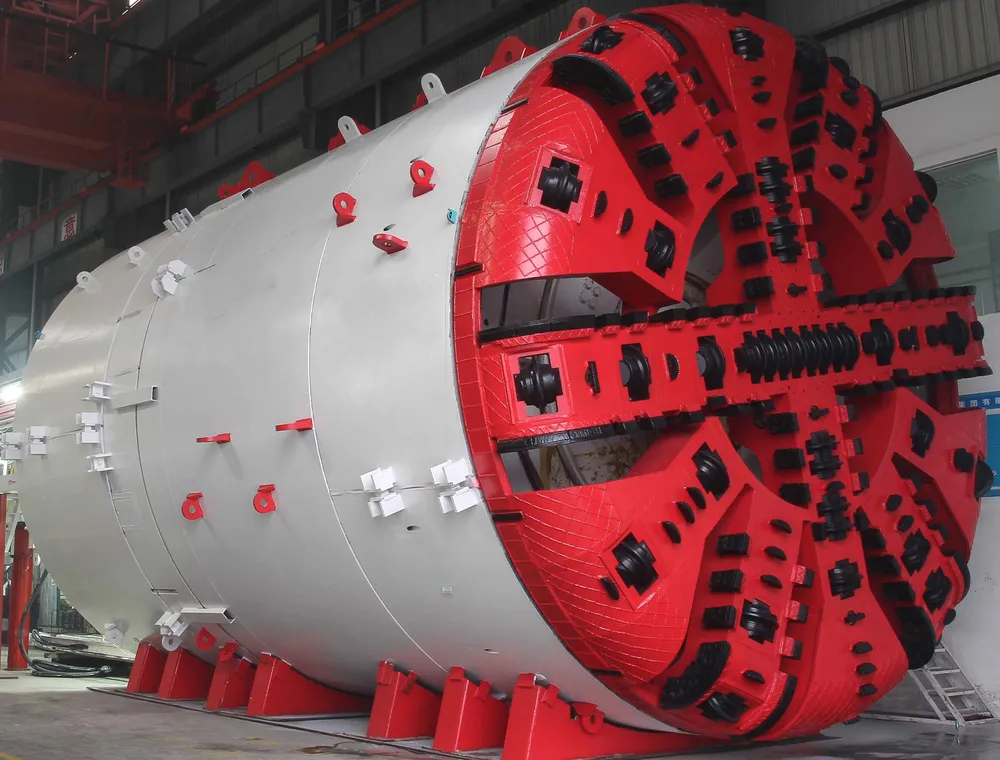

    Choose Hydraulic Cylinder for Tunnel Boring Machine from HZPT
