An is a piece of farm equipment used in tillage operations to break up compacted soil layers below the surface. It is designed to alleviate soil compaction, improve soil structure, and enhance water infiltration and root development.

Soil compaction can occur due to various factors such as heavy machinery traffic, excessive tillage, or natural soil conditions. Compacted soil restricts the movement of air, water, and plant roots, leading to poor drainage, reduced nutrient availability, and decreased crop productivity.

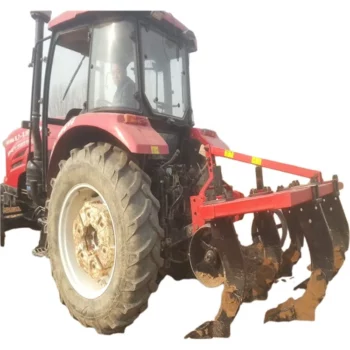

An agricultural subsoiler typically consists of a sturdy metal shank with a pointed or chisel-like tip that penetrates the soil to a predetermined depth. It is attached to a tractor or other suitable machinery. The shank is designed to break up compacted layers by creating fractures or fissures in the soil without inverting or disturbing the surface layer.

When the agricultural subsoiler is pulled through the field, the shank enters the soil and creates a vertical slit or trench. As it moves forward, the soil around the shank is loosened, breaking up compacted layers and allowing for improved soil aeration, water movement, and root penetration. The depth of the subsoiling operation can vary depending on the specific needs of the soil and crops.

Subsoiling is typically performed prior to planting or during fallow periods when the field is not actively growing crops. It can be particularly beneficial in regions with heavy clay soils or areas where compaction is a recurring issue.

Watch Video to Learn More About Agricultural Subsoiler:

How Does the Agricultural Subsoiler Work?

The agricultural subsoiler is a farm implement used to alleviate soil compaction and improve soil drainage in agricultural fields. It is primarily used in fields where heavy machinery or livestock have caused soil compaction, which can negatively impact crop growth.

The agricultural subsoiler consists of a sturdy frame with a series of shanks or tines attached to it. These shanks are long, narrow metal bars that penetrate the soil vertically, typically to a depth of 12 to 24 inches (30 to 60 centimeters), depending on the specific needs of the soil.

When the agricultural subsoiler is pulled by a tractor or another suitable vehicle, the shanks enter the soil and break up compacted layers beneath the surface. The shanks are designed to create fractures or fissures in the soil, which helps loosen it and improve its structure.

As the shanks move through the soil, they create voids or channels that allow for better water infiltration and root penetration. By breaking up compacted soil layers, the subsoiler promotes better root development and allows plants to access nutrients and moisture more effectively.

The depth and spacing of the shanks can be adjusted based on the soil conditions and the specific requirements of the crops being grown. The implement is typically operated at slower speeds to ensure proper soil penetration and minimize any potential damage to the equipment.

It's important to note that subsoiling is usually performed before planting or during fallow periods, as it can temporarily disrupt the soil profile and may not be suitable for use when crops are actively growing.

How Does the Agricultural Subsoiler Work

Agricultural Subsoiler Use Precautions:

When using an agricultural subsoiler, it's important to take certain precautions to ensure safe and effective operation. Here are some key precautions to consider:

(1) Equipment Selection: Choose a agricultural subsoiler that is appropriate for your soil type, field conditions, and the depth of compaction you need to address. Different subsoilers have varying shank designs, spacing, and working depths, so select the one that best suits your specific requirements.

(2) Soil Moisture: Subsoiling is generally more effective when the soil moisture content is optimal. Working on excessively dry or wet soil can lead to reduced effectiveness or potential damage to the equipment. Evaluate the soil moisture conditions and plan subsoiling accordingly.

(3) Field Preparation: Clear the field of any obstacles, such as rocks, tree stumps, or debris, that may interfere with the operation of the subsoiler. This will help prevent equipment damage and ensure smooth progress during subsoiling.

(4) Speed and Depth: Operate the subsoiler at an appropriate speed, generally slower than regular cultivation or tillage operations. This allows the shanks to penetrate the soil effectively and break up compacted layers. Adjust the working depth of the shanks based on the depth of compaction, but avoid going too deep, as it may damage the subsoil structure.

(5) Avoid Sensitive Areas: Be cautious around sensitive areas such as underground pipelines, irrigation systems, or other buried utilities. Use maps and consult with relevant authorities to identify the location of such infrastructure to prevent accidental damage.

Safety Gear: Wear appropriate personal protective equipment (PPE) while operating the subsoiler. This may include safety glasses, sturdy footwear, gloves, and hearing protection. PPE helps protect against potential hazards such as flying debris, noise, and vibration.

(6) Maintenance and Inspection: Regularly inspect the agricultural subsoiler for any signs of wear, damage, or loose components. Ensure that all bolts and fasteners are properly tightened. Proper maintenance and inspection can prevent equipment failure during operation.

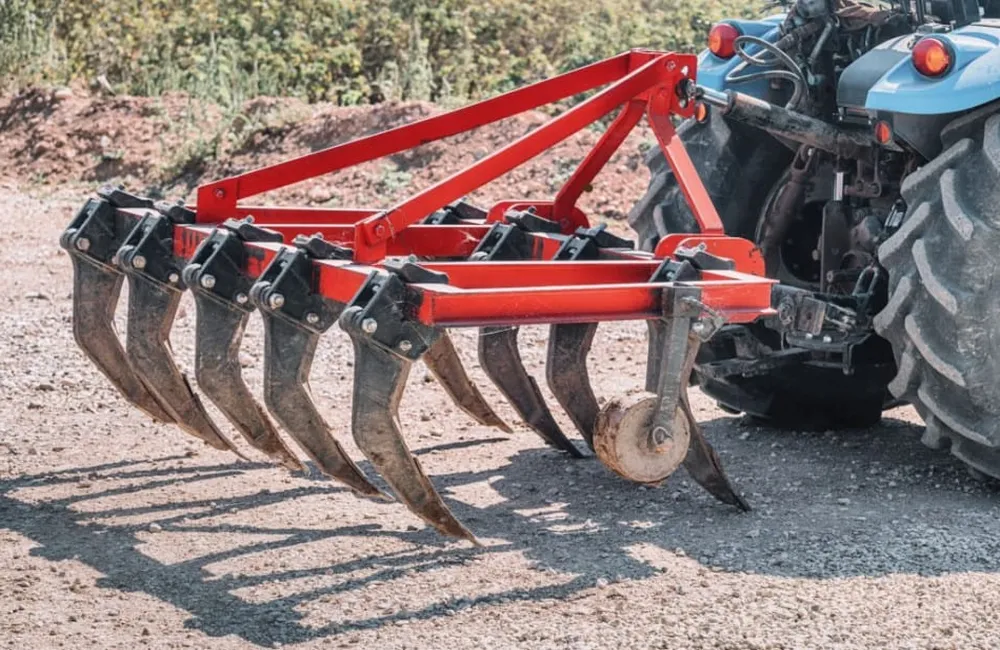

Agricultural Subsoiler Use Precautions
Edited by Yjx
