Instrumentation Ball Valve

Instrumentation ball valves are a type of ball valve that is specifically designed for use in process measurement and control systems. They are typically made of stainless steel or brass, and they feature a number of features that make them ideal for this application, including:
  • High precision: Instrumentation ball valves are designed to provide a very precise and repeatable flow control. This is important in many process measurement and control applications where accurate and consistent measurements are required.
  • Leak-tight seal: Instrumentation ball valves are designed to provide a leak-tight seal in both directions of flow. This is important for preventing contamination and ensuring the accuracy of measurements.
  • Low maintenance: Instrumentation ball valves are relatively low-maintenance valves. They do not require lubrication, and the packing can be easily replaced if necessary.
  • Wide range of sizes and materials: Instrumentation ball valves are available in a wide range of sizes and materials to suit a variety of applications.

Some specific applications of instrumentation ball valves include:

  • Measuring and controlling the flow of fluids in process control systems
  • Isolating instruments and sensors for maintenance
  • Sampling fluids for analysis
  • Regulating the flow of fluids through process equipment

Instrumentation ball valves are a versatile and reliable type of valve that is well-suited for a wide variety of applications in process measurement and control systems.

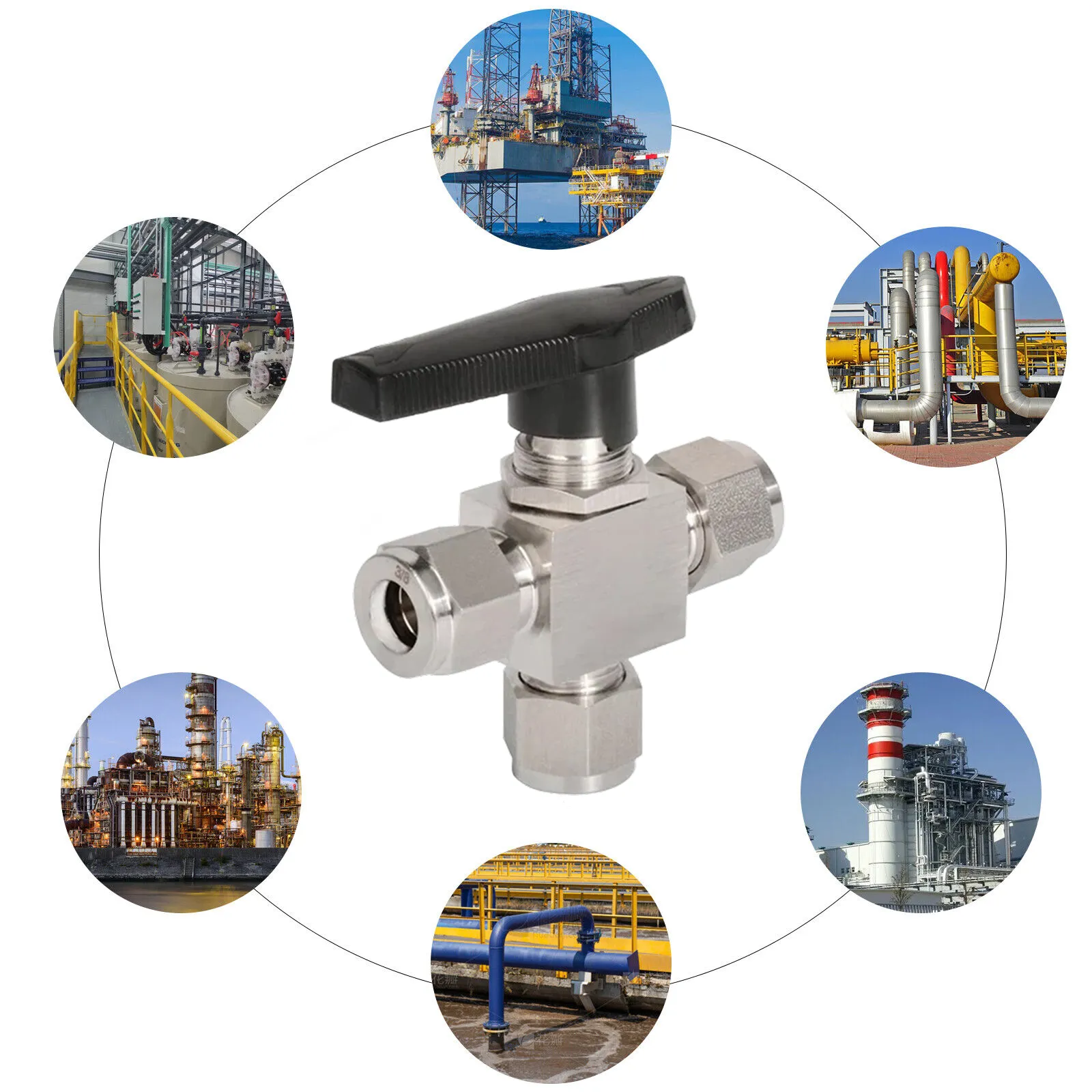

Instrumentation Ball Valves Applications

Advantages of Using Instrumentation Ball Valves:

Instrumentation ball valves offer several advantages in various applications. Here are some of the key advantages of using instrumentation ball valves:

1. Durability: Instrumentation ball valves are known for their robust construction, making them highly durable. They are designed to withstand high pressures, temperatures, and corrosive environments. This durability ensures long-term performance and reduces the need for frequent maintenance or replacement.

2. Excellent Flow Control: Ball valves provide excellent flow control capabilities. The quarter-turn operation of the ball allows for quick opening and closing, enabling fast and precise control of the flow rate. The full-bore design of ball valves also minimizes flow restrictions, reducing pressure drop and improving efficiency.

3. Versatility: Instrumentation ball valves are highly versatile and can be used in a wide range of applications. They are suitable for both on/off and throttling operations, making them ideal for various industries, including oil and gas, chemical, pharmaceutical, power generation, and water treatment.

4. Tight Shut-Off: Ball valves are known for their tight shut-off capabilities. The ball with a bore through it provides a leak-proof seal when closed, ensuring zero or minimal leakage. This feature is critical in applications where leakage can lead to safety hazards or product contamination.

5. Compact Design: Instrumentation ball valves have a compact design, making them easy to install in tight spaces or in systems with limited clearance. Their small footprint also contributes to cost savings in terms of installation and maintenance.

6. Wide Range of Materials: Instrumentation ball valves are available in a wide range of materials, including stainless steel, brass, carbon steel, and exotic alloys. This allows for compatibility with different media and ensures resistance to corrosion or chemical attack.

7. Ease of Maintenance: Instrumentation ball valves are relatively easy to maintain. Their simple design and fewer components make disassembly, cleaning, and reassembly straightforward. Additionally, many manufacturers offer replaceable seals and seats, allowing for cost-effective repairs instead of replacing the entire valve.

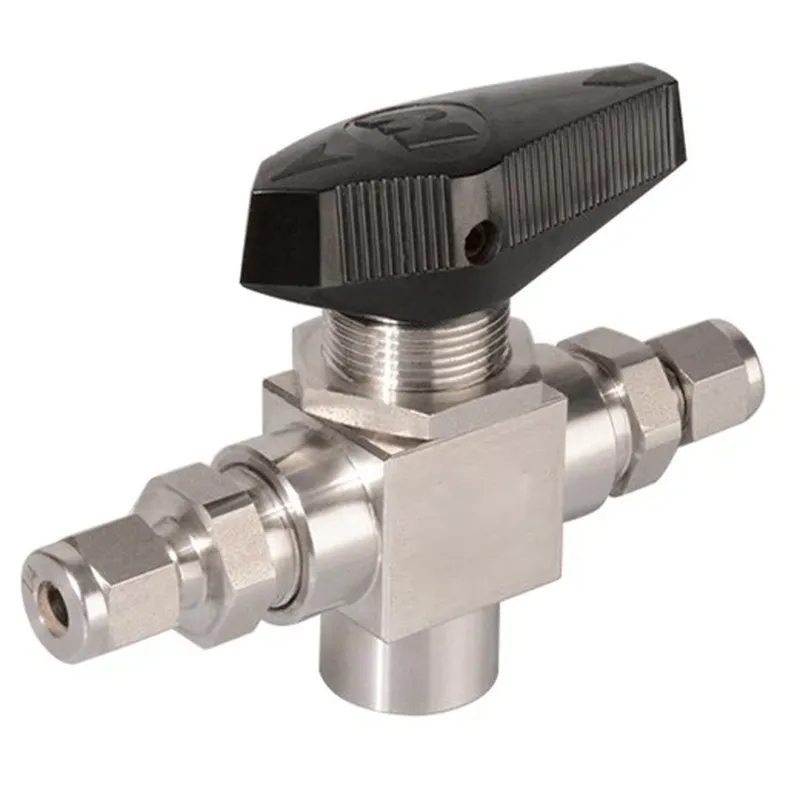

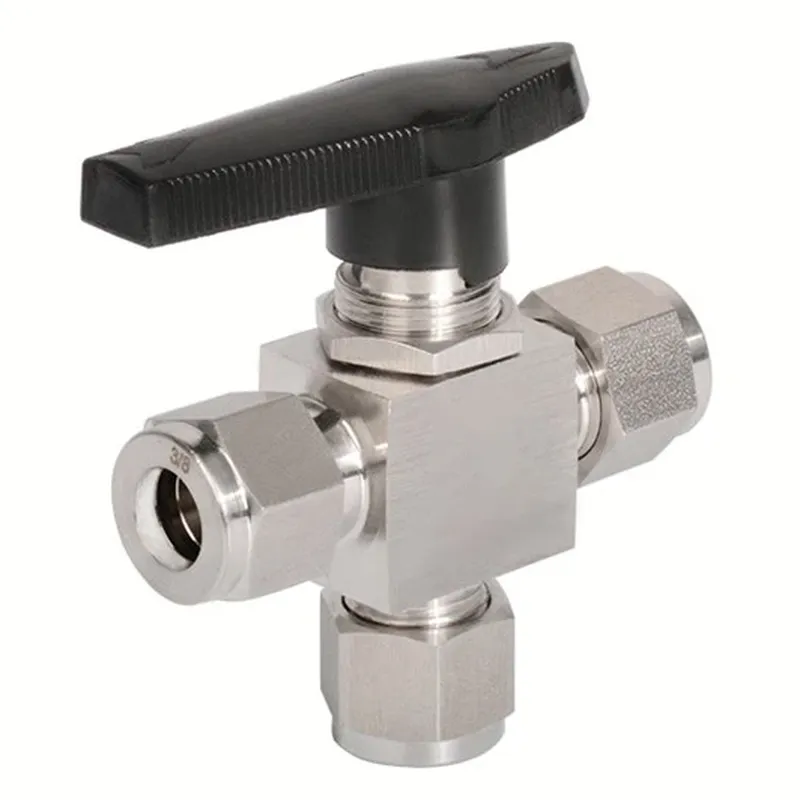

Using Instrumentation Ball Valves Advantages Using Instrumentation Ball Valves Advantages

Applications of Instrumentation Ball Valves:

Instrumentation ball valves find applications in various industries and processes where precise flow control, reliability, and durability are required. Here are some common applications of instrumentation ball valves:

(1) Oil and Gas Industry: Instrumentation ball valves are widely used in the oil and gas industry for controlling the flow of fluids and gases in pipelines, refineries, offshore platforms, and petrochemical plants. They can handle high pressures and temperatures, making them suitable for critical processes like wellheads, flow lines, and isolation valves.

(2) Chemical and Petrochemical Industry: In chemical and petrochemical plants, instrumentation ball valves are used in processes involving corrosive and hazardous fluids. They provide reliable shut-off and control for chemicals, solvents, acids, and other aggressive media.

(3) Power Generation: Instrumentation ball valves are employed in power plants for controlling the flow of steam, water, and other fluids in boilers, turbines, and cooling systems. They offer precise control and shut-off capabilities, ensuring efficient and safe operation.

(4) Pharmaceutical and Biotechnology: In the pharmaceutical and biotech industry, instrumentation ball valves are used in processes like drug manufacturing, sterile filtration, and clean-in-place (CIP) systems. They provide hygienic and aseptic flow control, ensuring product purity and preventing contamination.

(5) Water and Wastewater Treatment: Instrumentation ball valves are utilized in water and wastewater treatment plants for controlling the flow of water, chemicals, and sludge. They offer reliable shut-off and control in processes such as filtration, disinfection, and pumping stations.

(6) HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, instrumentation ball valves are used for controlling the flow of water or refrigerants. They enable precise temperature regulation and help maintain optimal system performance.

(7) Food and Beverage Industry: Instrumentation ball valves are employed in food and beverage processing plants for controlling the flow of liquids, gases, and steam. They meet hygiene standards, provide clean operation, and are suitable for applications such as filling lines, pasteurization, and tank transfer.

(8) Mining and Minerals: Instrumentation ball valves are used in mining and mineral processing operations for controlling the flow of slurries, chemicals, and process water. They can handle abrasive and corrosive fluids, making them suitable for applications like flotation cells, tailings management, and dewatering systems.
