Right Angle Planetary Gearbox

The right angle planetary gearbox is compact in design and ideal for limited space. They combine superior performance with low weight to make them easy to operate. The right angle planetary gearbox is very precise, and the backlash is very small during operation. Therefore, it can be trusted in any industrial application. You can choose from our various right angle planetary gearboxes to optimize your machine operation

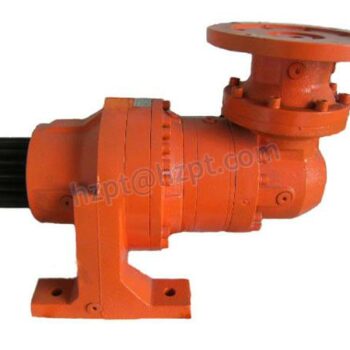

The 300R series gearbox is a right angle gear transmission, which is the best solution for all applications requiring high torque. It is suitable for fixed industrial equipment and heavy self-propelled machines. This kind of planetary gearbox is substantially improved in size and weight compared with the traditional gearbox. Modular design combines high performance and low cost because of its compact size, high reliability, simple installation and reduced maintenance. The 300R series planetary gearbox is available in a variety of sizes to ensure optimal duration and quiet operation in a variety of applications.
The 300R series also provides a high-power version, linking the performance of HZPT planetary gear technology with the high quality and reliability of the gearbox: compared with traditional gear units, this solution is more efficient, quieter, more compact, and provides better cost performance.

Torque Range1000-450.000 Nm
Transmissible Mechanical Powerup to 150 kW
Gear Ratios6.9-9.000
Gear Unit VersionsRight angle (with a spiral bevel gear set)
Output ConfigurationFoot and flange mounted
Output shaftsolid with key, splined, splined hollow, hollow with shrink disc
Input ConfigurationsFlanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and Nema motor adaptors
Solid input shaft
Hydraulic BrakeHydraulically released parking brake on request
Electric BrakeDC and AC type

Why Choose 300R Series Right Angle Gearbox

  1. 300R series right angle planetary gear box HZPT right angle planetary gear box (NCE series) is compact in design and ideal for limited space. We can manufacture 2-stage, 3-stage and 4-stage right angle planetary gear reducers
  2.  right angle planetary gearbox has been surface hardened, which is the reason for achieving high transmission efficiency throughout the service life of the equipment
  3. HZPT is a first-class planetary gear reducer manufacturer. We strive to ensure that every right angle planetary gear conforms to DNV-ISO9001:2008 standards. HZPT and CE certification standards HZPT right angle planetary gear box ensures smooth operation and low noise.
  4. They combine superior performance with low weight to make them easy to operate.
    The right angle planetary gearbox is very precise, and the backlash is very small during operation. This is why we recommend them for industrial automation or servo applications.
  5. With these planetary gearboxes, you can always guarantee high accuracy and precision. This has nothing to do with the position of the gearbox. Because of its robustness and reliability, it can be trusted in any industrial application. You can choose from our various right angle planetary gearboxes to optimize your machine operation

Replaceable Brands

The dimensions, parameters and performance of our planetary gearbox can be consistent with those of the following brands, which can achieve perfect replacement。

The installation and overall dimensions of the planetary gearbox are designed in strict accordance with the requirements of Italian and American manufacturers, so in terms of performance and connection dimensions, they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series, Dinamicoil RE and RA series. They are ideal substitutes for Italian products.

Installation solution: flange installation, base installation, shaft installation

Replace forBrevini ED, ET, EQ, EM, EC and EL series

Bonfiglioli 300 series

Dinamicoil RE, RA series

Reggiane Riduttori RR series
