Offshore Hydraulic Cylinder

Offshore hydraulic cylinders are specialized hydraulic components designed for use in offshore industries, particularly in offshore oil and gas exploration and production. They play a crucial role in various offshore applications where heavy loads need to be moved or controlled in a safe and efficient manner.

These offshore hydraulic cylinders are specifically engineered to withstand the harsh and demanding offshore environment, including exposure to saltwater, extreme temperatures, high pressures, and corrosive substances. They are typically constructed using high-grade materials such as stainless steel or corrosion-resistant alloys to ensure durability and longevity.

The main function of offshore hydraulic cylinders is to convert hydraulic energy into linear mechanical force and motion. They are commonly used in offshore equipment such as cranes, winches, lifting systems, drilling rigs, pipe laying systems, and subsea installations. These hydraulic cylinders provide the necessary force to manipulate heavy equipment, control the movement of subsea structures, and perform various tasks essential to offshore operations.

Offshore hydraulic cylinders are designed to operate under high-pressure conditions and can generate substantial force output. They feature robust seals and advanced sealing technologies to prevent hydraulic fluid leakage, ensuring reliable and efficient performance in challenging offshore environments.

Offshore Hydraulic Cylinder Types:

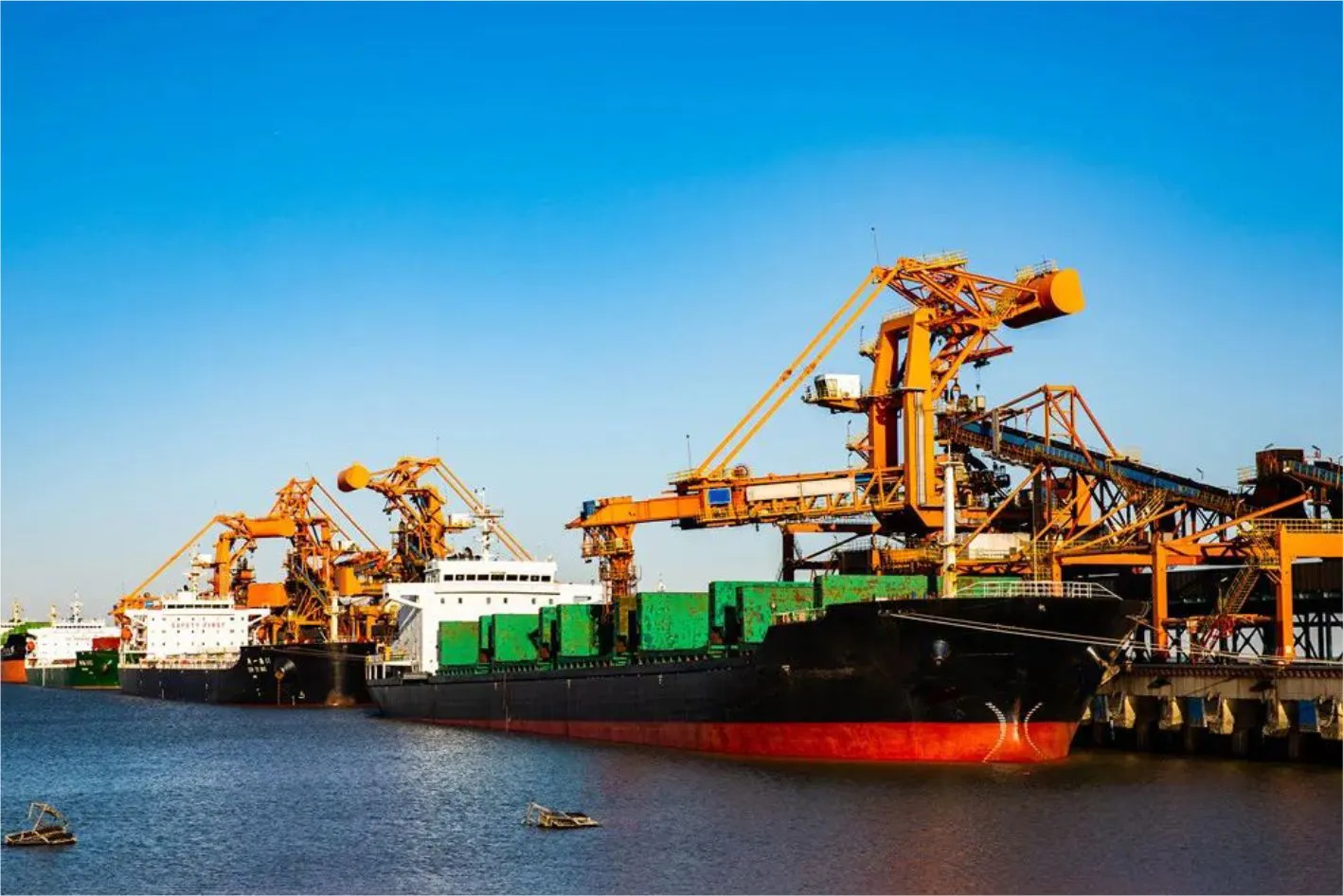

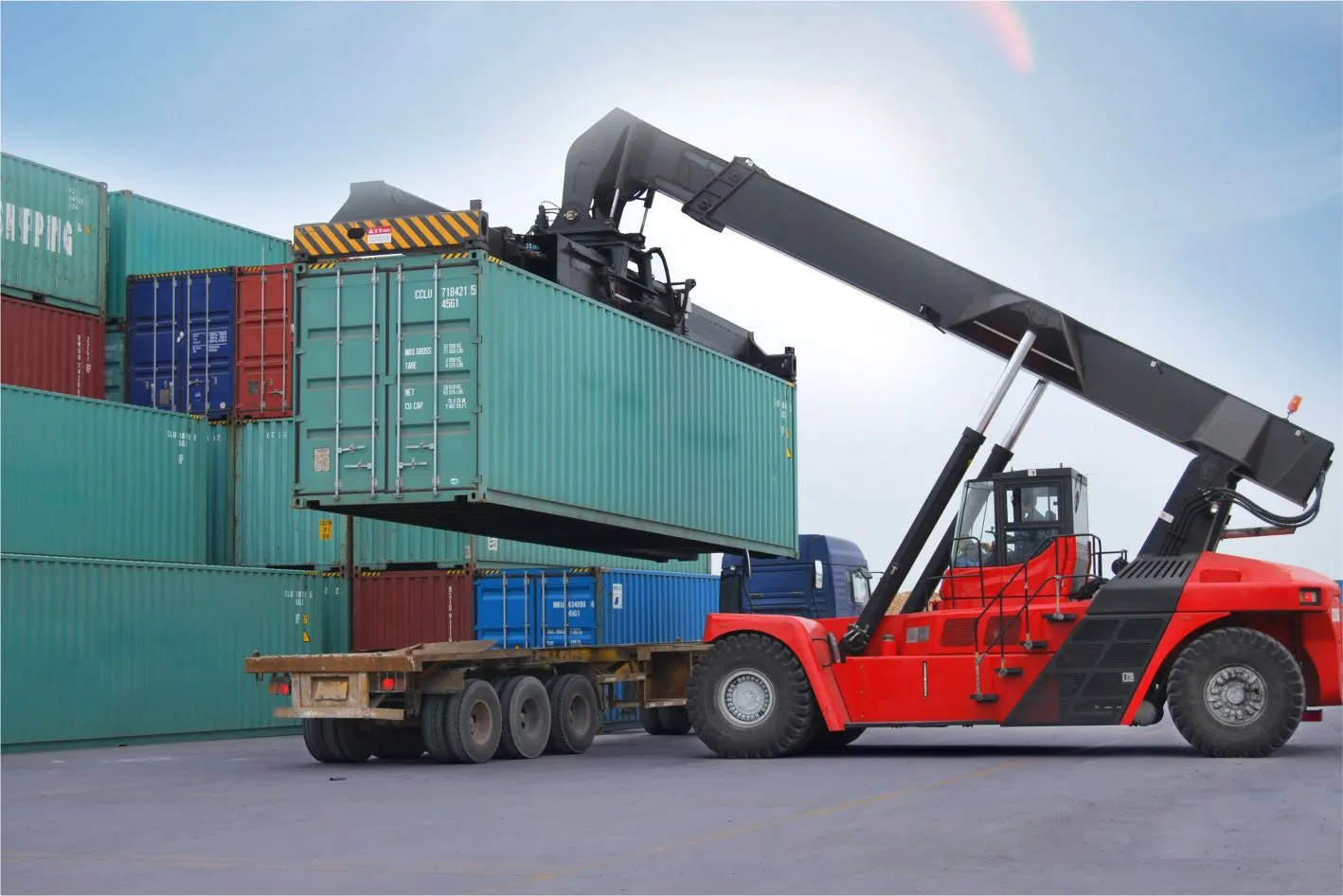

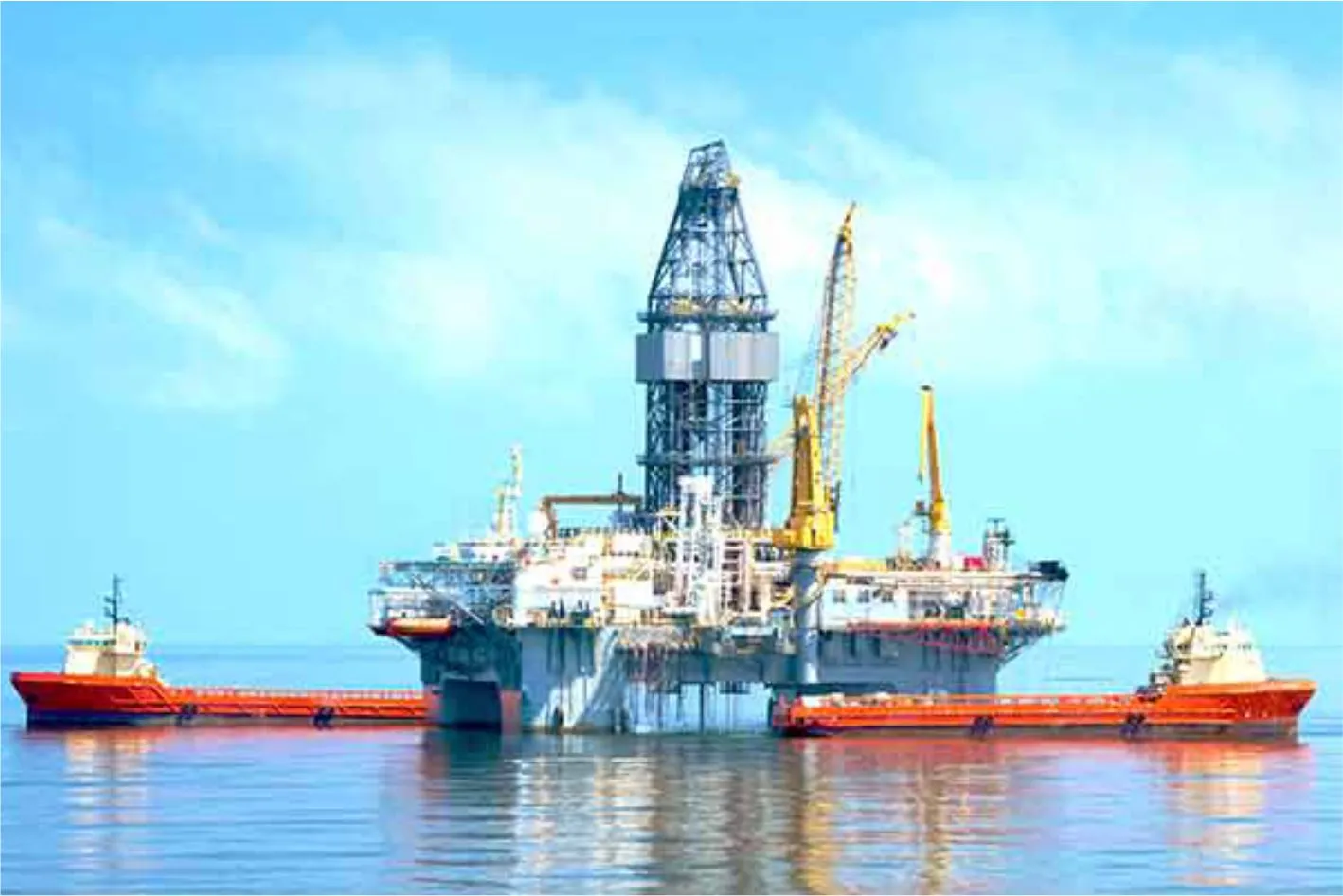

Our offshore types include split barge cylinders, dredger tank cylinders, jack-up offshore platform cylinders, drilling platform cylinders, pile driving barge cylinders, ro-ro platform cylinders, offshore crane cylinders, empty container stacker oil cylinders, reach stacker cylinders, stacker reclaimer cylinders, etc.

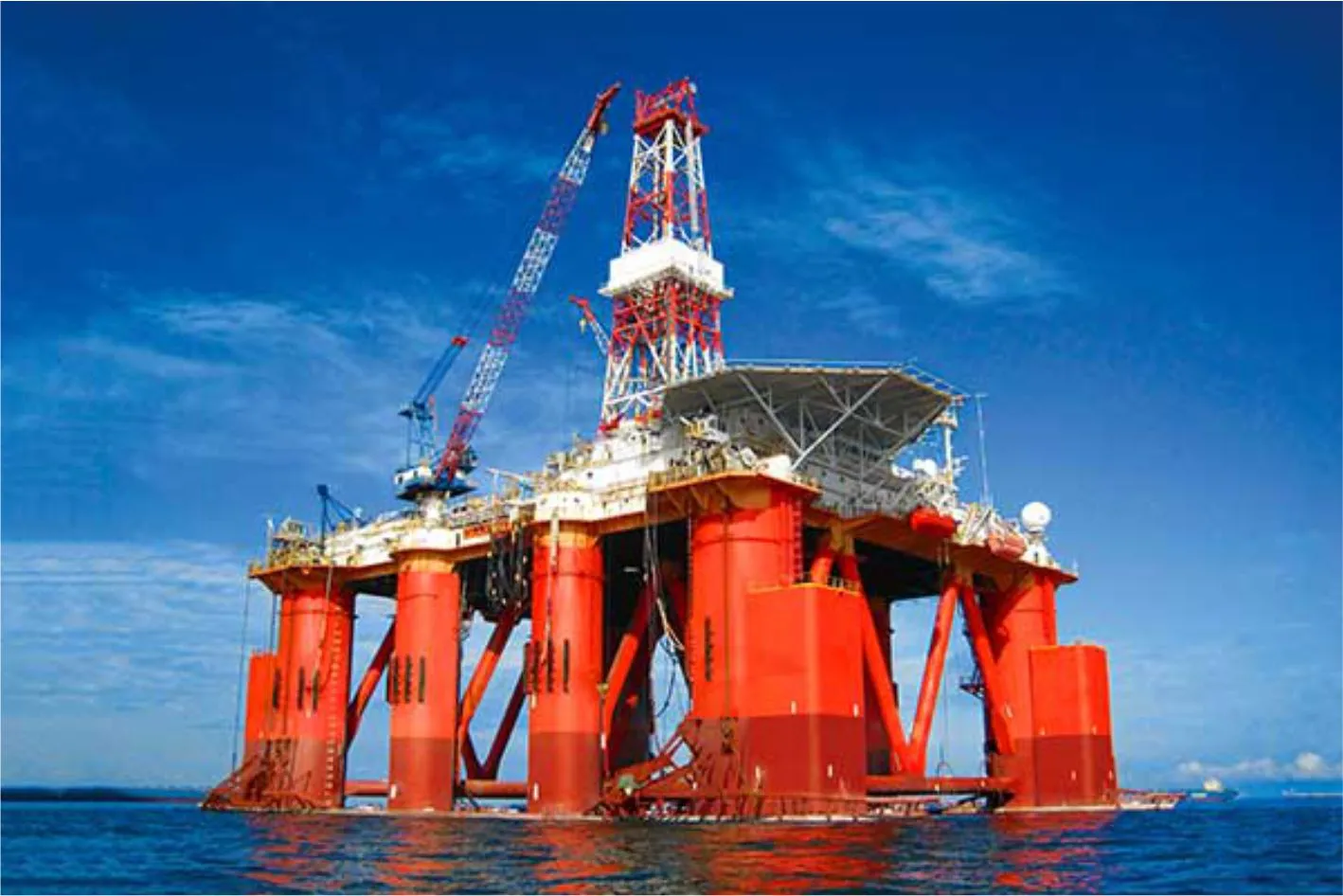

Hydraulic Cylinder for Drilling Platform

Hydraulic Cylinder for Drilling Platform

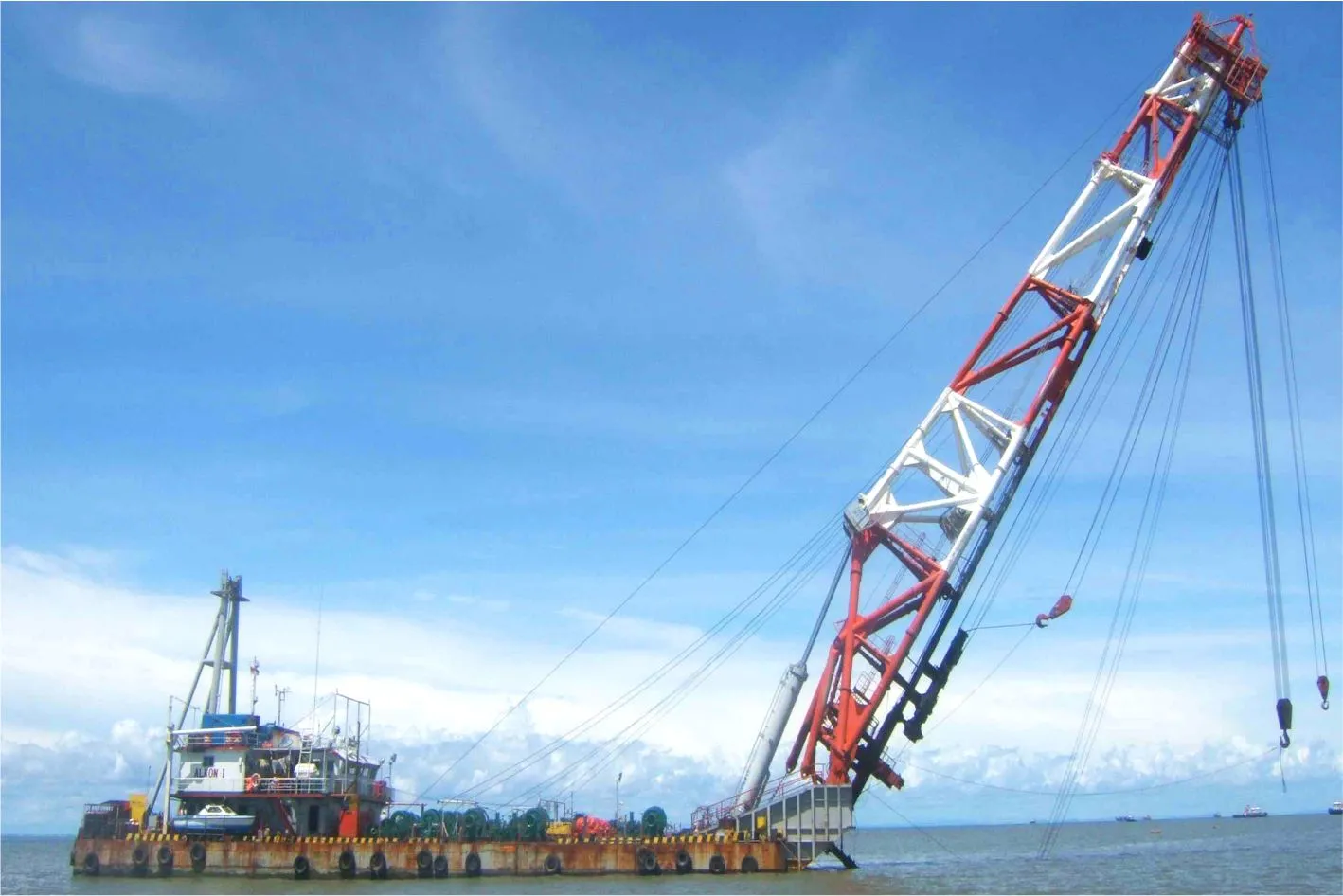

Hydraulic Cylinder for Pile Driving Barge

Hydraulic Cylinder for Pile Driving Barge

Offshore Hydraulic Cylinder Parts:

Offshore hydraulic cylinders are designed to withstand the harsh conditions of the marine environment. They are typically made from corrosion-resistant materials such as stainless steel and nickel-plated steel. Offshore hydraulic cylinders are also typically equipped with special seals and coatings to protect them from salt water, sand, and other contaminants.

The following are some of the most important parts of an offshore hydraulic cylinder:

  • Cylinder barrel: The cylinder barrel is the main body of the cylinder. It is typically made from a thick-walled metal tube.
  • Cylinder head: The cylinder head seals the end of the cylinder barrel and provides a mounting point for the piston rod.
  • Piston rod: The piston rod is a metal rod that extends from the piston and is used to transmit force to the external load.
  • Piston: The piston is a disk-shaped object that slides inside the cylinder barrel. It is typically made from a metal or plastic material.
  • Seals: Seals are used to prevent hydraulic fluid from leaking from the cylinder. They are typically made from rubber or other elastomeric materials.
  • Mounts: Mounts are used to attach the cylinder to the equipment it is operating. They are typically made from metal and are designed to withstand high forces.

Offshore Hydraulic Cylinder Repair:

Offshore hydraulic cylinder repair is the process of fixing or replacing hydraulic cylinders that are used in offshore applications. Hydraulic cylinders are used in a wide variety of offshore equipment, including cranes, winches, jack-ups, and drilling rigs.

Offshore hydraulic cylinders are exposed to harsh environmental conditions, such as saltwater, sand, and extreme temperatures. This can lead to wear and tear, as well as corrosion. If a hydraulic cylinder fails, it can cause significant downtime and expense.

HZPT is a leading company that specializes in offshore hydraulic cylinder repair. We have the experience and expertise to repair or replace hydraulic cylinders of all types and sizes.

The process of offshore hydraulic cylinder repair typically involves the following steps:

  1. The cylinder is removed from the equipment and disassembled.
  2. The cylinder components are inspected for damage and wear.
  3. Damaged or worn components are repaired or replaced.
  4. The cylinder is reassembled and tested to ensure that it is functioning properly.
  5. The cylinder is reinstalled in the equipment.

Offshore hydraulic cylinder repair can be a complex and expensive process, but it is often more cost-effective than replacing the cylinder entirely.

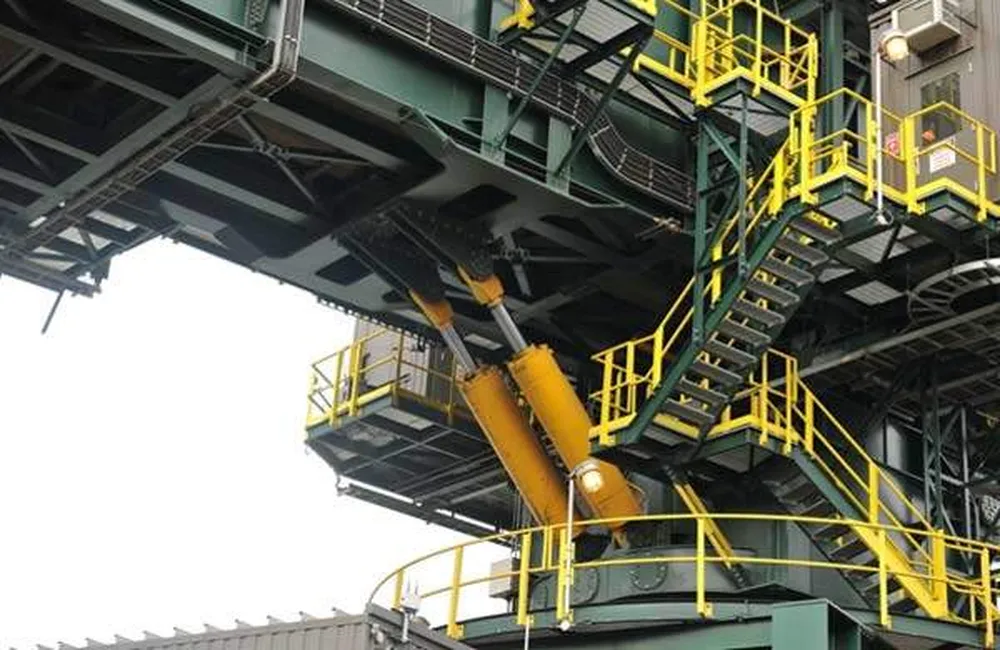

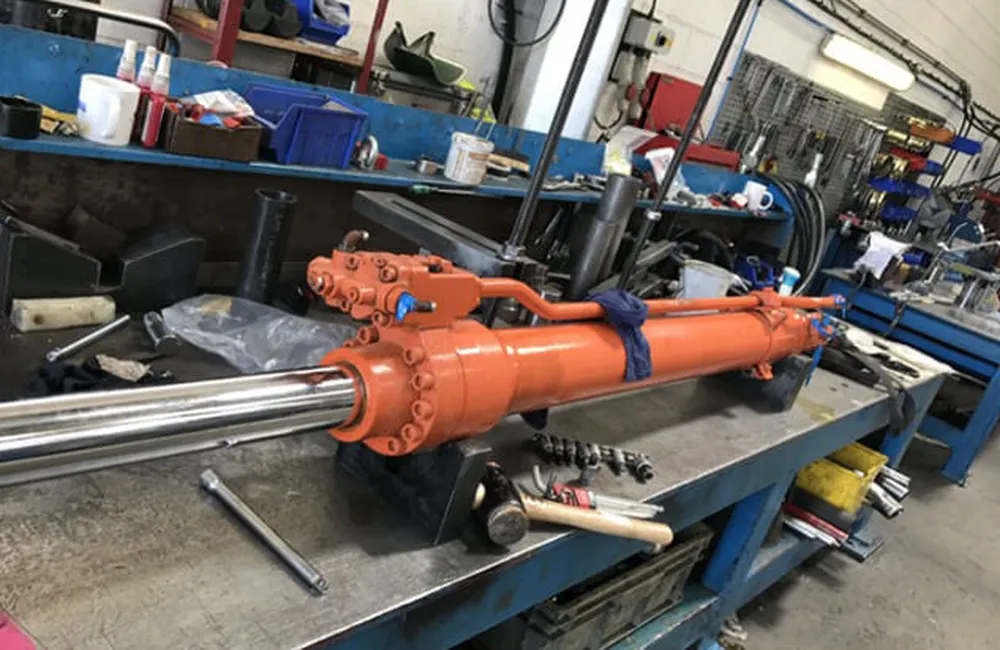

Offshore Hydraulic Cylinder Repair Offshore Hydraulic Cylinder Repair

Offshore Hydraulic Cylinder Applications:

Offshore hydraulic cylinders have various applications in the offshore industry, particularly in offshore oil and gas exploration, production, and maintenance. Here are some common applications of offshore hydraulic cylinders:

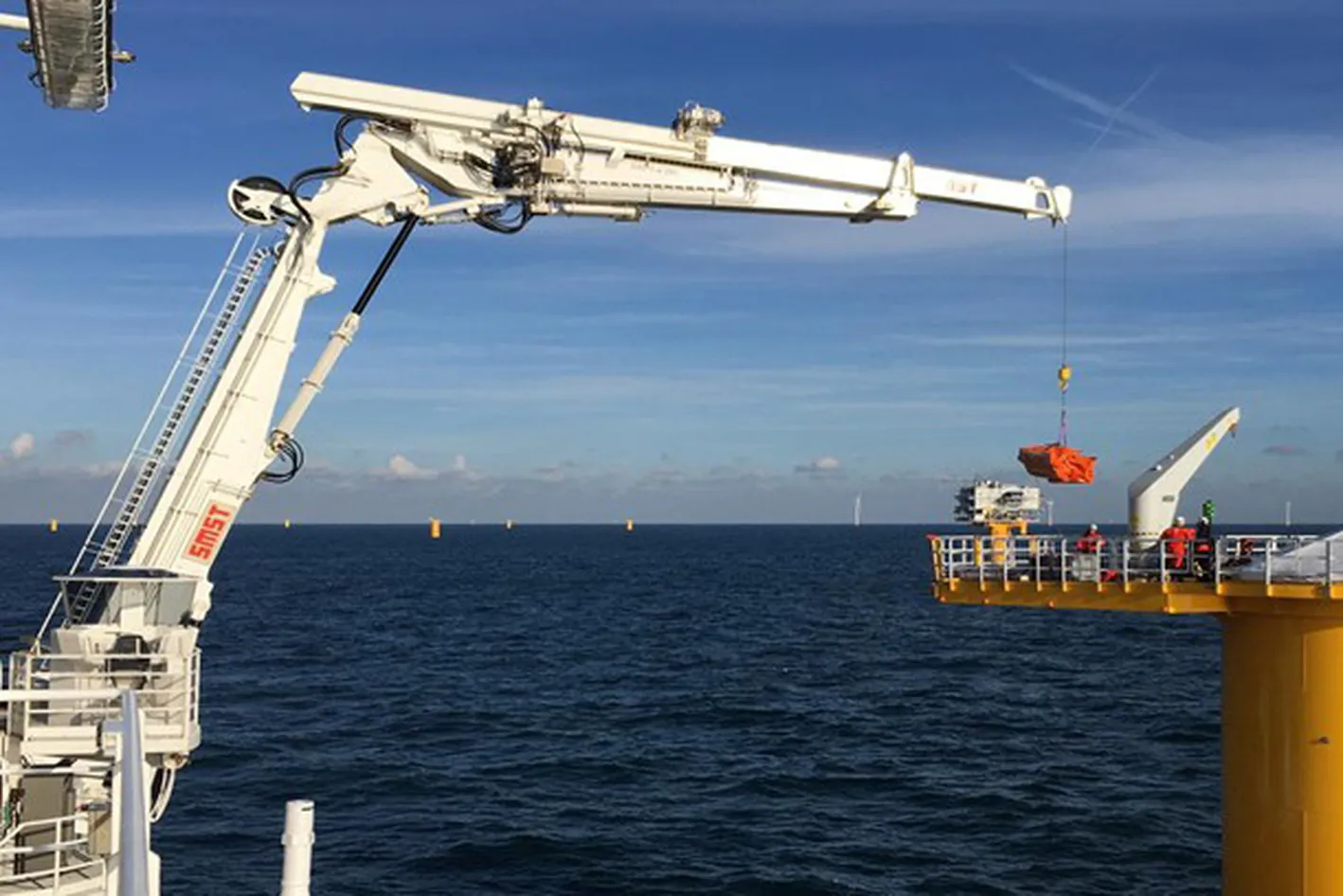

(1) Offshore Cranes: Hydraulic cylinders are used in offshore cranes to provide lifting and lowering capabilities for heavy loads. These cylinders play a crucial role in the operation of cranes, allowing them to lift and move equipment, materials, and structures both on and off the offshore platforms.

(2) Subsea Equipment: Hydraulic cylinders are utilized in subsea equipment, such as remotely operated vehicles (ROVs) and subsea manipulators. These cylinders enable the precise movement and control of the robotic arms and tools used for various tasks, including inspection, maintenance, and repair of underwater infrastructure.

(3) Jack-up Systems: In offshore drilling, jack-up rigs are used to drill wells in shallow waters. Hydraulic cylinders are employed in the jack-up systems to raise and lower the legs of the rig, providing stability and ensuring proper positioning of the drilling platform.

(4) Pipelaying Equipment: Offshore hydraulic cylinders are utilized in pipelaying equipment, such as tensioners and aligners. These cylinders assist in the laying of subsea pipelines by providing the necessary tension and alignment control during the pipelaying process.

(5) Offshore Winches: Hydraulic cylinders are employed in offshore winches to control the movement of wire ropes and cables. These winches are used for various purposes, including anchor handling, towing, and lifting operations.

(6) Offshore Platform Operations: Hydraulic cylinders find applications in several operations on offshore platforms, such as wellhead control, production control, and valve actuation. They enable the precise control of valves, gates, and other equipment, ensuring the efficient and safe operation of the offshore platforms.

(7) Offshore Mooring Systems: Hydraulic cylinders are used in offshore mooring systems to provide tension and control the position of mooring lines. These systems are crucial for keeping offshore structures, such as floating production units or semi-submersible platforms, securely anchored to the seabed.

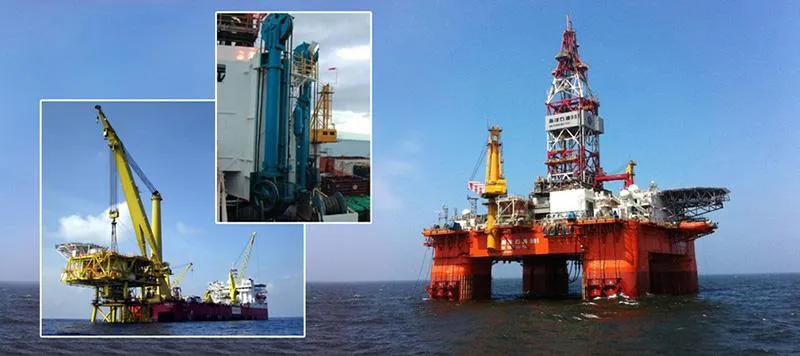

Offshore Hydraulic Cylinder Applications
