Micro-oil Air Compressor

We don't only provide , but also provide perfect solution to meet your different requirements

Click Here

8~12bar Micro-oil Screw Air Compressor

CM B Series Fixed Speed Oil-free Screw Air Compressor

CMN/A series fixed frequency micro-oil screw air compressor

CMN***ADVW
Micro Oil SeriesHorse PowerStandard TypeLow pressureVariable Speed TypeWater Cooling Type

CMN37AW as the cooling unit,”w” represents water cooling type

CM B Series Fixed Speed Oil-free Screw Air Compressor

CMN/PV series variable frequency micro-oil screw air compressor

CMN***ADVW
Micro Oil SeriesHorse PowerStandard TypeLow pressureVariable Speed TypeWater Cooling Type



*CM–BF is an air-cooled unit, the orange data in the table is the data of the air-cooled unit, and there is no F in the model for the water-cooled unit model

20~40bar Micro-oil Screw Air Compressor

CM B Series Fixed Speed Oil-free Screw Air Compressor

CMN/G series fixed frequency micro-oil screw air compressor

CM B Series Fixed Speed Oil-free Screw Air Compressor

CMN/GPV series variable frequency micro-oil screw air compressor

  • CM242GPV
  • CMN130GPV
  • CMN130GPV

✔ No shaft sealing design, durable using

✔ Low energy consumption

✔ High temperature resistance

✔ Low oil content <2PPM

structure design air compressor

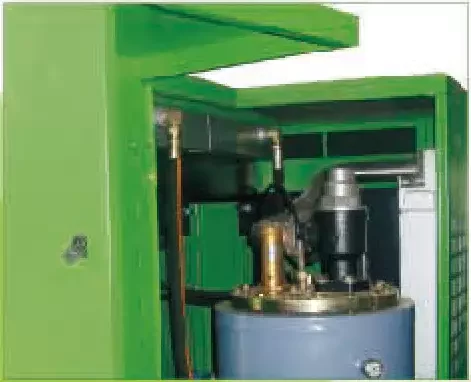

Structure Design

Independent structure design patent of the oil-air separating tank installation position, more convenlent for maintenance.

motor

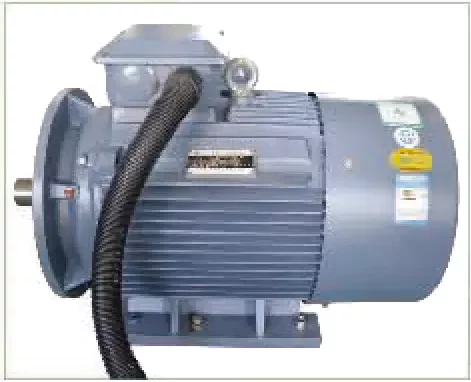

Motor

High-quality well known brand motor, protection level IP54, insulation level F , grease lubrication, SKF , high efficiency, special design according to the customers requirement

Control Valve

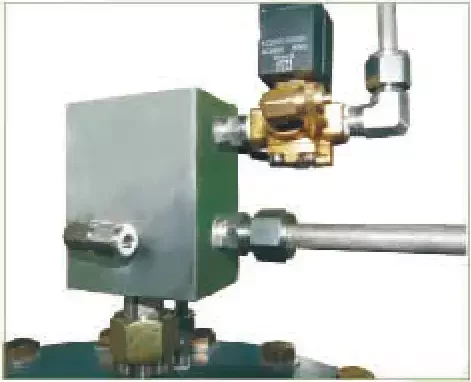

Control Valve

The control valve with patent technology (thepatent number is 200820164694.2) ensures the control wlthout failure and the service life more than ten years.

Airend

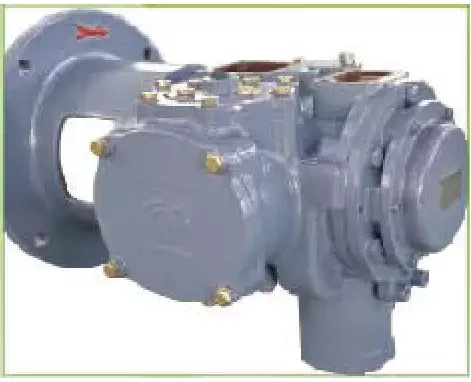

Airend

The high-performance airend with the patent technalogy ensures the energy saving of the whole machine and the energy consumption is over 10% lower than the same products.

Air oil separating barrel

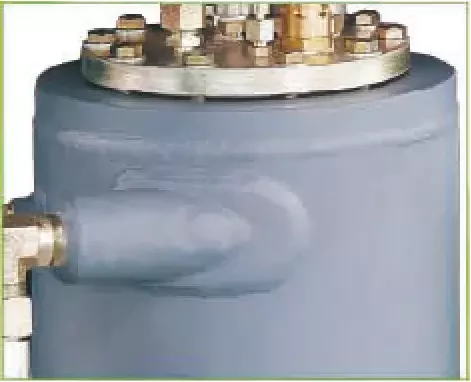

Air oil separating barrel

The unique design of air all separating barrel with the high-quality oil separating core and oll return quantity < 0.45 g per cube meter per minute makes the oil content in air < 2PPM.

Cooling System

Cooling System

The induced-draft cooling system with the best radiation effect ensures the air compressor failure free operation at 50℃.

How Energy Efficient Our Air Compressors Are!

Motor powerFAD3-Level energy efficiency3-Level energy efficiencyOur energy consumptionElectricity saved(1-hour)Electricity saved(1-day)
kWm³/minkW/(m³/min)kW/(m³/min)kW/(m³/min)KwhKwh
111.81≤10.2≤8.97.642.2855
152.60≤9.5≤8.47.382.6564
18.53.3≤9.5≤8.47.263.7690
223.9≤8.9≤8.17.13.994
304.92≤8.9≤8.17.682.0649
376.3≤8.9≤8.17.25.67136
457.5≤8.4≤8.17.63.7590
5510.3≤8.4≤7.36.884.33104
7512.6≤8.4≤7.37.092.6563
9016.11≤8.4≤7.36.985.15124
11019.6≤8.1≤7.16.943.1475
13222.21≤8.1≤7.17.02.2253
