FHPK Bushing

FHPK bushings are split taper bushings that are designed for use in drives with lower torque. They feature keys that help lock them in place on the shaft. FHPK bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmission. The double split steel sleeve is heat treated for strength and durability. FHPK bushings are available in a variety of sizes and materials to meet the specific needs of your application.

Here are some of the key features of FHPK bushings:

  • Split taper design for easy installation and removal
  • Keys to lock bushing in place on shaft
  • Heat-treated steel sleeve for strength and durability
  • Available in a variety of sizes and materials

FHPK Split Taper Bushing Size Chart:

Bushing Part No. Outside Diameter (O.D.) Inside Diameter (I.D.) Length Keyway Size
FHP23K 5/8″ 1/2″ 1 1/8 3/16 X 5/32 — 1/8 X 1/16
FHP1K 3/4 1/2 1 1/8 3/16 X 7/32 — 1/8 X 1/16
FHP8K 3/4 9/16 1 1/8 3/16 X 5/32 — 1/8 X 1/16
FHP2K 3/4 5/8 1 1/8 3/16 X 1/4
FHP3K 1 5/8 1 1/8 1/4 X 5/16 — 3/16 X 3/32
FHP9K 1 11/16 1 1/8 1/4 X 9/32 — 3/16 X 3/32
FHP4K 1 3/4 1 1/8 1/4 X 1/4 — 3/16 X 3/32
FHP10K 1 13/16 1 1/8 1/4 X 7/32 — 3/16 X 3/32
FHP5K 1 7/8 1 1/8 1/4 X 5/32 — 3/16 X 3/32
FHP20K 1 15/16 1 1/8 1/4 X 9/32
FHP12K 1 7/16 1 1/16 1 3/8 3/8 X 11/32 — 1/4 X 1/8
FHP13K 1 7/16 1 1/8 1 3/8 3/8 X 5/16 — 1/4 X 1/8
FHP14K 1 7/16 1 3/16 1 3/8 3/8 X 9/32 — 1/4 X 1/8
FHP15K 1 7/16 1 1/4 1 3/8 3/8 X 1/4 — 1/4 X 1/8
FHP16K 1 7/16 1 5/16 1 3/8 3/8 X 7/32 — 5/16 X 5/32
FHP17K 1 7/16 1 3/8 1 3/8 3/8 X 3/16 — 5/16 X 5/32

FHPK Split Taper Bushing Advantages:

FHPK split taper bushings offer several advantages over other types of bushings:

1. Easy Installation: FHPK split taper bushings are designed with a split along their length, which allows them to be easily installed and removed from a shaft without the need for any special tools or equipment. This makes them a popular choice in applications where frequent maintenance or replacement of equipment is required.

2. Reduced Downtime: Because FHPK split taper bushings are easy to install and remove, they can significantly reduce downtime in the event of equipment failure or maintenance. This can be especially beneficial in industrial applications where downtime can be costly.

3. High Torque Capacity: FHPK split taper bushings are designed to transmit high levels of torque, making them suitable for use in heavy-duty applications. The split design of the bushing also helps to distribute the load evenly, reducing the risk of damage to the shaft or other components.

4. Compatibility: FHPK split taper bushings are compatible with a wide range of shaft sizes and configurations, making them a versatile choice for many different applications. They can also be used with a variety of different types of couplings, such as belts, chains, and .

FHPK Split Taper Bushing Advantages FHPK Split Taper Bushing Advantages

China FHPK Split Taper Bushing Manufacturers:

Are you looking for high-quality bushings or replacement bushings for your industrial or agricultural needs? Look no further than HZPT, where our comprehensive selection of , QD bushing, and split taper bushing will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we'll have the right fit for your application.

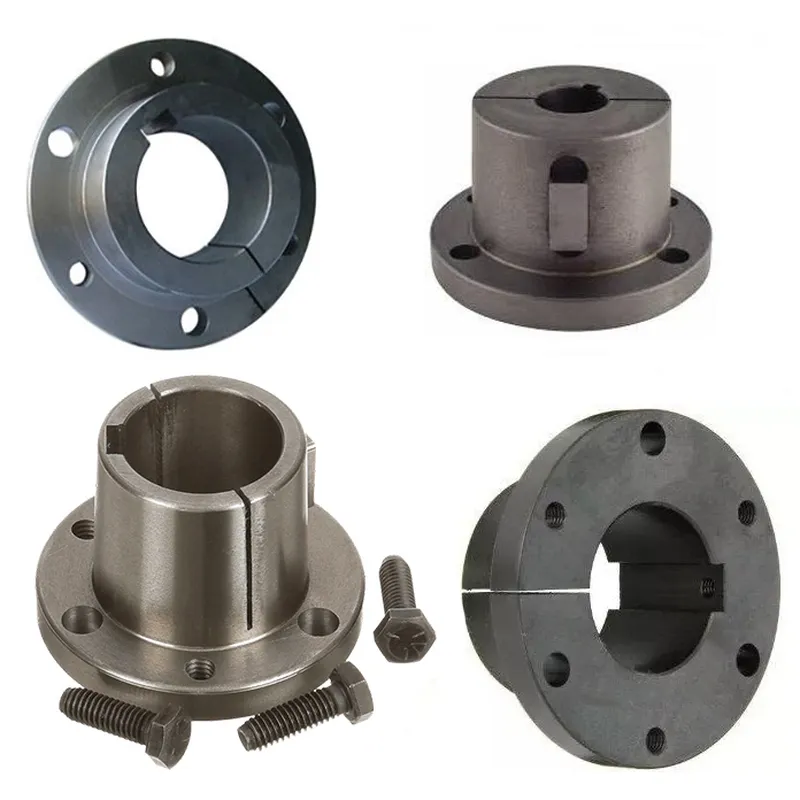

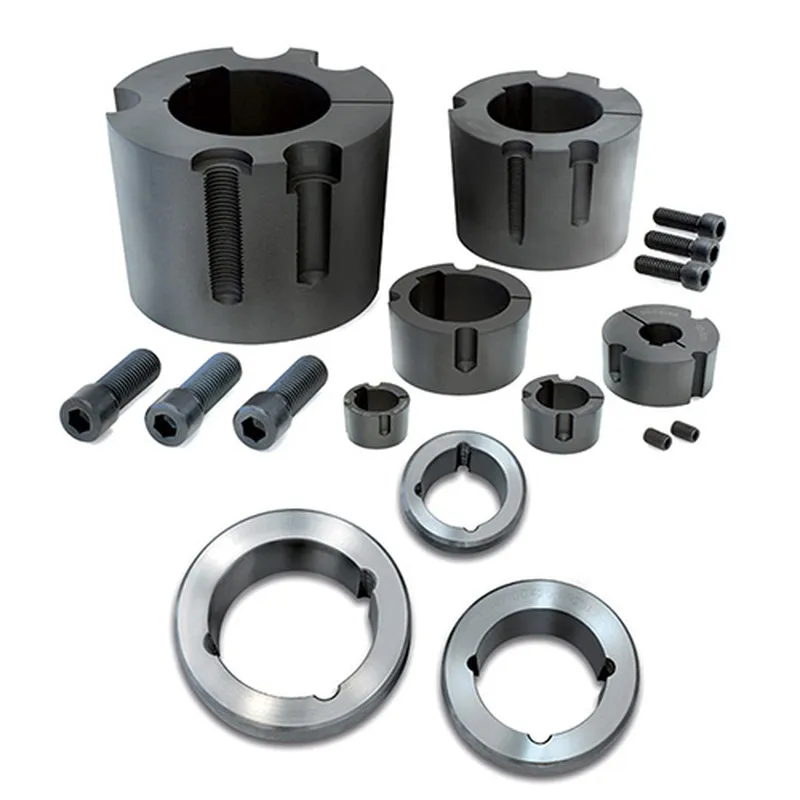

China FHPK Split Taper Bushing Manufacturers China FHPK Split Taper Bushing Manufacturers
