3 Point Quick Hitch

A 3 point quick hitch for a tractor is an attachment that allows a tractor to quickly and easily connect to various agricultural implements. The 3 point quick hitch system consists of two lower lift arms and an upper link that connect the tractor to the implement. The 3-point quick hitch is designed to allow operators to attach implements to the tractor in a matter of seconds, without the need for manual alignment of the lift arms with the implement’s pins. This saves time and reduces the risk of injury from manually lifting and aligning heavy implements. The tractor 3 point quick hitch also helps ensure a more secure connection between the tractor and the implement, providing a safer operating environment for the operator.

Best 3 Point Quick Hitch for Category 1 & 2 Tractors

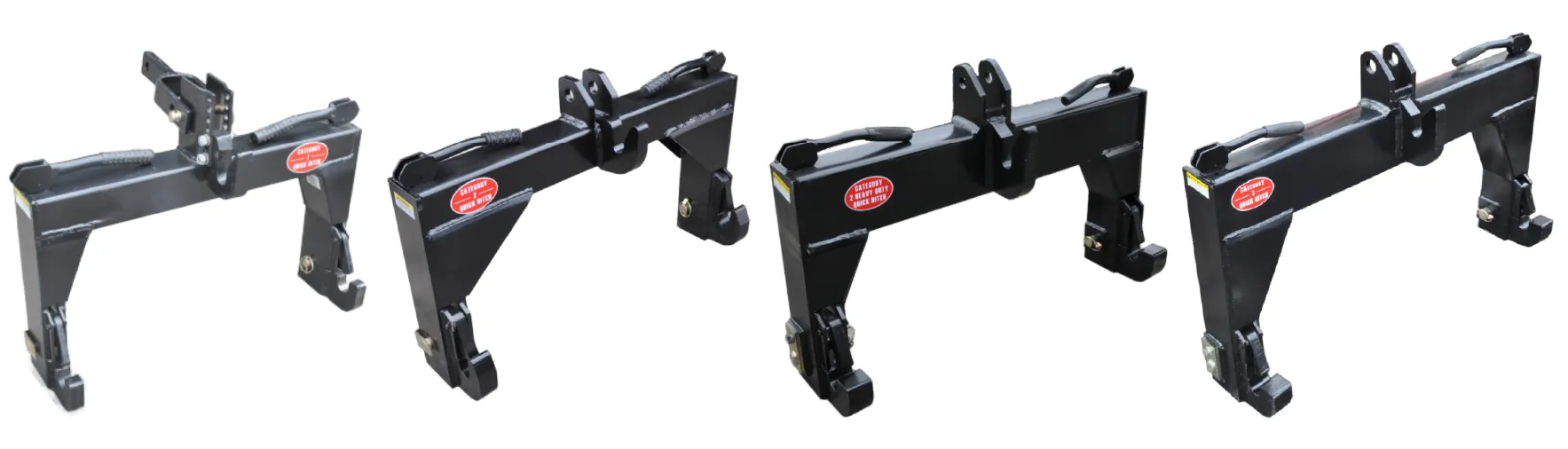

Tractor 3 Point Quick Hitch Dimensions

Tractor 3 point quick hitches allow you to switch and attach your implements quickly and easily
• Built to ASAE standards
• Mounting pins and adapter bushings (if applicable) are included
• Full line from CAT 1 to CAT 3 3 point quick hitch
• CAT 1 3 point quick hitch comes with an adjustable hook

Category	Max HP	Width (W)	Lower Hook to	Lower to Up-	Weight	SKU
Category	Max HP	Width (W)	Top Link (H)	pe Hook (L)	( bs)	SKU
3 Point Quick Hitch Category 1	50	27.25	18.5	15-18.5	80	25-005
3 Point Quick Hitch Category 2	100	32.75	21.5	15	139	25-010
3 Point Quick Hitch Category 2 HD	150	32.5	21.5	15	165	25-019
3 Point Quick Hitch Category 3	225	38.25	24.5	19	182	25-020
3 Point Quick Hitch Category 3 Narrow	225	32.5	24.5	19	176	25-021
3 Point Quick Hitch Category 2 / 3	225	38.25	24.5	19	185	25-022

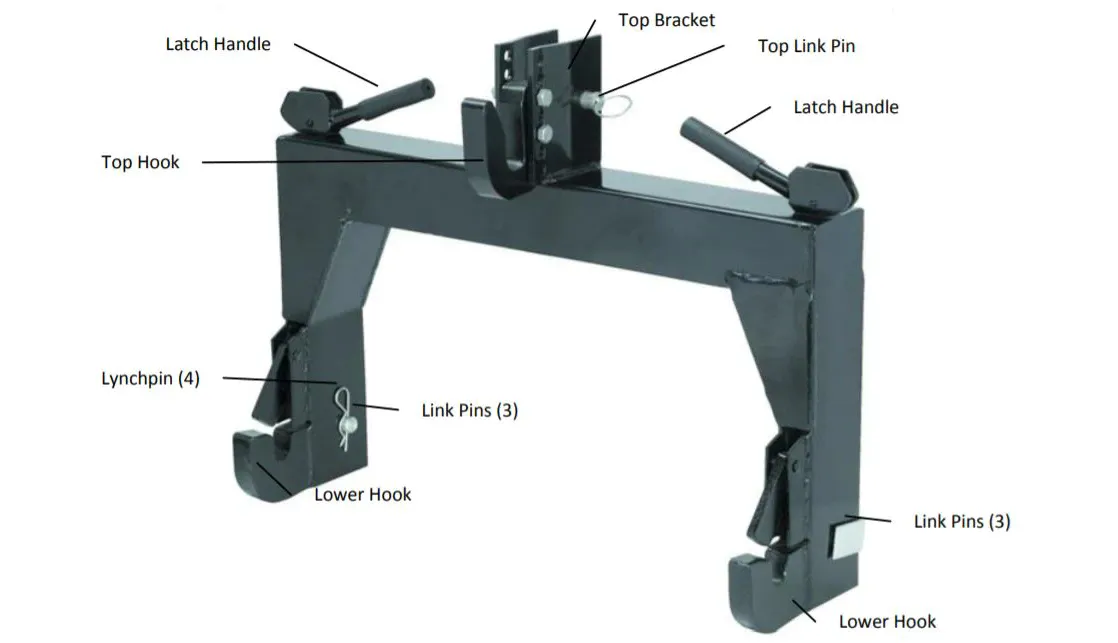

Tractor 3 Point Quick Hitch Parts

Tractor 3 Point Quick Hitch Characteristics

The tractor 3 point quick hitch has high adaptability with tractors, mainly used for category 1 and 2 tractors, and can be installed without damaging tractors. The 3 points quick hitch is made of alloy steel for high strength and strong compression resistance. The 3 points quick hitch for tractor strengthens stability by thickening the bottom plate and welding the triangular steel plate. The detailed design of the 3 point quick hitch bushing is humanized. The lever force pulls down the lower link to achieve the effect of labor-saving. The 3 point quick hitch pin hook has the function of a fixed position to strengthen the security of operation.

High Compatibility
No Drilling Required
Rigid Alloy Steel
Reinforced Structure
Effortless Operation

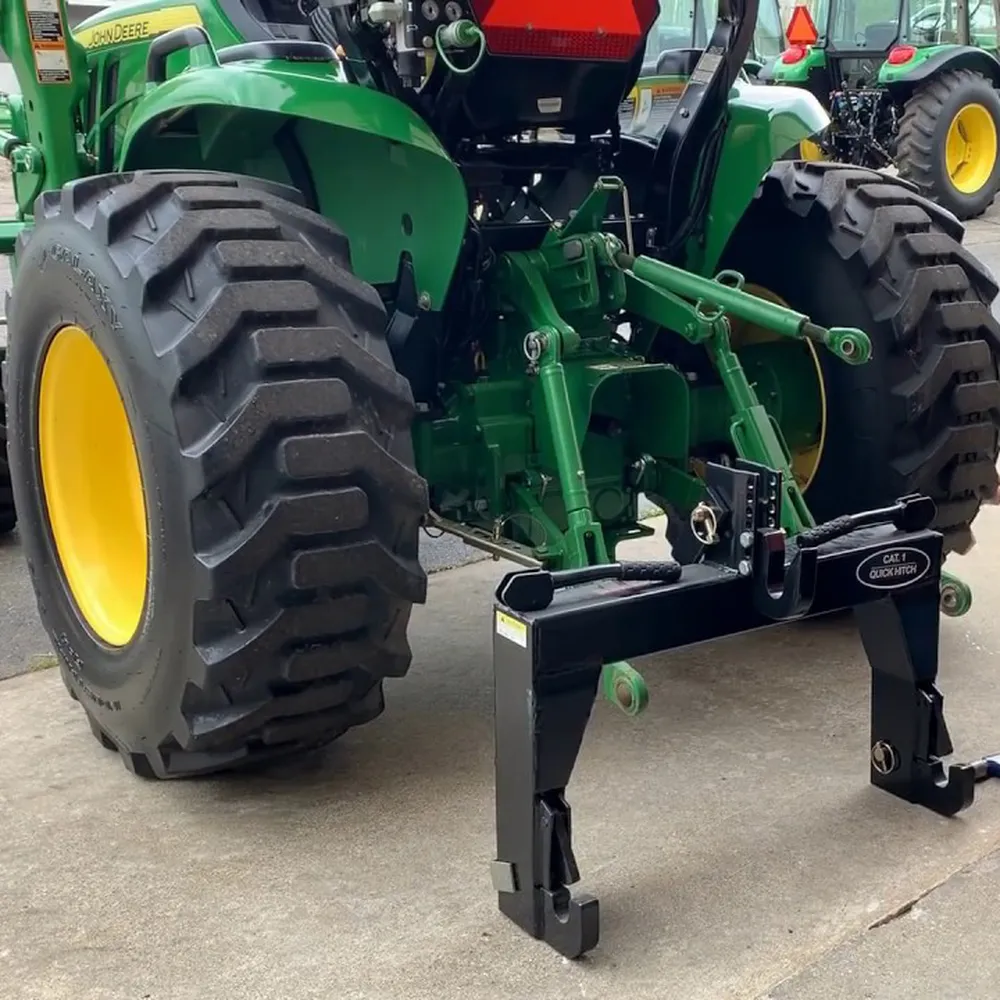

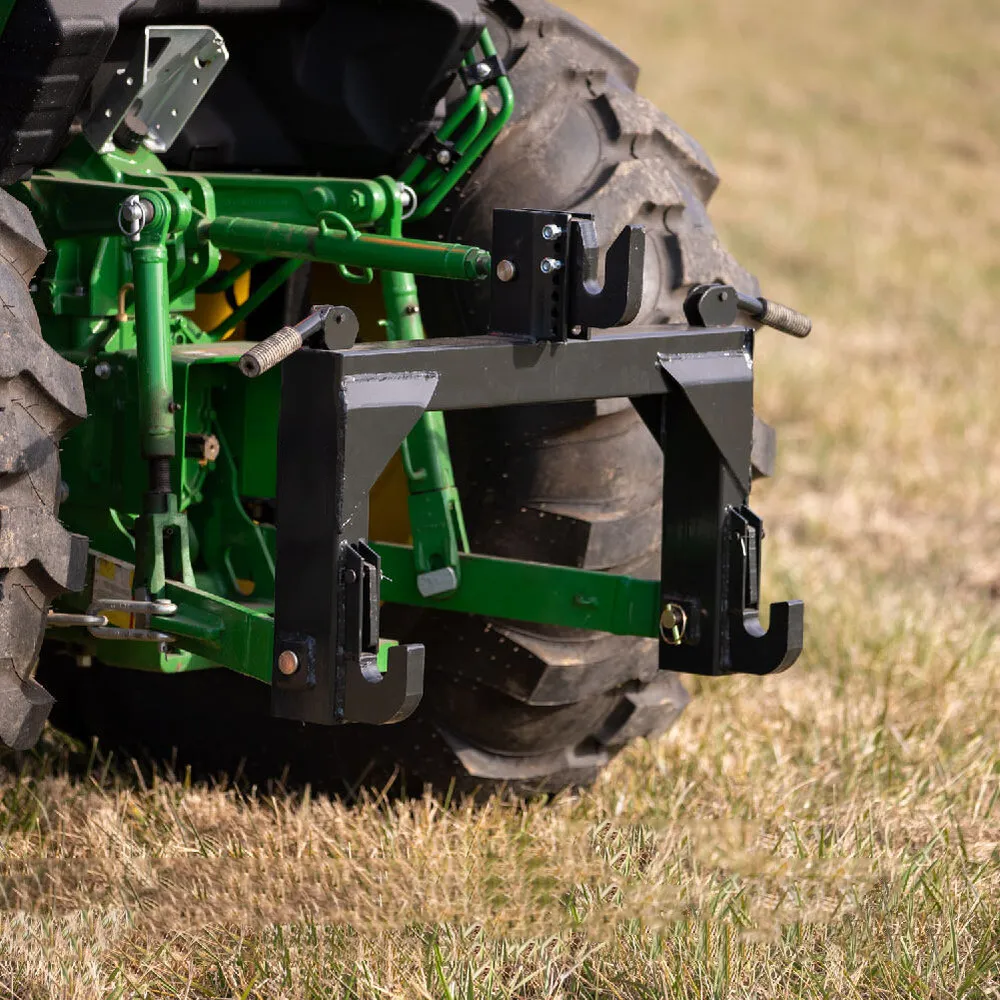

How Does a 3 Point Quick Hitch Work?

A 3-point quick hitch is a mechanism used to easily attach and detach three-point implements from the tractor’s rear. The 3 point quick hitch consists of two parts – the hitch frame and the implement frame.

To use the hitch, the tractor’s three-point linkage arms are lowered and the implement’s lifting arms are attached to the tractor’s arms. The implement frame is then secured with locking levers or pins.

With a 3-point quick hitch, the implement can be easily disconnected from the tractor by releasing the locking levers or pins and removing the implement’s lifting arms from the tractor’s arms. This allows for quick and easy switching between different implements without the need for manual lifting or adjustment of the implement.

How to Attach the Implement to the 3 Point Quick Hitch?

Attaching an implement to a 3 point quick hitch involves the following steps:

1. Ensure that your tractor’s hitch is securely attached to the tractor, and the implement is on level ground.

2. Align the 3 point quick hitch with the pins on the implement.

3. Lower the 3 point quick hitch arms and connect them to the pins on the implement.

4. Ensure that the locking mechanism is in place to secure the implement in place. Some 3 point quick hitches have a locking lever, while others have locking pins.

5. Lift the 3-point quick hitch arms to ensure that the implement is level and securely attached.

6. Test your implement to make sure it is working properly.

It is important to follow the specific instructions for your 3 point quick hitch and the recommended weight limit and capacity for your tractor.

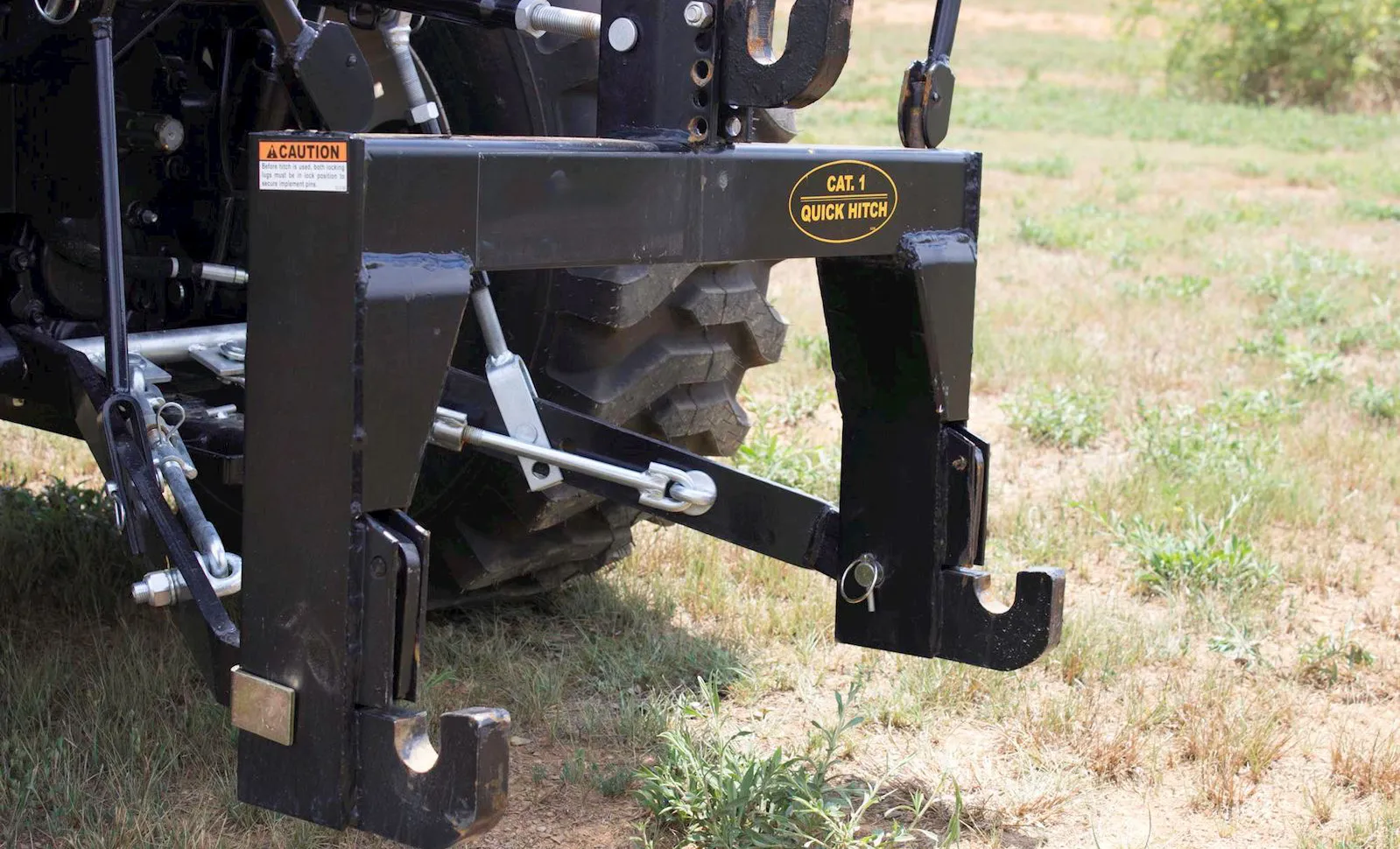

Tractor 3 Point Quick Hitch Maintenances

Maintaining your tractor’s 3-point quick hitch is important for safety and functionality. Here are some tips to keep it in good condition:

Inspect it regularly: Before using your 3 point quick hitch, visually inspect all parts for cracks, wear, and damage. Replace any damaged components immediately to avoid a safety hazard.

Keep it lubricated: Regularly lubricate all moving parts of the 3 point quick hitch to prevent rust and promote smooth operation. Use a high-quality lubricant suitable for the hitch’s material.

Clean it regularly: Dirt, mud, and debris can accumulate in and around the 3 point quick hitch. Clean it regularly to prevent wear, corrosion, and hindered operation. It also easier to spot any problems when everything is clean.

Check alignment: Your tractor’s 3-point quick hitch needs to be aligned correctly with your equipment to work correctly, ensure proper alignment before connecting. Poor alignment can prematurely wear out your equipment and damage your hitch.

Use it properly: Follow the manufacturer’s instructions on how to use your 3 point quick hitch correctly to prevent damaging it or causing accidents. Never overload the hitch beyond the weight capacity and avoid jerky movements that can damage the hitch or equipment.

By following these few maintenance tips, you will increase the longevity of your 3-point quick hitch, and most importantly, keep yourself, your equipment, and others around you safe.
