Worm Thread Grinding Machine
A worm thread grinding machine is a highly specialized machine tool used to precisely grind the threads of worm gears. Worm gears are used in a variety of applications, including precision mechanisms, aerospace, and robotics. The precision grinding process ensures that the worm gear has the correct shape and size to function properly.
EVERPOWER-TAINUO TOOL CO., LTD.
Key Features
When it comes to worm grinding, precision and efficiency are essential for achieving high-quality results. We specialize in providing state-of-the-art worm grinding machines that are designed to meet the demands of various applications. I
Precision
Our worm grinding machines are precision-manufactured to ensure smooth and precise operation. Every component is carefully crafted and assembled to guarantee accuracy and repeatability in the grinding process.
Materials
We use premium materials such as cast iron, steel, and aluminum in the construction of our worm grinding machines. This ensures their durability, longevity, and resistance to wear and tear.
Heavy-Duty Construction
Our machines are built with a robust and heavy-duty design to withstand the demanding nature of worm grinding operations. They are capable of handling high torque and power requirements, ensuring reliable performance even under challenging conditions.
Wide Variety of Options
We offer a diverse range of worm grinding machines to meet various power levels, sizes, and applications. Whether you need a compact machine for small-scale operations or a high-capacity machine for industrial-scale production, we have the right solution for you.
CNC Worm Thread Grinding Machine Uses
Worm thread grinding machines are used to produce a wide variety of worm gears, including:
- Traction machine worm gears: These gears are used to transmit power from the engine to the wheels. They must be strong and durable to withstand the harsh conditions of agricultural use.
- Gearbox worm gears: These gears are used in gearboxes to reduce speed and increase torque.
- Double-lead worm gears: These gears have two lead angles, which allows them to transmit more torque than single-lead worm gears.
- High-precision worm gears: These gears are used in applications where high accuracy is required, such as in precision instruments.
- C1-grade screws: These screws are used in applications where high precision and low friction are required, such as in machine tools.
- Ball-race screws: These screws are used in applications where high load capacity and low friction are required, such as in elevators.
- EPS worm gears: These gears are used in electric power steering systems.
- Worm gears for automotive applications: These gears are used in a variety of automotive applications, such as in transmissions, steering systems, and brakes.
Main Products
-

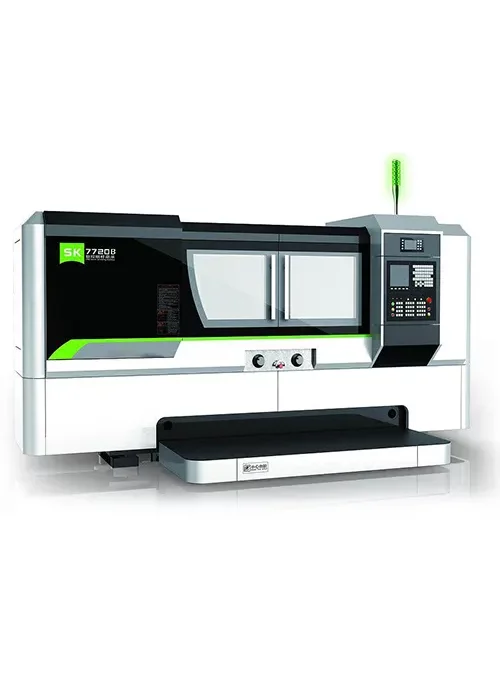

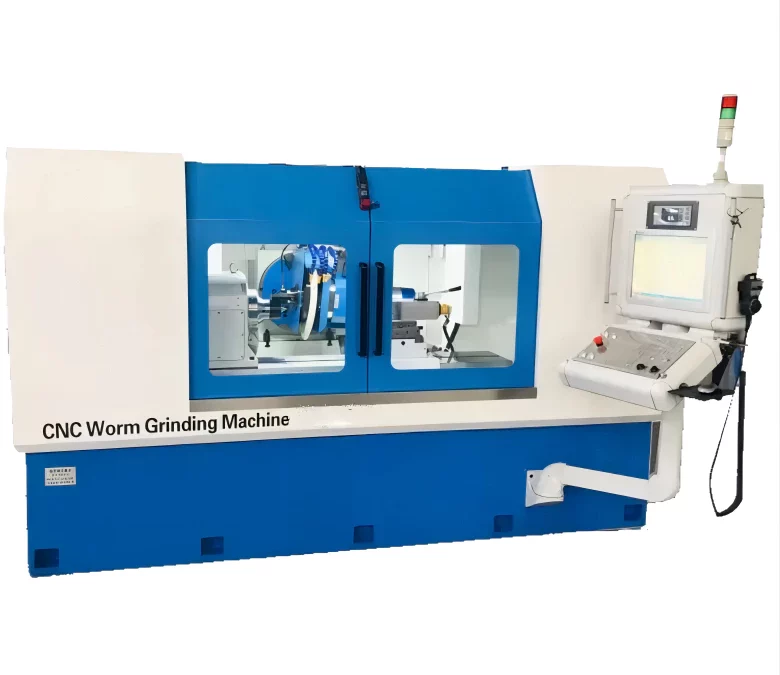

Worm Grinding Machine
-
CNC Worm Thread Grinding Machine Replacement of Tainuo WGM-750
-
CNC Worm Thread Grinding Machine Replacement of Tainuo WGM-550
-
CNC Worm Thread Grinding Machine Replacement of Matrix THW-2080
-
CNC Worm Thread Grinding Machine Replacement of Matrix THW-3080
-
CNC Worm Thread Grinding Machine Replacement of HJMT SK7720B
-
CNC Worm Thread Grinding Machine Replacement of HJMT SK7712
Worm Grinding Machine Manufacturer
EVERPOWER-TAINUO TOOL CO., LTD. We are a professional CNC machine tool manufacturer with a team of experienced engineers and operators. Our products are designed with computer-optimized design and produced using full CNC processing technology and a complete quality control system (ISO9001 certification), ensuring that each product meets our customers’ needs. With excellent quality and cost-effectiveness, our customer base is currently growing at a rate of 10 units per month. Our company produces around 80 machine tools each year, including CNC worm thread grinding machines, shaping machines, and other specialized grinding machines. Our high-efficiency, high-precision performance, and independently developed software have made our products popular with customers worldwide. We adhere to the principle of “excellent quality, advantageous price, effective supply, and quality service,” and we invite customers to explore our products and contact us to purchase!

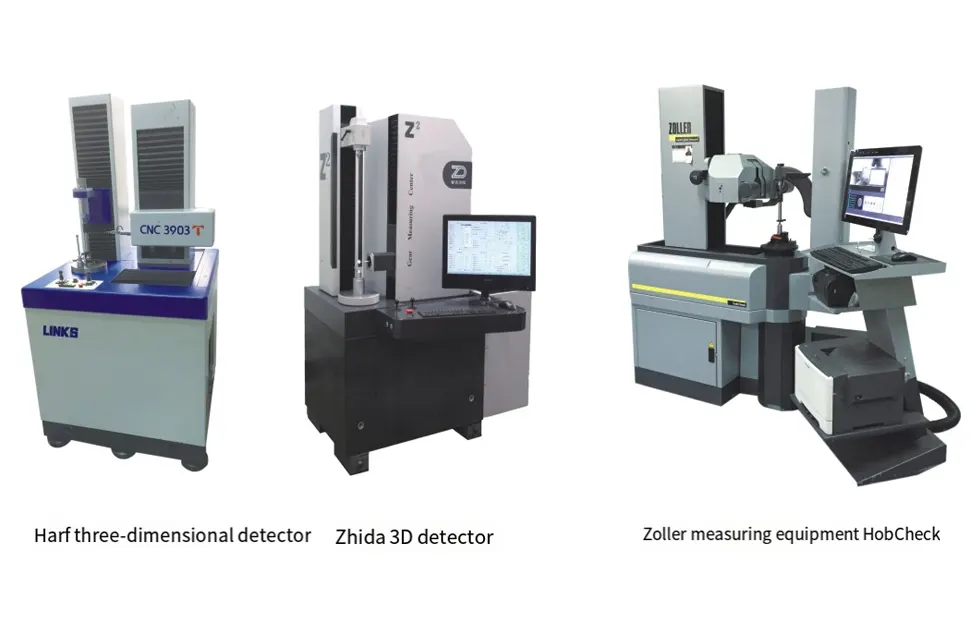

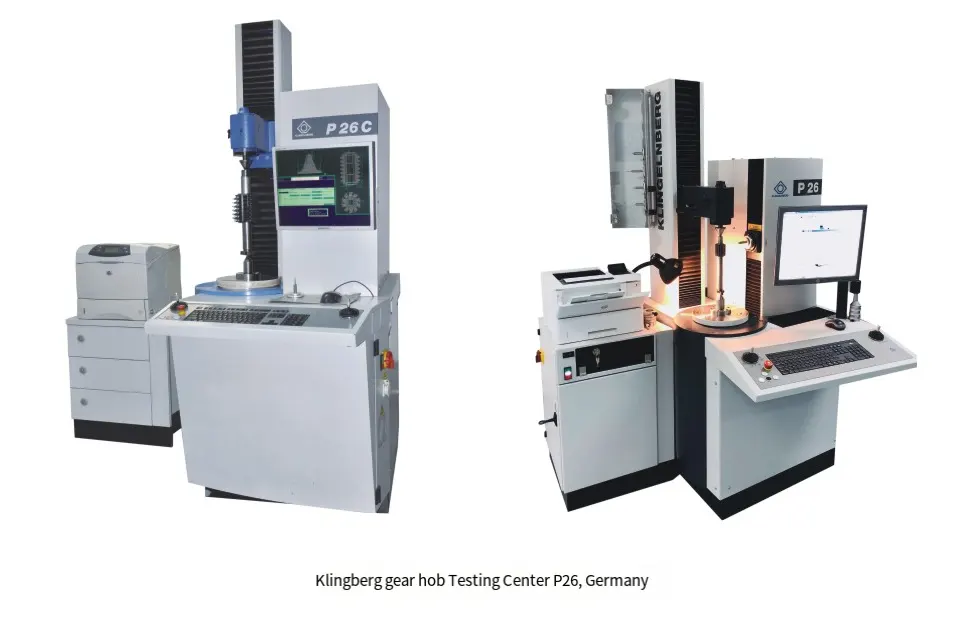

Testing Equipment
Worm Shaft Grinding Machine Structure
-
Bed:
The foundation of the machine, providing stability and vibration damping.
-
Worktable:
CNC rotary tables mount and precisely position the workpiece relative to the grinding wheel. Equipped with linear guideways and ball screws for accurate and smooth movement along the X and Z axes.
-
Headstock:
Houses the grinding wheel spindle and its drive motor. Ensures high spindle speed and rotational accuracy for efficient grinding.
-
Grinding Wheel:
Made of abrasive material like CBN or diamond, shaped to match the desired thread profile. Dressed regularly to maintain sharpness and profile accuracy.
-
Wheel Dresser:
A separate unit with diamond dressing tools to reshape the grinding wheel as needed. Can be manual or CNC-controlled for precise and automated dressing.
-
Tailstock:
The tailstock supports the opposite end of the workpiece for stability and alignment. Can be fixed or movable for different workpiece lengths.
-
Control System:
The brain of the machine, controlling all axes, spindle speed, feed rates, and dressing operations. Typically a CNC system with a user interface for programming and monitoring.
-
Cooling and Lubrication System:
Provides coolant to the grinding zone to reduce friction, heat, and chip build-up. Ensures optimal grinding performance and protects the workpiece and grinding wheel.
Overall, the specific configuration of a CNC worm thread grinding machine may vary depending on its size, capacity, and intended applications. However, the core components listed above work together to achieve precise and efficient grinding of worm threads.
How CNC Worm Thread Grinding Machine Works?
CNC worm thread grinding machine is a type of machine tool that uses a grinding wheel to precisely grind the threads of a worm gear. The worm gear is a type of gear that has a helical shape. The helical shape of the worm gear allows it to transmit motion between two shafts that are not aligned with each other.
The CNC worm thread grinding machine works by using the relative motion between the grinding wheel and the workpiece to grind the threads of the worm gear. The grinding wheel is driven by the spindle, and the workpiece is driven by the worktable. The relative motion between the grinding wheel and the workpiece can be either axial or radial.
-
Axial motion: The grinding wheel and the workpiece move relative to each other in the axial direction of the workpiece. The workpiece rotates, and the grinding wheel moves axially on the workpiece.
-
Radial motion: The grinding wheel and the workpiece move relative to each other in the radial direction of the workpiece. The grinding wheel rotates, and the workpiece moves radially on the grinding wheel.
The cooling and lubrication system is used to reduce the friction between the grinding wheel and the workpiece, prevent the workpiece from overheating, and remove chips promptly. The control system is used to control the relative motion of the workpiece and the grinding wheel according to the machining parameters, and to achieve the control of machining accuracy.
Operation Process
The machining process of a CNC worm thread grinding machine generally includes the following steps:
- Clamp the workpiece. This is to secure the workpiece to the worktable to ensure that the workpiece does not move during machining.
- Adjust the grinding wheel. This is to adjust the radial runout and face runout of the grinding wheel to ensure that the contact surface between the grinding wheel and the workpiece is smooth and to reduce noise and vibration during machining.
- Enter the machining parameters. This is to enter the pitch, lead angle, spindle speed, and feed rate, etc., to control the machining process.
- Start the machine. This is to start the spindle and the worktable to make the workpiece and the grinding wheel start relative motion.
- Monitor the machining process. This is to observe the machining state of the workpiece, timely find the abnormality and take measures.
- Finish machining. This is to close the machine and clean the machining environment after machining.
Installation and Maintenance
Proper installation and maintenance are crucial for the optimal performance and longevity of your worm grinding machine. Here are some key considerations:
Professional Installation: Our machines require professional installation to ensure their correct setup and alignment. We provide detailed instructions for installation by a qualified technician.
Regular Maintenance: Regular maintenance is essential to keep your machine operating at its best. Follow the manufacturer’s maintenance schedule, including lubrication, cleaning, and inspection of critical components.
Operator Training: Proper training for machine operators is vital to ensure safe and efficient operation. We provide comprehensive user manuals to familiarize your team with the machine’s features and operation.
