Planetary Gear

Planetary gear, also called epicyclic gear, is a type of transmission that uses a series of arranged in a circular mesh to transmit motion. This gearing system is designed to reduce driver effort and increase comfort. They are commonly used in hybrid cars and automatic transmissions. A planetary gearbox has two distinct parts: a central sun gear and a with internal teeth that are concentric with the sun gear. These parts are mounted on a planet carrier. A planetary differential can be configured for unequal ratios or multiple input/output arrangements.

Planetary Gear
Planetary Gear

Planetary Gears

Planetary Gear Types

Planetary gears are a type of transmission that shares the load between two or more gears. This system has a high degree of stiffness and uniform mass distribution, and it is highly reliable. Planetary gears also feature an idler gear. They are usually used in planetary gear sets and are commonly found in industrial machines.

This gear set is used for transmissions in different machines, owing to its high efficiency, compactness, large transmission ratio, and high power-to-weight ratio. The different types of planetary gears include spur gears, single helical gears, and herringbone gears. The herringbone planetary gear train has higher load-carrying capacity and lower axial force, and it is also commonly used for heavy machinery.

Planetary gears are used when space and weight are important, and a high degree of speed reduction is necessary. They are frequently used in construction equipment and tractors that require high torque to drive wheels. They are also found in automatic transmissions, electric screwdrivers, and turbine engines. They are also used for agricultural, industrial, and forestry applications.

As a general rule, a planetary gearbox is highly efficient and can transmit 97% of the power input. In addition to being highly efficient, it can also reduce noise and vibration.

The Use of Planetary Gears

A planetary gear is a type of gear that transfers torque by sharing loads across multiple gear teeth. It is useful for applications in which the rotational direction changes frequently, such as those involving fast start-stop cycles. These gears are also known for their high stiffness and low backlash, making them ideal for frequent operation.

Epicyclic gears are used in a number of industries, including construction equipment. They are also used in automatic transmissions, electric screwdrivers, and turbine engines. These epicyclic gears can be small enough to fit into tight places but are large enough to transmit large amounts of torque. They are also suitable for use in bicycle shifting mechanisms.

The simplest planetary gear set is comprised of a sun gear and two or more planet gears. These gears are kept in a constant mesh by a common carrier. The ring component and the pinions are then attached to a carrier.

Automatic Transmission Planetary Gear Set

Are Planetary Gears Any Good?

When you hear the words planetary gears, you may wonder if they are any good. The planetary gear, also called epicyclic reduction gear, is a type of gearbox that divides the torque of a motor into three separate gears, one for each cylinder. In the process, it reduces noise and vibration. One of the main advantages of a planetary gearbox is that it has a low mass and high stiffness. Moreover, this characteristic is very useful for applications with frequent start-stop cycles and a high rotational direction change.

However, planetary gears are not a replacement for a conventional transmission. These gears need regular maintenance to ensure smooth operation and avoid damage. This is particularly important if you own a new vehicle that uses automatic transmission. Changing the transmission fluid is one way to prevent such problems. It also prevents the gears from wearing down over time, which can cause slipping and strange noises.

Planetary gears are often backdriven, which means that the torque applied to the “output” shaft rotates the input. This applies to both the auto transmission and differential, which is why they tend to be lighter.

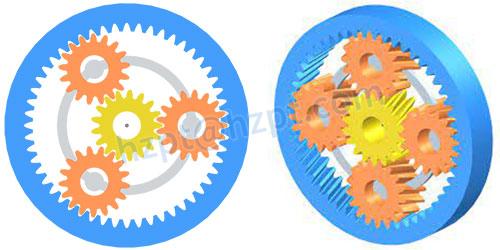

Compound Planetary Gear Set

What is the Purpose of Planetary Gears?

Planetary gears are components of automatic transmissions usually in modern cars. They are more complex and have more parts than other types of gears. Their primary purpose is to transfer power from one shaft to another. They have several variations. The main difference is the number of gears and the type of coupling.

A planetary gearbox is an arrangement of gears that spin around the central “sun gear”. It has two or three planet gears that revolve around the sun gear. Each planet gear is attached to a carrier and connected to an output shaft. The sun gear transmits motion to the , which rotate in different positions around the ring gear.

The ratio of a planetary gear can be varied by changing the size of the sun gear and the planetary stage teeth. A smaller sun gear yields a higher ratio than a larger planetary gear. A planetary stage's ratio range is generally from 3:1 to 10:1 with a wide range of possible ratios in between. Gear ratios higher than this range can be achieved by connecting several planetary stages in series in one ring gear. This type of gearbox is also referred to as a multi-stage gearbox.

Planetary gears are used in many different types of machinery. They are used in guided robots, wind turbines, automatic transmissions, and in-vehicle drive systems. They are also found in laser cutting machines, hospital operating tables, and in industrial machinery.

HZPT, Hangzhou Ever-Power Transmission Co., Ltd., is an experienced custom planetary gear set manufacturer and supplier in China. We provide China planetary gear of high performance at low prices! Contact us now if you are interested!

Planetary Gear Set for Sale

Showing all 4 results
