Hydraulic Cylinder

What Is A Hydraulic Cylinder

hydraulic cylinder
Hydraulic Cylinder hydraulic cylinder price 11

The hydraulic cylinder is a fundamental component used in a wide range of industries, including manufacturing, construction, and agriculture. This versatile device converts hydraulic energy into linear force and motion, enabling powerful lifting, pushing, and pulling operations.



Whether you need to lift, push, or pull heavy objects, the hydraulic cylinder is a reliable and efficient solution that enhances efficiency and precision. Choose the right hydraulic cylinder for your application, install it correctly, and perform regular maintenance to maximize its potential. With the power of hydraulic cylinders at your disposal, you can accomplish tasks with ease and confidence, boosting productivity and achieving outstanding results.

Hydraulic Cylinder Production Area

As a leader in hydraulic systems for forklift fittings, our company has been on a journey of technological innovation since 1995. The company has secured its leading position in the international market with its excellent technical capability, leading research and development strength, unparalleled product quality and customer-oriented service concept.

Visit our VR hydraulic cylinder factory:

Hydraulic Cylinder hydraulic cylinder factory 5

Metalworking Shop

Hydraulic Cylinder hydraulic cylinder factory 6

Scraping And Rolling Machine

Hydraulic Cylinder hydraulic cylinder factory 7

Cylinder Processing Machine

How to design a hydraulic cylinder?

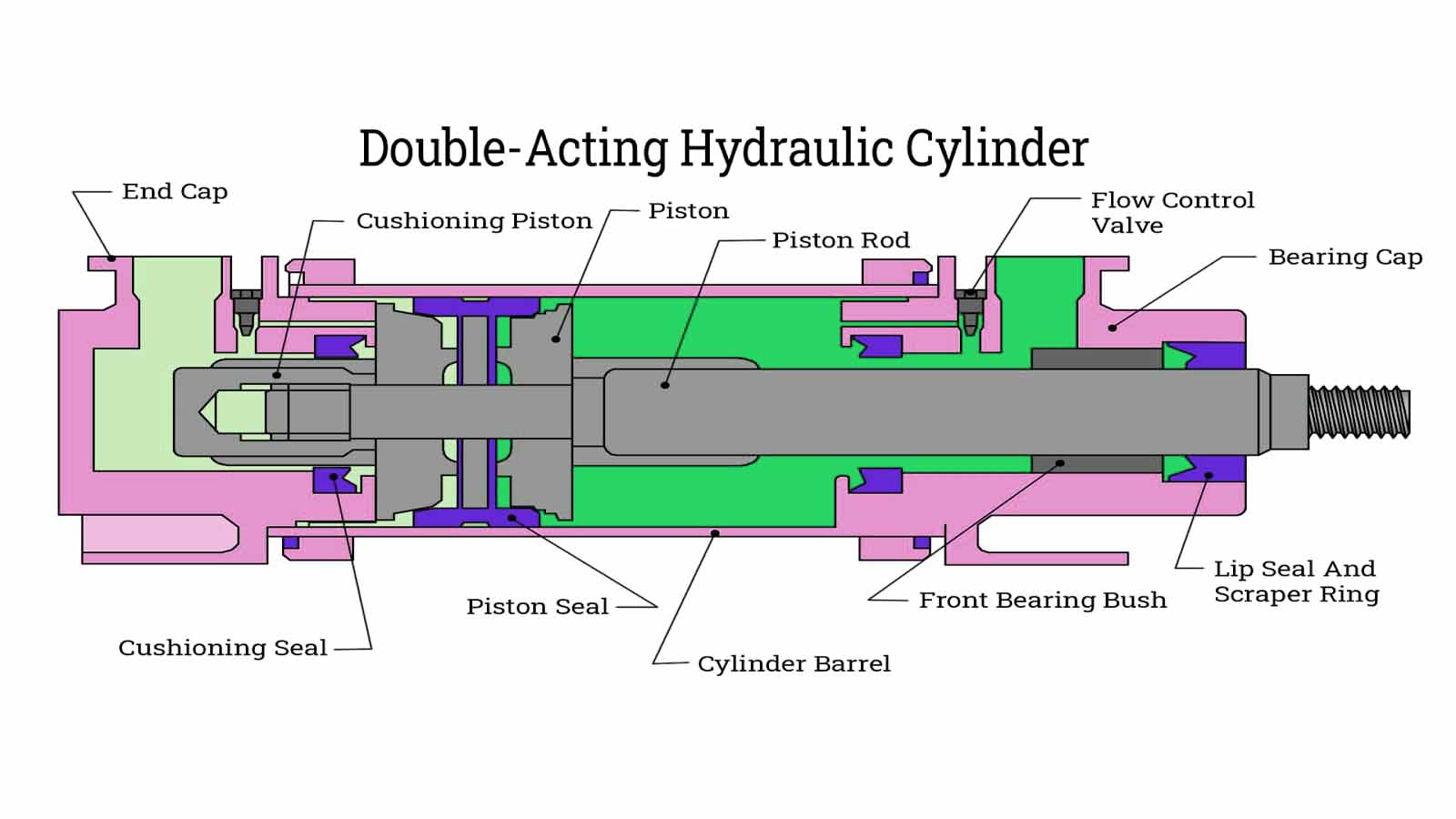

how hydraulic cylinder works

Designing a hydraulic cylinder involves a series of engineering steps and considerations to ensure that it will function efficiently, safely, and reliably for its intended application. Here's a general guide on how to design a hydraulic cylinder:

  1. Define the Application Requirements: Determine the purpose of the hydraulic cylinder. Consider factors like the type of load (push or pull), stroke length, force requirements, speed, and environmental conditions (temperature, exposure to corrosive substances, etc.).
  2. Select the Type of Cylinder: Choose between types like single-acting (force in one direction), double-acting (force in both directions), telescopic, etc., based on your application needs.
  3. Calculate the Required Force: Use the formula F = P × A, where F is force, P is pressure, and A is the area of the cylinder's piston. The required pressure is typically dictated by the 's capabilities.
  4. Determine the Bore Size: The bore size determines the cylinder's output force. A larger bore can exert more force but will require more fluid to move and might be slower.
  5. Select the Rod Size: The rod size affects the strength and the speed of the cylinder. A larger rod is stronger but reduces the effective area of the piston on the rod-end side, which can reduce the speed and force of the retraction.
  6. Decide Stroke Length: The stroke length is how far the piston travels within the cylinder. Ensure the cylinder is designed for slightly more than the required stroke to avoid mechanical limitations.
  7. Choose the Material: Common materials include steel, stainless steel, or aluminum. The choice depends on factors like weight, strength, and corrosion resistance.
  8. Design Seals and Bearings: Proper seals prevent fluid leakage and contamination. Bearings support the rod and piston and reduce friction.
  9. Consider Mounting Style: The cylinder can be mounted in various ways (flange, clevis, trunnion, etc.). The choice depends on the application and the space available.
  10. Plan for Ports and Connections: Design the hydraulic fluid inlet and outlet ports, ensuring they are compatible with the hydraulic system.
  11. Ensure Safety and Compliance: Design the cylinder to comply with relevant safety and industry standards. Include safety features like pressure relief valves.
  12. Perform Stress Analysis: Use engineering software to simulate stresses and strains on the cylinder under various load conditions. This helps in optimizing the design for strength and durability.
  13. Create Detailed Drawings: Develop detailed engineering drawings that include all dimensions, tolerances, materials, and any special requirements.
  14. Prototype and Test: Before mass production, build a prototype to test its functionality, strength, and durability under real-life conditions.
  15. Review and Iterate: Based on testing feedback, revise the design as necessary to improve performance, safety, and reliability.

Remember, designing a hydraulic cylinder is a complex process that requires a solid understanding of mechanical engineering principles, fluid dynamics, and material science. Collaboration with experienced engineers or consulting with hydraulic system experts is highly recommended, especially for specialized or high-stakes applications.


Hydraulic Cylinder hydraulic cylinder factory 8

Turning And Milling Compound Machine

Hydraulic Cylinder hydraulic cylinder factory 9

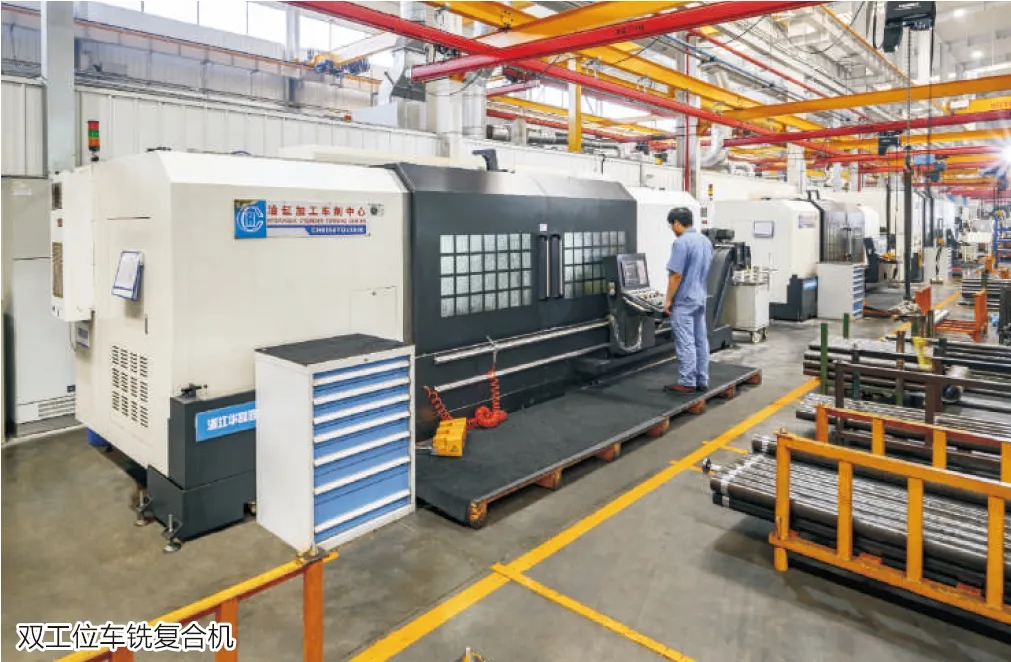

Double Station Turning And Milling Compound Machine

Hydraulic Cylinder hydraulic cylinder factory 10

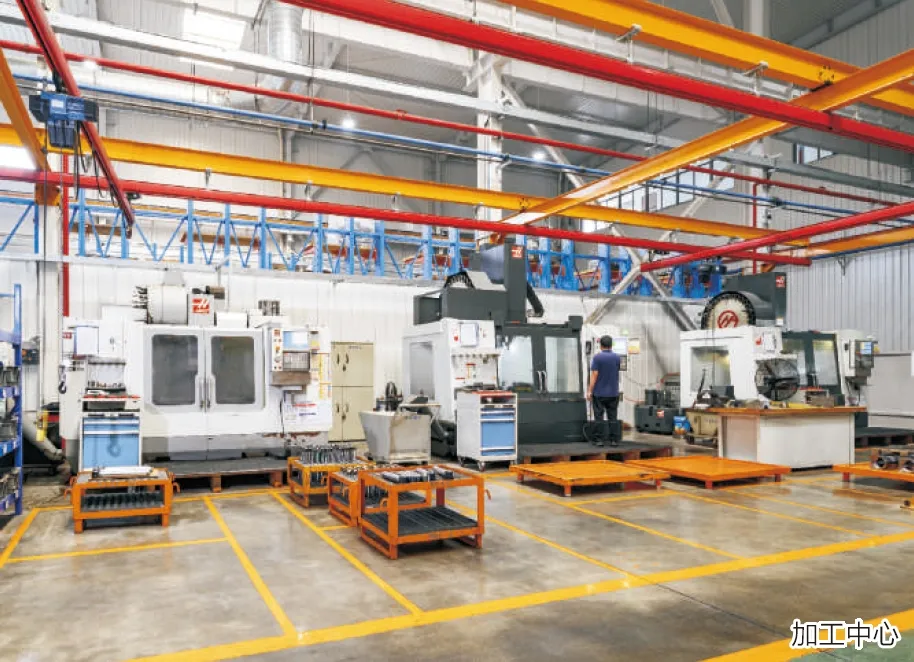

Machining Center

Our product line includes the carefully made paper roll clamp cylinder with hydraulic lock for cascade, and from 2006 to now for the German kaup company Hang fork accessories and other well-known enterprises large-scale production of nearly 400 types of accessories, accessories cylinder quality requirements of high single piece small batch multi-specifications.

We use leading production technology to ensure the precision and quality of our products, and have a responsive production supply and rich parts inventory to ensure our fast delivery capabilities.

Hydraulic Cylinder hydraulic cylinder factory 11

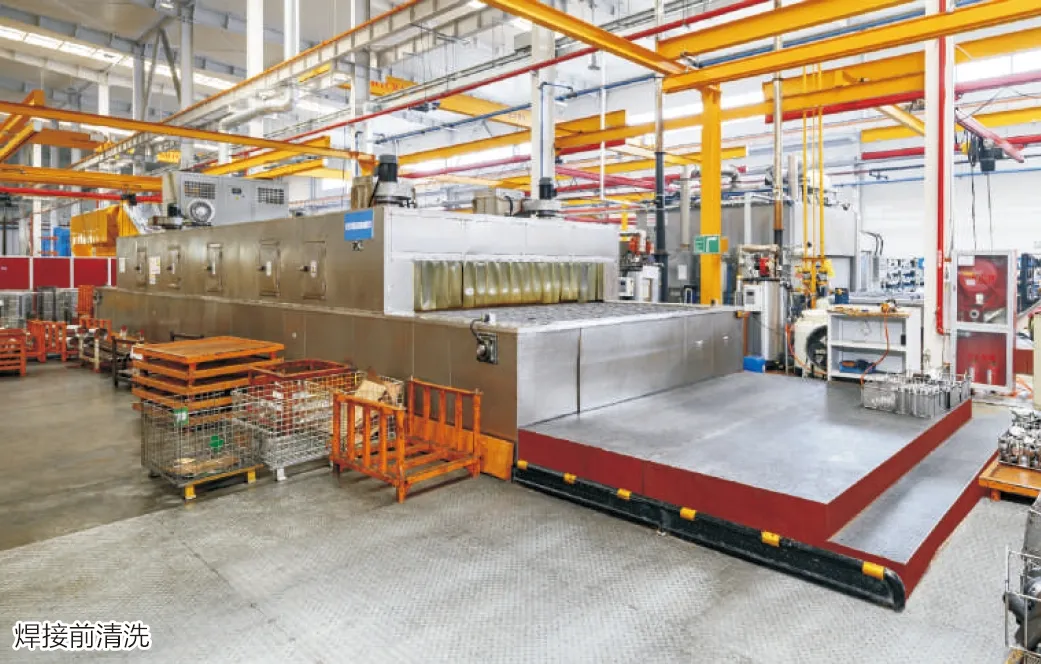

Cleaning Before Welding

Hydraulic Cylinder hydraulic cylinder factory 12

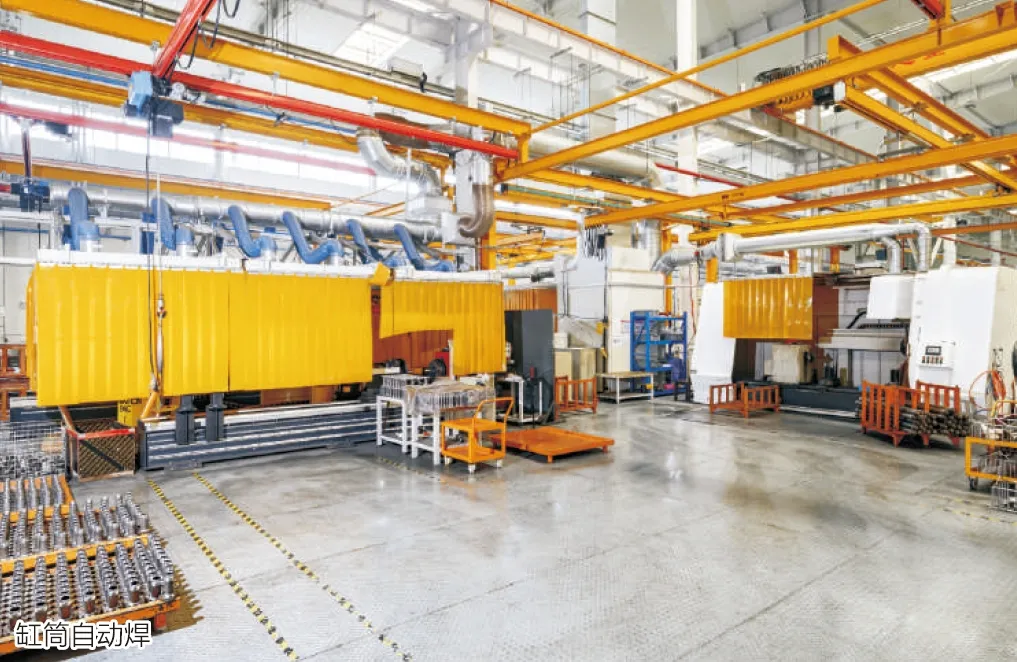

Automatic Welding Cylinder

Hydraulic Cylinder hydraulic cylinder factory 13

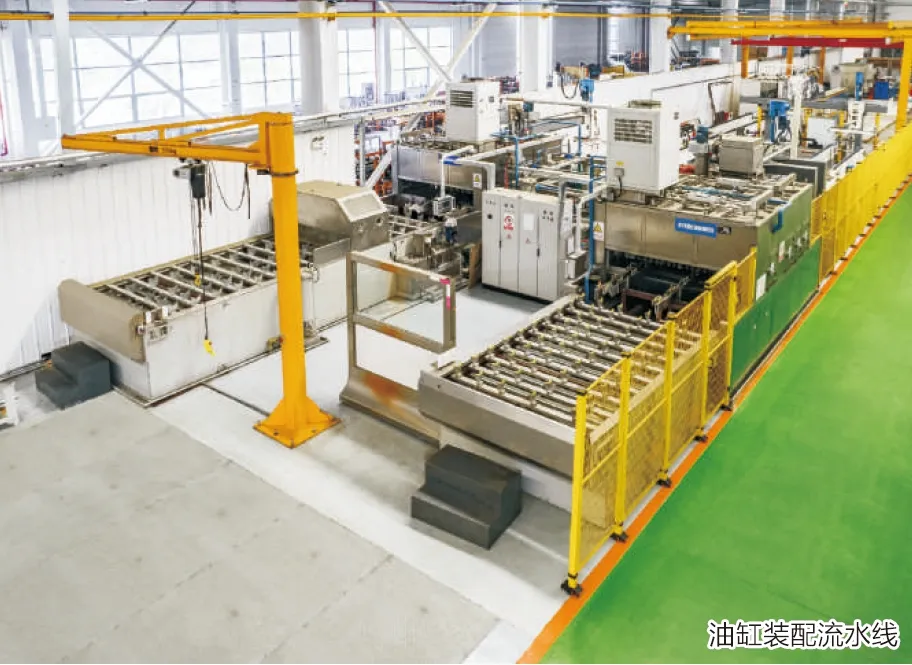

Cylinder Assembly Line

Hydraulic Cylinder hydraulic cylinder factory 14

Robot Multi-Station Welder

Hydraulic Cylinder hydraulic cylinder factory 26

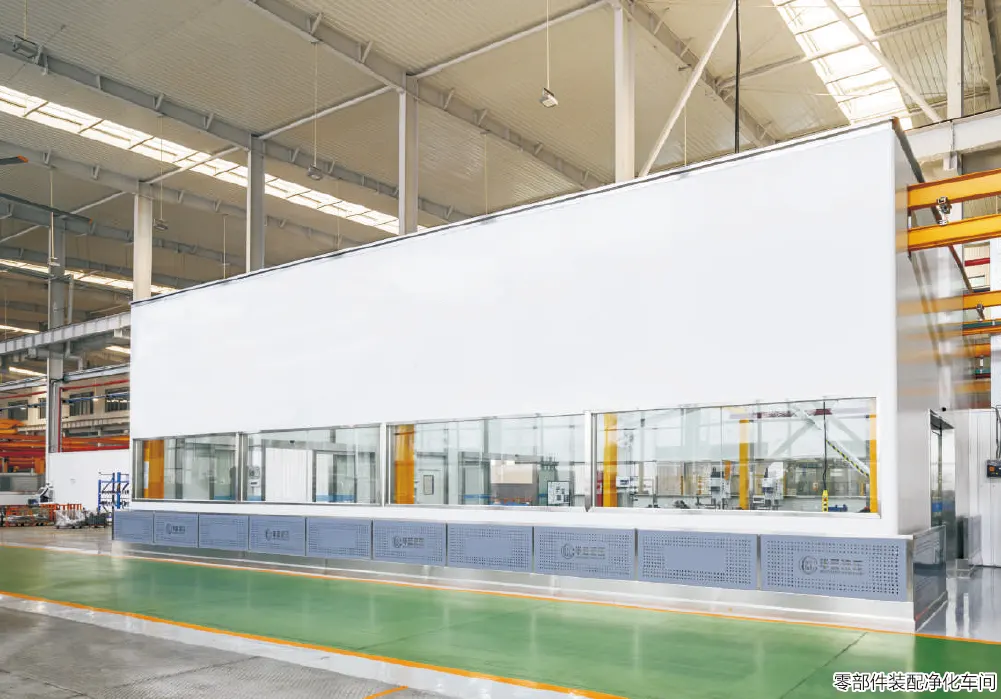

Parts Assembly Purification Workshop

The diameter of the piston rod is small, and the straightness and roundness of the piston rod is the key. Our company adopts mature production technology to ensure the shape and position tolerance and dimensional tolerance of the piston rod, and adopts world-renowned seals such as NOK, Trelleburg, Haolet, etc., to ensure that the seal is intact and never leaks oil, and adopts advanced numerical control testing equipment (data storage cloud system and traceability).

To ensure that each cylinder before leaving the factory, 100% of a variety of tests, the use of the world's advanced robot automatic coating line, to ensure that each cylinder paint adhesion, thickness, leveling, color difference, meet the technical requirements of the salt spray time requirements.

Hydraulic Cylinder hydraulic cylinder factory 15

Parts Assembly Purification Workshop

Hydraulic Cylinder hydraulic cylinder factory 18

Parts Assembly Purification Workshop

Hydraulic Cylinder hydraulic cylinder factory 16

Cylinder Testing Machine

Hydraulic Cylinder hydraulic cylinder factory 17

Piston Rod Test Area

Hydraulic Cylinder hydraulic cylinder factory 19

Forklift Cylinder Test Stand

Our company has accumulated rich production experience and optimized design data through long-term cooperation with cascade, kaup and Hangjian fittings. Many misunderstandings can be avoided in the design and production of new products, and the tooling process of production assembly and painting of hydraulic cylinders on site is very mature and reliable.

Advanced equipment, advanced technology and mature design process, production process, enterprise management process, inspection process, storage and packaging process.

Hydraulic Cylinder hydraulic cylinder factory 20

Pulse Pressure Test Machine

Hydraulic Cylinder hydraulic cylinder factory 21

Automatic Paint Line

Hydraulic Cylinder hydraulic cylinder factory 22

Special Paint Line

Hydraulic Cylinder hydraulic cylinder factory 23

Paint On-Line Robot

Hydraulic Cylinder hydraulic cylinder factory 24

Stereoscopic Warehouse

Hydraulic Cylinder Classification

Hydraulic Cylinder mobile machinery hydraulic cylinders 1

Mobile Machinery Hydraulic Cylinders

Small Excavator Cylinder

Large Excavator Cylinder

Aerial Work Platform Cylinder

Mobile Crane Cylinder

Rotary Drilling Cylinder

Mining Dump Truck Cylinder

Hydraulic Cylinder industrial engineering hydraulic cylinders 1

Industrial Engineering Hydraulic Cylinders

Hydraulic Cylinder for Press

Hydraulic Cylinder for Filter Press

Hydraulic Cylinder for Electric Furnace

Hydraulic Cylinder for Cement Equipment

Hydraulic Cylinder for Injection Molding Machine

Hydraulic Cylinder mobile machinery hydraulic cylinders 1

Offshore Hydraulic Cylinders

Hydraulic Cylinder for Split Barge

Hydraulic Cylinder for Dredger Tank

Hydraulic Cylinder for Jack-up Offshore Platform

Hydraulic Cylinder for Empty Container Stacker

Hydraulic Cylinder for Drilling Platform

Hydraulic Cylinder for Pile Driving Barge

Hydraulic Cylinder for Ro-ro Platform

Hydraulic Cylinder for Offshore Crane

Hydraulic Cylinder for Reach Stacker

Hydraulic Cylinder for Stacker Reclaimer

Hydraulic Cylinder energy technology hydraulic cylinders 1

Energy Technology Hydraulic Cylinders

Hydraulic Cylinder tunnel boring machine hydraulic cylinders 1

Tunnel Boring Machine Hydraulic Cylinders

Hydraulic Cylinder for Shield Machine

Hydraulic Cylinder for Open Tunnel Boring Machine

Hydraulic Cylinder for Double Shield Tunnel Boring Machine

Hydraulic Cylinder telescopic hydraulic cylinders 1

Telescopic Hydraulic Cylinders

Hydraulic Cylinder for Split Barge

Hydraulic Cylinder for Dredger Tank

Hydraulic Cylinder for Jack-up Offshore Platform

Hydraulic Cylinder for Empty Container Stacker

Hydraulic Cylinder for Drilling Platform

Hydraulic Cylinder for Pile Driving Barge

Hydraulic Cylinder for Ro-ro Platform

Hydraulic Cylinder for Offshore Crane

Hydraulic Cylinder for Reach Stacker

Hydraulic Cylinder for Stacker Reclaimer

Hydraulic Cylinder tractor front end loader hydraulic cylinder 1

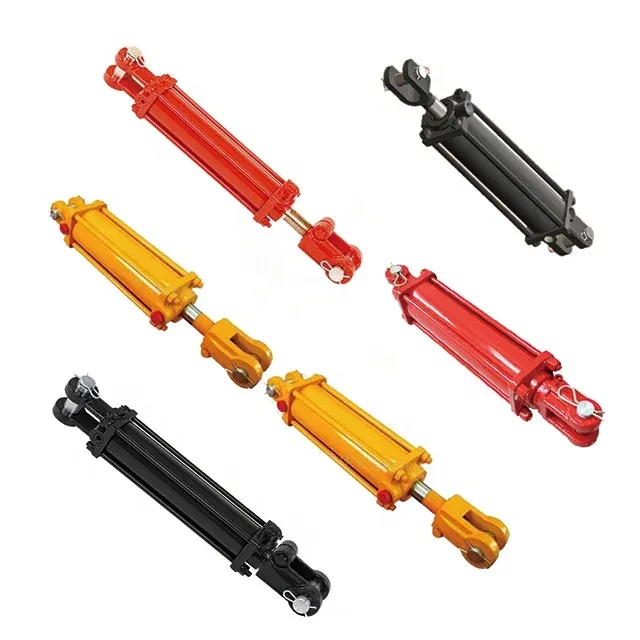

Tractor & Front End Loader Hydraulic Cylinder

Hydraulic Cylinder steering hydraulic cylinder 1

Steering Hydraulic Cylinder

Hydraulic Cylinder dump truck trailer hydraulic cylinder 1

Dump Truck & Trailer Hydraulic Cylinder

How To Rebuild A Hydraulic Cylinder ?

Safety First:

Prioritize safety by ensuring the hydraulic system is depressurized and following proper lockout/tagout procedures. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.

Disassembly:

Remove the cylinder from the equipment and secure it in a clean and well-ventilated workspace. Carefully disassemble the cylinder by removing the end caps, rod, piston, and seals. Take note of the orientation and arrangement of the components for accurate reassembly.

Inspection:

Thoroughly inspect all components for signs of wear, damage, or contamination. Check the cylinder barrel for scoring or pitting, and inspect the piston rod for bends or corrosion. Examine the seals for wear, cracks, or deformation. Replace any damaged or worn hydraulic cylinder parts to ensure optimal performance.

Cleaning:

Clean all the disassembled components using an appropriate cleaning solution to remove dirt, debris, and hydraulic fluid residue. Ensure that all parts are thoroughly dried before proceeding.

Replacement of Hydraulic Cylinder Parts:

Replace the worn or damaged parts with new, compatible hydraulic cylinder parts. This may include seals, bearings, piston rings, or rods. Ensure that the replacement parts are of the correct size and specifications for your specific hydraulic cylinder.



Hydraulic Cylinder hydraulic cylinder 8
Hydraulic Cylinder hydraulic cylinder 2

Reassembly:

Begin reassembly by installing the new seals onto the piston and end caps. Lubricate the seals with a compatible hydraulic fluid to prevent damage during installation. Carefully reinsert the piston and rod into the cylinder barrel, ensuring proper alignment and orientation.

Tightening and Torquing:

Follow the manufacturer's recommendations for tightening the end caps to the specified torque value. Use a torque wrench to achieve accurate and consistent tightening.

Testing and Inspection:

Once reassembled, conduct a thorough test of the rebuilt hydraulic cylinder. Check for any leaks, proper operation, and smooth movement. Verify that the cylinder functions correctly under different load conditions.

Fluid Replacement and System Purging:

If necessary, replace the hydraulic fluid in the system and purge any air trapped in the lines or cylinder. Follow the manufacturer's guidelines for fluid selection and bleeding procedures.

Documentation:

Maintain detailed documentation of the hydraulic cylinder rebuild, including the parts replaced, inspection findings, and any adjustments made. This documentation will be valuable for future reference and maintenance.

How To Rebuild A Hydraulic Cylinder

Hydraulic Cylinder hydraulic cylinder work 1

The performance and efficiency of a hydraulic cylinder depend on several factors, including the hydraulic fluid's viscosity, the size and design of the cylinder, and the applied pressure. The hydraulic fluid's incompressible nature ensures that the force applied to one side of the piston is transmitted to the other side, resulting in a smooth and consistent movement.

To control the direction and speed of the hydraulic cylinder's movement, various valves, such as control valves and , are incorporated into the hydraulic system. By adjusting these valves, operators can regulate the flow of hydraulic fluid, enabling precise and controlled operation of the hydraulic cylinder.

A hydraulic cylinder operates based on the principles of fluid mechanics and Pascal's Law. It consists of a cylindrical barrel, a piston, and a piston rod, all enclosed within a sealed chamber. The chamber is filled with hydraulic fluid, typically oil, which acts as the working medium.

When a force is applied to the hydraulic cylinder, usually through a hydraulic pump, the hydraulic fluid is pressurized. This pressure is transmitted uniformly in all directions within the fluid, following Pascal's Law. As a result, the hydraulic fluid exerts an equal force on the entire surface area of the piston.

This force causes the piston to move within the cylinder, either extending or retracting the piston rod. The movement of the piston rod is harnessed to perform mechanical work, such as lifting heavy loads or moving machinery components.

Hydraulic Cylinder hydraulic cylinder work 2

How To Measure Hydraulic Cylinder ?

Hydraulic Cylinder hydraulic cylinder 1

Measuring a hydraulic cylinder accurately is crucial for identifying the right replacement or repair options. Whether you are dealing with a double-acting hydraulic cylinder or a small hydraulic cylinder, the following steps will guide you through the measurement process:

Identify Cylinder Type:

Determine whether you have a double-acting hydraulic cylinder or a small hydraulic cylinder. This will help you understand the specific characteristics and measurement points relevant to your cylinder.

Measure Cylinder Bore Diameter:

The bore diameter refers to the inner diameter of the cylinder barrel. To measure it, use a caliper or micrometer to capture the diameter at several points along the cylinder's length. Take multiple measurements and calculate the average for accuracy.

Determine Rod Diameter:

The rod diameter refers to the diameter of the piston rod. Measure it using a caliper or micrometer, similar to the bore diameter measurement. Again, take multiple measurements and calculate the average for precision.

Measure Stroke Length:

The stroke length refers to the distance the piston travels inside the cylinder. Extend the piston rod fully and measure the distance from the fully retracted position to the fully extended position. This measurement determines the required length of the replacement or repair part.

Inspect Mounting Style:

Assess the mounting style of your hydraulic cylinder, as it can vary depending on the application. Determine whether it uses flange mounts, clevis mounts, or other mounting mechanisms. Note down the specific dimensions and configurations required for proper installation.

Note Additional Specifications:

Depending on the specific hydraulic cylinder and its application, there may be additional specifications to consider. These can include overall length, port size and type, pressure rating, and any unique features or accessories.
