RV Series Worm Gearboxes

NMRV worm gearbox is a new type of reducer, which can also be called an RV worm gearbox. “NMRV” is a general term, which refers to aluminum case worm gearbox, which has been used to be called “NMRV worm gearbox” internationally. The main components include an oil seal, oil plug, worm gearbox, ball bearing, output shaft, worm gear, worm, output shaft, motor connecting plate (flange), output shaft cover, hexagon socket head screw, double round key, gasket, etc.

NMRV series worm gear reducers have single flange input, and some have flange output or dual shaft output. The worm gear reducer could be matched with other gearboxes to reach a large ratio and torque. What’s more, due to the small size of the gearbox, it is easy to install and maintain. The NMRV worm gearboxes are manufactured with international technical requirements and possess a high technological content that guarantees high rigidity and high torque.

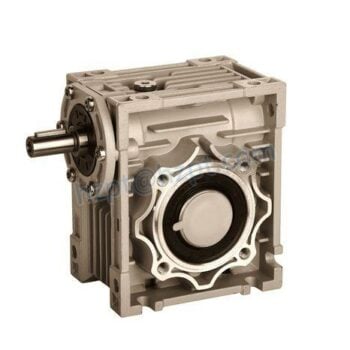

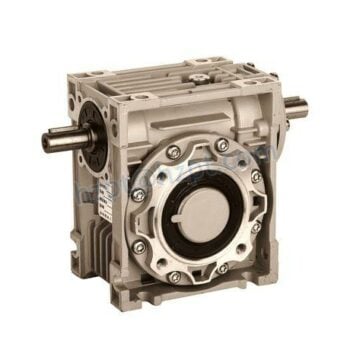

RV Series Worm Gearbox Types

Worm Gearbox Aluminum Casting

Material of  Worm Gearbox

1. Body, die-casting aluminum alloy
2. Worm shaft, 20CRQ steel, high-temperature treatment
3. Worm gear, nickel bronze alloy
4. Aluminum alloy body, sandblasting, and surface anti-corrosion treatment
5. Cast iron body, painted with B | URA5010

Instructions for Purchasing Worm Gearbox

To order the worm gear reducer, please confirm the following:

1. Reducer model
2. Reducer speed ratio
3. Reducer input hole diameter Input power and input flange diameter
4. Output hole size
5. Whether other accessories are required

Accessories of Worm Gearbox

Output Shaft

Torque Arm

NMRV Worm Gearbox Model & Marker

Take NMRV-063-30-VS-F1(FA)-AS-80B5-0.75kW-B3 as an example

Worm Gearbox Mounting Position

NMRV Worm Gearbox Parts Structure Drawing:

NMRV/NRV Series Worm Gearbox Features:

● The weight of the NMRV worm gearbox is relatively light. The shell is made of aluminum alloy. It has the advantages of being lightweight, having superior strength, exquisite appearance, high heat dissipation performance, long service life, no noise, and so on. It is easy to connect with the motor.

● NMRV worm gearbox is a more practical transmission equipment, and in appearance, design, and integration, it isis more in line with the needs of the public than other types of reducers.

●The application field and popularity of the RV worm gear reducer made of aluminum alloy are even better than other reducers. It is a kind of reducer with high practicability and a combination of advanced technology at home and abroad.

● NMRV worm gear reducer is very convenient to connect with ordinary motor, CVT, flange electromagnetic clutch brake unit, and does not need coupling. Suitable for all-around installation, the output torque is relatively large, works smoothly, and so on.

NMRV/NRV Series Worm Gearbox Application:

The NMRV/NRV worm gearboxes are widely used in the automation industry, industrial robots, aerospace, CNC machine tools, metallurgical mining, beer and beverage, tobacco light industry, environmental engineering, warehousing logistics, plastics machinery, lifting transport, three-dimensional parking, automobile manufacturing, textiles, food, ceramics, and other fields.

NMRV Worm Gearbox Manufacturers

Our company is located in the city of Hangzhou, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ZQ series cylindrical gearboxes, planetary gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.

We are offering a wide range of worm reduction gearboxes to our customers, which are available with us at a very reasonable price. Our product is highly acknowledged in the market for its superior performance. The offered range of worm reduction gearboxes is in high demand due to its reliable performance, compact design, and low maintenance. We sincerely look forward to cooperating with you.
