SWP Universal Coupling

The SWP type universal couplings are designed split shaft bolts, suitable for hoisting and conveying machinery and other heavy machinery, connecting two different axis transmission shafts, axis angle of A~F type not more than 10 degrees, the G type is not greater than 5 degrees. The SWP type universal couplings are widely used in rolling mills, punches, straighteners, crushers, ship drives, paper-making equipment, common machinery, water pump equipment, test bench, and other mechanical applications.

SWP Universal Coupling Types:

The different structures of the cross packs can be divided into SWC type and SWP type, while the SWP type universal coupling can be divided into seven major categories. SWP-A long flex type universal coupling, SWP-B short flex type universal coupling, SWP-C short without flex type universal coupling, SWP-D long without flex type universal coupling, SWP-E long flex double flange type universal coupling, SWP-F long big flex type universal coupling, SWP-G super short flex type universal coupling, etc.
Type No. Name Figure

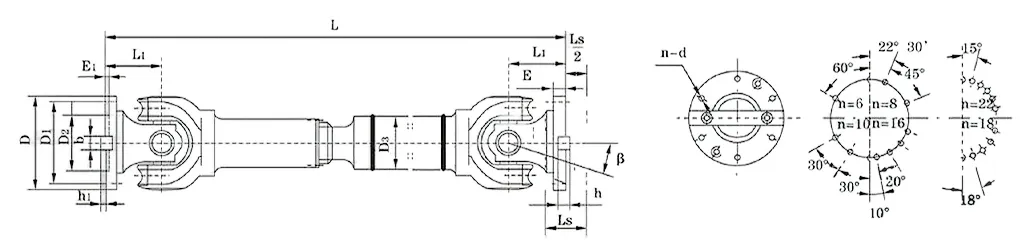

A long flex type SWP-A Type Long Flex Type Universal Joint Coupling Dimensions

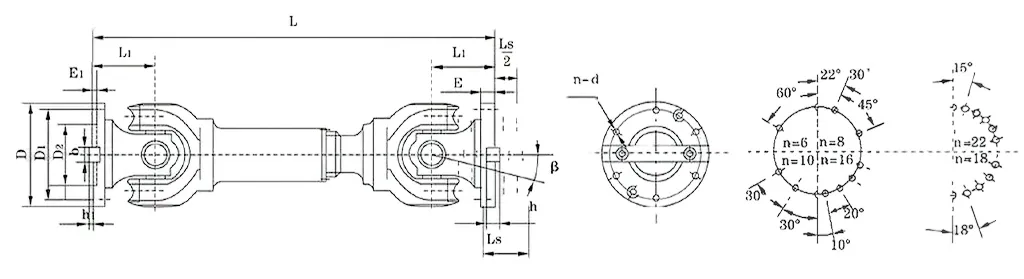

B short flex type SWP-B Short Flex Type Universal Joint Coupling Dimensions

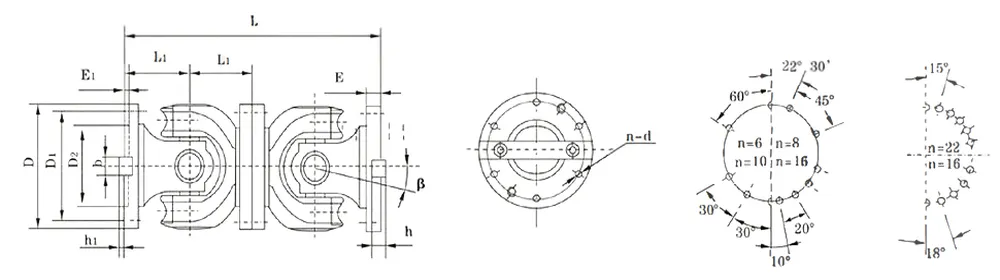

C short without flex type SWP-C Short Without Flex Type Universal Joint Coupling Dimensions

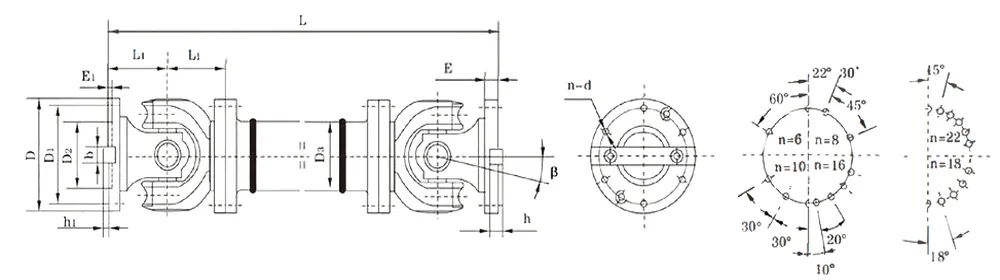

D long without flex type SWP-D Long Without Flex Type Universal Joint Coupling Dimensions

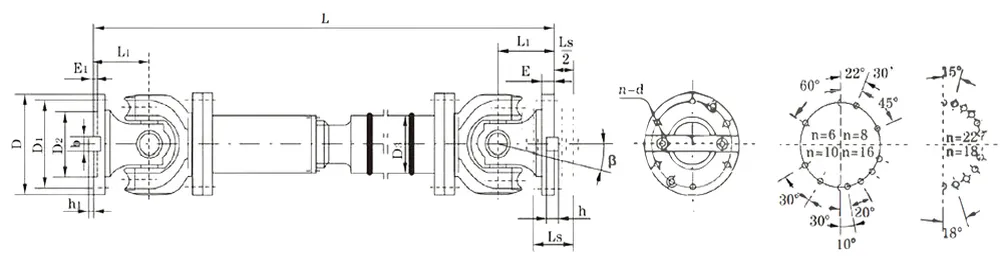

E long flex double flange type SWP-E Long Flex Double Flange Type Universal Joint Coupling Dimensions

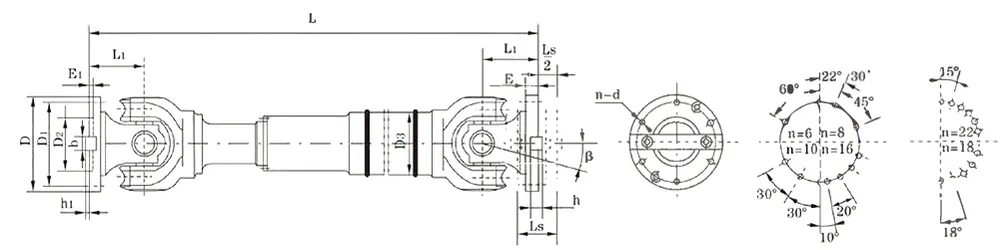

F long big flex type SWP-F Long Big Flex Type Universal Joint Coupling Dimensions

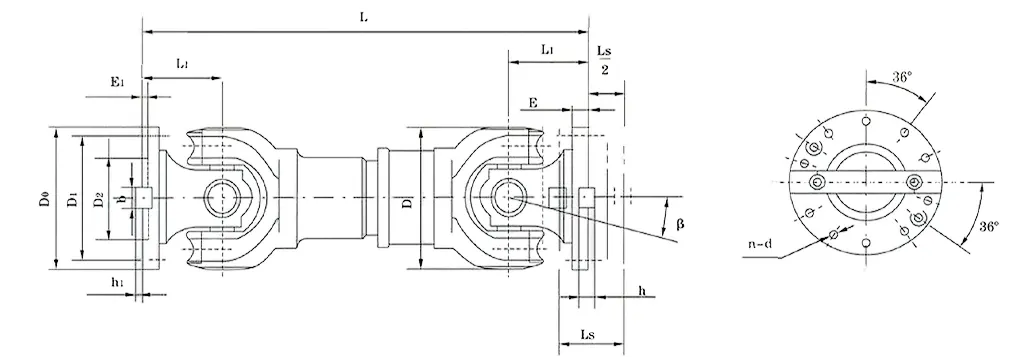

G super short flex type SWP-G Super Short Flex Type Universal Joint Coupling Dimensions

SWP Universal Coupling Features:

Here are the features of SWP universal couplings:

1. Large angle compensation ability: SWP universal couplings can compensate for up to 10 degrees of misalignment between the driving and driven shafts. This makes them ideal for applications where there is a lot of vibration or movement, such as in mining and construction equipment.

2. Compact and reliable structure: SWP universal couplings have a compact and lightweight design that makes them easy to install and maintain. The integral fork design also provides added reliability and strength.

3. High bearing capacity: SWP universal couplings can transmit more torque than other types of couplings with the same diameter. This makes them ideal for high-power applications, such as in heavy machinery.

4. High transmission efficiency: SWP universal couplings have a transmission efficiency of up to 98.6%. This means that they lose very little energy during the transmission of torque, which can save you money on your energy bills.

5. Smooth operation and low noise: SWP universal couplings operate smoothly and quietly, which can help to reduce noise pollution and improve the overall working environment.

6. Long service life: SWP universal couplings are made from high-quality materials and are designed to last for many years.

SWP Universal Coupling Features
SWP Universal Coupling Features

SWP Universal Coupling Application Scenarios:

The SWP universal coupling, also known as the cardan shaft coupling, is a type of flexible coupling that is widely used in industrial applications to connect two shafts and transmit power between them. Here are some common applications of SWP universal couplings:

Machinery: SWP universal couplings are commonly used in machinery such as pumps, compressors, and generators to transmit power between the motor and the driven equipment. They help to absorb shock and vibration, reducing wear and tear on the machinery and improving its reliability.

Conveyor systems: SWP universal couplings can be used in conveyor systems to connect the motor to the drive shaft and the drive shaft to the conveyor belt. They help to compensate for misalignment between the motor and the drive shaft and between the drive shaft and the conveyor belt.

Marine applications: SWP universal couplings are often used in marine applications such as ships and boats to connect the engine to the propeller shaft. They help to absorb shock and vibration from the engine and the waves, reducing wear and tear on the engine and improving its performance.

Mining equipment: SWP universal couplings can be used in mining equipment such as crushers, mills, and conveyors to transmit power between the motor and the driven equipment. They help to compensate for misalignment caused by the movement of the equipment and reduce the risk of equipment failure.

Automotive applications: SWP universal couplings are used in automotive applications such as to connect the engine to the wheels. They help to absorb shock and vibration from the road and the engine, reducing wear and tear on the drivetrain and improving its performance.

SWP Universal Coupling Application Scenarios
SWP Universal Coupling Application Scenarios
