Spur Gear

A is a type of gear that is used in a variety of applications. This spur gear is a gear with teeth that run parallel to the axis of the gear. This arrangement allows for higher efficiency than other gear types. At lower gear ratios, spur gears have efficiencies ranging from 94% to 98%. A spur gear can be made of many different types of materials, including metal and plastic. Because it has teeth that are parallel to each other, spur gears are often louder than other types of gears. They are not commonly found in automobiles, but are often used in airplane engines. The noise that they produce is created by the teeth contacting other gears.

Ever-power, a professional China spur gears manufacturer, offers a wide range of spur gears for sale. Contact us now to get more info!

Dimensions of Spur Gears

The basic dimensions of spur gears are the diameter and pitch of the teeth, as well as the pressure angle. These dimensions can be determined through the use of mathematical calculations. The dedendum, which is the depth of the tooth space below the pitch circle, is generally larger than the addendum circle of the mating gear. The root diameter is the diameter at the base of the tooth space. Other important dimensions of spur gears include the pitch point and pressure angle, which measure the angle between the pitch circle and the plane tangent to it.

Features of Spur Gears

The performance of spur gears is greatly affected by the design and the materials used for production. To achieve optimal performance, these gears must have accurate dimensions and high-quality materials. Gear design depends on the pitch diameter and pitch point, which are important elements of the proper functioning of a gear.

Aside from high performance and high load carrying capacity, spur gears are also known for their noise-free operation. In addition, many types of spur gears are made of non-metallic materials. This type of material also offers noise-free operation and corrosion resistance. For this reason, it is important to consider the material when choosing spur gears.

Advantages and Disadvantages of Spur Gears

The spur gear is used in a variety of applications for increasing/decreasing velocity and torque. They are commonly used in aircraft engines, trains, bicycles, and various other machinery. Their advantage lies in their high efficiency and ability to fit into tight spaces. Spur gears are also used in ball mills, sugar mills, and other industrial applications. They can be installed in virtually any type of gear train and are particularly advantageous in situations where constant speed is required.

Because of their efficiency, spur gears are used extensively in modern industry. During the design phase, engineers must consider the power losses caused by the spur gear transmission. Those losses need to be estimated to ensure a high level of efficiency. For this reason, a detailed understanding of the differences between different types of spur gear transmissions is essential.

A disadvantage of spur gears is that they cannot transmit power between non-parallel axes. They also produce excessive noise when operating at high speeds. In addition, their teeth are susceptible to a high amount of stress, making them less resilient than other types of gears. While a spur gear is more resilient than a motor, it is still not the best choice for high-speed applications.

Several advantages of spur gears include their durability and cost-efficiency. POM is a durable and strong plastic that is commonly used in gearboxes and industrial applications. This plastic is easy to work with, and it hardens into a stiff and durable product. Polyacetal is also abrasion-resistant.

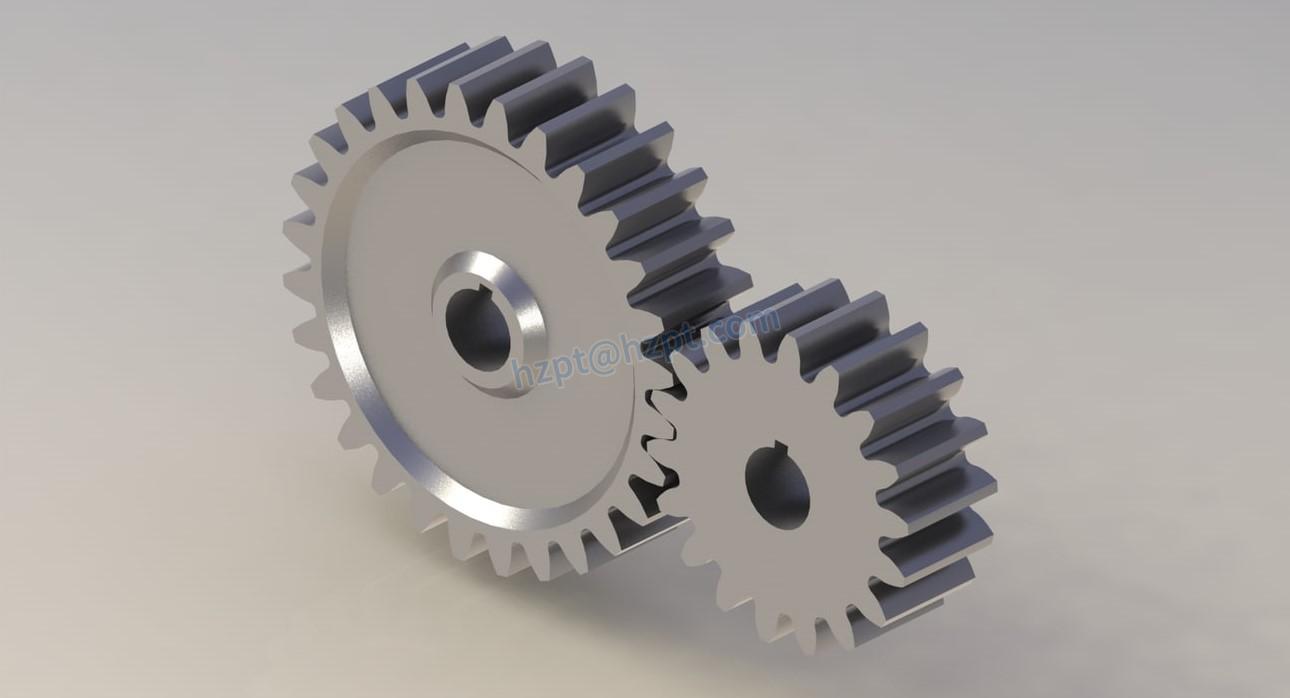

Spur Gears

Spur Gears VS Helical Gears

Both spur gears and helical gears have their own advantages and disadvantages. The main differences between spur gears and helical gears can be traced back to the contact shape between them. With spur gears, teeth come into contact abruptly, but with helical gears, the contact shape is gradual. In both cases, the radial contact is a line that is proportional to the tooth face width. However, there are a few important differences between them.

One difference is the tooth profile. For spur gears, the teeth are parallel to each other, while the teeth of a are inclined at an angle to the axis. This results in the gradual meshing of the teeth, making them quieter and smoother to operate. The teeth of a helical gear are typically parallel, but they can also be crossed. When using crossed gears, however, make sure they are the Same Left and Same Handed. The disadvantage of helical gears is that they are less efficient than spur gears due to tooth slippage. Because helical gears are more complex than spur gears, they are often difficult to install within a gear train.

A second difference between helical and spur gears is the amount of backlash. This is a defect that affects the efficiency of a drive gear. It is very difficult to correct this error, so a spur gear has a higher backlash than a helical gear. Helical gears are also more difficult to manufacture because of their smaller diameters.

Spur Gear VS Helical Gear

HZPT is an experienced spur gear manufacturer and supplier in China. We provide China spur gears of high quality at low prices! Contact us now if you are interested!
