Hydraulic Ball Valves

Hydraulic ball valves are essential components used in hydraulic systems for controlling the flow of fluids. They are widely employed in various industries, including manufacturing, construction, agriculture, and transportation. Hydraulic ball valves offer reliable and efficient fluid control, allowing operators to start, stop, or regulate the flow of liquids or gases within a .

The basic design of a hydraulic ball valve consists of a hollow ball with a hole or port passing through its center. The ball is positioned within a valve body, which contains inlet and outlet ports for fluid flow. When the ball valve is in the closed position, the hole in the ball is perpendicular to the flow path, blocking the passage of fluid. Conversely, when the valve is in the open position, the hole aligns with the flow path, enabling fluid to pass through.

One of the key advantages of hydraulic ball valves is their quick and easy operation. They typically have a lever or handle that can be rotated 90 degrees to open or close the valve. This simple and intuitive operation allows for fast response times, making hydraulic ball valves suitable for applications that require rapid flow control.

Hydraulic ball valves are known for their durability and ability to withstand high pressures and temperatures. They are commonly made from materials such as brass, stainless steel, or carbon steel, which provide strength and resistance to corrosion. This robust construction ensures the valves can handle demanding hydraulic system conditions and maintain their performance over extended periods.

Furthermore, hydraulic ball valves offer excellent sealing properties. When in the closed position, the ball is pressed against the valve body, creating a tight seal that prevents leakage. This reliable sealing capability is crucial for maintaining system integrity and preventing fluid loss.

Hydraulic ball valves are available in various configurations to suit different applications. Some common types include two-way (on/off), three-way (diverter or selector), and four-way (diverter) valves. Additionally, they come in different sizes and pressure ratings to accommodate a wide range of hydraulic system requirements.

Advantages of Using Hydraulic Ball Valves:

Hydraulic ball valves offer several advantages over other types of valves in hydraulic systems. Here are some of the key advantages:

1. Quick and Easy Operation: Hydraulic ball valves provide fast and effortless operation. The 90-degree rotation of the lever or handle allows for quick opening or closing of the valve, enabling efficient control over fluid flow.

2. Full Flow Capability: Hydraulic ball valves have a full bore design, meaning the ball inside the valve creates a straight-through flow path when the valve is fully open. This design minimizes flow restrictions and pressure drop, ensuring maximum flow capacity and reducing energy losses in the hydraulic system.

3. Excellent Shut-Off Capability: Hydraulic ball valves offer excellent shut-off capabilities. When fully closed, the solid ball seals against the valve seats, providing a tight and reliable closure and preventing any leakage or backflow of fluid.

4. Durability and Reliability: Hydraulic ball valves are known for their robust construction and long service life. They are typically made from durable materials such as stainless steel, brass, or carbon steel, which can withstand high pressures, temperature variations, and harsh operating conditions commonly found in hydraulic systems.

5. Versatility: Hydraulic ball valves are suitable for a wide range of applications and can handle various types of fluids, including water, oil, gas, and chemicals. They can be used in both high-pressure and low-pressure systems, making them versatile for different hydraulic system requirements.

6. Minimal Maintenance: Due to their simple design and fewer moving parts, hydraulic ball valves require minimal maintenance. This reduces downtime and maintenance costs associated with the valve's operation, making them cost-effective in the long run.

7. Resistance to Contamination: Hydraulic ball valves are less prone to contamination compared to other valve types like gate valves or globe valves. The full bore design and smooth internal surfaces minimize the accumulation of debris or particles, reducing the risk of valve blockage or malfunction.

8. Flexibility in Installation: Hydraulic ball valves can be installed in any orientation, including horizontal, vertical, or even upside down, without affecting their performance. This flexibility in installation makes them suitable for a wide range of hydraulic system configurations.

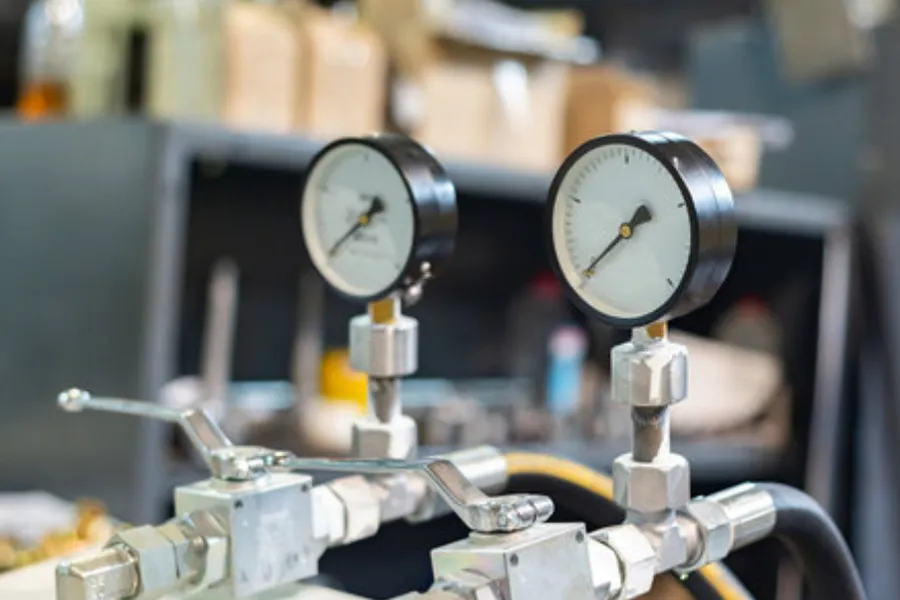

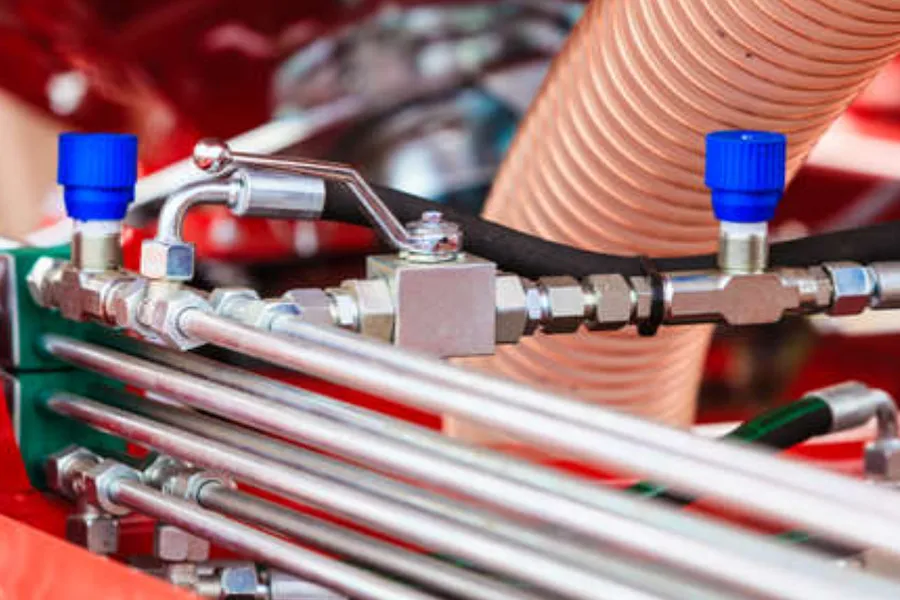

Using Hydraulic Ball Valves Advantages Using Hydraulic Ball Valves Advantages

Applications of Hydraulic Ball Valves:

Hydraulic ball valves find applications in various industries and systems that require efficient flow control and shut-off capabilities. Here are some common applications where hydraulic ball valves are used:

(1) Hydraulic Systems: Hydraulic ball valves are extensively used in hydraulic systems for controlling the flow of fluids, including hydraulic oil, in applications such as construction equipment, agricultural machinery, industrial machinery, and material handling systems.

(2) Oil and Gas Industry: Hydraulic ball valves are employed in oil and gas pipelines, refineries, and offshore platforms to control the flow of crude oil, natural gas, and other hydrocarbon-based fluids. They are used for isolation, diversion, or regulation of flow in different stages of the production, refining, and distribution processes.

(3) Water and Wastewater Treatment: Hydraulic ball valves are commonly used in water treatment plants, wastewater treatment facilities, and irrigation systems. They are used to regulate the flow of water, control the direction of flow, and isolate sections of the system for maintenance or repairs.

(4) Process Control Systems: Hydraulic ball valves play a vital role in process control applications across industries such as chemical processing, pharmaceuticals, food and beverage, and power generation. They are used to control the flow of various fluids, including chemicals, gases, and steam, in different stages of the manufacturing process.

(5) HVAC Systems: Hydraulic ball valves are utilized in heating, ventilation, and air conditioning (HVAC) systems to control the flow of water or refrigerants. They are commonly used in chillers, cooling towers, and heating systems to regulate the flow and temperature of the working fluid.

(6) Marine and Offshore Applications: Hydraulic ball valves are employed in marine and offshore systems, including shipbuilding, offshore drilling rigs, and floating production units. They are used to control the flow of seawater, hydraulic fluids, and other media in different onboard systems.

(7) Power Generation: Hydraulic ball valves are used in power generation plants, including thermal power plants, hydroelectric facilities, and nuclear power plants. They are employed in various applications, such as steam control, cooling water systems, and fuel supply systems.

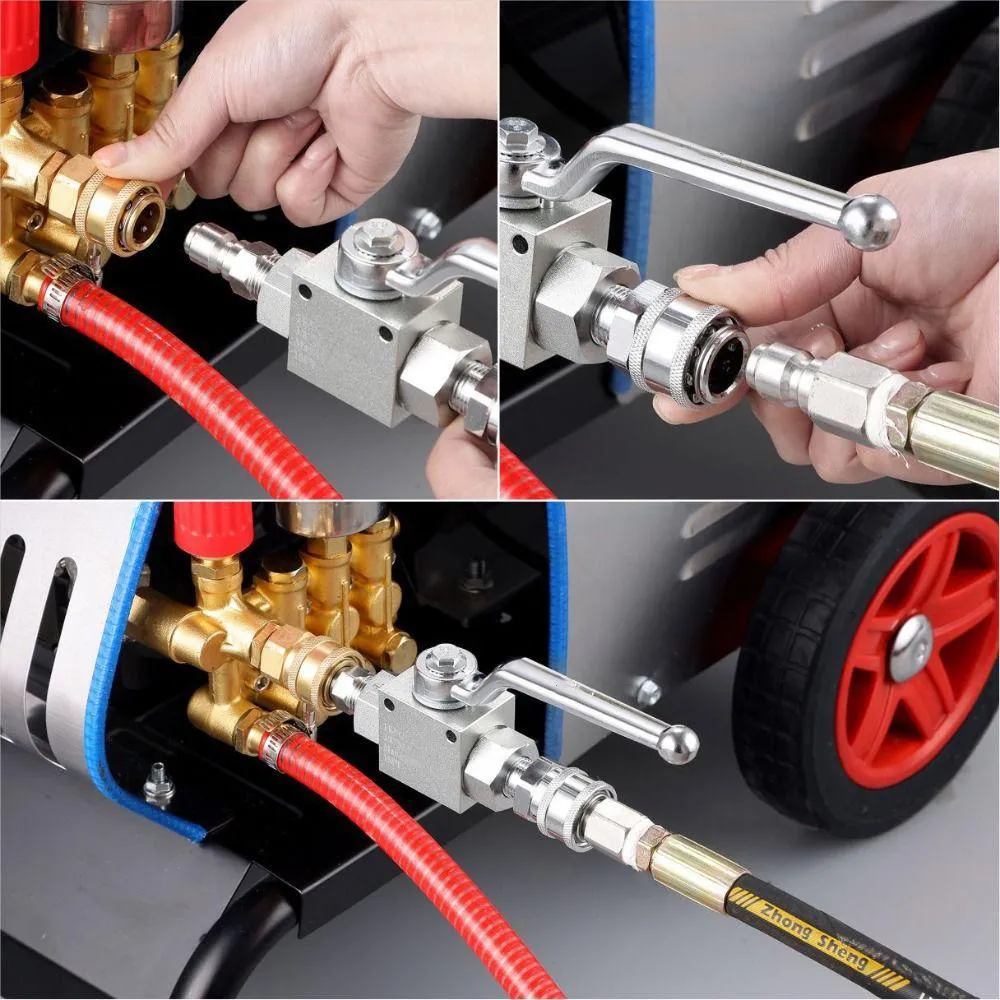

Hydraulic Ball Valves Applications
