Combination Transfer Chain

Combination transfer chains are a type of that is designed for heavy-duty applications. They are typically used in conveyor systems that transport lumber, boxes, barrels, and other heavy objects. Combination transfer chains are made up of two types of links: the upper links and the lower links. The upper links are the ones that actually carry the load, while the lower links provide support.

The upper links of a combination transfer chain are typically made of a high-strength steel alloy. They have a bevel on top that helps them to ride smoothly over the sprockets. The lower links are typically made of a lower-cost steel alloy. They have a flat top that helps to distribute the load evenly.

Combination transfer chains are available in a variety of sizes and strengths. The size of the chain is determined by the weight of the load that it will be carrying. The strength of the chain is determined by the forces that it will be subjected to. Combination transfer chains are a versatile and reliable way to transport heavy objects. They are used in a wide variety of industries, including the lumber, manufacturing, and packaging industries.

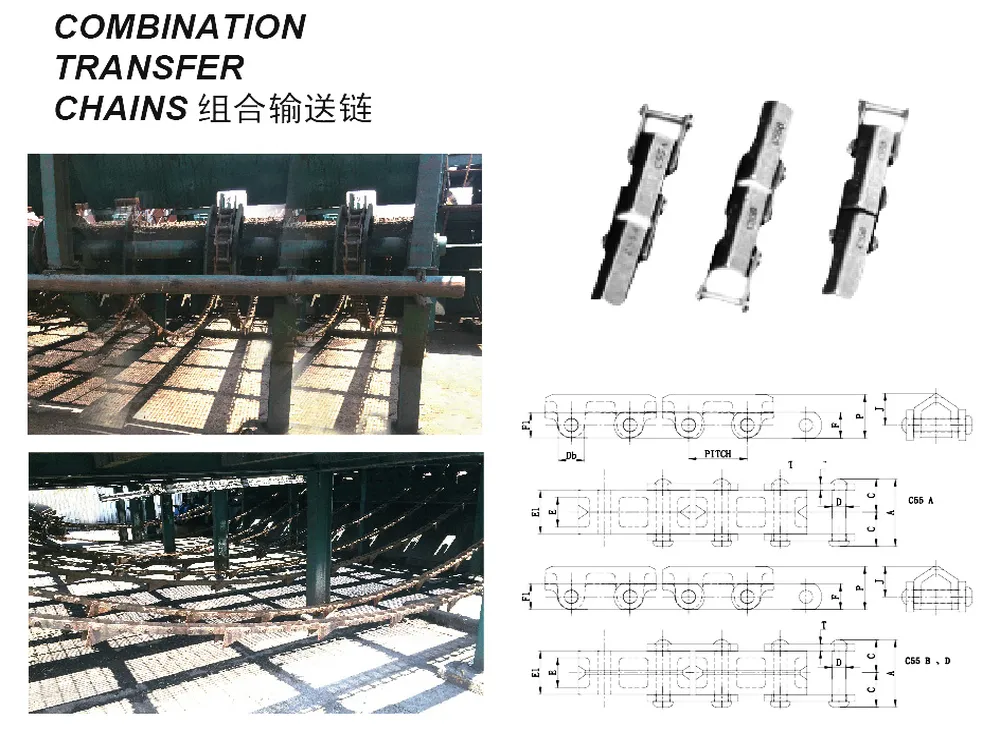

Combination Transfer Chain Specifications:

Combination Transfer Chain Specifications
Chain No.Pitch In InchesStyle of TopLinks Per 10 FeetWeight Per Foot LBSAverage Ultimate StrengthRecommended Maximum Working Load LBS.ACDbDEE1FF1JPT
C55A1.631A743.2117001400210.720.3750.691.250.750.750.881.250.19
C55B1.631B743.2117001400210.720.3750.691.250.750.750.881.250.19
C55D1.631D743.2117001400210.720.3750.691.250.750.750.881.250.19

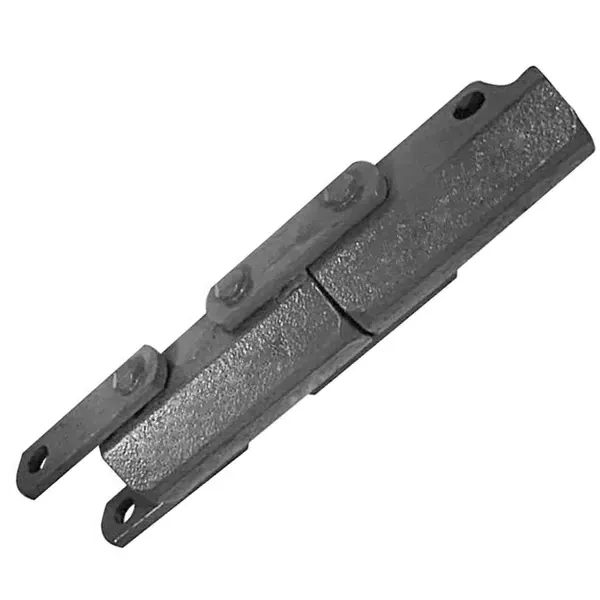

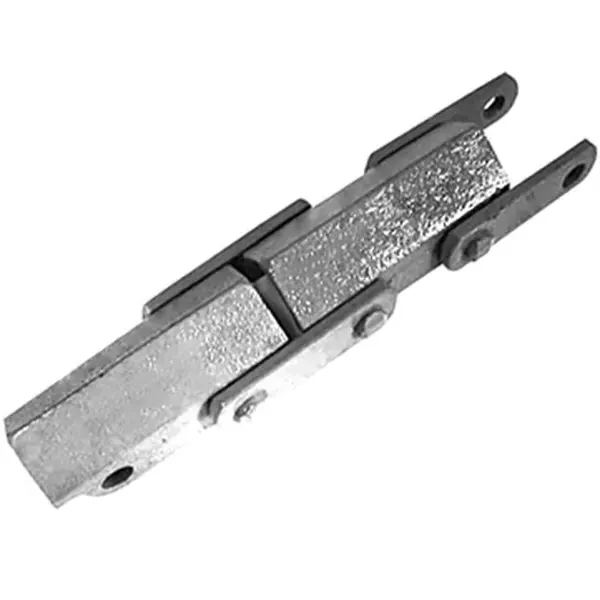

Combination Transfer Chain Features:

The combination transfer chain is used extensively in the cement, paper and pulp, quarrying, and mining industries for elevating and conveying a wide variety of abrasive and non-abrasive materials. It is also finding many uses in general industrial assembly conveyors. The construction of our combination transfer chain can be either cottered or riveted. Cottered is normally considered standard. Pins have flat areas at their ends, which lock into the appropriately punched sidebars, preventing pin rotation during chain operation.

All pin holes are clean-cored for smooth-bearing surfaces and are dimensioned for proper pin clearance. Industry dimensional standards are rigidly maintained, and this combination transfer chain may be interchanged with links of other manufacturers. Pitch sizes range from 1.631 to 6.050 inches; tensile strength range ex1ends from 12,150 to 67,500 pounds.

All our factory's combination block links except the C55A chain and C55B chain have elliptical barrels. This adds extra metal where the -to-chain contact causes most chain wear. Attachments are available in many of the pitch sizes for a wide range of applications. Combination links are symmetrical and may therefore be operated in either direction of travel. Cast steel sprockets are available for each pitch size.

Combination Transfer Chain FeaturesCombination Transfer Chain Features

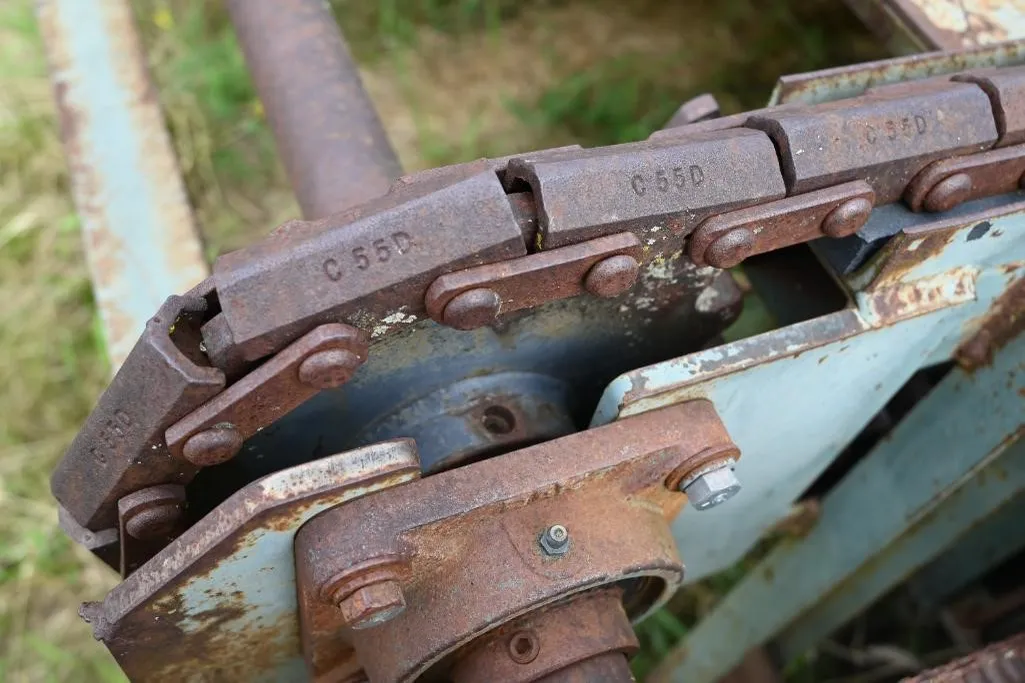

Combination Transfer Chain Applications:

The combination transfer chain is a cast combination chain that has a variety of uses. It is a high-quality, durable, and long-lasting that is manufactured using high-quality components. The combination transfer chain is used in a wide range of applications, such as bucket elevators, flight conveyors, forest products, grain handling, and sugar processing.

Here are some specific examples of cast combination chain applications:

(1) In the grit-conveying industry, combination transfer chains are used to convey abrasive materials such as sand, gravel, and coal. They are also used in sewage treatment plants to convey grit and other debris.

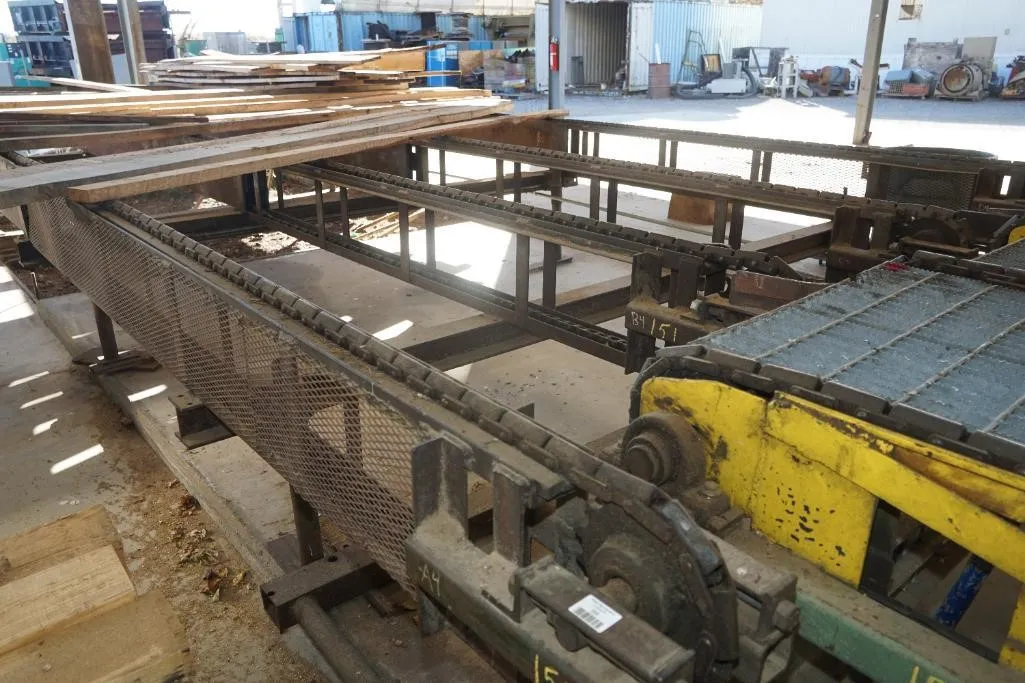

(2) In the forestry industry, cast combination chains are used to convey logs and other wood products. They are also used in sawmills to convey cut lumber.

(3) In the grain handling industry, combination transfer chains are used to convey grain and other bulk materials. They are also used in flour mills to convey flour and other powders.

(1) In the elevating applications, cast combination chains are used to convey materials such as boxes, crates, and other containers. They are also used in elevators to convey people and freight.

Combination transfer chains are a versatile and reliable solution for a variety of conveyor applications. They are easy to maintain and operate, and they can provide many years of service.

Combination Transfer Chain ApplicationsCombination Transfer Chain Applications

Combination Transfer Chain for Sale:

Showing all 3 results
