H Class Mill Chain

“H” class mill chains are of one-piece cast offset link construction joined together by steel-clipped heads. They are used primarily for drag conveyor service in the lumber, pulp, and paper industries. They are also desirable for transfer and conveying purposes. “H” class mill links are cast of high-grade copper malleable iron or Duramal. Duramal is a heat-treated malleable iron having greater strength and superior resistance to wear and abrasion. Duramal chains have heat-treated pins. “H” class mill chains are interchangeable with other standard makes of corresponding sizes and numbers.

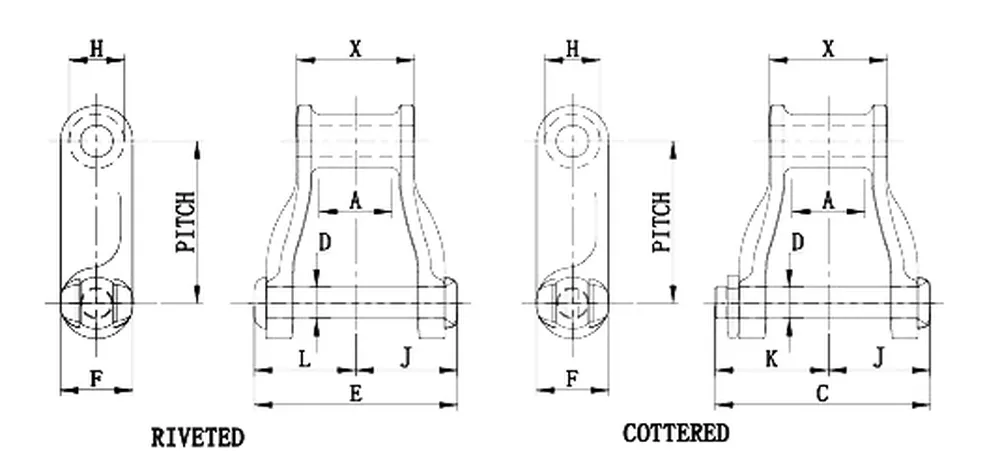

“H” Class Mill Chain Specifications:

H Class Mill Chain Specifications
H Class Mill Chain Specifications
Chain No. Pitch in Inches Weight Per Foot LBS. Average Ultimate Strength LBS. Maximum Working Load LBS. A C D E F H X Available Attachments
H60 2.308 2.1 7000 1560 0.75 2.62 0.312 2.62 0.75 0.75 1.50 H2,K1
H74 2.609 3.0 10000 1850 1.00 3.12 0.375 2.88 1.00 0.88 1.66 F4
H78 2.609 4.2 16000 2810 1.12 3.31 0.500 3.19 1.12 0.88 1.88 A1,F4,F8,G19,H1,H2,K2
H79 2.609 4.8 22000 2810 1.12 3.31 0.500 3.19 1.12 0.88 1.88 None
H82 3.075 5.5 20000 3580 1.25 3.88 0.562 3.88 1.25 1.22 2.12 K2
H87 4.000 6.5 27500 4450 1.50 4.38 0.625 4.19 1.38 1.38 2.38 None
H124 4.000 8.8 30000 6180 1.62 4.88 0.750 4.75 1.56 1.44 2.75 K2

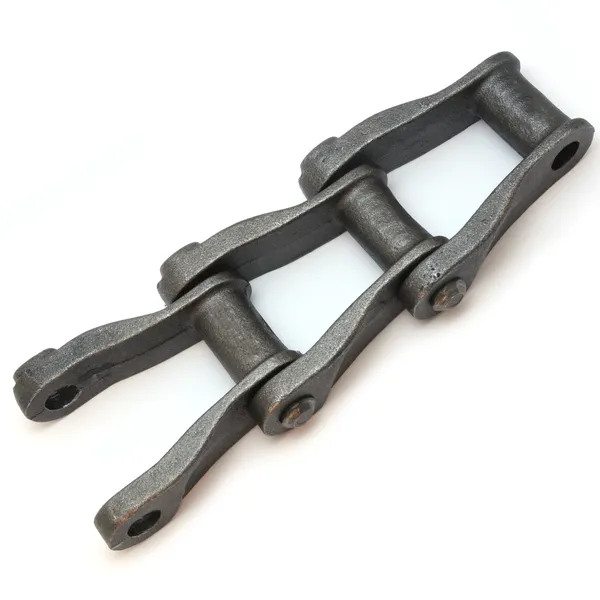

“H” Class Mill Chain Features:

The “H” class mill chain, also known as the H-class , is a type of industrial chain commonly used in heavy-duty applications, particularly in the steel and lumber industries. Here are some advantages and characteristics of the “H” class mill chain:

1. Strength and Durability: “H” class mill chain is designed to withstand high loads and heavy-duty applications. It is constructed using high-quality materials, such as alloy steel, which provides excellent strength and durability, ensuring that the chain can endure the demanding conditions of mill operations.

2. Wear Resistance: “H” class mill chains are subjected to abrasive materials, extreme temperatures, and harsh environments. “H” class chains are specifically engineered to offer superior wear resistance, reducing the need for frequent replacements and minimizing downtime.

3. High Fatigue Strength: The “H” class mill chain is designed to handle cyclic loading and repetitive stresses commonly encountered in mill applications. It has high fatigue strength, allowing it to withstand continuous operation without premature failure.

4. Precision Manufacturing: “H” class mill chains are manufactured with precision and strict quality control measures. This ensures that the chain links are accurately formed, providing smooth articulation and consistent performance throughout its service life.

5. Versatile Design: “H” class mill chains are available in various sizes and configurations to suit different applications. They can be customized based on specific requirements, such as pitch size, attachments, and surface coatings, allowing for flexibility in design and adaptation to different equipment and operating conditions.

6. Easy Maintenance: “H” class mill chains require regular maintenance to ensure optimal performance and longevity. “H” class mill chains are typically designed with accessible lubrication points and easy disassembly, making maintenance tasks more straightforward and efficient.

H Class Mill Chain Features H Class Mill Chain Features

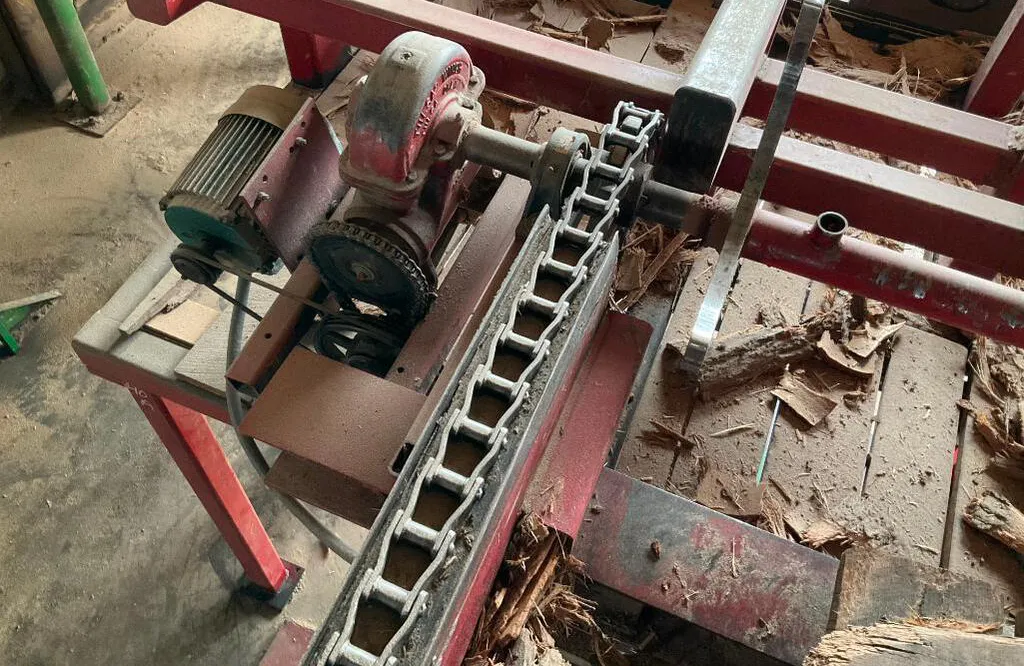

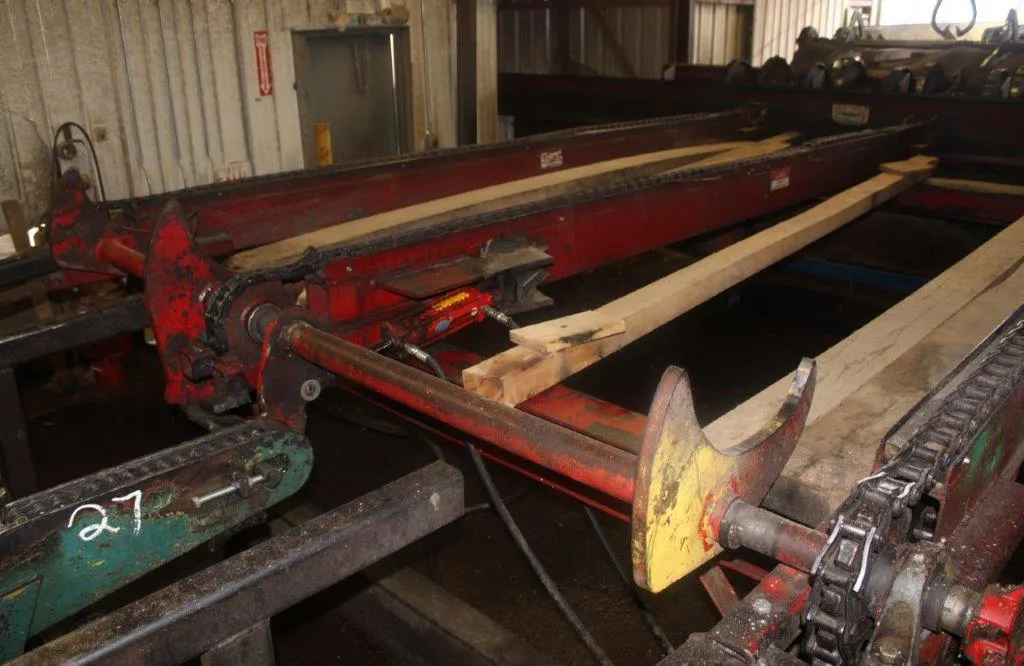

“H” Class Mill Chain Applications:

“H” class mill chains find applications in various heavy-duty industries, particularly those that involve bulk material handling and processing. Some common applications include:

(1) Steel Mills: “H” class mill chains are extensively used in steel mills for conveying and handling raw materials, such as coal, iron ore, and scrap metal. They are employed in processes like coke oven plants, blast furnaces, sintering plants, and steel rolling mills.

(2) Lumber Industry: In the lumber industry, “H” class mill chains are used in sawmills and wood processing facilities. They are utilized for conveying logs, lumber, and other wood products through different stages of production, including log decks, debarkers, sawmills, and planing mills.

(3) Cement Plants: Cement manufacturing involves various stages where “H” class mill chains play a crucial role. They are used for conveying raw materials, such as limestone, clay, and gypsum, to crushers, mills, kilns, and storage facilities within the cement plant.

(4) Mining and Quarrying: “H” class mill chains are suitable for heavy-duty applications in the mining and quarrying industry. They are used in conveying bulk materials, such as coal, ore, gravel, and minerals, from extraction points to processing equipment, crushers, and storage areas.

(5) Pulp and Paper Industry: In the pulp and paper industry, “H” class mill chains are used in various processes, including wood chip handling, fiber recovery, and paper machine systems. They help transport wood chips, pulp, and paper rolls through different stages of production.

(6) Material Handling and Conveying: “H” class mill chains are employed in general material handling and conveying applications where heavy loads, abrasive materials, and demanding conditions are encountered. This includes industries such as automotive, mining, construction, and bulk material handling facilities.

H Class Mill Chain Applications H Class Mill Chain Applications
