XRV Series Car Washer Gearbox For Automatic Car Wash System-XRV050 Gearmotor

Car Wash Gearbox

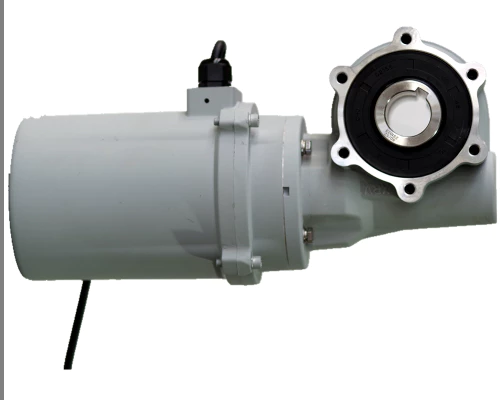

The XRV Series Car Wash Gearmotor, specifically the XRV050 worm gear reducer, is designed for automatic car wash systems, offering easy installation and quiet operation. It has a long lifespan and high protection level up to IP56, making it durable and resistant to harsh conditions. Suitable for motor powers from 0.25kw to 0.75kw, it includes matching flanges for various customer needs and boasts a modular design for ease of maintenance.

The gearmotor features wheels made of SUS304+GcuSn12 for excellent wear and corrosion resistance, and its compact design fits most equipment structures. It uses full-synthetic oil for lubrication and has an ADC12 aluminum housing with powder paint for better corrosion resistance. Sealed with NOK oil seals and equipped with carburized and quenched worms, it ensures reliability and performance, with an IP67 grade suitable for most conditions.

Features of Car Wash Gearmotor

1. The modular design of every module, with more parts common.
2. Extensive ratio range, more choice than standard RV reducer.
3. Wheels material is SUS304+GcuSn12, to ensure high wear resistance and corrosion resistance.
4. A compact body can fit most equipment structures.
5. Full-synthetic oil lubrication (the viscosity of 320/220 can be chosen).
6. The housing material is ADC12 with powder paint， which has better anticorrosive properties, and appearance.
7. Sealing with NOK oil seal (NBR)， good sealability.
8. Worms material is 20CrMnTi with carburizing and quenching， thickness 0.25-0.45mm， HRC58-62.
9. IP Grade can reach IP67 and adapt to most spraying conditions.

Specifications of XRV050 Car Washer Worm Gear Reducer

Type	Ratio	Flange	Power
XRV050	5     7.5  10     12  15     20  30     40  50     60  80    100	71B14	0.18KW     0.25KW    0.37KW    0.55KW    0.75KW     1.1KW
		80B14

Type	i	n2/r/min	Mn2/Nm	Fr2/N	Motor	P1/kw	L/mm
XRV050	5	280	17	1577	7134	0.55	180
		280	23	1577	8024	0.75	205
	7.5	187	25	1805	7134	0.55	180
		187	34	1805	8024	0.75	205
	10	140	22	1987	7124	0.37	180
		140	32	1987	7134	0.55	180
		140	44	1987	8024	0.75	205
	12	117	26	2016	7124	0.37	180
		117	33	2016	7134	0.55	205
		117	48	2016	8024	0.75	205
	15	93	31	2274	7124	0.37	180
		93	46	2274	7134	0.55	180
		93	63	2274	8024	0.75	205
	20	70	27	2503	7114	0.25	180
		70	40	2503	7124	0.37	180
		70	59	2503	7134	0.55	180
		70	81	2503	8024	0.75	205
	25	56	32	2696	7114	0.25	180
		56	48	2696	7124	0.37	180
		56	71	2696	7134	0.55	180
	30	47	37	2865	7114	0.25	180
		47	55	2865	7124	0.37	180
		47	81	2865	7134	0.55	180
	40	35	33	3153	7114	0.25	180
		35	46	3153	7124	0.37	180
		35	68	3153	7134	0.55	180
	50	28	54	3397	7114	0.25	180
		28	72	3397	7124	0.37	180
		28	80	3397	7134	0.55	180
	52	27	55	3482	7114	0.25	180
		27	73	3482	7124	0.37	180
		27	82	3482	7134	0.55	180
	60	23	60	3610	7114	0.25	180
		23	75	3610	7124	0.37	180
		23	84	3610	7134	0.55	180
	80	18	64	3973	7114	0.25	180
		18	77	3973	7124	0.37	180
		18	89	3973	7134	0.55	180
	100	14	68	4280	7114	0.25	180
		14	79	4280	7124	0.37	180
		14	93	4280	7134	0.55	180



Applications of Worm Gearbox for Car Washing Machine

The Worm Gear Reducers are highly versatile components used in car washing machines to facilitate the efficient operation of rotary brushes. The XRV050 Worm Gearbox plays a vital role in car washing machines, particularly in facilitating the efficient operation of rotary brushes. Its functions encompass power transmission, speed control, compact design, durability, and noise reduction, all of which contribute to the overall effectiveness and reliability of the car washing process. The XRV050 model's specific design characteristics and capabilities make it a preferred choice for car wash machine manufacturers and operators seeking superior performance and longevity.

Automatic Roll-Over Car Washers: These cutting-edge car washers employ multiple large rotating brushes to thoroughly cleanse vehicles. To ensure optimal performance, worm gear reducers are utilized to drive these brushes, guaranteeing they rotate at the ideal speed to effectively eliminate dirt and debris from the vehicle's surface.

Tunnel Car Wash Systems: In these systems, vehicles traverse through a fixed tunnel equipped with an array of advanced cleaning and waxing devices. To provide consistent power output, worm gearmotors are commonly employed to drive the rotating brushes or rollers integrated within these devices.

Touch and Touchless Car Wash Systems: The latest car wash systems offer both touch and touchless options to cater to diverse preferences. In touch systems, rotating brushes make direct contact with the vehicle surface to perform the cleaning process. Conversely, touchless systems rely on high-pressure water jets to accomplish the task. In touch systems, the implementation of worm gearboxes assists in precisely controlling the speed and pressure of the brushes. This ensures effective cleaning without causing any damage to the vehicle's paintwork.



How Does an Automatic Car Wash Gearmotor Work?

An automatic car wash gearmotor is a crucial component in the operation of an automatic car wash system. It is responsible for powering the movement of various components, such as brushes, conveyors, and sprayers, that are involved in the car washing process. While specific designs may vary, here is a general overview of how an automatic car wash gearmotor works:

1. Motor: The gearmotor consists of an electric motor as its primary power source. The motor is typically an AC (alternating current) or DC (direct current) motor, depending on the design of the car wash system. AC motors are commonly used in commercial car washes, while DC motors may be found in smaller or portable car wash systems.
2. Gearbox: The motor is connected to a gearbox, which is responsible for reducing the high-speed rotation of the motor to a lower speed with higher torque. The gearbox contains a series of gears, such as worm gears, planetary gears, or spur gears, depending on the specific design. These gears work together to achieve the desired speed and torque conversion.
3. Power transmission: The output shaft of the gearbox is connected to a system of belts, chains, or direct couplings, depending on the design of the car wash system. This power transmission mechanism transfers the rotational motion from the gearmotor to the various components that require movement.
4. Control system: The gearmotor is controlled by a central control system that manages the operation of the car wash. This control system receives input from sensors, switches, or automated triggers and sends signals to the gearmotor to initiate specific movements at the appropriate times. For example, it may activate the motor to start the conveyor belt or engage the brushes when a vehicle enters the car wash.
5. Safety features: Automatic car wash gearmotors often incorporate safety features to prevent damage or accidents. These can include limit switches or sensors that detect obstructions or excessive force, emergency stop buttons, and overload protection mechanisms. These safety features help ensure the gearmotor operates within safe parameters and protect both the equipment and the vehicles being washed.

By combining the power of the motor, the speed reduction of the gearbox, and the controlled power transmission, the automatic car wash gearmotor enables the synchronized movement of various components, providing an efficient and effective car washing process.

Motors for Worm Gear Reducers

Our XRV050 series reducer is designed to work seamlessly with a variety of electric motors, ensuring optimal performance and efficiency. We also offer a range of electric motors to pair with our reducers, catering to a wide range of power requirements.

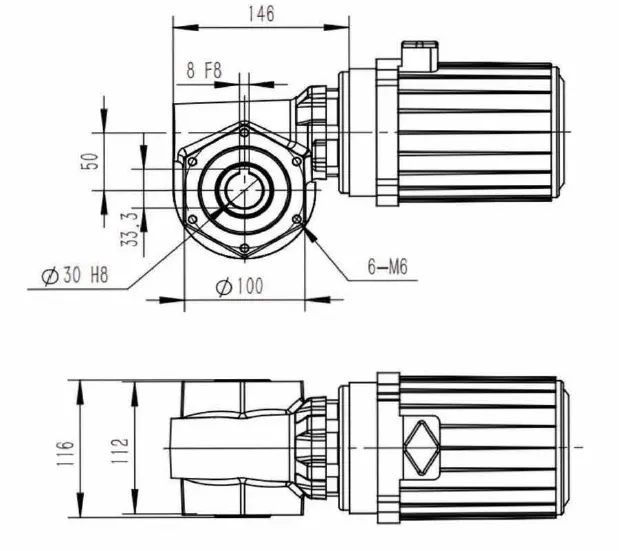

Motor Dimensions

IP67 Motor Dimension

IP56 Motor Dimension

Type	IP56 Motor					IP67 Motor
RV/De	L	D	ΦC	ΦS	T	L	D	ΦC	ΦS	T
71B14	190	140	85	14	M6	180	120	85	14	M6
80B14	215	158	100	19	M6	205	135	100	19	M6
