A manure spreader gearbox is a mechanical device that is used to transfer power from the tractor's power take-off (PTO) to the spreader's mechanism that spreads the manure. The gearbox is typically located at the back of the manure spreader and is attached to the tractor's PTO with a driveshaft.

The gearbox consists of a series of that transmit power from the tractor's PTO to the spreader's spinning mechanism. The gears are arranged in a specific pattern to provide the correct speed and torque to the spreader, ensuring that the manure is spread evenly across the field.

The gearbox may also have a clutch mechanism that allows the operator to engage or disengage the spreader's spinning mechanism from the tractor's PTO. This can be useful when maneuvering the spreader or when transporting it between fields.

Proper maintenance of the gearbox is important to ensure that it operates smoothly and efficiently. This may include regular lubrication, checking for wear and tear on the gears, and making any necessary repairs or replacements. A well-maintained gearbox can help extend the life of the manure spreader and ensure that it operates effectively for many years.

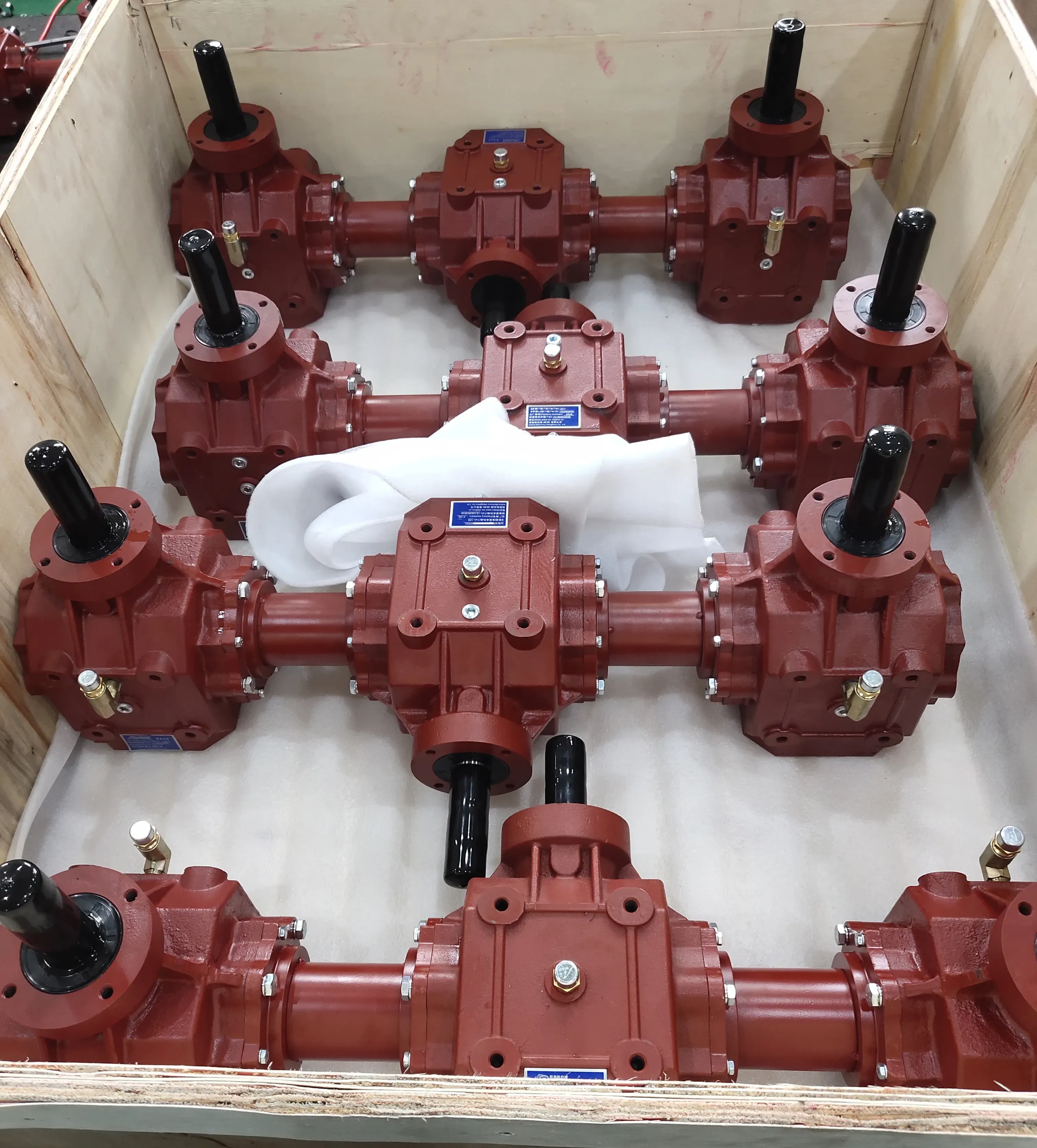

Manure Spreader Gearbox

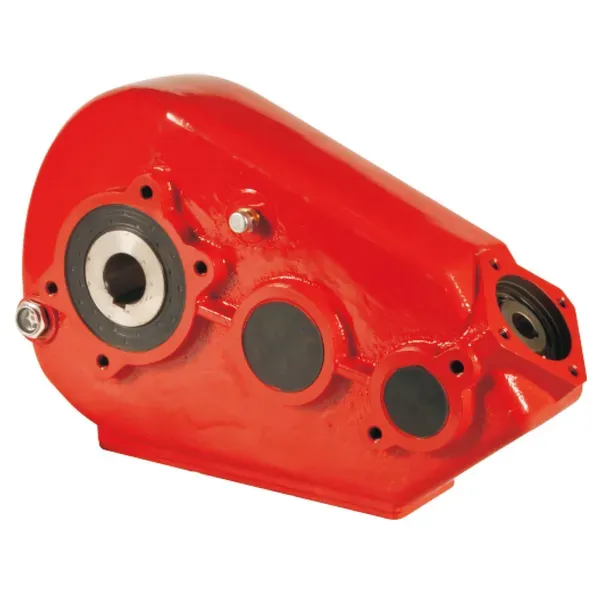

Manure Spreader Gearbox Parts

Manure spreader contain several parts that work together to spread manure or other materials effectively. Here are some of the essential parts of a manure spreader gearbox:

1. Input Shaft: The input shaft of the gearbox is connected to the power source, usually an engine or a tractor, to transfer power to the gearbox.
Gears: Gears are the primary components of a gearbox that help in transferring power from the input shaft to the output shaft. The gears should have different ratios to achieve varying speeds and torque.

2. Output Shaft: The output shaft of the gearbox is responsible for transferring power to the manure spreader's apron chain or beater.

3. Bearings: Bearings support the different components in the gearbox and helps reduces friction, allowing for smooth operation.

4. Seals: Seals protect the manure spreader gearbox components from dirt, dust, and moisture, helping in their longevity.

5. Clutch: The clutch enables the operator to disengage the gearbox from the power source, allowing the machine to stop or slow down.

6. Shifting mechanism: The shifting mechanism enables the operator to select and change the gears depending on the desired speed and torque.

7. Lubrication system: A lubrication system allows for the easy and efficient application of lubricating oil that reduces friction and internal wear.

8. Housing: The appropriate housing of the gearbox protects internal components and keeps the gearbox in place while in operation.

Manure spreader gearboxes are essential components that keep the machine functional. Regular maintenance of these parts will ensure a more extended lifespan of the gearbox and the entire machine.

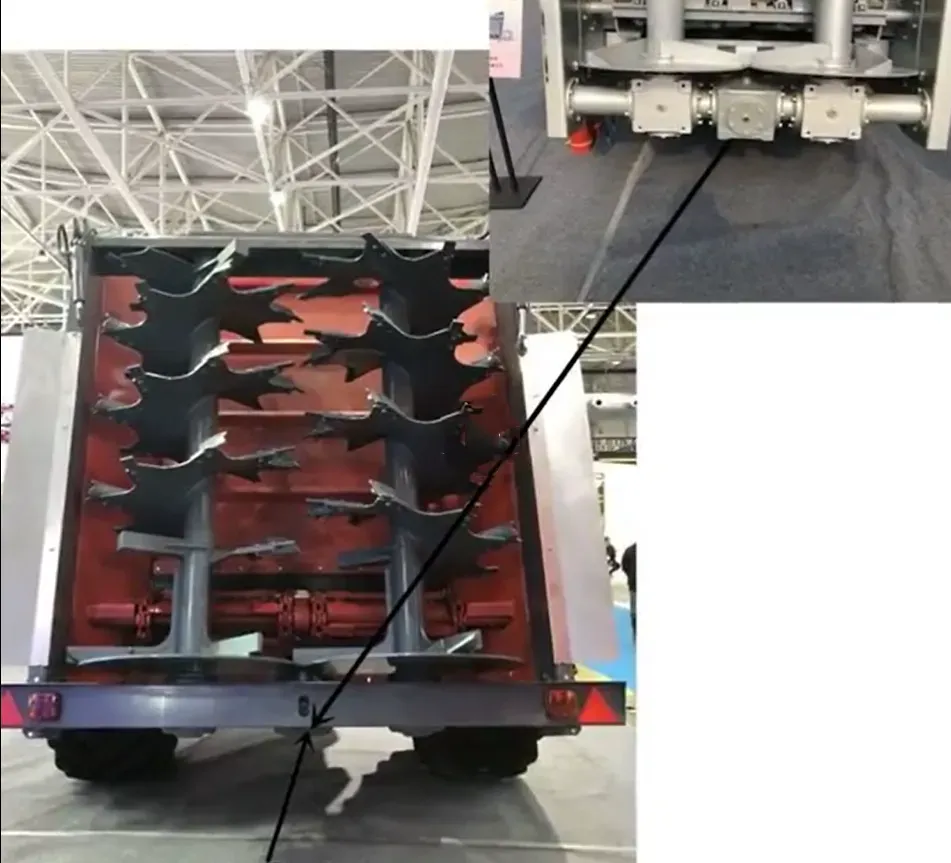

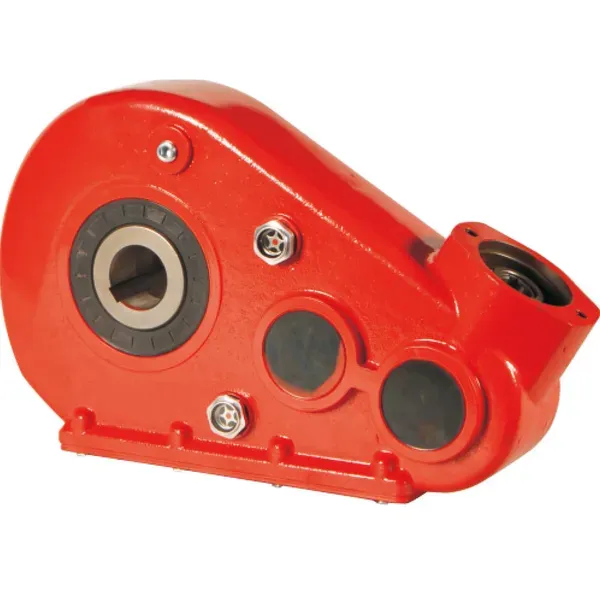

Manure Spreader Gearbox

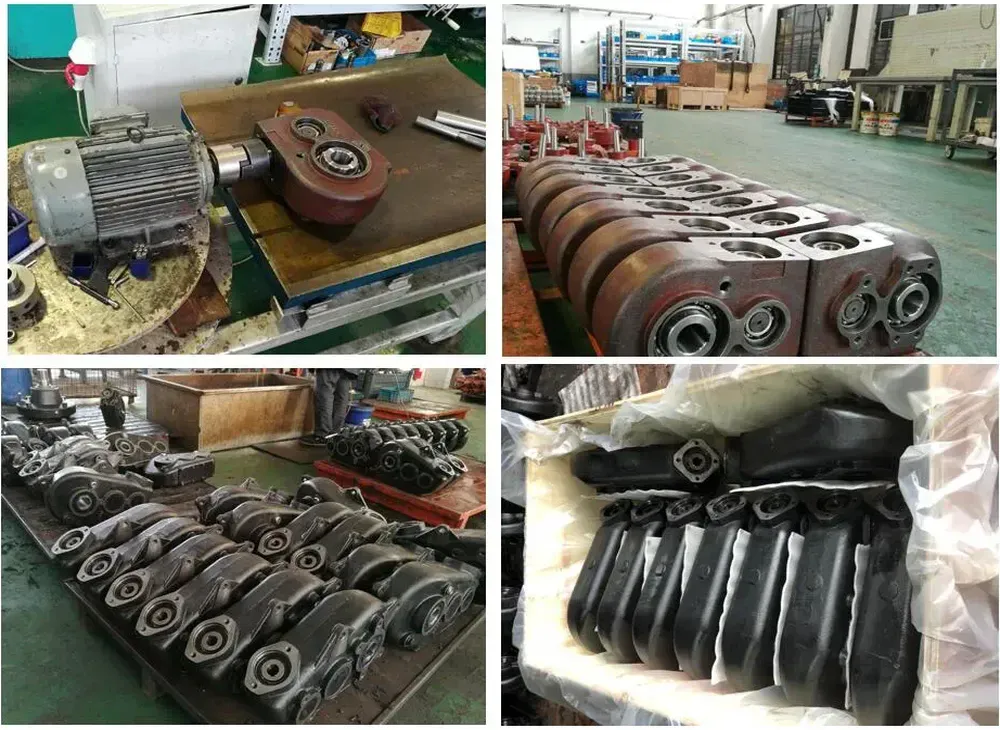

Manure Spreader Gearbox

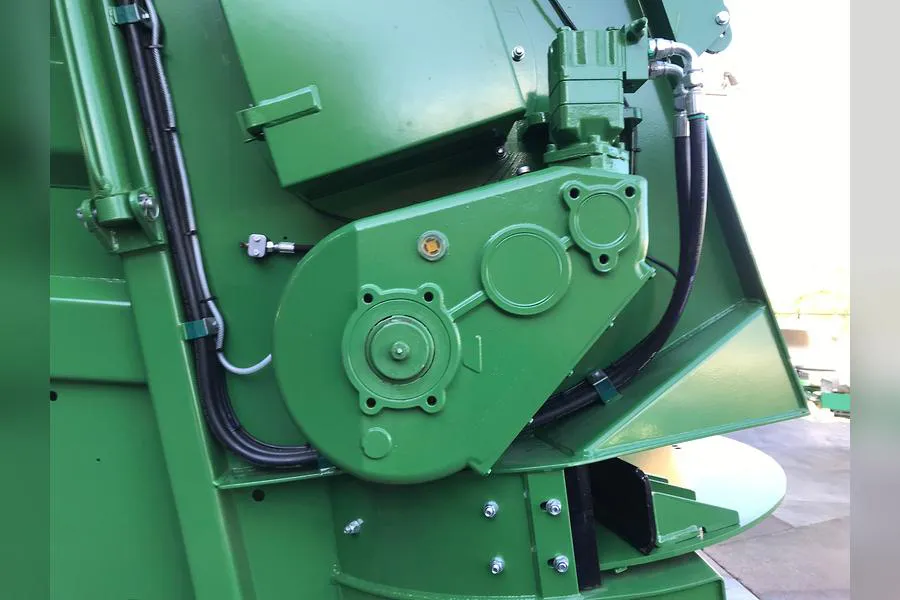

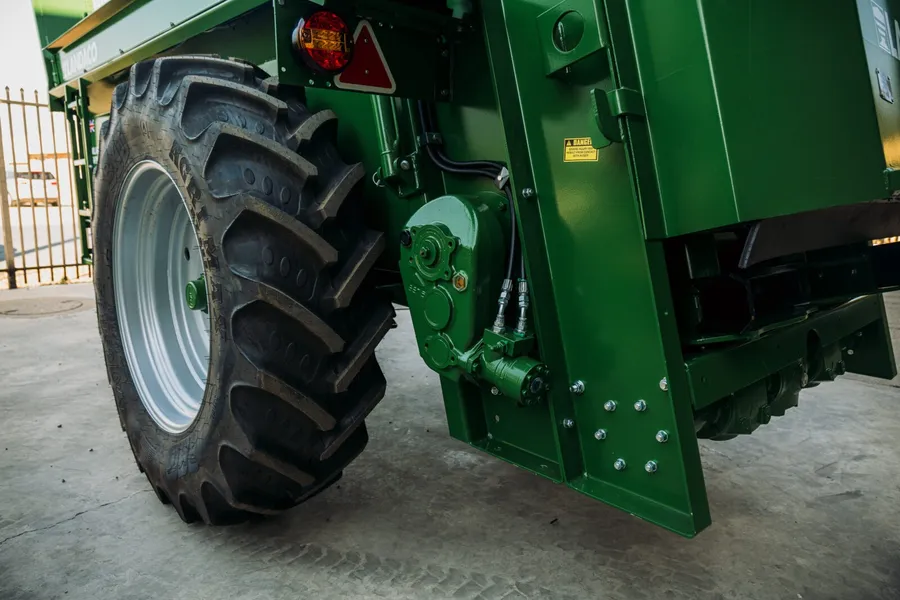

Manure Spreaders Gearbox Features

Manure spreaders are agricultural equipment used for spreading manure or other materials on fields. The manure spreader gearbox is an essential part of the manure spreader that controls the speed and torque of the system. Here are some common features of manure spreader gearboxes:

(1) Gear ratio: The gear ratio determines the rate at which the manure spreader can spread the material. The desired gear ratio depends on the size and weight of the spreader, the terrain, and the material being spread.

(2) Shifting mechanism: The manure spreader gearbox should have a proper shifting mechanism to change the gears and control the speed of the spreader.

(3) Lubrication: Manure spreader gearboxes need a constant supply of lubricating oil to reduce friction and prevent wear and tear.

(4) Durability: Since manure spreaders operate in harsh environments, the manure spreader gearbox should be durable and able to withstand extreme conditions.

(5) Sealing system: The manure spreader gearbox should have a proper sealing system to prevent dust, moisture, and dirt from entering the system.

(6) Sprockets and chains: The manure spreader gearbox consists of sprockets and chains that control the movement of the spreader. The sprockets and chains should be heavy-duty and durable.

(7) Torque rating: The manure spreader gearbox must have a torque rating that can handle the power of the engine and the load of the spreader.

(8) Safety features: The manure spreader gearbox should have adequate safety features to prevent accidents and injuries, such as guards and shields that cover the moving parts.

(9) Maintenance requirements: To ensure the longevity of the manure spreader gearbox, regular maintenance is necessary. The manure spreader gearbox should have easy access to the components that need lubrication or replacement.

Manure Spreaders Gearbox Features
Manure Spreaders Gearbox Features

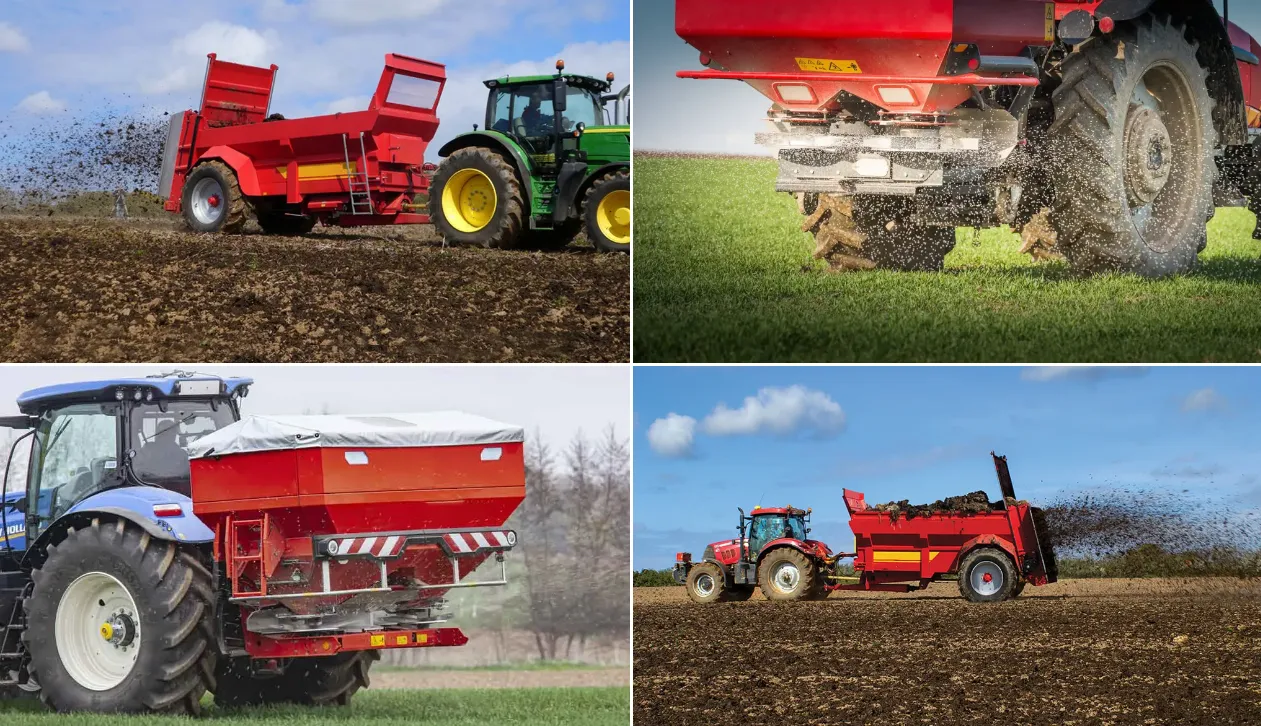

Manure Spreaders Gearbox Applications

Manure spreaders are widely used in the agriculture industry to distribute manure, compost, or other fertilizers on fields. The gearbox in a manure spreader plays a crucial role in its operation. Here are some of the applications of the manure spreader gearbox in the industry:

Power Transmission: The manure spreader gearbox transmits power from the tractor to the manure spreader through an input shaft that is connected to the tractor's PTO (power take-off). It then converts the power to the desired speed and torque to operate the spreader.

Speed Control: The manure spreader gearbox allows the operator to control the spreader's speed. By changing the gear ratio, operators can adjust the speed of the spreader to match the requirements of their fields.

Agitation: The manure spreader gearbox automatically agitates the manure or fertilizer and ensures that it is evenly distributed throughout the spreader. This is accomplished by the gearbox's ability to oscillate the manure spreader chain and auger or disk to ensure uniform mixing.

Reverse Operation: The manure spreader gearbox enables the manure spreader to operate in reverse, allowing for easy unloading and ensuring no buildup occurs at the back of the spreader.

Protection: The manure spreader gearbox is designed to protect the manure spreader from damage caused by overload or shock loads by incorporating various features such as overload protection and shock-load resistance.

Manure Spreader Gearbox Applications

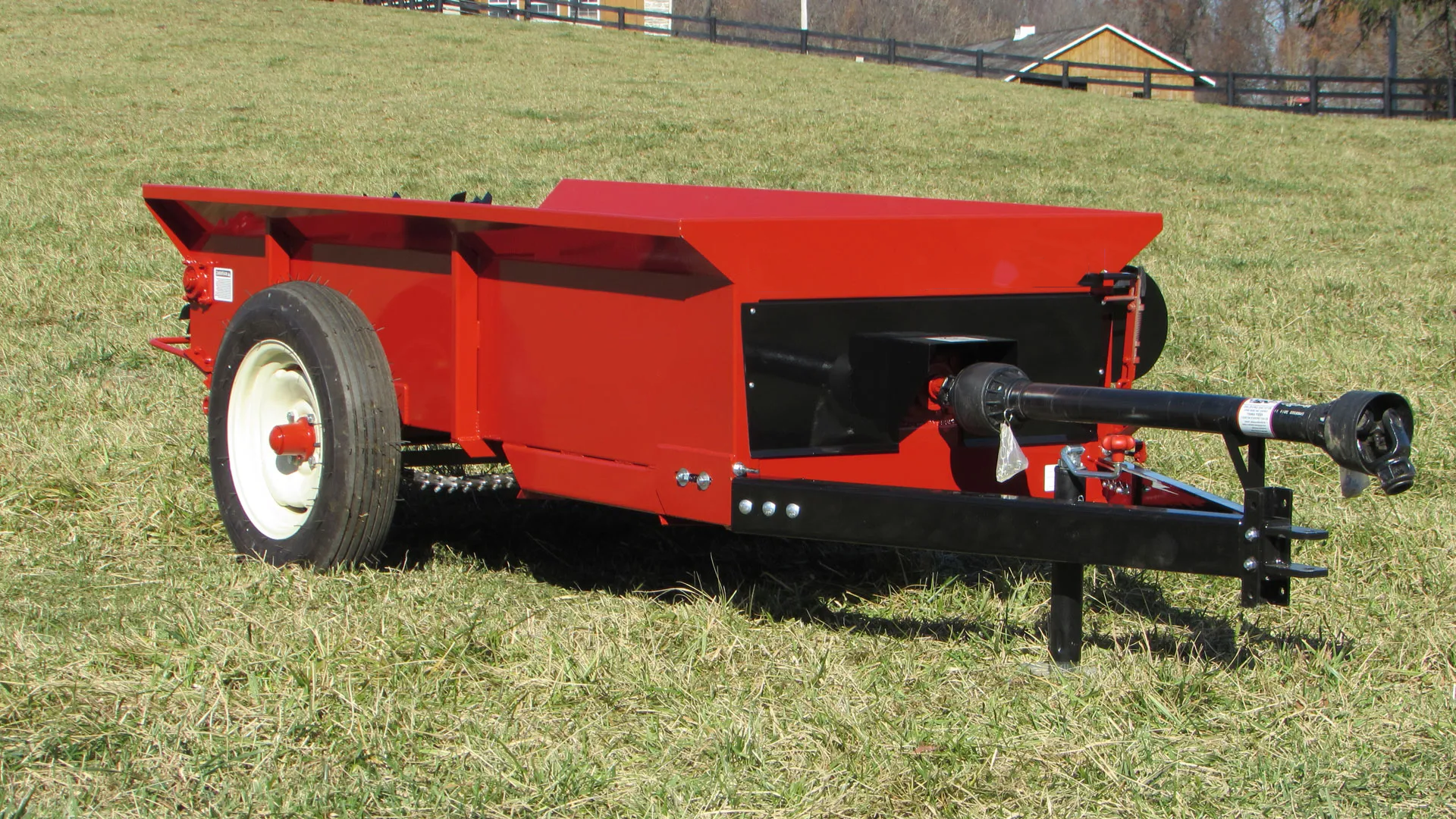

PTO Shaft for Manure Spreader Gearbox

The Power Take-Off (PTO) shaft is an essential component of a manure spreader gearbox. It is used to transmit power from the tractor to the manure spreader gearbox, allowing the equipment to spread manure effectively. Here's how the PTO shaft is used in the manure spreader gearbox:

Power Transmission: The connects the tractor's PTO to the manure spreader gearbox's input shaft, which transmits the rotary motion from the tractor's engine to the gearbox.

Durability and Strength: The PTO shaft must be designed with a good strength-to-weight ratio, considering it can experience high load forces during power transmission.

Safety: The PTO shaft must be designed with safety in mind. The end of the PTO shaft that connects to the tractor should have a safety guard to prevent operators from coming into contact with the rotating components.

Maintenance and Lubrication: The PTO shaft must be regularly maintained and lubricated to ensure smooth operation and prevent wear and tear.

In conclusion, the PTO shaft is an essential component of the manure spreader gearbox, allowing for smooth power transmission between the tractor's PTO shaft and the agricultural gearbox. It is important to ensure the PTO shaft is designed with durability, safety, and maintenance in mind to prolong the equipment's lifespan and ensure safety in operation.

PTO Shaft for Manure Spreader Gearbox

Manure Spreader Gearbox for Sale

If you are looking to buy a manure spreader gearbox, there are several factors that you need to consider including the brand, size, and type of gearbox that you need. When selecting a manure spreader gearbox, it is important to consult the manufacturer's specifications to ensure compatibility with your manure spreader.
Manure Spreader Gearbox
