Slide Valve Vacuum Pump

HIGH QUALITY PRECISE MANUFACTURER

&SUPPLIER

HZPT professional manufacturing

HZPT is a premier global company specializing in the production and sales of slide valve vacuum pumps, renowned for pioneering advancements in vacuum technology. Our slide valve vacuum pumps are designed for a broad spectrum of applications, including industrial, chemical processing, and packaging, meeting the highest standards of efficiency, reliability, and performance. At HZPT, we pride ourselves on delivering vacuum solutions that enhance productivity and operational excellence across various sectors.

Our commitment to innovation is reflected in every we manufacture, ensuring they offer superior durability, minimal maintenance, and optimal energy efficiency. HZPT's team of experts is dedicated to providing exceptional customer service and support, from selecting the right for your specific needs to offering comprehensive after-sales services.

Choosing HZPT for your slide valve vacuum pump needs means partnering with a company that understands the critical importance of vacuum technology in driving business success. We invite you to explore our range of slide valve vacuum pumps and discover how HZPT can elevate your operations with our unmatched vacuum solutions.

Slide Valve Vacuum Pump For Sale

ep-Slide-valve-vacuum-pump-1

Slide valve vacuum pump

Advantages of Slide valve vacuum pump compared with other vacuum pumps

Feature Slide Valve Vacuum Pump Rotary Vane Vacuum Pump Liquid Ring Vacuum Pump Diaphragm Vacuum Pump
Operating Principle Utilizes a sliding valve to control gas flow, creating a vacuum without the need for internal lubrication in the pumping chamber. Uses rotating vanes in an oil-filled chamber to create a vacuum. Operates with an impeller inside a ring of liquid, typically water or oil, to create a vacuum. Relies on the reciprocating movement of a diaphragm to pump gas.
Maintenance Lower maintenance due to fewer moving parts and no oil changes. Higher maintenance due to oil changes and vane wear. Requires consistent maintenance to manage the liquid seal and address potential erosion. Generally low maintenance but diaphragms may require periodic replacement.
Lubrication Can operate without oil in the vacuum space, reducing contamination risk. Requires oil for operation, which can lead to contamination and requires filtration. The liquid seal can introduce contamination into the process if not properly managed. Oil-free, minimizing contamination risk but may have lower durability.
Efficiency High efficiency and good control over the vacuum level due to the sliding valve mechanism. Efficiency can be limited by seal and vane wear over time. Efficiency is limited by the design and the properties of the sealing liquid. Lower efficiency for high-volume applications, better suited for small or precise applications.
Noise Level Generally quieter operation due to less mechanical friction. Can be noisy due to mechanical operation and oil mist exhaust. Noise level varies, generally moderate, but handling liquid can be noisy. Typically operates quietly, making it suitable for laboratory environments.
Environmental Impact Reduced environmental impact with no oil disposal needed for oil-free models. Oil disposal and potential leaks pose environmental risks. Handling and disposing of the sealing liquid can have environmental implications. Minimal environmental impact due to oil-free operation.
Application Versatility Versatile applications, especially where gas cleanliness is critical. Broad application range but potential for oil contamination. Suited for environments where handling wet or slightly contaminated gases is necessary. Ideal for clean, dry, and less demanding vacuum applications.



Features of Slide Valve Vacuum Pump

The characteristics of the slide valve vacuum pump are mainly reflected in the following aspects:

1. Efficient vacuum extraction capacity: The slide valve vacuum pump can quickly reach the required vacuum degree in a short time through its unique slide valve mechanism. This efficient vacuum extraction capability makes the slide valve vacuum pump excellent in a variety of application scenarios, especially in processes that require rapid establishment of a vacuum environment.

2. Stable operating performance: The design of the slide valve vacuum pump enables it to maintain a high degree of stability during operation. The precision fit and excellent sealing performance of the slide valve ensure efficient operation of the pump and reduce performance degradation due to leakage or friction. In addition, the slide valve vacuum pump also adopts an advanced cooling system, which effectively reduces the temperature of the pump body and further improves the stability of operation.

3. Good durability: The slide valve vacuum pump uses high-strength materials and wear-resistant coatings to make the pump body have good durability. Under long-term, high-load operating conditions, the slide valve vacuum pump can still maintain good performance, extend its service life, and reduce maintenance costs.

4. Lower noise and vibration: The structural design of the slide valve vacuum pump focuses on reducing noise and vibration. By optimizing the motion trajectory of the slide valve and adopting shock absorption measures, the noise and vibration generated by the slide valve vacuum pump during operation are effectively controlled, providing users with a more comfortable working environment.

5. Easy maintenance and upkeep: The structural design of the slide valve vacuum pump is simple and clear, making maintenance and upkeep relatively easy. Users can regularly clean, inspect and replace wearing parts as needed to ensure long-term stable operation of the pump. In addition, the slide valve vacuum pump also provides a wealth of accessories and maintenance services, providing users with convenient after-sales support.

Working principle of slide valve vacuum pump

working principle:

1. Open state: When the slide valve is in the open position, it allows ambient gas to enter the interior of the vacuum pump through a specific channel. At this time, the seal between the slide valve and the pump body is opened, forming an open gas passage.

2. Closed state: When the slide valve moves in the other direction and reaches the closed position, it closely fits the sealing surface of the pump body, thereby preventing further gas entry or gas leakage in the pump. In this way, the slide valve forms an effective isolation, separating the internal space of the pump from the external environment.

ep-Slide-valve-vacuum-pump-5

Slide Valve Vacuum Pump main application areas

Slide Valve Vacuum Pump is mainly used in many fields. Its efficient and stable vacuum extraction capability makes it a key equipment in many industrial and scientific applications. The following are the main application areas of slide valve vacuum pumps:

1. Semiconductor manufacturing: In the semiconductor production process, slide valve vacuum pumps are used to create and maintain a high vacuum environment, which is critical for precision manufacturing processes. It helps ensure that components such as transistors and integrated circuits are manufactured without the effects of gaseous contamination and impurities.

2. Scientific research laboratories: In the field of scientific research, slide valve vacuum pumps are often used in vacuum chambers, particle accelerators and other experimental equipment that require high vacuum environments. It provides a stable, controllable vacuum condition for scientific experiments, facilitating precise measurements and observations.

3. Vacuum metallurgy: In the metallurgical industry, slide valve vacuum pumps are used in processes such as vacuum smelting and vacuum casting. The vacuum environment can reduce material oxidation and gas inclusions, thereby improving the purity and quality of metals.

4. Vacuum drying: In the food, chemical and pharmaceutical industries, slide valve vacuum pumps are used in vacuum drying equipment to help remove moisture and volatile components from materials and improve product quality and shelf life.

5. Surface treatment: In the surface treatment process of metals and plastics, slide valve vacuum pumps are used in vacuum coating, vacuum evaporation and other technologies to provide uniform adhesion and excellent gloss for the surface coating.

ep-Slide-valve-vacuum-pump-6

Ensure long-term stable operation of Slide Valve Vacuum Pump

Ensuring the long-term stable operation of a Slide Valve Vacuum Pump requires attention to many aspects, including correct installation, operation, maintenance, and regular inspection and replacement of parts. Here are some key steps and considerations:

1. Correct installation:
When installing a spool vacuum pump, make sure it is on a smooth, vibration-free surface and installed in accordance with the manufacturer's guidelines.
Make sure all connecting pipes and connections are properly connected, have no leaks, and use appropriate sealing materials.
Check that electrical connections comply with safety standards and ensure that the power supply is stable.

2. Standardized operations:
Before starting the slide valve vacuum pump, make sure there are no residues or impurities in the pump to avoid damage to the operation of the pump.
Follow the operating instructions provided by the manufacturer and do not overload the pump to avoid excessive stress and wear on the pump.
Before shutting down the pump, make sure that the gas in the pump has been completely exhausted to avoid excessive shock when starting the next time.

3. Regular maintenance:
Clean your spool vacuum pump regularly to remove accumulated dust, dirt and particles.
Check slide valves, seals and other wearing parts for wear and replace as necessary.
Lubricate the pump's moving parts to ensure they run smoothly.
Check the working status of electrical systems, sensors and control systems to ensure they are functioning properly.

4. Fault prevention and troubleshooting:
Regularly check the performance indicators of the pump, such as vacuum, flow and noise, etc., to detect potential problems in time.
If the pump has problems such as abnormal sound, vibration or leakage, it should be stopped immediately for inspection, and the cause of the problem should be found and repaired.
For problems that cannot be solved by yourself, you should seek help from the manufacturer or professional technicians.

ep-Slide-valve-vacuum-pump-2

Slide Valve Vacuum Pump common faults

Slide Valve Vacuum Pump may encounter some common faults during long-term operation. These failures may originate from a variety of factors, including usage environment, operating methods, maintenance status, etc. Here are some common failures and their possible causes:

1. Vacuum degree decreases:
The slide valve seal is not tight, causing gas leakage.
The slide valve is severely worn, affecting the sealing performance.
There are impurities or oil in the pump, which affects vacuum extraction.

2. Increased noise and vibration:
The slide valve does not move smoothly, possibly due to worn slide rails or poor lubrication.
The pump body is unstable, causing vibration.
The motor or other drive component is faulty.

3. Pump body overheated:
The cooling system fails and cannot effectively dissipate heat.
Slide valve movement friction generates excessive heat.
Motor or circuit failure causes excessive current.

4. Abnormal oil level:
The fuel tank is leaking or poorly sealed.
The oil pump is faulty and cannot supply oil normally.
The oil is of poor quality or has not been replaced for a long time, resulting in blockage of the oil circuit or poor lubrication.

5. Electrical failure:
The motor is damaged or the power supply is unstable.
Control circuit failure, such as sensor failure or line short circuit.

Installation and maintenance of Slide Valve Vacuum Pump

Installation steps and precautions:

1. Preparation:
Check that the pump and its accessories are intact and that all parts meet specifications and requirements.
Choose a stable and vibration-free mounting location for easy operation and maintenance.
Prepare necessary tools and materials, such as screwdrivers, wrenches, sealants, etc.

2. Install the pump body:
Place the pump body in the predetermined position, making sure it is placed horizontally and firmly fixed.
Connect the inlet and outlet pipes, making sure the pipes are tightly connected and leak-free.
Install electrical wiring and make sure power connections are correct and safe.

3. Inspection and debugging:
After the installation is completed, carefully check whether the pump body and its accessories are installed correctly and whether they are loose or missing.
Carry out a no-load test run, observe the operating status of the pump, and ensure that there are no abnormal sounds or vibrations.
Load and run step by step to check whether the vacuum degree and flow rate of the pump meet the requirements.

Maintenance steps and precautions:

1. Regular cleaning:
Periodically shut down the pump, disassemble necessary parts, and remove accumulated dust, dirt, and particulate matter from the pump.
Use appropriate cleaning agents and tools to ensure thorough cleaning without causing damage to the pump body.

2. Check and replace wearing parts:
Regularly check the wear of sliding valves, seals and other wearing parts, and replace them in time according to the degree of wear.
When replacing wearing parts, make sure that the new parts have the same specifications as the original parts, are installed correctly and are fastened reliably.

3. Lubrication and maintenance:
Lubricate the pump's moving parts with oil or grease regularly, based on pump usage and manufacturer's recommendations.
Check the working status of the lubrication system to ensure that lubrication is normal and not excessive.

4. Electrical maintenance and inspection:
Regularly check electrical wiring and control systems to ensure good connections and no damage.
Regularly check the operating status of the motor. If there is abnormal sound or heating, deal with it in time.

ep-Slide-valve-vacuum-pump-3

Why choose HZPT?

1. QUALITY PRODUCTS: HZPT is committed to providing the highest quality Slide valve vacuum pump. Our products are precision-engineered and manufactured from advanced materials to ensure durability, reliability, and consistent performance.

2. Comprehensive Service: We pride ourselves on providing exceptional service to our customers. Our dedicated team of professionals is ready to answer your questions, provide technical support, and provide solutions tailored to your specific needs.

3. Competitive Prices: HZPT offers competitive prices without compromising on quality. We believe in creating value for our customers and work hard to ensure that our products are competitively priced, making them suitable for every budget.

4. Excellent After-Sales Support: We know that a product is only as good as the support you receive after purchase. HZPT provides comprehensive after-sales service, including timely repairs, replacements and maintenance, ensuring your vacuum pump remains in top condition longer.

5. Wide product range: HZPT offers a wide range of vacuum pumps to meet different applications and requirements. From water ring vacuum pumps, screw vacuum pumps to slide valve vacuum pumps, we can provide you with the right products.

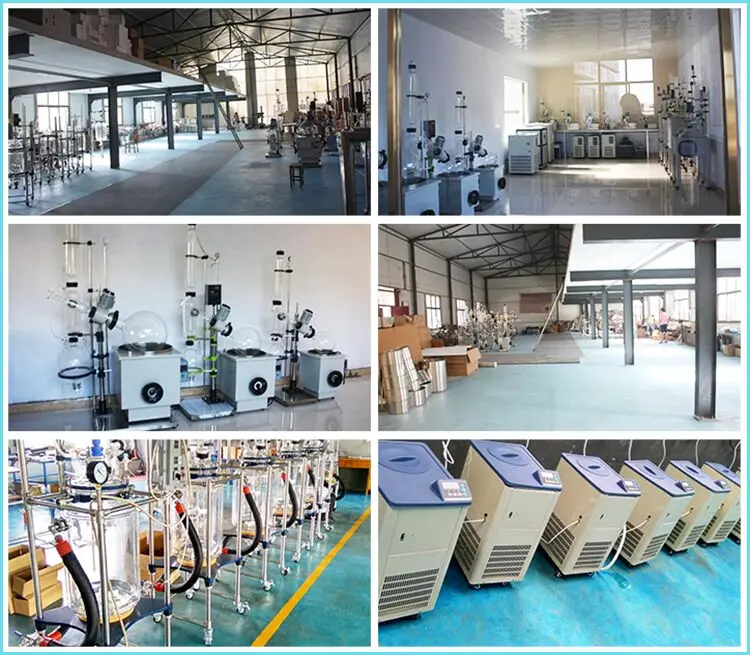

factory
