What is the Forklift Hydraulic Cylinder?

The hydraulic cylinder consists of a cylindrical barrel, a piston, a piston rod, and various seals. The cylinder barrel is a hollow tube that houses the piston and allows it to move freely. The piston is a solid, cylindrical component that separates the cylinder into two chambers. The piston rod extends from the piston and provides a connection point for the load-bearing attachment of the forklift, such as the forks or a lifting attachment.

Inside the cylinder, hydraulic fluid, typically oil, is pressurized using a hydraulic pump. When pressure is applied to one side of the piston, it moves in the opposite direction, generating force. This force is transmitted through the piston rod to the load, allowing the forklift to lift heavy objects.

To ensure smooth operation and prevent leaks, the hydraulic cylinder is equipped with seals, such as O-rings or lip seals, which prevent fluid from escaping and maintain pressure within the system. These seals also help to protect the cylinder components from contaminants that can cause damage or reduce performance.

Forklift hydraulic cylinders are designed to withstand high pressures and heavy loads, as they are integral to the lifting capabilities of the forklift. They are typically constructed from durable materials, such as steel, and undergo strict quality control measures to ensure their reliability and longevity.

Forklift Hydraulic Cylinders for Sale

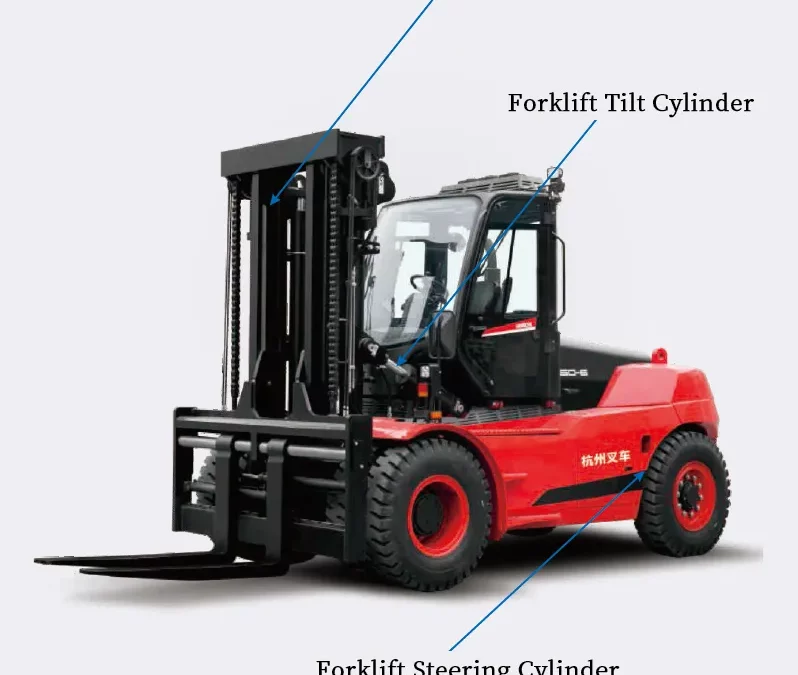

Different Types of Forklift Hydraulic Cylinders

Forklifts use hydraulic cylinders to perform a variety of functions, including lifting, tilting, and steering. These cylinders convert hydraulic energy into mechanical force, allowing the forklift to handle heavy loads with precision. There are several types of hydraulic cylinders used in forklifts, each designed for specific functions:

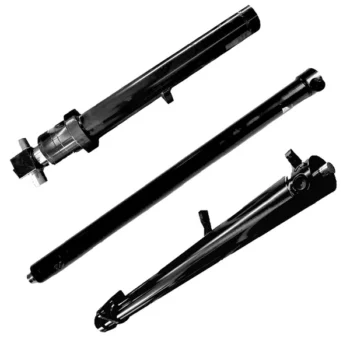

1. Lift Cylinders

• Function: Lift cylinders are responsible for raising and lowering the forks or the load.
• Design: They are typically vertically oriented and directly attached to the mast of the forklift.
• Operation: When hydraulic fluid is pumped into the cylinder, it pushes the piston and rod upwards, lifting the forks.

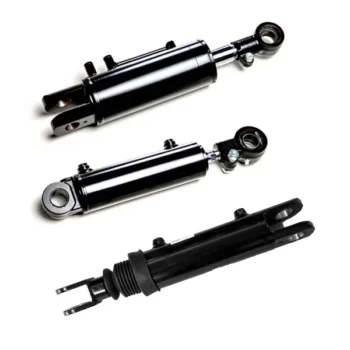

2. Tilt Cylinders

• Function: Tilt cylinders control the tilt movement of the forklift’s mast, which is essential for positioning loads correctly and safely.
• Design: These are usually positioned between the forklift’s mast and chassis.
• Operation: Activating the tilt cylinder causes the mast to tilt forwards or backwards, adjusting the angle of the load.

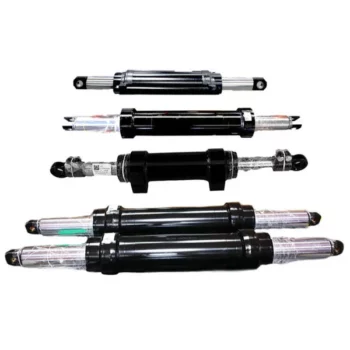

3. Steering Cylinders

• Function: Used in the steering system of the forklift to control the direction of the vehicle.
• Design: Found in the rear axle assembly of the forklift, especially in models where the steering is controlled by the rear wheels.
• Operation: The steering wheel controls the flow of hydraulic fluid to these cylinders, which then move the wheels in the desired direction.

Forklift Parts & Accessories

(1) Hydraulic Quick Couplings

Hydraulic quick couplings are made up of two parts: a male half and a female half. The male half is typically attached to the hydraulic hose, while the female half is attached to the hydraulic machine or attachment. When the two halves are connected, they form a seal that prevents fluid leakage.

(2) Instrumentation Ball Valve

(3) Hydraulic Ball Valves

(4) Flared Tube Fittings

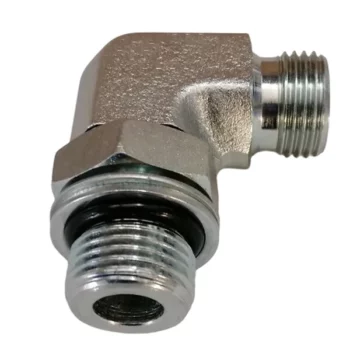

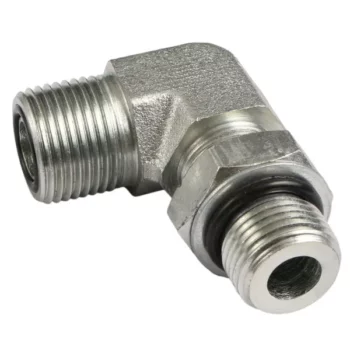

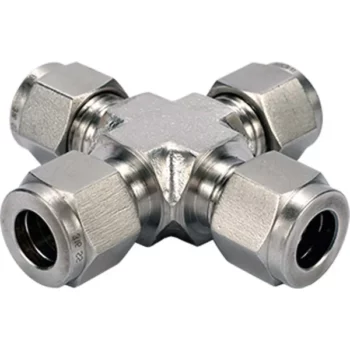

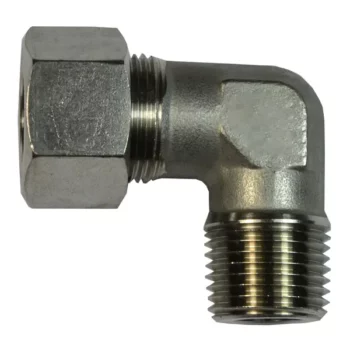

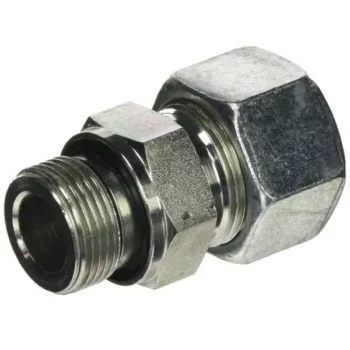

(5) Hydraulic Fitting

(6) Needle Valves

Needle valves are a type of valve that is used to precisely control the flow of fluids and gases. They are typically used in applications where a high degree of accuracy is required, such as in medical devices, chemical processing equipment, and analytical instrumentation.

(7) Check Valves

A check valve, also known as a one-way valve, is a device that allows the flow of fluids to move only in one direction. This is achieved through the use of a moving part, such as a ball, disk, or flap, that is pushed open by the flow of fluid in the forward direction and closes automatically when the flow reverses.

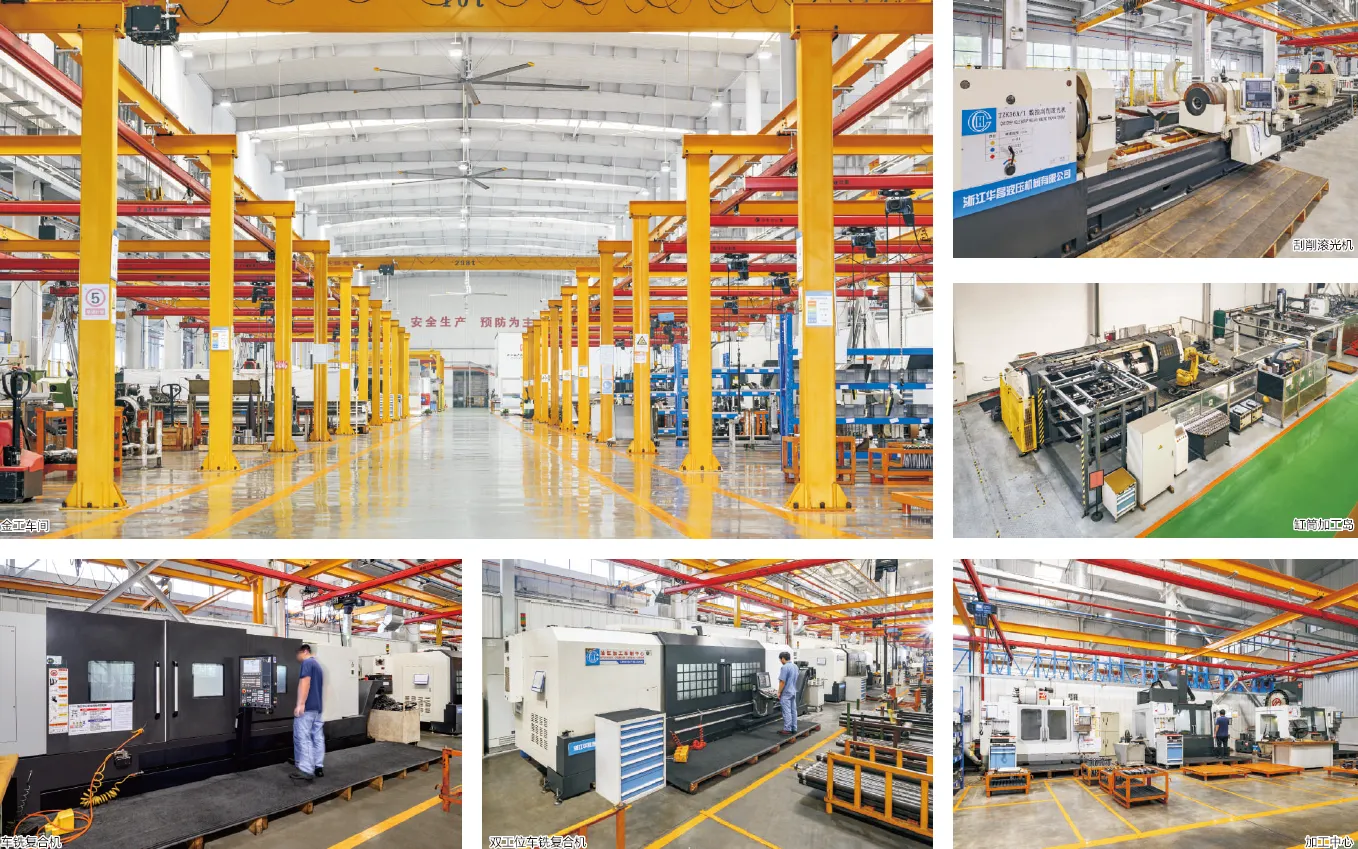

About EverPower-Huachang Hydraulic Technology Co., Ltd

Zhejiang EverPower-Huachang Hydraulic Technology Co., Ltd, as a leader in hydraulic systems for the forklift attachments industry, has been on its journey of technological innovation since 1995. The company has solidified its leading position in the international market with its outstanding technical capabilities, leading R&D strength, unrivaled product quality and customer-oriented service philosophy.

Click on this link to take an online 3D virtual tour of our plant.

The product line of EverPower-Huachang Hydraulics includes paper roll clamp cylinders with hydraulic locks for Cascade, and nearly 400 types of attachment cylinders produced on a large scale for famous enterprises such as Hangzhou Fork Attachment of German Kaup since 2006, with high quality requirements for single piece, small batch and multi-specification of the attachment cylinders. We use the leading production technology to ensure product precision and quality, and have a rapid response production supply chain and a wealth of parts inventory, to ensure our rapid delivery capacity.

The diameter of the piston rod of the generator cylinder is small, the straightness and roundness of the piston rod is the key, our company adopts the mature production technology to ensure the shape tolerance and size tolerance of the piston rod, we use the world-renowned seals, such as NOK, Trelleborg, Good Wright, etc. to ensure perfect sealing and never leakage of oil, we use the advanced numerical control test equipment (the data is saved in the cloud system and can be traced back), to ensure that each cylinder is 100% before leaving the factory, we carry out all kinds of tests, we use the world’s advanced robots, we use the world’s advanced robot to ensure that we can provide the best quality products. We adopt advanced numerical control test equipment (data saving cloud system and traceability) to ensure that every cylinder is 100% tested before leaving the factory. We adopt the world’s advanced robotic automatic painting line to ensure that every cylinder’s paint adhesion, thickness, leveling, color difference, and salt spray time meets the technical requirements.

Our company has accumulated rich production experience and optimized design data through long-term cooperation with Cascade, Kaup and Hangzhou Fork, so that we can avoid a lot of misunderstandings when designing and producing new products, and the production assembly and painting process of hydraulic cylinders of the field fixtures is very mature and reliable. Advanced equipment, advanced technology without mature design process, production process, business management process, inspection process, storage and packaging process, details are as follows, for reference only:

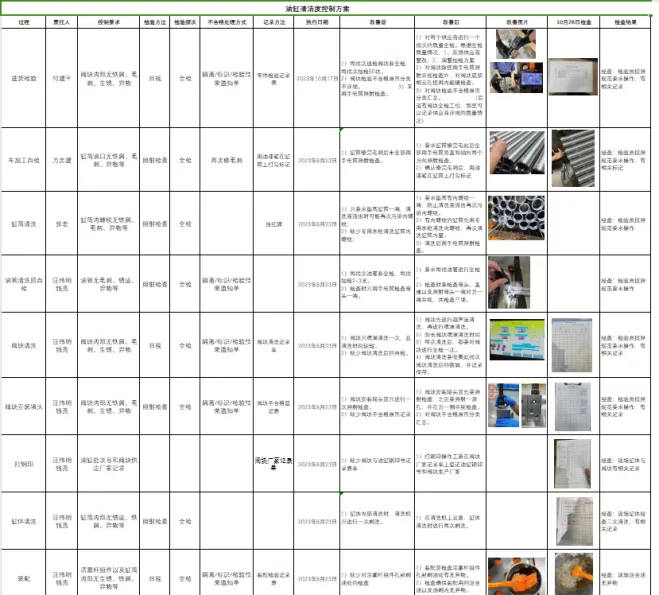

EverPower-Huachang Complete Production Process Management

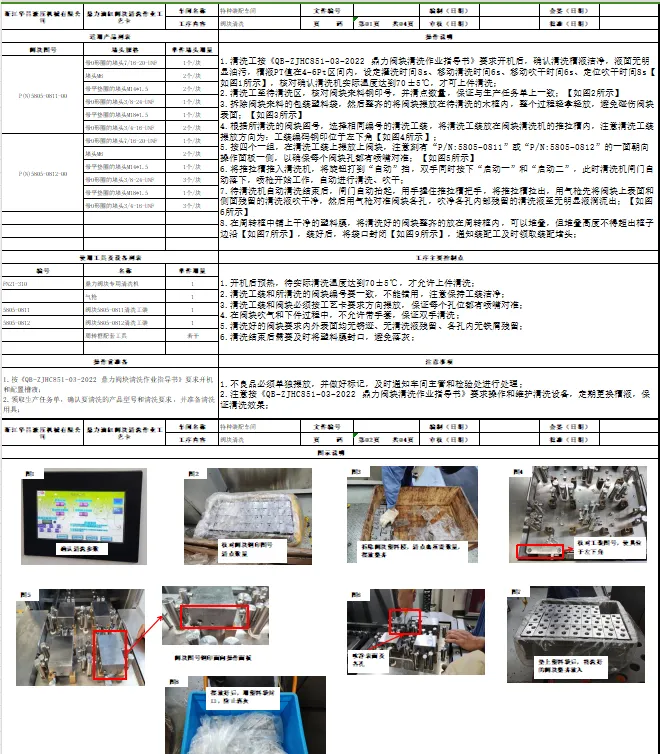

2. Cleaning of Parts Before Welding

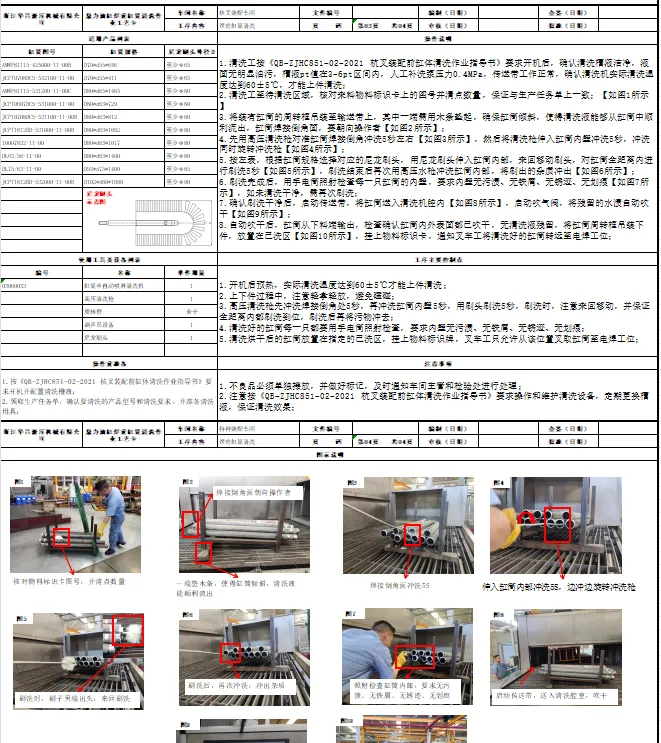

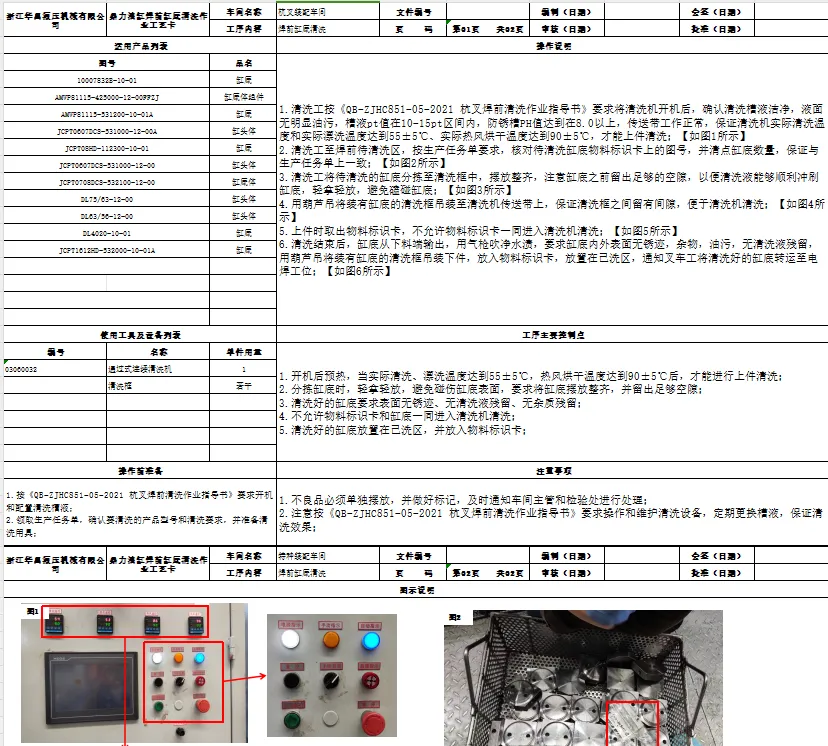

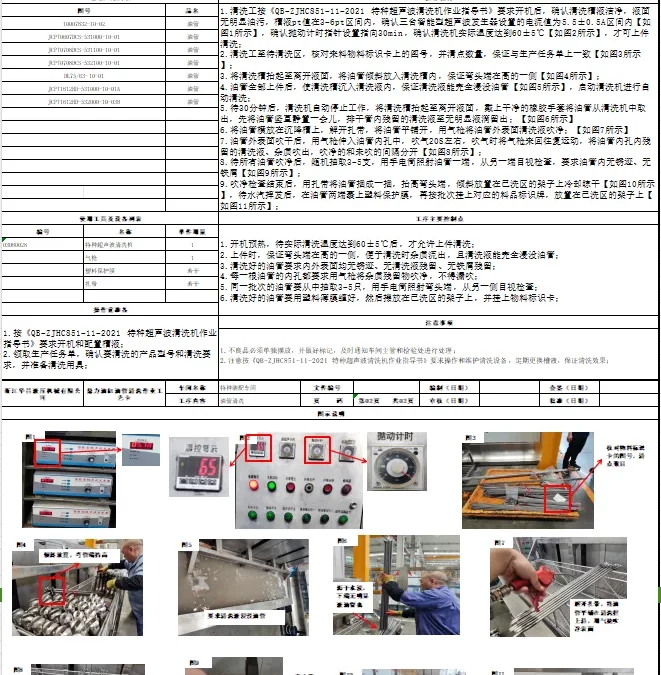

4. Cylinder Cleaning Before Welding

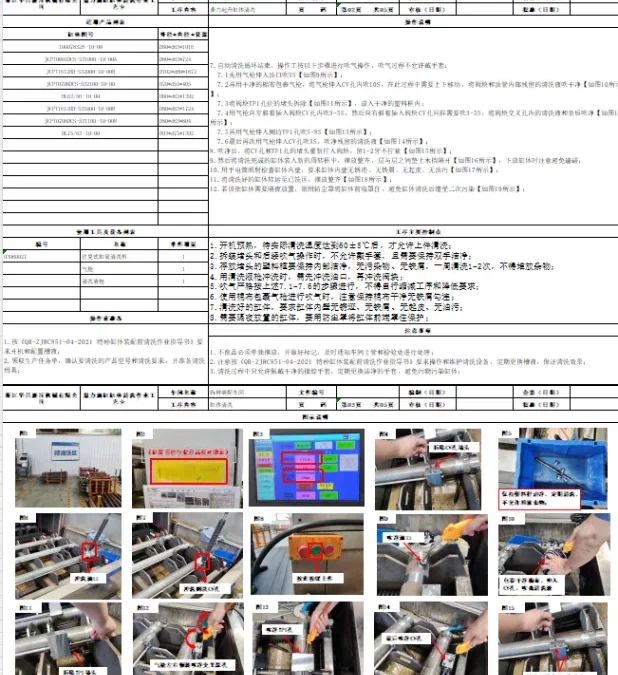

6. Clear the Whole Cylinder Block Before Assembly

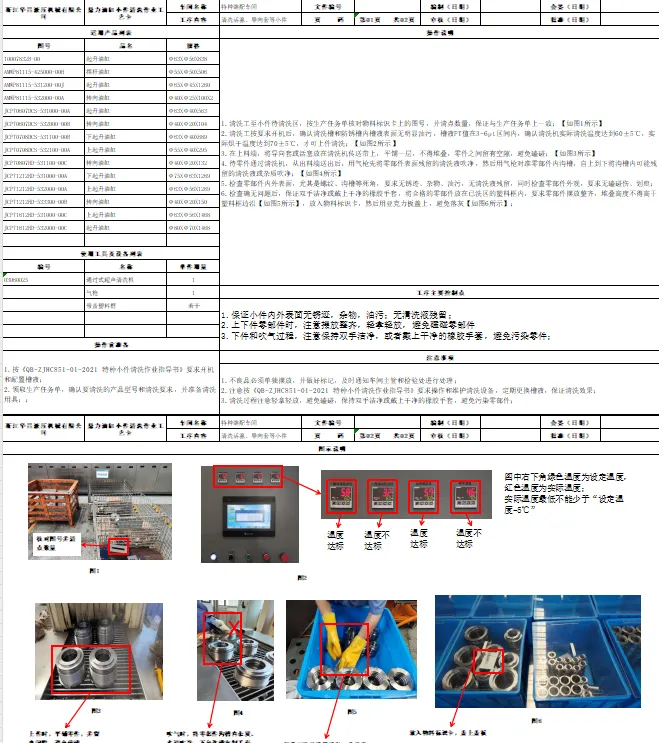

8. Piston Rod Cleaning Before Assembly

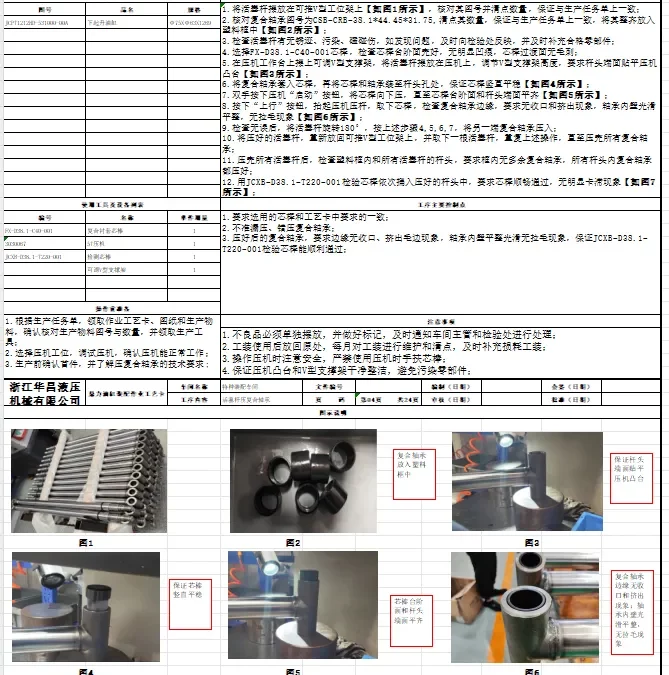

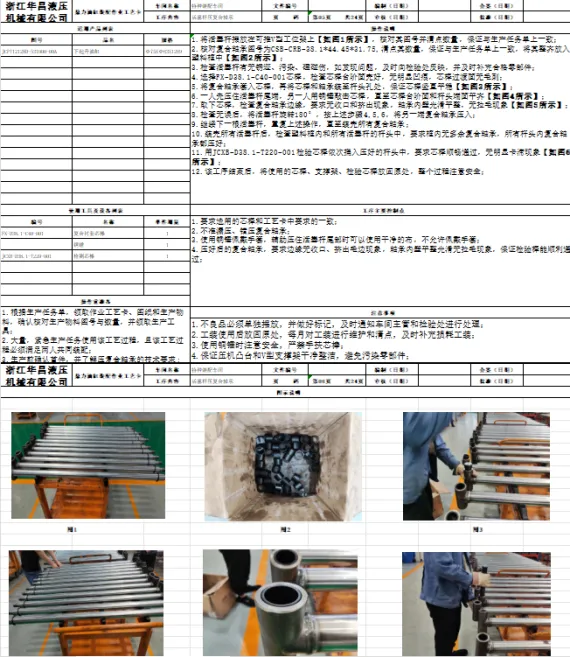

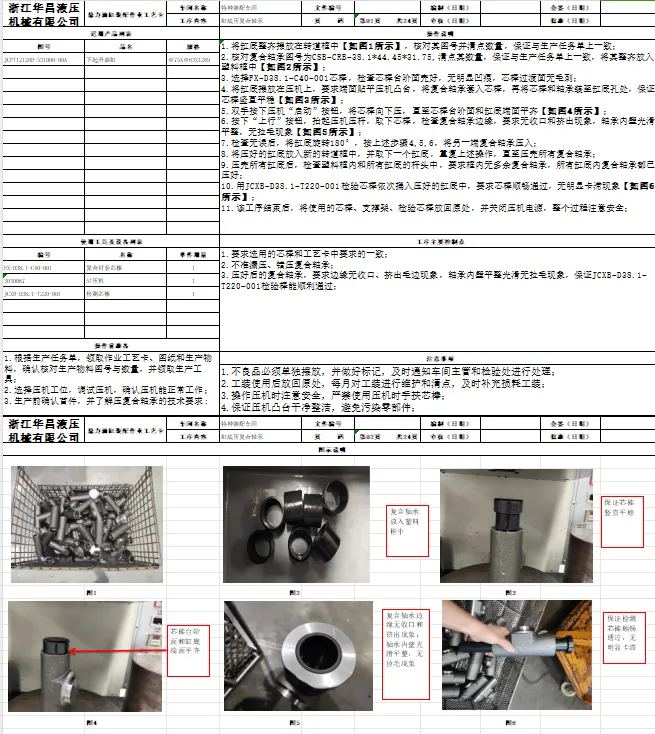

10. Work Instructions for Assembly of Piston Rods (1)

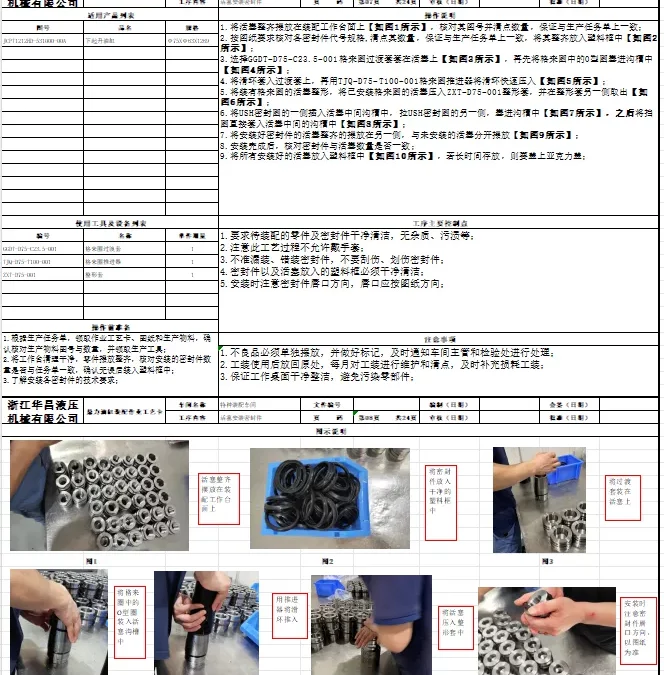

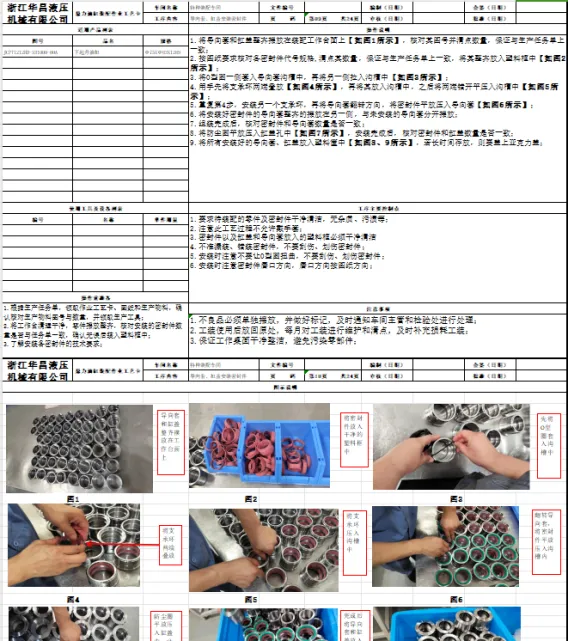

12. Seal Installation Guide for Cylinders (1)

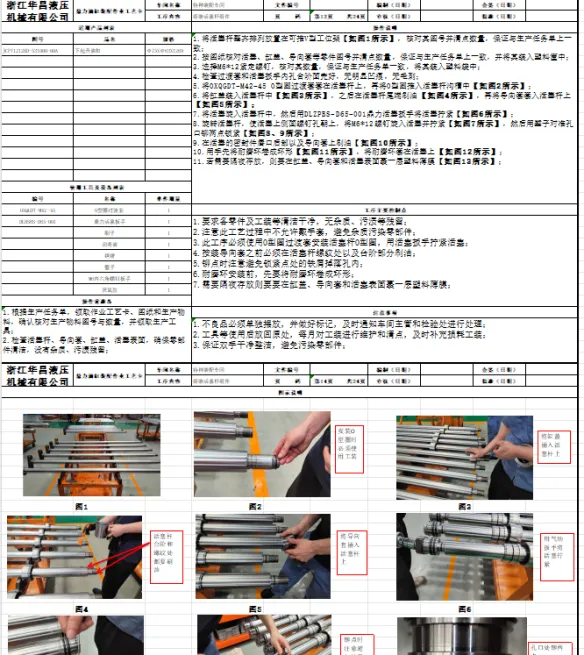

14. Re-Cleaning and Finishing of the Piston Rod Before Assembly

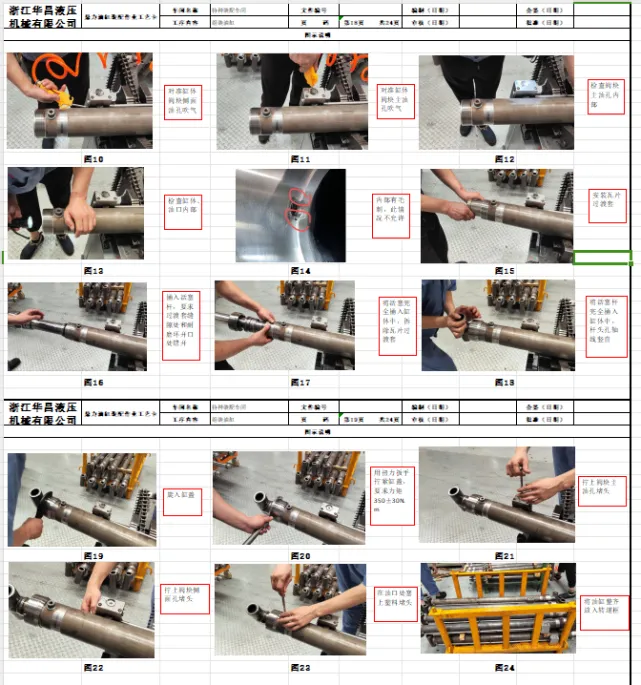

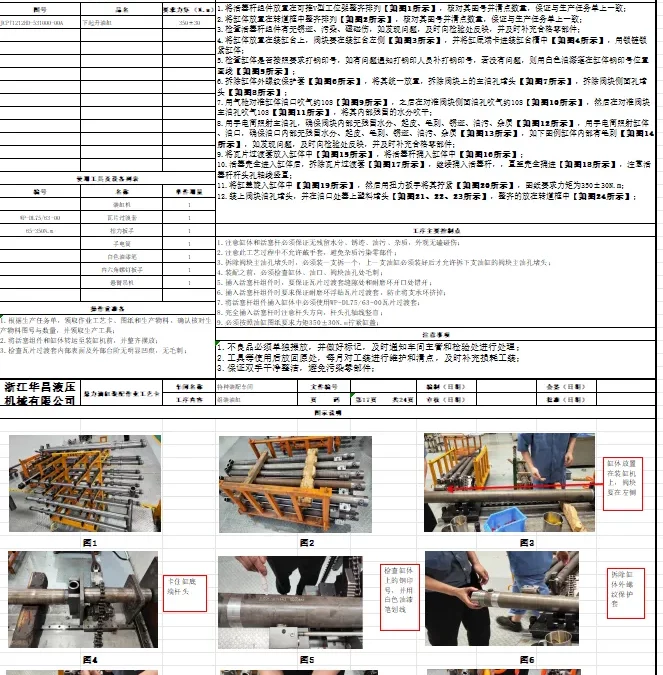

16. Cylinder Assembly Process Instruction Workbook (2)

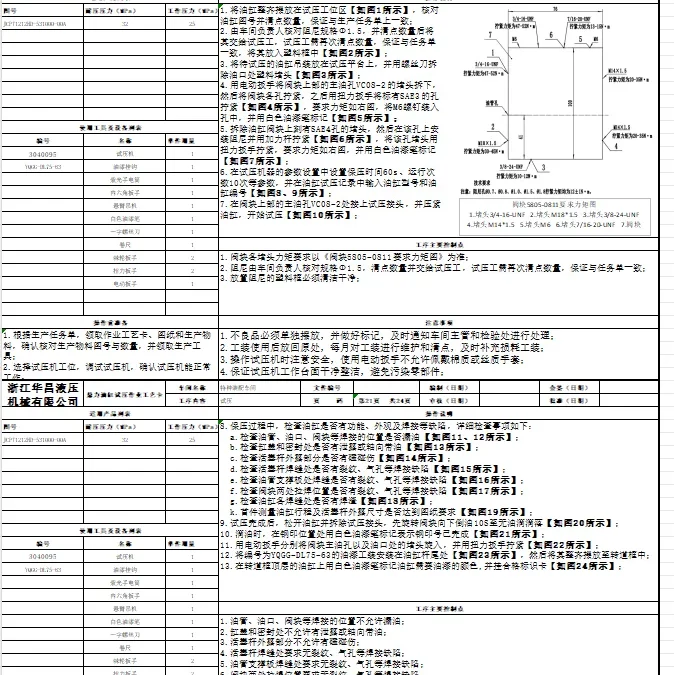

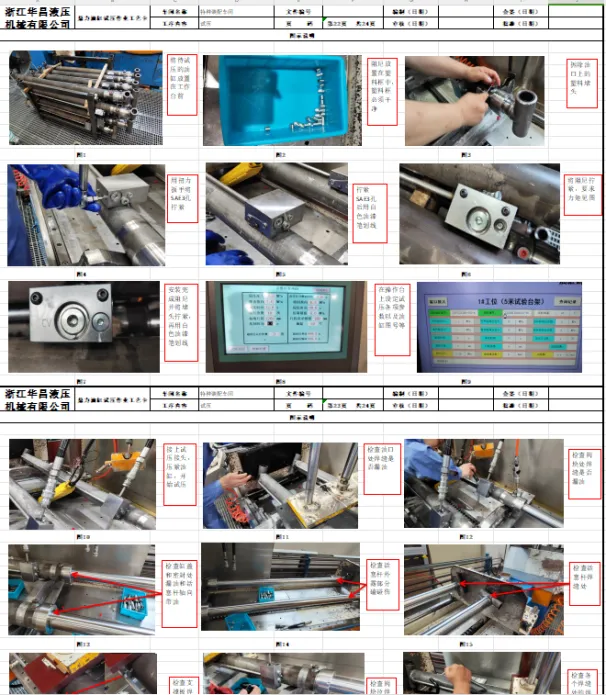

18. Instructional Workbook for Testing Cylinders (2)
