Fertilizer Spreader Gearbox

HZPT is a prominent manufacturer of high-performance fertilizer spreader gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom fertilizer spreader gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing a fertilizer spreader gearbox.

The first step in this procedure is to determine which sort of gearbox is suitable for your application. We are one of the reputable manufacturers and suppliers with years of expertise in farm equipment manufacturing and distribution. HZPT provides high-quality agricultural equipment wholesale at a reasonable price. In addition, we also offer agricultural PTO shafts! Contact us now!

What is the Fertilizer Spreader Gearbox?

A fertilizer spreader gearbox is a crucial component of agricultural equipment used for the efficient distribution of fertilizers onto fields. It is specifically designed to control the rate and pattern of fertilizer application, ensuring uniform coverage and optimal nutrient distribution across the cultivated area. The gearbox is responsible for transmitting power from the tractor's power take-off (PTO) to the spreading mechanism of the fertilizer spreader.

Power Transmission: The gearbox receives rotational power from the tractor's PTO shaft, which is connected to the input shaft of the gearbox. The input shaft transfers the power to the gearbox's internal , which then drive the spreading mechanism. Fertilizer spreader gearboxes typically feature multiple gear ratios to allow for variable spreading rates. By changing gears, farmers can adjust the speed of the spreading mechanism, thereby controlling the amount of fertilizer being distributed per unit of time.

The gearbox controls the rotational speed and direction of the spreading mechanism. The spreading mechanism consists of one or more spinning discs or augers that evenly distribute the fertilizer across the field. The gearbox allows operators to regulate the speed and direction of these components, ensuring precise coverage and distribution patterns. When selecting a fertilizer spreader gearbox, it is essential to consider compatibility with the specific fertilizer spreader model and tractor being used. Gearboxes come in various sizes and configurations, so it's crucial to choose one that matches the power requirements and mounting specifications of the equipment.

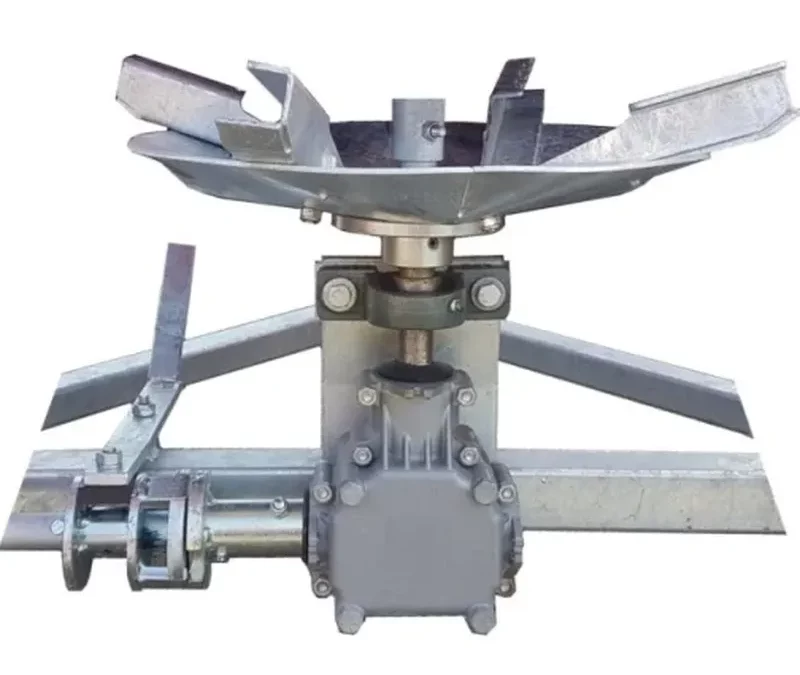

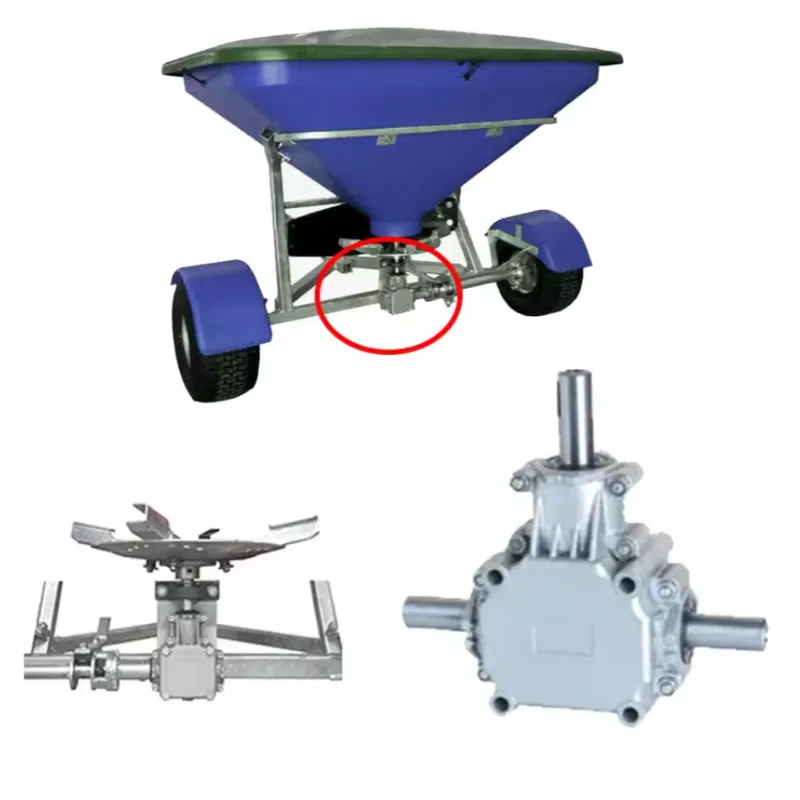

Fertilizer Spreader Gearbox for Agricultural
Fertilizer Spreader Gearbox for Agricultural

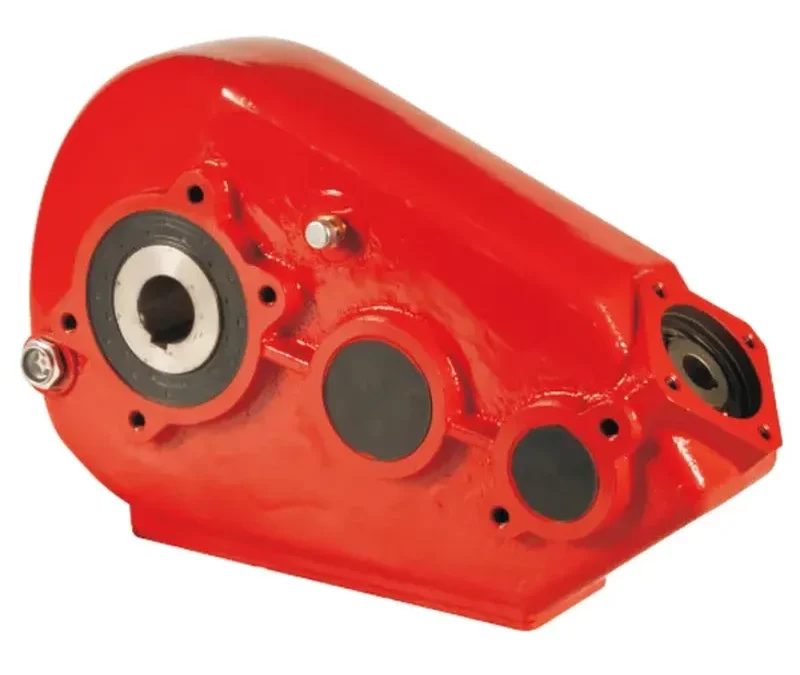

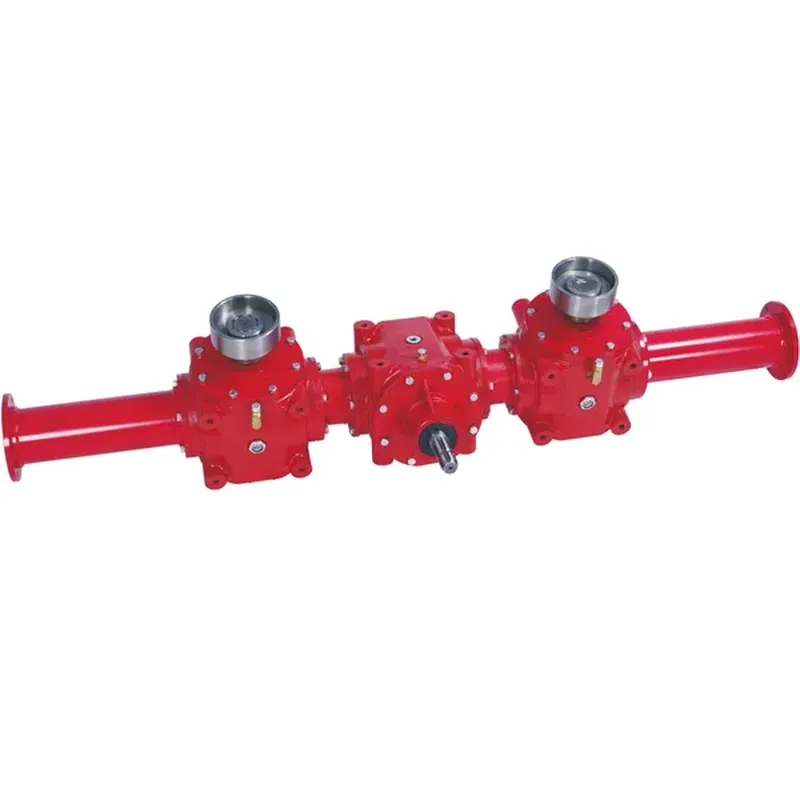

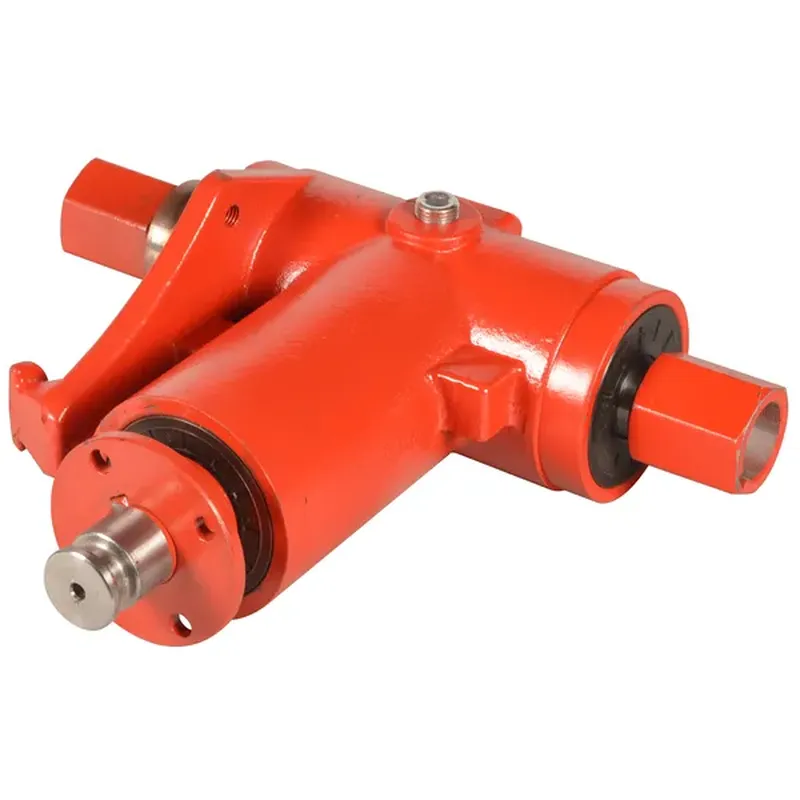

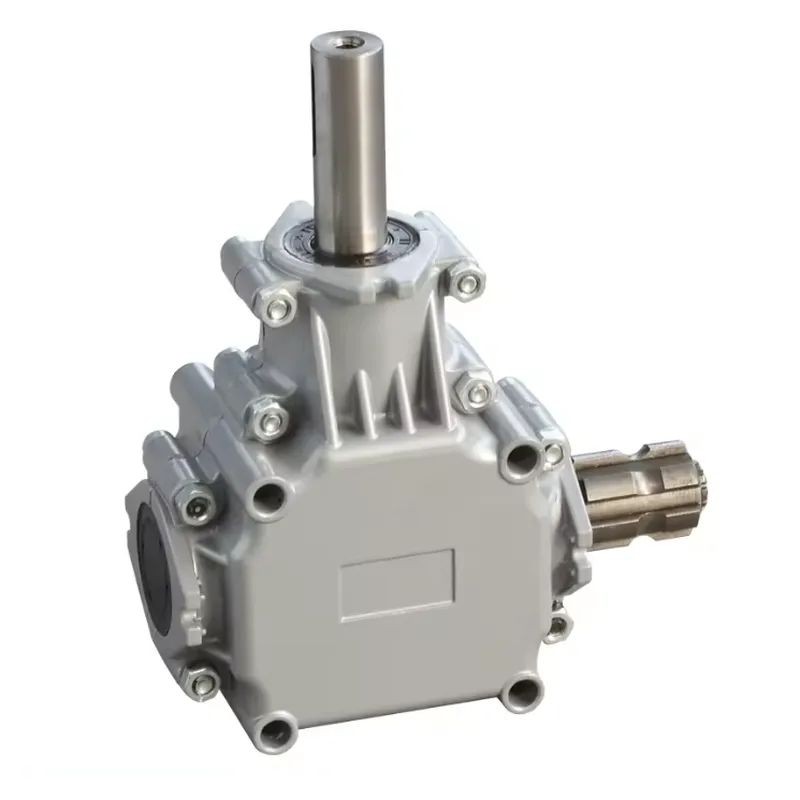

Types of Fertilizer Spreader Gearboxes

Fertilizer spreader gearboxes come in a variety of different styles depending on the size of your spreader and the type of material being spread. Smaller spreaders are generally powered by hand-crank gearboxes, while larger units typically use hydraulic or electric-powered gearboxes. Depending on the material being spread, gearboxes can also be fitted with augers or belt drives, as well as special gears for various speeds. The type of gearbox you select will depend on the specific job you need done and the capabilities of the spreader.

With a range of duty cycles available, you can find a duty cycle with longer run times and longer service times. Our fertilizer spreader gearboxes run 5 days a week with 8 to 12 hours of run time. However, many applications have low-duty cycles, which means you can use smaller gearboxes without damaging their teeth or reducing their service life. Whatever your needs, we can provide you with the right fertilizer spreader gearbox for your application.

Characteristics of Agricultural Gearbox for Fertilizer Spreader

Fertilizer spreader gearboxes typically have several features that are designed to make them effective for the task of spreading fertilizer. These features can include:

  • Drive Train: The gearbox is the center of the drive train and it is responsible for transmitting power from the tractor to the fertilizer spreader.
  • Gear Ratios: The gearbox typically has multiple gear ratios to allow for precise control of the fertilizer spread rate. This ensures that the fertilizer is spread evenly and at the correct rate.
  • Durability: Fertilizer spreader gearboxes are designed to withstand the harsh conditions of fertilizer spreading. They are typically constructed from durable materials such as cast iron or steel.
  • Lubrication: Fertilizer spreader gearboxes require proper lubrication to maintain their performance and lifespan. The gearbox may be equipped with an oil bath or oil spray system to ensure proper lubrication.
  • Seals: To prevent contamination of the gearbox by fertilizer or other materials, high-quality seals are used to prevent dirt and dust from entering the gearbox.
  • Speed Control: Some fertilizer spreader gearboxes are equipped with speed control systems to allow for precise control of the spread rate.
  • Ease of Maintenance: Fertilizer spreader gearboxes are designed for ease of maintenance to minimize downtime and keep the spreader operating efficiently.

These are some of the common features of fertilizer spreader gearboxes. The specific features of a gearbox will vary depending on the manufacturer and the model. Contact us to get the gearbox according to your requirements.

Common Applications:

Fertilizer spreader gearboxes are integral components in agricultural machinery, playing a crucial role in the efficient distribution of fertilizers across fields to ensure optimal soil fertility and crop growth. Their primary function is to transfer mechanical power from the tractor to the spreading mechanism of the fertilizer spreader, enabling it to operate effectively. Here are some common applications of fertilizer spreader gearboxes in agriculture:

1. Broadcast Spreading: Gearboxes enable the rotary motion of broadcast spreader discs, distributing granular fertilizer or seeds over a wide area quickly. This application is ideal for general fertilizer application over large fields to ensure even coverage and soil nutrient enhancement.

2. Drop Spreading: In drop spreaders, gearboxes facilitate the precise release of fertilizer directly beneath the machine. This method is particularly beneficial for targeted fertilizer application, such as in row crops, gardens, or where precise placement is required to avoid waste.

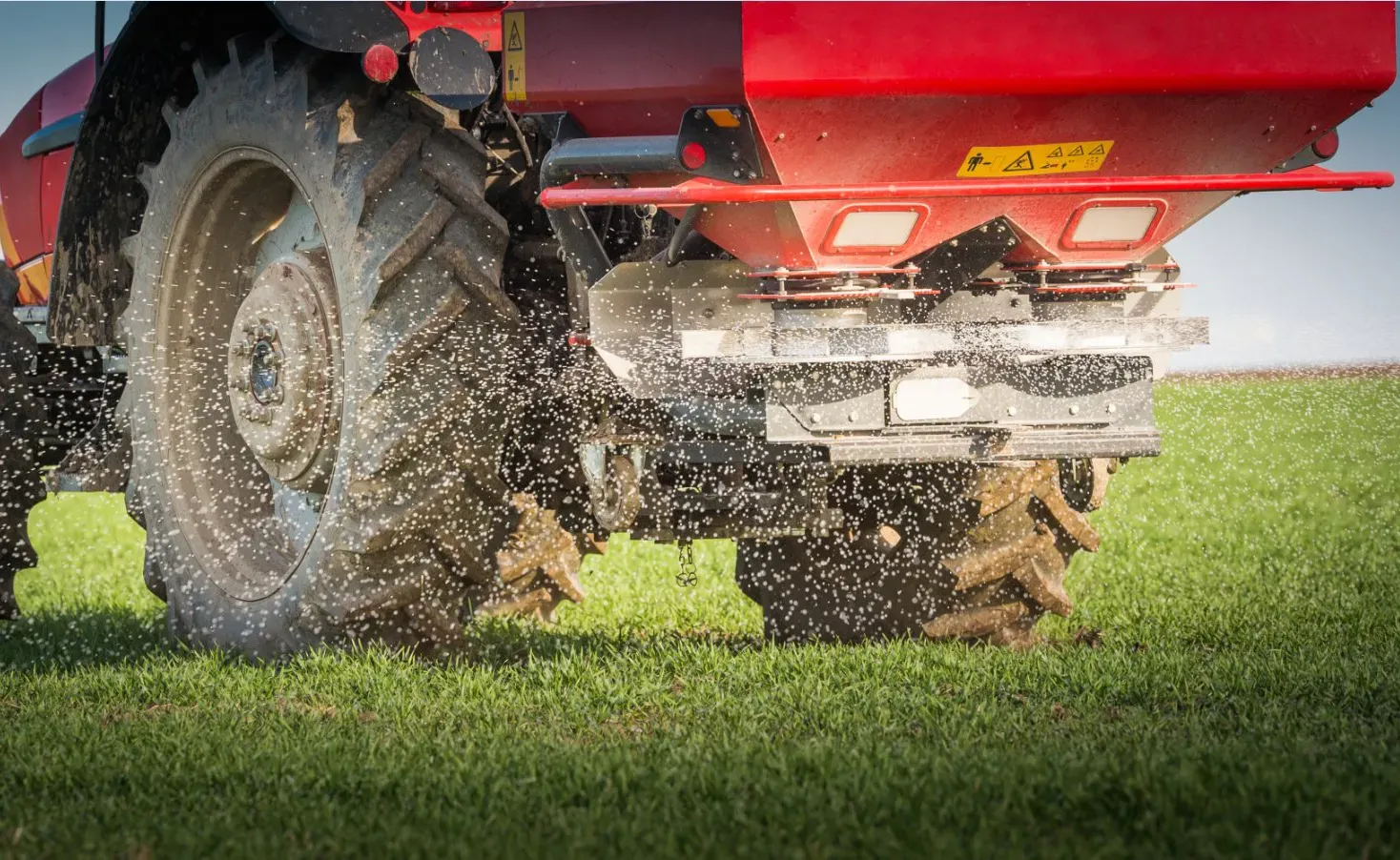

Fertilizer Spreader Gearbox Applications
Fertilizer Spreader Gearbox Applications

3. Pendulum Spreading: Pendulum spreaders, powered by specialized gearboxes, swing a spout back and forth to spread fertilizer in a controlled pattern. This application is favored for its ability to reduce wind drift and provide uniform coverage, especially suitable for orchards, vineyards, and uneven terrain.

4. Liquid Fertilizer Application: For liquid , gearboxes drive pumps that ensure a consistent flow of liquid fertilizers through the system and out through nozzles, achieving an even application across the field. This method is crucial for integrating liquid fertilizers into precise farming operations.

5. Tow-behind and Mounted Spreaders: Fertilizer spreader gearboxes are used in both tow-behind and mounted spreaders, providing versatility to work with various tractor sizes and types. This flexibility ensures that farms of any size can efficiently utilize fertilizer spreaders.

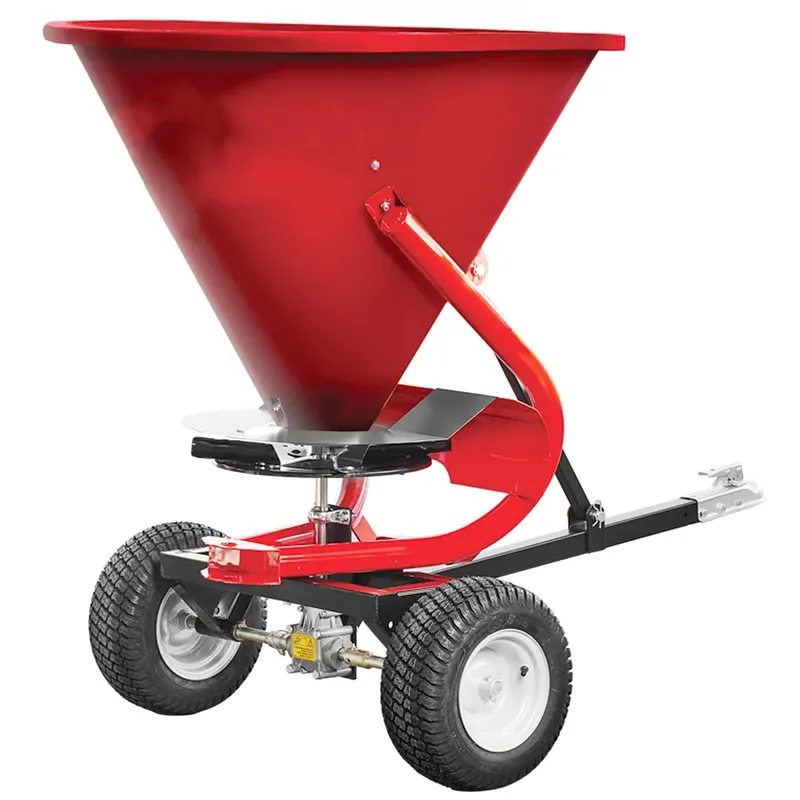

Agricultural PTO Shaft for Fertilizer Spreader Gearbox

An agricultural Power Take-Off (PTO) shaft is an important component used in conjunction with a fertilizer spreader gearbox. The PTO shaft connects the tractor's power source, typically its engine, to the gearbox, enabling the transfer of power for driving the spreading mechanism. Here are some key aspects of an agricultural PTO shaft for a fertilizer spreader gearbox:

(1) Power transmission: The PTO shaft serves as the primary means of transmitting power from the tractor's engine to the gearbox. It connects to the PTO output on the tractor and transfers rotational motion to the gearbox, which ultimately drives the spreading mechanism.

(2) Shaft design and construction: PTO shafts are usually composed of a series of telescopic tubes or a solid shaft with universal joints at each end. These joints allow for flexibility and the smooth transfer of power, even when the tractor and spreader gearbox are not perfectly aligned.

(3) Length and size: The length of the PTO shaft is determined by the distance between the tractor's PTO output and the input shaft of the fertilizer spreader gearbox. It is essential to select a PTO shaft of the appropriate length to ensure a proper fit and minimize any misalignment issues.

(4) Safety features: PTO shafts for agricultural applications often incorporate safety features to protect operators and equipment. These can include a shear pin or a slip clutch mechanism, which disconnect the PTO shaft in the event of excessive resistance or a sudden stop, preventing damage to the machinery and reducing the risk of injury.

(5) Maintenance and lubrication: Regular maintenance and lubrication of the PTO shaft are crucial for its optimal performance and longevity. This includes inspecting the shaft for any signs of wear, keeping it clean, and lubricating the universal joints as recommended by the manufacturer.

(6) Compatibility: It is important to ensure that the PTO shaft selected for the fertilizer spreader gearbox is compatible with the tractor's PTO output and the input shaft of the gearbox. This involves considering factors such as shaft diameter, spline count, and connection type to ensure a proper fit and efficient power transmission.

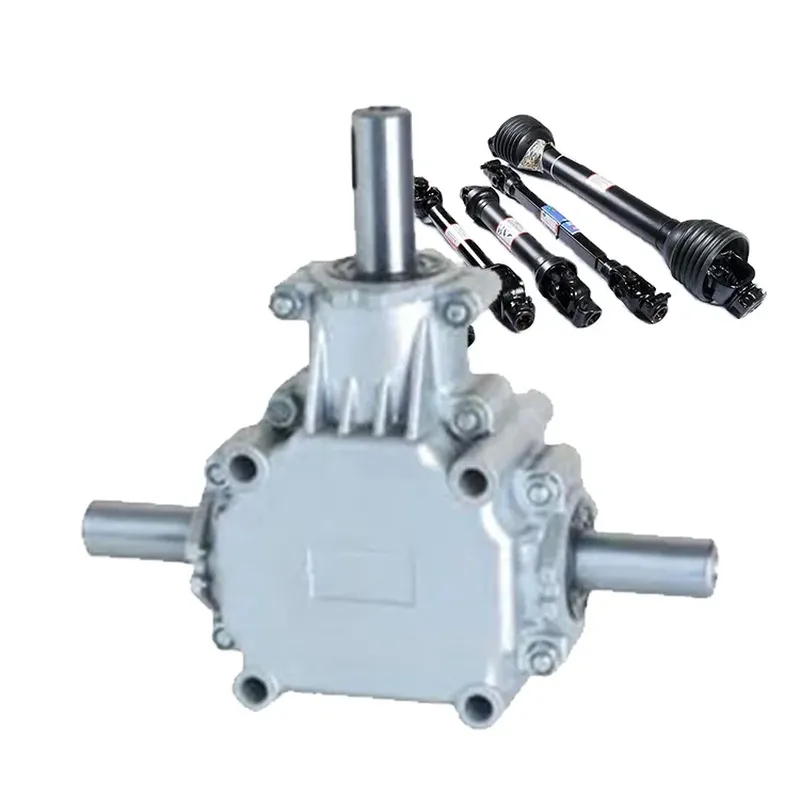

Agricultural PTO Shaft for Fertilizer Spreader Gearbox Agricultural PTO Shaft for Fertilizer Spreader Gearbox

Installation and Maintenance of Gearbox for Fertilizer Spreader

Installing and maintaining a fertilizer spreader gearbox is essential for its proper functioning and longevity. Here are some guidelines for the installation and maintenance of a fertilizer spreader gearbox:

Installation:

  • Read the manufacturer's instructions: Familiarize yourself with the manufacturer's installation guidelines specific to your fertilizer spreader gearbox. Follow the recommended procedures and any specific instructions provided.
  • Prepare the equipment: Ensure that the tractor and spreader are on level ground and that the PTO shaft is correctly aligned with the input shaft of the gearbox.
  • Properly secure the gearbox: Use appropriate mounting brackets or fasteners to securely attach the gearbox to the spreader frame. Follow the manufacturer's recommendations for torque specifications during the installation of mounting bolts.
  • Connect the PTO shaft: Attach the PTO shaft to the tractor's PTO output and the input shaft of the gearbox. Ensure that the shaft is properly aligned and securely connected, following the manufacturer's instructions. Use safety devices such as a shear pin or a slip clutch, if provided, to protect the equipment and operator.
  • Verify alignment and clearance: Double-check that all components are properly aligned and that there is sufficient clearance for the gearbox to operate smoothly. Make any necessary adjustments to ensure proper alignment and clearance.

Maintenance:

  • Regular inspections: Conduct routine visual inspections of the gearbox to identify any signs of wear, damage, or loose components. Check for leaks, cracks, or excessive play in the gears or bearings.
  • Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use the specified lubricant. Apply lubrication to the gearbox as recommended to maintain smooth operation and prevent excessive wear.
  • Cleanliness: Keep the gearbox clean and free from debris, dirt, and excess fertilizer or seed material. Regularly remove any build-up that may affect the gearbox's performance.
  • Shear pins or slip clutches: If your gearbox is equipped with shear pins or slip clutches, inspect them regularly and replace them if they become damaged or worn. These safety devices protect the gearbox from excessive loads and prevent costly repairs.
  • Repairs and servicing: In the event of any damage or malfunction, refer to the manufacturer's guidelines for repairs or servicing. It is recommended to seek professional assistance if major repairs or adjustments are required.
  • Retighten fasteners: Periodically check and retighten any fasteners, such as bolts and nuts, to ensure they remain secure.
Fertilizer Seeder Gearbox EP50 Working Principle

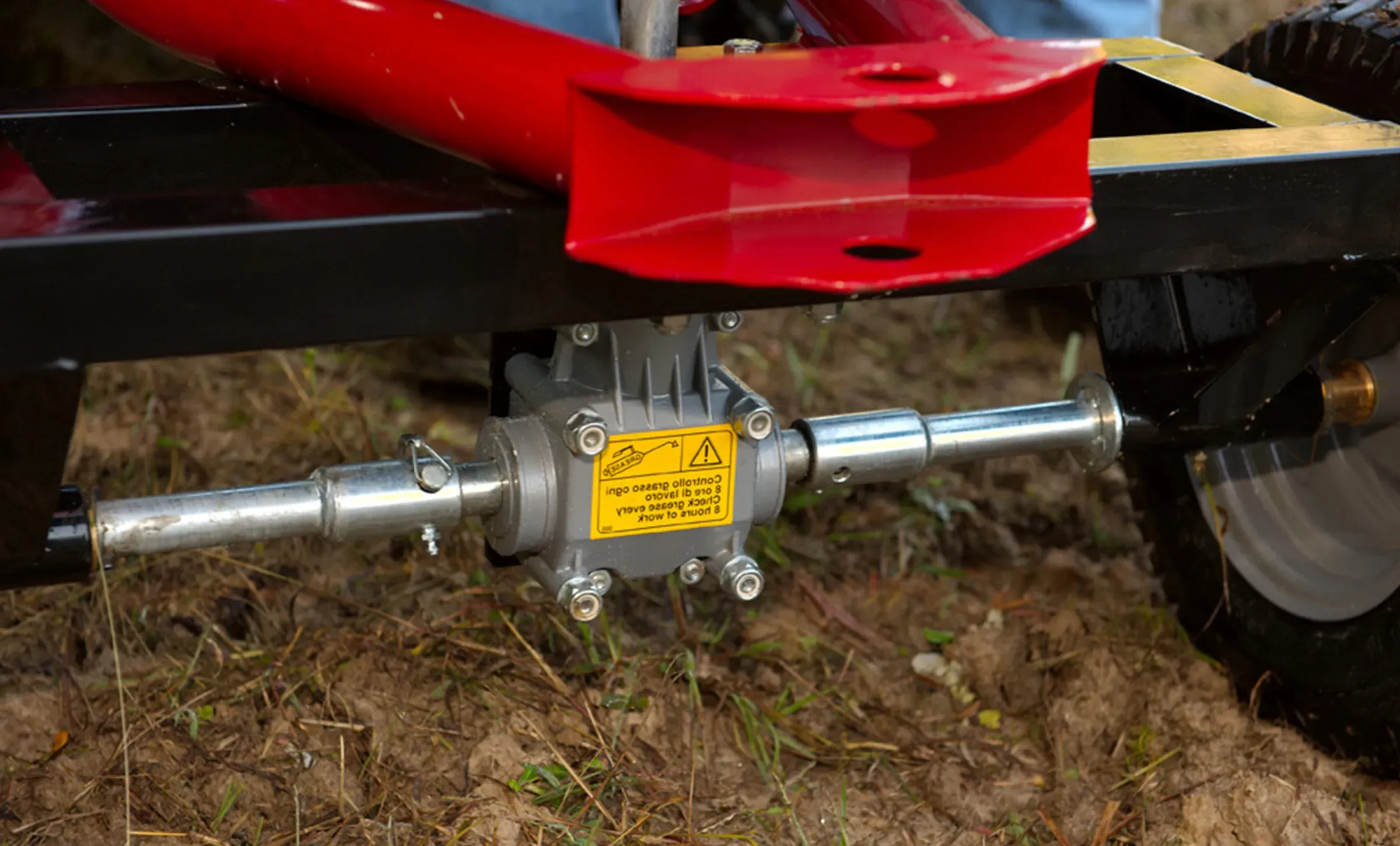

Fertilizer Spreader Gearbox

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.

Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application's environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

China Agricultural Gearboxes

Why Choose HZPT?

(1) Customization: With a strong R&D team, we can develop products as needed. It takes us up to 7 days to design a set of drawings. The production time for new products is usually 50 days or less.

(2) Quality: We have our own perfect inspection and testing equipment to ensure the quality of our products.

(3) Capacity: Our annual production capacity is over 500,000 sets, and we also accept small orders to meet the needs of different customers' purchasing quantities.

(4) Service: We focus on providing high quality fertilizer spreader gearboxes. Our products meet international standards and are mainly exported to Europe, Australia and other countries and regions.

(5) Shipping: We are close to Ningbo and Shanghai ports and offer the fastest sea freight service.

HZPT is one of the experienced fertilizer spreader gearbox suppliers in China. Except for gearboxes for fertilizer spreaders, a wide range of agricultural gearboxes are available. In addition, PTO shaftsare also provided.

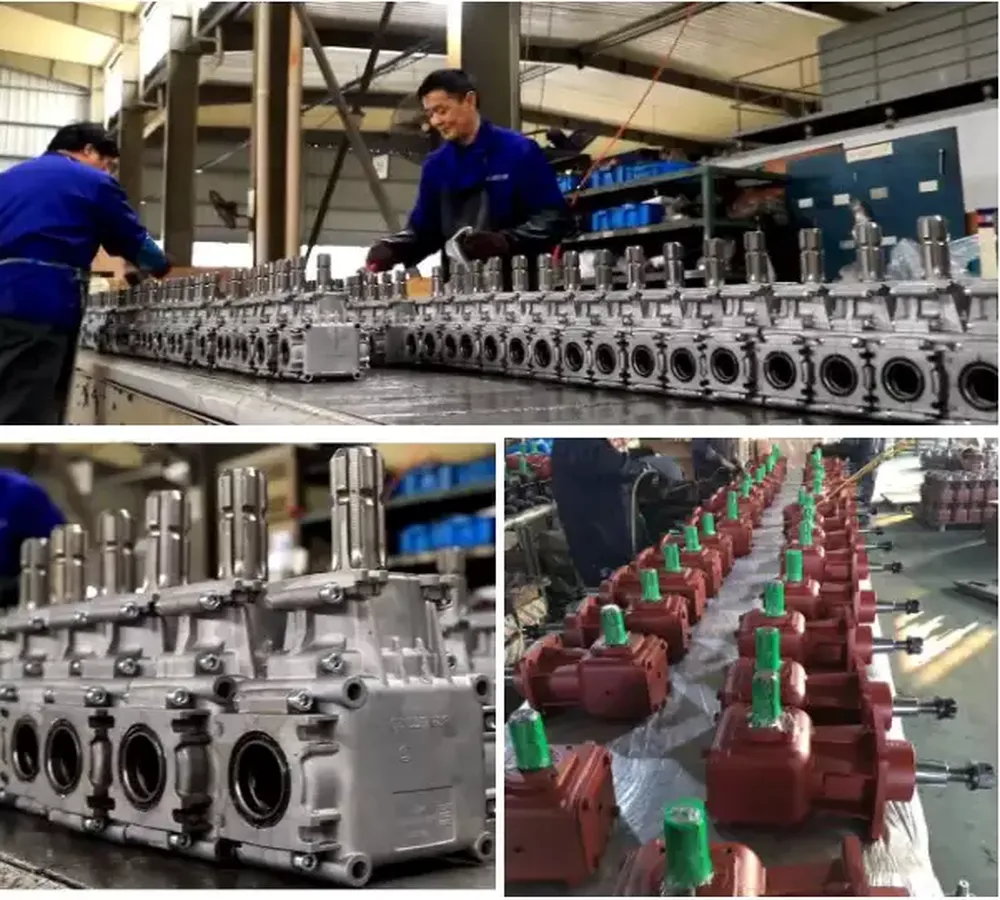

Fertilizer Spreader Gearbox Manufacturers
