Gears and Racks

Gears and racks are used to rotate or drive machines that are very common in automotive and industrial applications. Ever power is one of the professional rack and pinion gears suppliers in China. What we can offer is high-quality rack and pinion gears at competitive prices. Contact us now!

Gears and racks are used to rotate or drive machines. A rack is a linear gear, while a pinion is a circular gear that engages it. The rotation of the pinion causes the rack to move. There are two common types of racks: straight-tooth racks and helical racks. Both types have straight-tooth lines.

Straight racks require lower driving force and provide better torque per percentage gear ratio. They also consume less energy and have lower operating temperatures. The tooth pitch, size, and gear ratio determine the maximum force transmitted through a rack and pinion mechanism. When used together, a rack and pinion can drive heavy machines.

A rack and pinion gear set is very common in automotive and industrial applications. These devices can be found in pneumatic cylinders, machine tools, and other applications. They are also used in steering systems. They can be either electric or hydraulic.

What is Rack and Pinion Gear?

A rack and pinion gear is a mechanical device that transmits torque from one shaft to another. There are various types of rack and pinion gears. Each one performs a different function. They differ from one another in their quality level, which determines how accurate the gear is. The level of accuracy can affect various aspects of the gear, including backlash, positioning accuracy, and noise.

To determine which rack and pinion gear will work best, it is first necessary to determine the number of operations to be performed. This will help determine the drive package, lubrication interval, and gearhead needed for the machine. It is also essential to understand the amount of torque to be transferred. A rack and pinion gear typically carry a higher torque than a screw actuator.

Rack and pinion gears come in a variety of quality levels. Some are low in quality, while others are higher. The quality of the rack and pinion gear depends on the application and the level of noise and backlash. A higher quality rack will cost more than a lower-quality model.

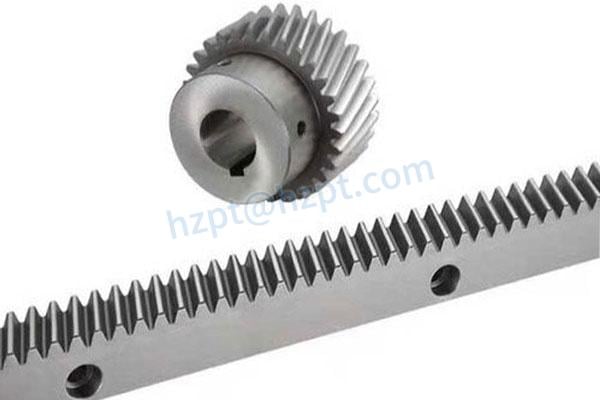

Rack and Gear

Types of Gear Rack and Pinion for Sale

Gear and rack is a type of linear actuator consisting of pinion gear and rack, employing each other to decipher rotational motion into linear motion.  The compiling follows two mechanisms, in some cases, the pinion acts as a source of power to steer the rack for locomotion, typically the pinion remains stationary and steers the rack with the laden mechanism that needs to be shifted besides, in another case, the rack is fixed inert and the pinion travels the length of the linear gear. The relationship between rack and pinion gear relies on each other, as rotating the pinion over the rack, causes the rack to navigate linearly. And driving the rack linearly results in rotating the pinion. There are different types of rack and pinion gears. They differ in their size, shape, and function. Some are used for power transmission, while others are used for gear reduction. Rack and pinion gears are also used for motion control. They have many advantages over other gear types, including low cost, smooth motion, no backlash, and minimal deflection. As a professional gears and racks supplier,  Ever-power offers a wide range of gear racks and pinion for sale. Check below to get more!

Gears Catalog

Gear Rack for Sale

How Do Rack and Pinion Gears Work?

Rack and pinion gears work by transferring force from one axle to another. They connect teeth on either the top, bottom, or side of a rack. The tooth connection must be properly calculated to determine the drive torque. A fixed-rack system is a good example of a rack and pinion system.

A steering gearbox, on the other hand, uses many more parts, such as idler arms, center links, tie rod sleeves, and Pitman’s arms. Because the system has so many parts, it can suffer from backlash. A rack and pinion steering system, on the other hand, can be easily handled and is more responsive.

Rack and pinion gears have two basic shapes: straight and helical. A straight gear has teeth that run straight across, while a helical gear has teeth that run in a slant pattern. Straight and helical gears differ in operating temperature and wear, and the straight and helical tooth gears require less energy and driving force.

When it comes to the rack and pinion gear function, the uses must be mentioned. A rack and pinion system is common in industrial settings and high-speed metal cutting machines. These gears mesh with a shaft to transmit power. In other words, the rack and pinion system acts as a go-between, connecting the parts. In a car, it transfers the spinning motion of the steering wheel to the turning motion of the wheels.

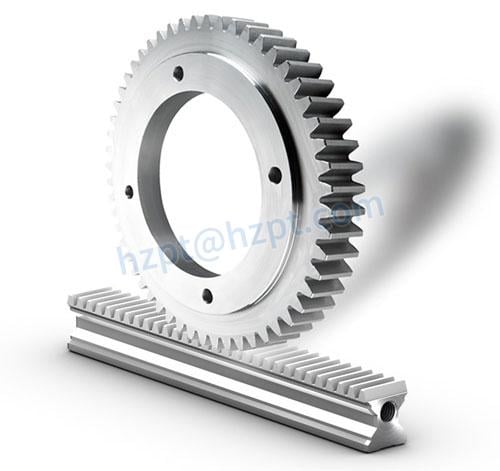

CNC Gear Rack and Pinion
CNC Gear Rack and Pinion

Types of Rack and Pinion Gear Material

The most common material used to make racks and pinions is carbon steel. It is suitable for many applications and conditions and lends itself to heat treatment. Heat treatment allows the addition of threaded holes and helps ensure dimensional stability. Carbon steel is also easily straightened and is a good choice for most applications. In some applications, stainless steel may be used.

In addition to standard metric pitch, we also produce straight and split-pinions. These products are available in a variety of quality levels, and can be used for applications requiring a large amount of precision. They’re also available in a variety of sizing options. They’re great for applications where a precise position is required, such as axis drives. They’re also excellent for material handling systems and CNC routers. They can handle heavy load capacities and cycles with ease.

Rack and Pinion Gear Uses

Rack and pinion gears are used in various vehicle applications, including the steering system. In contrast to the recirculating ball system, a rack and pinion system offers less backlash and more steering feel. They may be electrical or hydraulically assisted. Rack and pinion steering systems are simple but effective, converting rotary motion into linear motion. These systems are also used in toys and lateral slide gates.

The rack gear carries a full load of an actuator directly, and the driving pinion is typically very small. This type of gear reduces the torque produced by the rack, though it may still be substantial. The reduction gear is either a worm gear or a gear. The ratios between a rack gear and a screw actuator can be large or small, based on the application’s requirements.

Rack and pinion gears have several uses, and the ratio between the two determines the amount of force they can transmit. A rack with a higher ratio is generally more powerful than one with a lower ratio. A worm gear, for instance, has one thread, while a pinion with five teeth is used for large speed ratios. A worm gear is also well-suited to applications where several gear pairs are needed.

Rack and pinion gears are commonly used in automotive steering systems. Their primary function is to convert rotary motion into linear motion. Their teeth are cut into the rack and mesh with the pinion gear.

Gear and Gear Rack

Advantages of Rack and Pinion Gears

  • A rack and pinion gear has many advantages. One of these is its high ratio. This means that it carries the full load of an actuator directly. Compared to screw actuators, rack gears have higher ratios. They also require suitable bearings to stop the rack from rotating. This is due to the fact that the cross section of a rack and pinion gear is the same as the cross section of a gear.
  • Another advantage of rack and pinion gears is their virtually unlimited travel length. Some sets can be over 200 feet long! The only limit is how much time it takes to mount a set of rack and pinion gear. Longer rack pieces are more accurate and provide easier alignment over long stretches. However, if you’re limited by space, shorter pieces are also available.
  • Rack and pinion gears features their ability to perform high-precision tasks. They are also able to operate at high speed and power levels. However, they do experience wear and tear over time. Therefore, proper care and maintenance can help prolong their life and prevent premature failure. If you’re not careful, you may end up with a worn-out rack and pinion gear.
  • In addition, rack and pinion gears is that they are light-weight. They are often much lighter than conventional steering systems, and are often more efficient for front-wheel-drive applications. They also don’t need idlers, pitman arms, center links, or tie rod sleeves. They also can be installed right next to the transverse drive train. Ever-power, a mature China gears and racks supplier, can also customize rack and pinion gearboxes to fit specific wheelbases and handling packages.
