Taper Lock Adapter

The taper lock adapter is a mechanical device used in power transmission systems to connect and secure components such as pulleys, sprockets, , and couplings to rotating shafts. It is designed to provide a strong and reliable connection while allowing for easy installation and removal of the mounted component.

The taper lock adapter consists of two main parts: a tapered sleeve and a locking mechanism. The tapered sleeve is typically made of steel and has a tapered inner surface that matches the taper of the shaft. The locking mechanism is a set of threaded holes or slots on the outer surface of the sleeve.

To install the taper lock adapter, the sleeve is placed onto the shaft and pushed toward the desired position. As it moves along the shaft, the taper on the inner surface of the sleeve matches the taper on the shaft, creating a tight and secure fit. Once in position, the locking mechanism is engaged by tightening screws or bolts into the threaded holes or slots on the sleeve. This action causes the sleeve to expand and press tightly against the shaft, creating a frictional grip.

The taper lock adapter provides several advantages. It eliminates the need for precise machining of the shaft or component, as the taper ensures a self-centering fit. It allows for easy installation and removal of the mounted component without the need for specialized tools. The taper bush adapter also provides a secure and reliable connection that can withstand high torque and rotational forces.

Taper Lock Adapter Size Chart:

Taper Lock Adapter Size Chart
Adapter No. For Bush No. A B C D E
Keyseat
Wt
Class 20 Gray Iron Class 30 Gray Iron Steel
1215B 1215 1 7/8″ 1 1/2″ 2 3/8″ 3 5/8″ 3 3/8″ 3 1/4″ 1/4″ x 1/8″ 0.7
1615B 1615 2 1/4″ 1 1/2″ 2 3/4″ 4″ 3 3/4″ 3 1/2″ 3/8″ x 1/8″ 0.9
2517B 2517 3 3/8″ 1 3/4″ 4 1/8″ 5 7/8″ 5 1/2″ 5″ 5/8″ x 1/8″ 2.2
2525B 2525 3 3/8″ 2 1/2″ 4 1/8″ 5 1/2″ 5 1/4″ 5″ 5/8″ x 1/8″ 3.2
3030B 3030 4 1/4″ 3″ 5 1/8″ 7 3/8″ 6 7/8″ 6 1/4″ 3/4″ x 3/16″ 5.8
3535B 3535 5″ 3 1/2″ 6 1/4″ 9 1/8″ 8 3/8″ 7 7/8″ 7/8″ x 3/16″ 11.3
4040B 4040 5 3/4″ 4″ 7 1/4″ 11 1/8″ 10 1/8″ 9 3/8″ 1″ x 3/16″ 17.3
4545B 4545 6 3/8″ 4 1/2″ 7 7/8″ 12″ 11″ 10 1/4″ 1″ x 3/16″ 21.9

Taper Lock Adapter Design Features:

Taper lock adapters are mechanical devices used to connect components with different shaft sizes. They are commonly used in power transmission systems, such as belt drives and sprockets. The design features of taper lock adapters aim to provide a secure and reliable connection between the components. Here are some key design features of taper lock adapters:

1. Tapered Design: Taper lock adapters have a tapered shape that matches the corresponding tapered bore of the component they are connecting to. The taper ensures a tight and self-locking fit when the adapter is inserted into the component's bore.

2. Keyway: Taper lock adapters often have a keyway or key grooves on the outer surface. These keyways align with corresponding key slots in the component's bore, preventing the adapter from rotating independently and ensuring a positive drive.

3. Locking Mechanism: Taper lock adapters typically incorporate a locking mechanism to secure the adapter in place. This mechanism usually involves tightening a series of screws or bolts that push the tapered adapter into the component's bore, creating a frictional grip.

4. Material: Taper lock adapters are commonly made of high-strength materials such as steel or cast iron. These materials offer durability, strength, and resistance to wear and deformation, ensuring a long-lasting and reliable connection.

5. Interchangeability: Taper lock adapters are designed to be interchangeable, meaning that adapters of the same size can be used with different components as long as they have compatible tapers. This interchangeability allows for flexibility in system design and maintenance.

6. Easy Installation and Removal: Taper lock adapters are designed for easy installation and removal. The tapered shape allows for straightforward insertion and extraction. The use of screws or bolts for the locking mechanism simplifies the assembly and disassembly process.

Taper Lock Adapter Design Features Taper Lock Adapter Design Features

How does the Taper Lock Adapter Work?

A taper lock adapter is a type of shaft-locking device that is used to secure components like pulleys, sprockets, or couplings to a shaft. They are often used in mechanical and manufacturing applications due to their simple yet robust design. Here's how they work:

(1) Design: A taper lock adapter typically has a tapered bushing that fits into a matching tapered hole in the component (like a pulley or ). The outside of the bushing is tapered, and the inside is either straight or slightly tapered.

(2) Installation: The is inserted into the hole in the component, and the component is then placed onto the shaft. The bushing has threaded holes, and screws are inserted from the outside of the component and screwed into these holes.

(3) Locking: As the screws are tightened, the taper lock bushing moves along the taper, causing it to become tighter on the shaft. This is where the “taper lock” name comes from. The taper causes a wedging action, which locks the component onto the shaft. The more the screws are tightened, the tighter the component is held on the shaft.

(4) Removal: To remove the component from the shaft, the screws are loosened and then screwed into the other set of holes in the taper lock bushing. These holes are threaded in the opposite direction, so when the screws are tightened into these holes, they push against the component, moving the bushing back along the taper and loosening it on the shaft.

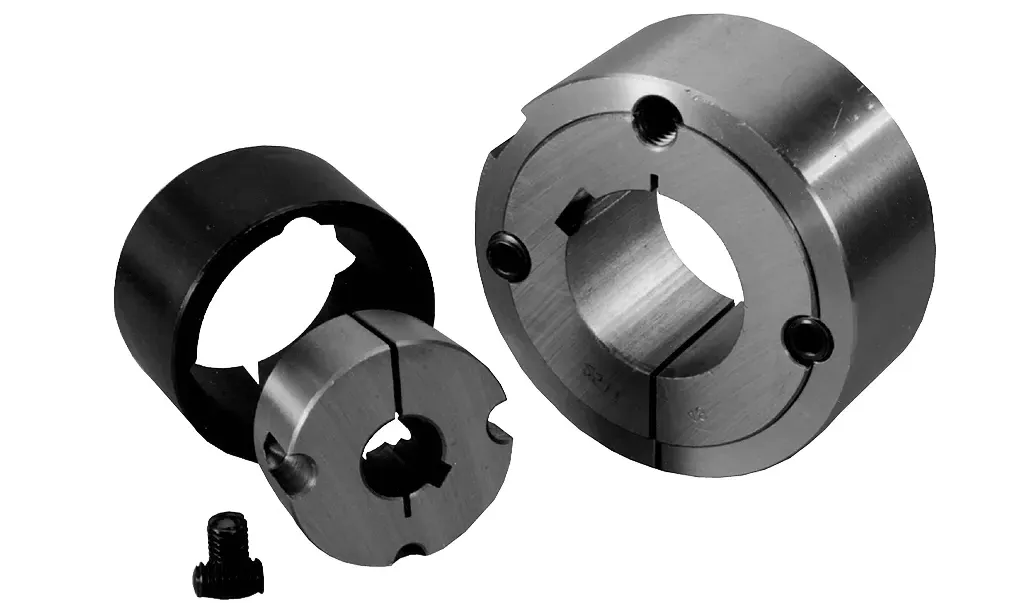

How does the Taper Lock Adapter Work
