Engineering Chain

Strong load-bearing capacity: Engineered chains have high strength and durability, capable of withstanding the weight load of heavy machinery and equipment.

In countless industrial scenarios, engineering chains are a silent but powerful force. It carries important tasks, transmits power and kinetic energy, and connects various mechanical devices, equipment and processes. Just as blood flows in the human body, engineering chains flow in industry and inject vitality and efficiency into production lines in various industries. Engineering is not just a part of machinery, it represents the precision of modern industry and the progress of technology. Let's delve deeper into the importance and wide range of applications of engineering chains.



In the engineering industry, chains are used in conveyor systems and drive systems. They are made with pin joints and links that provide strength and rigidity. They are also able to move sideways and go around curves. These types of chains have been around since the 1880s. They are made from hot-rolled steel and are sometimes heat-treated for added strength. They are used in conveyors, bucket elevators, and oil drilling machines. They must be able to withstand the power produced by the prime mover.

Engineering Chain Features

The is a measuring tool to measure distances accurately. It is comprised of links that are connected at right angles. Typically, the chain length is five, ten, twenty, or thirty meters. Links are spaced one foot apart, and each link measures 7.92 inches. These chains are also equipped with brass rings or tallies that mark one metre intervals. This makes it easier to determine the total length.

There are two types of engineering steel chains: those designed for lifting and those designed for conveying. A lifting chain needs to be capable of withstanding high tensile stresses, and it must be ductile and resilient enough to withstand fatigue. Most engineering steel chains are used in conveyor applications, while others are used in drives. You can find engineering steel chains in conveyors, forklifts, bucket elevators, oil drilling machines, and more. These chains must be able to withstand the power generated by the prime mover.

Roller Chains VS Engineering Chains

In general, engineered chains are somewhat distinct from roller chains. Roller chains are generally utilized for power transmission, while engineered chains are utilized for handling materials. There are some differences in structure between the two kinds of chains, which is why it is essential to make sure that you choose the right chain to meet your needs. Rollers are not typically required in material handling chains, however, they are an essential component of the power transmission chain. If you're using roller chains, you can expect high-speed operation is more secure, and engineered chains are more robust, durable and last longer because they have a smaller distance between the sprockets.

Roller Chain VS Engineering Chain

Application occasions of conveyor chain systems

Production and Assembly Lines: Engineered chains are widely used in conveyor systems in production and assembly lines to transport parts, products, and materials.

Logistics and warehousing equipment: Engineered chains are used in conveyor systems in logistics and warehousing equipment, such as conveyors, elevators, and stackers.

Heavy industry and excavating machinery: Engineering chains play an important role in the field of heavy industry and excavating machinery for transmitting power and carrying weight.

Metallurgical and mining industry: Engineered chains are used in the metallurgical and mining industry for transmission and load-bearing tasks in high temperatures, high loads, and corrosive environments.

Agricultural machinery: Engineered chains are used in agricultural machinery for transmission and carrying tasks, such as tractors, combine harvesters, and feeders, etc.

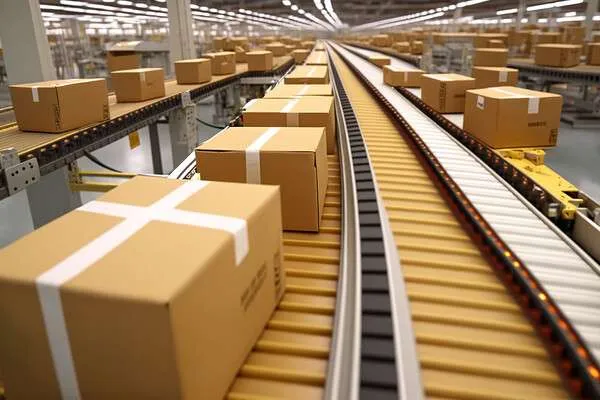

Engineering Chain 5 Best Known Applications of Conveyor Systems In Retail
China Engineering Chain

 Industrial machinery chain



Efficient capability: The engineering chain can provide reliable power transmission, ensure efficient operation of equipment, and improve production efficiency.

Durability and Reliability: The strength and durability of engineered chains make them ideal for long-term use, maintaining stability in harsh environments and high-load conditions.

Flexible adaptability: The engineering chain can be customized according to different application requirements and is suitable for various industrial fields and mechanical equipment.

High strength engineering chain series



Engineering chains are widely used in various industries and fields. In manufacturing, they are used in conveyor belt systems, machine tools, assembly lines, and automated production equipment. The logistics industry relies on engineered chains to move and transport goods and ensure the smooth operation of the supply chain. In the mining and metallurgical fields, engineered chains are used in heavy equipment and ore processing systems, which are subjected to huge loads and high-temperature environments. In addition, the engineering chain also plays an important role in construction, ports, agriculture and other fields. They provide these industries with stable power transmission and material conveying systems, promoting production efficiency and work safety.

Wear-resistant engineering chains



Wear-resistant engineering chains refer to engineering chains with high wear resistance. Wear-resistant engineering chains are usually used in conveying machinery or driving equipment working in environments with severe wear.

The wear resistance of wear-resistant engineering chains mainly depends on the following factors:

Material: Wear-resistant engineering chains are usually made of materials with higher wear resistance, such as high carbon steel, alloy steel, ceramics, etc.
Surface treatment: The surface of wear-resistant engineering chains is usually specially treated, such as chrome plating, spraying, electroplating, etc., to improve its wear resistance.
Structural design: The structural design of wear-resistant engineering chains usually adopts a reasonable structure to reduce the degree of wear.
The basic principle of wear-resistant engineered chains is to improve the wear resistance of the chain by improving the wear resistance of materials, surface treatments or structural design.

Types and classifications of engineering chains















Triplex Roller Chain With Straight Side Plates

Roller Chain Applications in Heavy Machinery

Roller chains consist of a series of interconnected links, including inner links, outer links, and roller pins. The inner links and outer links alternate with each other and are held together by the roller pins. The rollers are located between the inner and outer links and rotate freely on the roller pins. This structure allows the roller chain to transmit power and motion efficiently.

The working principle of a roller chain involves the engagement of the rollers with the teeth of the sprockets. As the driving sprocket rotates, it pulls the chain, causing the rollers to engage with the teeth of the driving sprocket. This engagement transfers power and allows motion to be transmitted from the driving sprocket to the driven sprocket.

Double row chain

Double-row chains consist of two parallel rows of interconnected links, which provide higher load-carrying capacity and increased transmission power compared to single-row chains. The structure of double-row chains allows for more contact points with the sprockets, enhancing stability and precision in power transmission.

Double-row chains find application in various fields, including:

Conveying Equipment: Double-row chains are commonly used in conveyor systems for material handling. They provide efficient and reliable power transmission, making them suitable for heavy-duty applications in industries such as mining, automotive, and logistics.

Textile Machinery: Double-row chains are utilized in textile machinery, such as looms and spinning machines, to facilitate the movement of textile components and maintain precise synchronization during production processes.

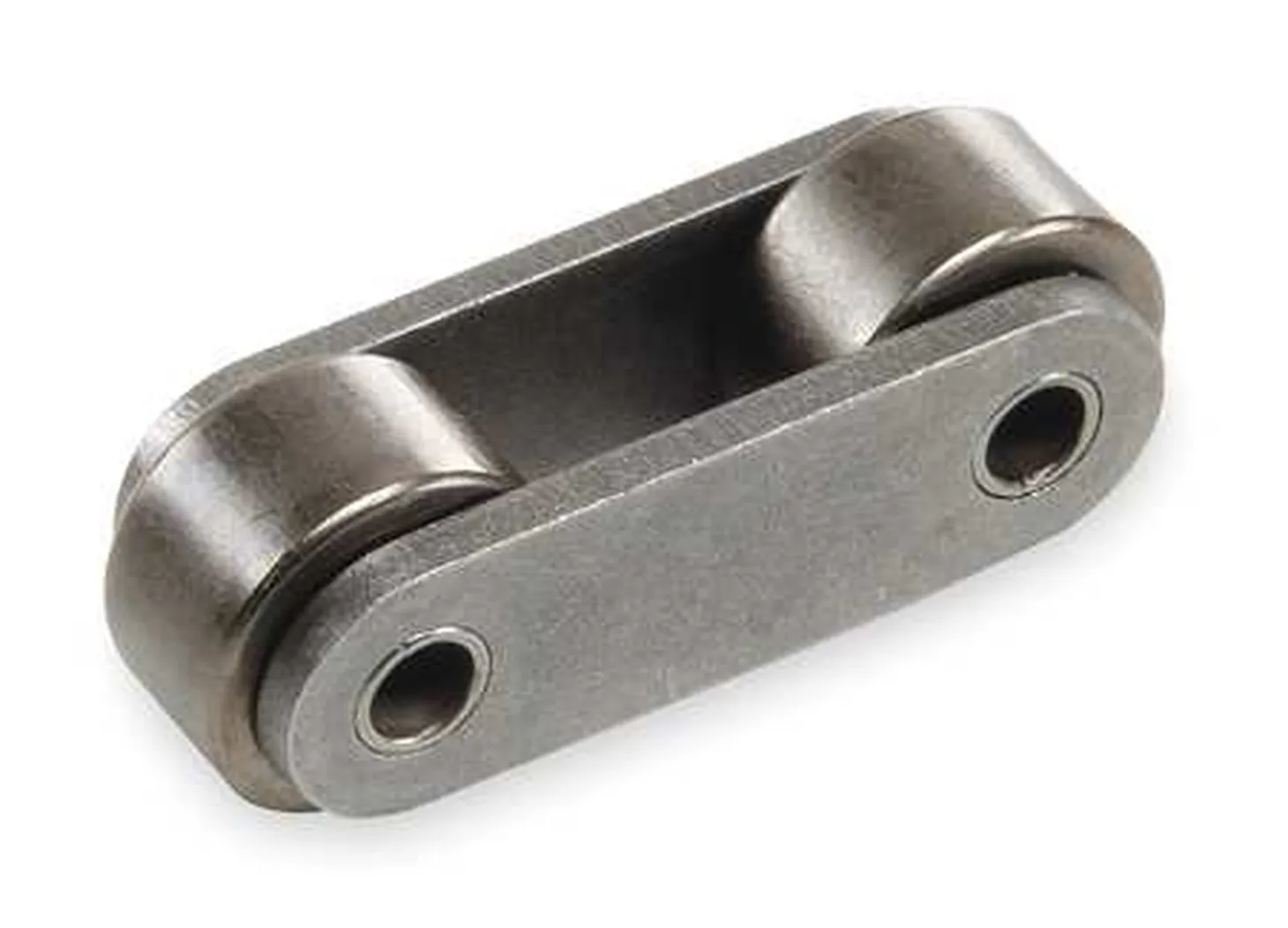

C2162 Double Pitch Big Roller Chain Features
High temperature engineering chain

High-temperature engineering chains

They usually use special materials and structural designs to meet the requirements in high-temperature environments. The following are the material and structural characteristics of high-temperature engineering chains:

Material selection: High-temperature chain materials usually include high-temperature resistant alloy steel, stainless steel, and nickel-based alloys. These materials have good heat resistance and oxidation resistance.

Surface treatment: To improve the heat resistance and stability of high-temperature chains, the surface of the chain usually undergoes special heat treatment or coating treatment. These treatments can improve the chain's antioxidant capacity and corrosion resistance.

Our main products

Engineering Chain Selection and Design Guide

The selection and design of an engineered chain is a critical step in ensuring that it will perform properly and provide reliable transmission in a specific application. The following are key elements, considerations, and design principles and specifications for engineering chain selection and design:

Key Selection Elements and Considerations

Load Requirements: Determine the type, size and operating conditions of the load required to be transferred. Consider factors such as peak loads, continuous loads and shock loads.

Speed and torque: Determine the speed and torque that the chain needs to transmit to ensure that the chain selection meets the transmission requirements.

Environmental conditions: Consider the environmental conditions where the chain is located, including temperature, humidity, corrosive media, etc. Choose materials and protective measures appropriate for the specific environment.

Chain type: Choose the appropriate chain type according to application requirements, such as roller chain, flat chain, wear-resistant chain, etc.

Maintenance and lubrication: Consider the maintenance needs and lubrication requirements of the chain and choose the appropriate lubrication method and cycle.



Engineering Chain engineering steel bush chain 1
Engineering Chain ep 18.Engineering Plastic Chains 3

Dimensional and geometric requirements: Select the appropriate chain size, link spacing and chain length based on transmission layout and space constraints.

Working principle and design of engineering chain



Strength calculation: Calculate the strength of the chain based on the required load and working conditions to ensure that the chain can withstand the expected load and has an adequate safety factor.

Material selection: Select the appropriate chain material, considering its wear resistance, corrosion resistance, tensile strength and other characteristics. Common materials include alloy steel, stainless steel, and special coatings.

Chain layout: According to the transmission requirements, determine the layout of the chain, including the number of chains, link shape and connection method, etc.

Lubrication design: Design an appropriate lubrication system and lubrication method to ensure that the chain is fully lubricated and maintained during operation.

Safety factors: Consider chain safety factors, including guards, fasteners, and protective devices, to reduce the risk of accidents and ensure operator safety.

Engineering Steel Bushing Chain

Advantages and application cases of engineering chain



As an important power transmission and motion control component, engineering chains are widely used in multiple industries. Here are some practical application cases:

Machinery manufacturing industry: Engineering chains are widely used in various equipment and mechanical devices in the machinery manufacturing industry, such as cranes, conveyors, machine tools, food processing equipment, etc. They are used to transmit power, support loads and achieve motion control to ensure the normal operation of equipment.

Mining and Quarry Industry: In mines and quarries, engineered chains are commonly used in conveyor systems, crushing equipment, screening equipment, etc. They can withstand high loads and harsh working environments and are used for the transportation and handling of materials.

Agricultural machinery: Engineering chains are very commonly used in agricultural machinery, such as tractors, harvesters, seeders, etc. They are used to transmit power and achieve motion control and are used to drive various components of agricultural machinery.

Port and logistics industry: In the port, warehousing, and logistics industry, engineering chains are widely used in lifting equipment, stackers, conveyors, and other equipment. They are used to lift and transport goods, ensuring efficient logistics operations.

Automotive industry: The application of engineering chains in the automotive industry is mainly concentrated in engines and transmission systems. They are used to transmit power and achieve motion coordination between different components, such as engine camshaft transmission chains, transmission shaft chains, etc.

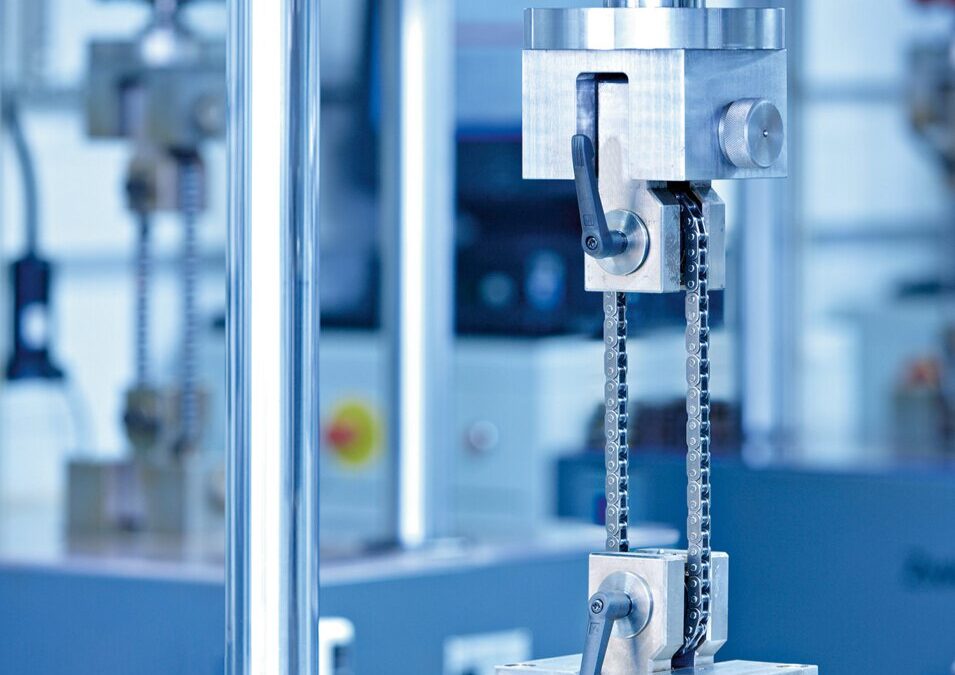

Engineering Chain iwis engineering pruefstand kette

Market trends and development prospects of engineering chains



The current development trends and prospects of the engineering chain industry are as follows:

Technological innovation and upgrading: With the continuous advancement of science and technology, the engineering chain industry will face more technological innovation and upgrading. For example, the application of new materials, the improvement of precision manufacturing technology, and the development of intelligent control systems will promote the development of the engineering chain industry in a more efficient and reliable direction.

Environmental protection and energy conservation: Environmental protection and energy conservation are important trends in current social and industrial development. The engineering chain industry will also develop in the direction of environmental protection and energy conservation, achieving more sustainable development by optimizing design, reducing energy consumption, and improving energy utilization efficiency.

Customization and personalized needs: As market competition intensifies, customers' demand for personalized products is also getting higher and higher. The engineering chain industry will develop in the direction of customization and personalization, providing customized engineering chain solutions for different industries and customers.

Automation and intelligence: The engineering chain industry will continue to promote the development of automation and intelligence. Through the application of sensors, data analysis, and intelligent control systems, the status monitoring, fault diagnosis, and remote control of the engineering chain can be realized to improve the reliability and operating efficiency of the equipment.

In summary, engineering chains are widely used in multiple industries. Future industry development will focus on technological innovation, environmental protection and energy conservation, customized needs, and automated and intelligent development. This will bring more opportunities and challenges to the engineering chain industry.

Design principles of engineering chains

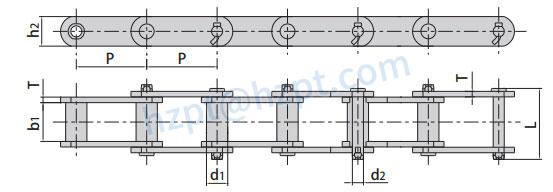

Engineering Steel Bushing Chain

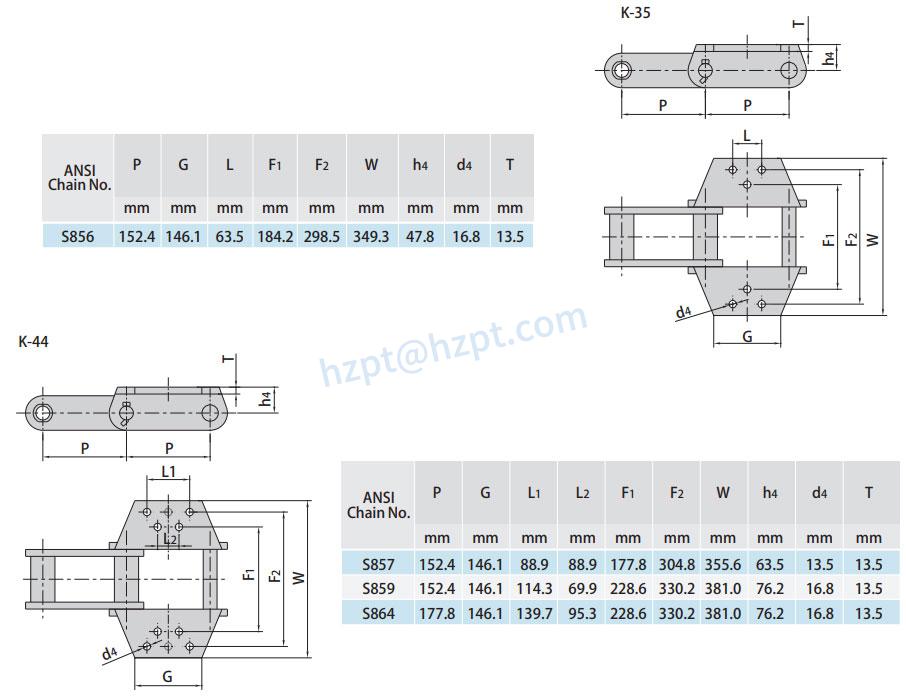

Engineering Steel Bushing Chain

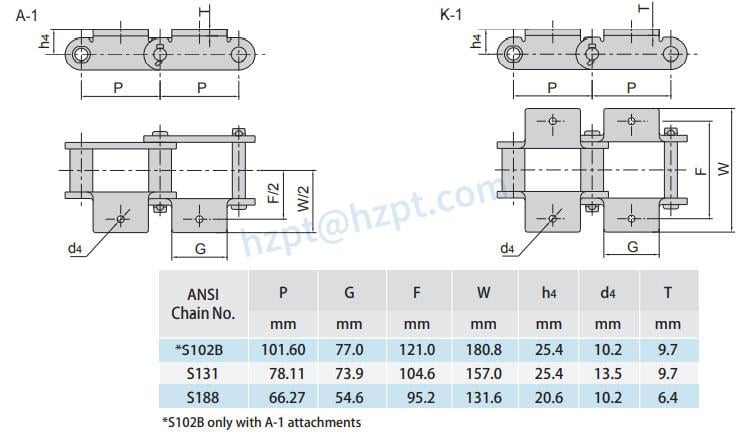

Engineering Steel Bushing Chain

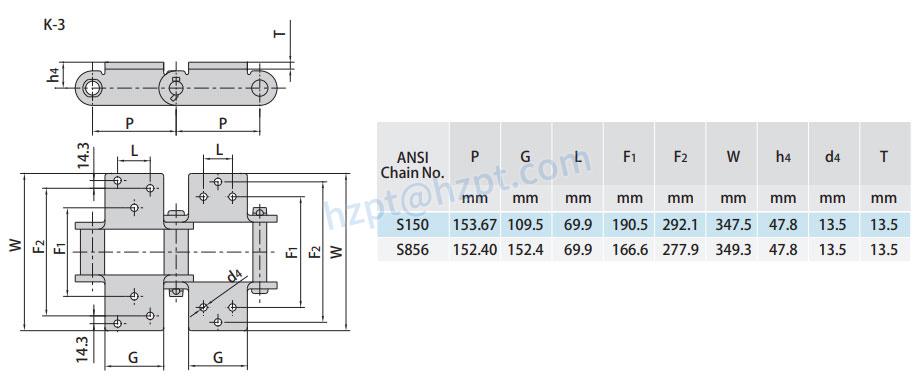

Engineering Steel Bushing Chain

Custom Engineering Class Chain from HZPT

Knowledge and information about engineering chains

An engineering chain, also known as a power transmission chain, is a mechanical device used for transmitting power and motion between two or more rotating shafts. It consists of a series of interconnected links that engage with toothed sprockets or gears to transfer torque and facilitate linear or rotary motion.



Types of Engineering Chains



Roller Chains: Roller chains are the most common type of engineering chains and consist of cylindrical rollers connected by outer link plates. They are widely used in various applications due to their high strength, durability, and efficient power transmission capabilities.

: Silent chains, also known as inverted-tooth chains, feature toothed links that engage with sprockets without the use of rollers. They offer smooth and quiet operation, making them suitable for applications requiring low noise levels.

Leaf Chains: Leaf chains are made up of interleaved plates joined together with pins and are primarily used in applications that require high tensile strength and resistance to shock loads, such as forklifts and lifting equipment.

Engineering Plastic Chains: These chains are constructed using high-performance plastics, such as polyamide or acetal. They are corrosion-resistant, lightweight, and suitable for applications where lubrication is limited or prohibited.

Specialized Chains: There are various specialized chains available for specific applications, including conveyor chains, agricultural chains, attachment chains, and more.



Chain Terminology



Pitch: The pitch of a chain refers to the distance between adjacent chain pins or rollers. It is typically measured in inches or millimeters and determines the size and compatibility of the chain.

Roller Diameter: The roller diameter is the diameter of the cylindrical rollers in roller chains. It affects the load-carrying capacity and smoothness of the chain's operation.
Breaking Load: The breaking load, also known as the tensile strength, is the maximum load that a chain can withstand before failure.

Fatigue Strength: The fatigue strength of a chain is its ability to resist repeated stress cycles without developing cracks or failure over time.

Wear Life: The wear life of a chain refers to the expected duration of reliable operation before it requires replacement due to wear and elongation.

Learn more from the news below

How to Maximize the Lifespan and Performance of Engineering Chains

Introduction to Engineering Chains Engineering chains are extensively used in various industrial applications due to their sturdy design and capability to withstand harsh operating environments. With superior strength, flexibility, and durability, they provide...

The Impact of Quality Control on Engineering Chain Performance and Longevity

Introduction to Engineering Chains Engineering chains are mechanical devices used in various industrial applications for the transmission of power. They are made of several interlocking links and are used in machinery for tasks such as lifting heavy loads,...

Application Scenario Diagram of the Engineering Chain

Before we delve into understanding the factors to consider when selecting the right engineering chain for your application, let's look at an application scenario diagram of the engineering chain: Understanding Engineering Chains: Features, Advantages, and More...

The Significance of Corrosion Resistance in Engineering Chains

Engineering chains are essential components in various industries. These chains are designed to withstand harsh environmental conditions and heavy loads. The keyword product, "Corrosion Resistance in Engineering Chains," is an essential feature that differentiates...

The Role of Engineering Chains in Agricultural Machinery and Equipment

Engineering chains play a crucial role in agricultural machinery and equipment, offering superior strength, durability, and high performance. They are designed to cope with the demanding environments of agricultural applications, providing reliable and efficient...

The Importance of Lubrication in Extending the Lifespan of Engineering Chains

Engineering chains are integral parts of many industrial processes. They are designed to withstand heavy loads and harsh environments. However, to ensure their optimal performance and longevity, proper lubrication is crucial. This article will discuss the importance...

Engineered chains play an important role and are diverse in a variety of applications. They are key devices for transmitting power and motion and are widely used in various mechanical systems. Roller chains are the most common type and offer high strength and durability. Silent chains are suitable for applications requiring low noise levels, while leaf chains are suitable for applications with high strength and resistance to shock loads. In addition, there are engineering plastic chains and various special chains available for specific needs.

To further understand, select, and purchase engineering chains, you can proceed as follows:

1. Determine requirements: Understand your application requirements, including power transmission capabilities, operating conditions, speed, etc. Determine the type and size of chain required.

2. Research suppliers: Find reputable suppliers or manufacturers that provide high-quality engineering chains. Read customer reviews and testimonials to make sure you choose a reliable partner.

3. Reference specifications and guides: Manufacturers often provide detailed specifications and selection guides to help you choose the right engineered chain. Use this information to learn about chain dimensions, load capacity, and other characteristics.

4. Consider quality and reliability: Choose quality engineered chain to ensure reliable performance and durability. Understand the manufacturer's quality control and certification status.

5. Seek professional advice: If necessary, consult industry professionals or engineers for advice and guidance on the engineering chain.

6. Compare prices and services: Compare prices and services offered between different suppliers. Balance the relationship between price and quality and ensure satisfactory after-sales support.

In short, understanding the diversity and importance of engineering chains, and selecting and purchasing appropriate engineering chains according to application needs will be able to improve production efficiency and reliability. At the same time, working with professional suppliers to obtain technical support and advice can help you make more informed decisions.
