083 Metric Roller Chain Sprockets
Get a Quote

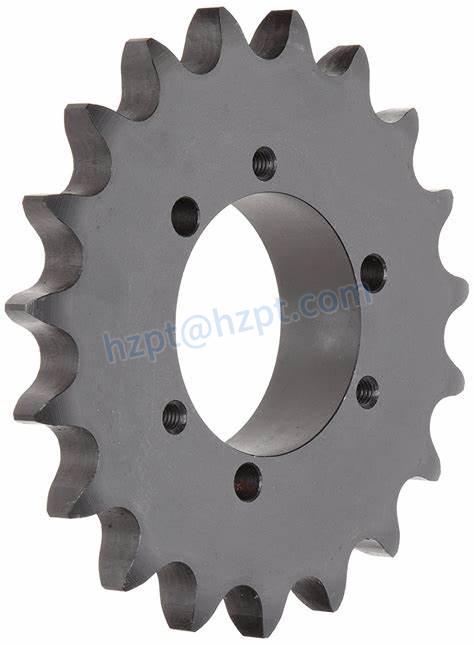

083 roller chain sprockets are manufactured for metric 083 roller chain and are manufactured in accordance with ISO, DIN, and BS228 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufacturers, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request.
083 A-Plate Sprockets:
|
Sprocket Size
|
Tooth Count
|
Pitch Diameter (O)
|
Outside Diameter (K)
|
Stock Bore (D)
|
Weight (kg)
|
|---|---|---|---|---|---|
| 083A8 | 8 | 33.18mm | 39.5mm | 8mm | 0.018 |
| 083A9 | 9 | 37.13mm | 43.4mm | 8mm | 0.020 |
| 083B-10A | 10 | 41.10mm | 47.4mm | 8mm | 0.030 |
| 083B-11A | 11 | 45.07mm | 51.4mm | 8mm | 0.040 |
| 083B-12A | 12 | 49.07mm | 55.4mm | 8mm | 0.050 |
| 083B-13A | 13 | 53.06mm | 59.4mm | 8mm | 0.060 |
| 083B-14A | 14 | 57.07mm | 63.4mm | 8mm | 0.070 |
| 083B-15A | 15 | 61.09mm | 67.4mm | 8mm | 0.080 |
| 083B-16A | 16 | 65.01mm | 71.4mm | 10mm | 0.090 |
| 083B-17A | 17 | 69.11mm | 75.4mm | 10mm | 0.100 |
| 083B-18A | 18 | 73.14mm | 79.4mm | 10mm | 0.120 |
| 083B-19A | 19 | 77.16mm | 83.5mm | 10mm | 0.130 |
| 083B-20A | 20 | 81.19mm | 87.5mm | 10mm | 0.170 |
| 083B-21A | 21 | 85.22mm | 91.5mm | 10mm | 0.185 |
| 083B-22A | 22 | 89.24mm | 95.5mm | 10mm | 0.200 |
| 083B-23A | 23 | 93.27mm | 99.6mm | 10mm | 0.225 |
| 083B-24A | 24 | 97.29mm | 103.6mm | 10mm | 0.250 |
| 083B-25A | 25 | 101.33mm | 107.6mm | 10mm | 0.260 |
| 083B-26A | 26 | 105.36mm | 111.7mm | 12mm | 0.285 |
| 083B-27A | 27 | 109.40mm | 115.7mm | 12mm | 0.310 |
| 083B-28A | 28 | 113.42mm | 119.7mm | 12mm | 0.335 |
| 083B-29A | 29 | 117.46mm | 123.8mm | 12mm | 0.350 |
| 083B-30A | 30 | 121.50mm | 127.8mm | 12mm | 0.370 |
| 083B-31A | 31 | 125.54mm | 131.8mm | 12mm | 0.395 |
| 083B-32A | 32 | 129.56mm | 135.9mm | 12mm | 0.420 |
| 083B-33A | 33 | 133.60mm | 139.9mm | 12mm | 0.470 |
| 083B-35A | 35 | 141.68mm | 148.0mm | 12mm | 0.540 |
| 083B-36A | 36 | 145.72mm | 152.0mm | 16mm | 0.550 |
| 083B-37A | 37 | 149.76mm | 156.1mm | 16mm | 0.580 |
| 083B-38A | 38 | 153.80mm | 160.1mm | 16mm | 0.610 |
| 083B-39A | 39 | 157.83mm | 164.1mm | 16mm | 0.645 |
| 083B-40A | 40 | 161.87mm | 168.2mm | 16mm | 0.690 |
| 083B-41A | 41 | 165.91mm | 172.7mm | 16mm | 0.725 |
| 083B-42A | 42 | 169.95mm | 176.7mm | 16mm | 0.760 |
| 083B-43A | 43 | 173.99mm | 180.8mm | 16mm | 0.800 |
| 083B-44A | 44 | 178.03mm | 184.8mm | 16mm | 0.835 |
| 083B-45A | 45 | 182.07mm | 188.9mm | 16mm | 0.870 |
| 083B-46A | 46 | 186.10mm | 192.9mm | 20mm | 0.900 |
| 083B-47A | 47 | 190.14mm | 196.9mm | 20mm | 0.930 |
| 083B-48A | 48 | 194.18mm | 201.0mm | 20mm | 1.000 |
| 083B-49A | 49 | 198.22mm | 205.0mm | 20mm | 1.010 |
| 083B-50A | 50 | 202.26mm | 209.1mm | 20mm | 1.045 |
| 083B-51A | 51 | 206.30mm | 213.1mm | 20mm | 1.050 |
| 083B-52A | 52 | 210.34mm | 217.1mm | 20mm | 1.055 |
| 083B-53A | 53 | 214.37mm | 221.2mm | 20mm | 1.150 |
| 083B-54A | 54 | 218.43mm | 225.2mm | 20mm | 1.280 |
| 083B-55A | 55 | 222.46mm | 229.3mm | 20mm | 1.100 |
| 083B-56A | 56 | 226.50mm | 233.3mm | 20mm | 1.300 |
| 083B-57A | 57 | 230.54mm | 237.3mm | 20mm | 1.310 |
| 083B-58A | 58 | 234.58mm | 241.4mm | 20mm | 1.445 |
| 083B-59A | 59 | 238.62mm | 245.4mm | 20mm | 1.480 |
| 083B-60A | 60 | 242.66mm | 249.5mm | 20mm | 1.560 |
| 083B-62A | 62 | 250.75mm | 257.5mm | 20mm | 1.650 |
| 083B-64A | 64 | 258.82mm | 265.5mm | 20mm | 1.800 |
| 083B-65A | 65 | 262.6mm | 269.7mm | 20mm | 1.850 |
| 083B-66A | 66 | 266.90mm | 273.7mm | 25mm | 1.900 |
| 083B-68A | 68 | 274.99mm | 281.8mm | 25mm | 2.050 |
| 083B-70A | 70 | 283.07mm | 289.9mm | 25mm | 2.080 |
| 083B-72A | 72 | 291.16mm | 298.0mm | 25mm | 2.350 |
| 083B-75A | 75 | 303.27mm | 310.1mm | 25mm | 2.450 |
| 083B-76A | 76 | 307.33mm | 314.1mm | 25mm | 2.500 |
| 083B-78A | 78 | 315.40mm | 322.2mm | 25mm | 3.100 |
| 083B-80A | 80 | 323.48mm | 330.3mm | 25mm | 3.700 |
| 083B-85A | 85 | 343.69mm | 350.5mm | 25mm | 3.730 |
| 083B-90A | 90 | 363.90mm | 370.7mm | 25mm | 3.775 |
| 083B-95A | 95 | 384.11mm | 390.9mm | 25mm | 5.650 |
| 083B-100A | 100 | 404.31mm | 411.1mm | 25mm | 5.700 |
| 083B-110A | 110 | 444.74mm | 451.5mm | 25mm | 6.000 |
| 083B-114A | 114 | 460.90mm | 467.7mm | 25mm | 6.700 |
| 083B-120A | 120 | 485.16mm | 492.0mm | 25mm | 6.800 |
| 083B-125A | 125 | 505.37mm | 512.2mm | 25mm | 6.750 |
083 B-Hub Sprockets:
|
Sprocket Size
|
Tooth Count
|
Pitch Diameter (O)
|
Outside Diameter (K)
|
Hub Diameter (N)
|
Stock Bore (D)
|
Maximum Bore
|
Length Thru Bore (L)
|
Weight (kg)
|
|---|---|---|---|---|---|---|---|---|
| 083B8 | 8 | 33.18mm | 39.5mm | 21mm | 8mm | 16mm | 14mm | 0.04 |
| 083B9 | 9 | 37.13mm | 43.4mm | 25mm | 8mm | 18mm | 14mm | 0.05 |
| 083-10B | 10 | 41.10mm | 47.4mm | 28mm | 8mm | 21mm | 14mm | 0.07 |
| 083-11B | 11 | 45.07mm | 51.4mm | 31mm | 8mm | 23mm | 16mm | 0.10 |
| 083-12B | 12 | 49.07mm | 55.4mm | 25mm | 8mm | 26mm | 16mm | 0.18 |
| 083-13B | 13 | 53.06mm | 59.4mm | 39mm | 8mm | 28mm | 16mm | 0.20 |
| 083-14B | 14 | 57.07mm | 63.4mm | 43mm | 8mm | 31mm | 16mm | 0.24 |
| 083-15B | 15 | 61.09mm | 67.4mm | 47mm | 8mm | 31mm | 16mm | 0.24 |
| 083-16B | 16 | 65.01mm | 71.4mm | 50mm | 10mm | 35mm | 18mm | 0.30 |
| 083-17B | 17 | 69.11mm | 75.4mm | 50mm | 10mm | 38mm | 18mm | 0.32 |
| 083-18B | 18 | 73.14mm | 79.4mm | 50mm | 10mm | 40mm | 18mm | 0.33 |
| 083-19B | 19 | 77.16mm | 83.5mm | 50mm | 10mm | 42mm | 18mm | 0.34 |
| 083-20B | 20 | 81.19mm | 87.5mm | 50mm | 10mm | 44mm | 18mm | 0.42 |
| 083-21B | 21 | 85.22mm | 91.5mm | 60mm | 12mm | 44mm | 20mm | 0.51 |
| 083-22B | 22 | 89.24mm | 95.5mm | 60mm | 12mm | 44mm | 20mm | 0.53 |
| 083-23B | 23 | 93.27mm | 99.6mm | 60mm | 12mm | 44mm | 20mm | 0.56 |
| 083-24B | 24 | 97.29mm | 103.6mm | 60mm | 12mm | 44mm | 20mm | 0.56 |
| 083-25B | 25 | 101.33mm | 107.6mm | 60mm | 12mm | 44mm | 20mm | 0.64 |
| 083-26B | 26 | 105.36mm | 111.7mm | 70mm | 16mm | 44mm | 20mm | 0.72 |
| 083-27B | 27 | 109.40mm | 115.7mm | 70mm | 16mm | 44mm | 20mm | 0.78 |
| 083-28B | 28 | 113.42mm | 119.7mm | 70mm | 16mm | 44mm | 20mm | 0.77 |
| 083-29B | 29 | 117.46mm | 123.8mm | 70mm | 16mm | 50mm | 20mm | 0.81 |
| 083-30B | 30 | 121.50mm | 127.8mm | 70mm | 16mm | 50mm | 20mm | 0.83 |
| 083-31B | 31 | 125.54mm | 131.8mm | 70mm | 16mm | 56mm | 20mm | 0.85 |
| 083-32B | 32 | 129.56mm | 135.9mm | 70mm | 16mm | 56mm | 20mm | 0.87 |
| 083-33B | 33 | 133.60mm | 139.9mm | 70mm | 16mm | 56mm | 20mm | 0.90 |
| 083-34B | 34 | 137.64mm | 143.9mm | 70mm | 16mm | 56mm | 20mm | 0.92 |
| 083-35B | 35 | 141.68mm | 148.0mm | 70mm | 16mm | 56mm | 20mm | 0.95 |
| 083-36B | 36 | 145.72mm | 152.0mm | 70mm | 16mm | 56mm | 20mm | 1.16 |
| 083-37B | 37 | 149.76mm | 156.1mm | 70mm | 16mm | 56mm | 25mm | 1.16 |
| 083-38B | 38 | 153.80mm | 160.1mm | 70mm | 16mm | 56mm | 25mm | 1.19 |
| 083-39B | 39 | 157.83mm | 164.1mm | 70mm | 16mm | 56mm | 25mm | 1.22 |
| 083-40B | 40 | 161.87mm | 168.2mm | 70mm | 16mm | 56mm | 25mm | 1.30 |
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
