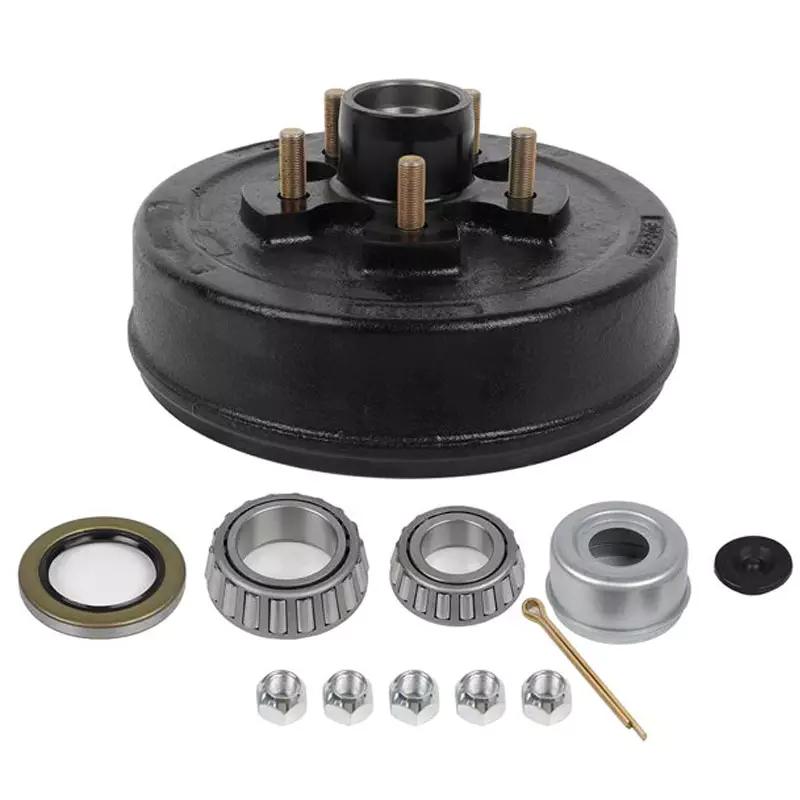

10” Fanned Brake Drum with 5 Bolt

10'' Fanned Brake Drum with 5 Bolt

D545-1FA
10'' fanned brake drum 5 bolt on
4,5 b.c
3500lbs
Hub drum+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap

The brake drum is cast according to SAE and manufactured with high-quality raw materials to ensure the use of appropriate weight, hardness, and metallurgical materials. Our brake drums have also undergone independent testing to comply with OE standards and have been carefully designed to achieve or exceed the braking performance of your original brake drum. All brake drums come with a 2-year full replacement warranty. High strength alloy with long service life and enhanced anti warping performance

Trailer Hub and Drum

	H440-2A Bt Idler 4-bolts 4.0” BC 2000-22001bs Hub+bolts+nut+bearing cups 44610/44610+bearing cone 44649/44649+seals+dust cap		H865-2A Bt Idler 8-bolts 6.5”BC; 6000-7000lbs Hub+bolts+nuts +bearing cups 14276/25520 +bearing cone 14125/25520 +seals+dust cap
	H545-1A / H550-1A / H555-1A Bt Idler 5-bolts 4.5”;5.0;4.0;5.5BC 2000-2200lbs Hub+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap		D545-1FA 10'' fanned brake drum 5 bolt on 4,5 b.c 3500lbs Hub drum+bolts+nuts+bearing cups 44610/68111+bearing cone 44649/68149+seals+dust cap
	H545-2A Bt Idler 5-bolts 4.5”BC 3500lbs Hub+bolts+nuts +bearing cups 44610/68111 +bearing cone 44649/68149 +seals+dust cap		D655-12A Brake drum 12” 6bolts 5.5” BC 6000lbs Hub drum+bolts+nuts+bearing cups 15245/25520+bearing cone 15123/25580+seals+dust cap

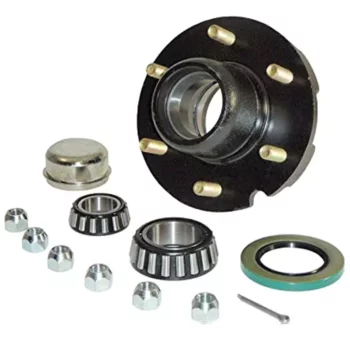

	H655-2A Bt Idler 6-bolts 5.5”BC 6000lbs Hub+bolts+nuts +bearing cups 15245/25520 +bearing cone 15123/25580 +seals+dust cap		D865-12 Brake drum 12” 8bolts 6.5” BC 7000lbs Hub+drum+bolts+nuts+bearing cups 14276/25520+bearing cone 14125/25520+seals+dust cap

How Does a Drum Brake Work?

The drum is bolted to the wheel hub and rotates with the wheel. The brake shoes and wheel brake cylinders are connected to a fixed backing plate made of thick metal. Drum brake diagram dual servo rear drum brake. The back plate is fixed to the axle or spindle with bolts. Anchors riveted or bolted to the backing plate provide a stopping device for the brake shoes. In some vehicles, a single anchor point is placed at the top (dual servo), while in other vehicles, it is placed at the bottom (non servo), as shown in the following figure. Non servo settings are mainly used for small cars.
When the driver presses the brake pedal, the hydraulic pressure generated in the brake master cylinder passes through the hydraulic brake system and pushes the piston out of the wheel brake master cylinder. The piston pushes out the brake shoes. Therefore, the friction material (lining) contacts and slows down the rotation of the brake drum. The drum absorbs and dissipates the heat generated.
