100Y30 Weld-on Sprocket with Hub

What is Weld-on Sprocket?

Weld-on sprocket is a type of sprocket that can be welded directly onto a shaft or plate. It is commonly used in industrial machinery and equipment for power transmission through a roller or conveyor chain.

Materials and Manufacturing Process of Weld-on Sprocket

Our Weld-on sprocket is made of high-carbon steel, alloy steel or stainless steel. The manufacturing process includes material selection and cutting, stamping or forging, machining (turning, milling, drilling), heat treatment (quenching, tempering, surface hardening), surface treatment (anti-rust coating), and quality inspection.

Materials

- High-carbon steel: provides high strength, durability and wear resistance for heavy-duty applications.
- Alloy steel: provides improved strength, toughness and resistance to corrosion and wear.
- Stainless steel: provides excellent corrosion resistance and hygiene for food-grade and chemical applications.

Manufacturing Process

- Material selection and cutting: the raw material is selected based on the required strength, hardness and chemical composition, and then cut into the desired shape.
- Stamping or forging: the cut material is stamped or forged into the sprocket shape using a hydraulic or mechanical press.
- Machining: the stamped or forged sprocket is machined to achieve the required dimensions and tolerances using cutting tools such as lathe, milling machine, and drill press.
- Heat treatment: the machined sprocket is heat-treated to improve its mechanical properties such as hardness, toughness, and wear resistance. This process involves quenching (rapid cooling), tempering (gradual heating), and surface hardening (case hardening or induction hardening).
- Surface treatment: the heat-treated sprocket is coated with an anti-rust material to protect it from corrosion and oxidation.
- Quality inspection: the finished sprocket is inspected for dimensional accuracy, surface finish, and performance according to the customer's specifications and industry standards.

Applications of Weld-on Sprocket

Weld-on sprocket is used in various industrial applications such as conveyor belts, elevators, agriculture machinery, mining equipment, and automotive systems. It is suitable for heavy-duty and high-speed operation, and can be customized to fit specific shaft sizes and chain pitches. For applications that require special design or size, users can choose the appropriate hub to weld onto the sprocket.

Advantages of Weld-on Sprocket

- Easy installation: Weld-on sprocket can be easily welded onto a shaft or plate, eliminating the need for additional bolting or fastening.
- High strength: Weld-on sprocket is made of high-quality materials and undergoes strict quality control, ensuring its high strength and durability.
- Customizable: Weld-on sprocket can be customized to fit different shaft sizes and chain pitches, making it versatile and flexible.
- Cost-effective: Weld-on sprocket is more cost-effective than other types of sprockets, as it requires less maintenance and has a longer lifespan.

Types of Hub

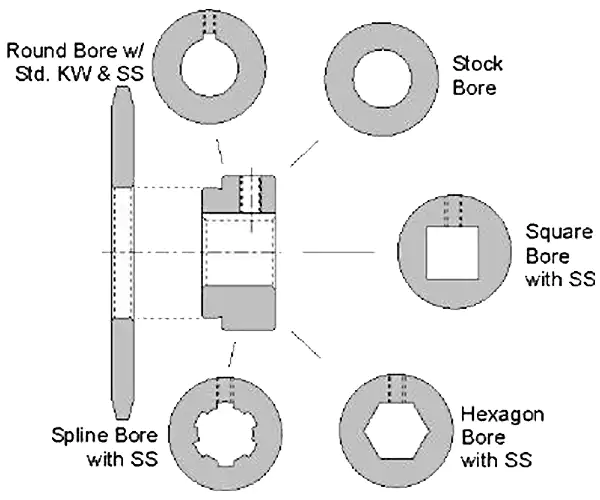

We offer various types of hub for Weld-on sprocket, including round bore, square bore, hex bore, and spline bore. Each hub is designed to fit specific shaft sizes and chain pitches, and can be welded onto the sprocket using a welding machine.

Maintenance and Troubleshooting of Chain Sprocket

To ensure the proper functioning of Weld-on sprocket, regular maintenance and inspection are recommended. The following are some tips for maintaining and troubleshooting chain sprocket:

Daily Inspection

- Check the sprocket teeth for wear or damage.
- Check the chain tension and lubrication.
- Check the hub and shaft for looseness or misalignment.
- Check the fasteners for tightness and corrosion.

Cleaning

- Remove any dirt, debris, or rust from the sprocket using a wire brush or a cleaning solution.
- Use a solvent to clean the chain and remove any debris or buildup.

Lubrication

- Apply a suitable lubricant to the chain to reduce friction and wear.
- Use a lubricant that is compatible with the chain material and operating conditions.

Adjustment and Calibration

- Adjust the chain tension to the manufacturer's recommended value.
- Calibrate the sprocket teeth and chain for proper alignment and engagement.

Common Problems and Solutions

- Skipping teeth: Adjust the chain tension or replace the chain if it is worn or damaged.
- Breakage: Check the sprocket and chain for defects or wear, and replace any damaged parts immediately.
- Wear: Monitor the sprocket teeth for wear and replace the sprocket if the wear exceeds the manufacturer's specification.
- Noise: Lubricate the chain or adjust the chain tension to reduce noise.
- Chain detachment: Check the hub, shaft, and chain for misalignment or looseness, and tighten or adjust as necessary.

Other Types of Chain Sprocket

In addition to Weld-on sprocket, we also offer other types of chain sprocket such as platewheel sprocket, QD sprocket, taper lock sprocket, etc. We also provide matching chains for each type of sprocket, ensuring a precise fit and optimal performance.

Author: Miya
