3TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All “C” Section Belts

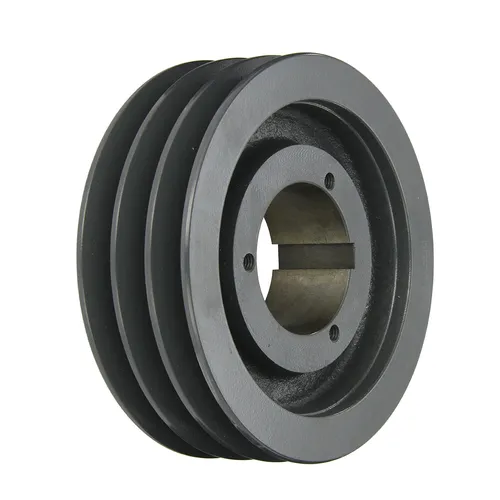

3TC series three-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40″ to 24.40″ in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. Most of our 3TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
3TC series three-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40" to 24.40" in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. Most of our 3TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

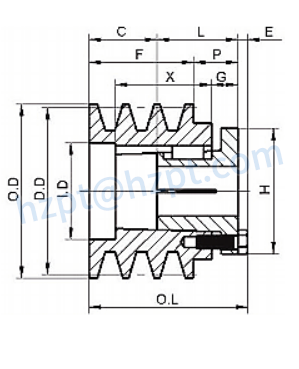

3TC Style Sheave Size Chart
| Size | Bushing Type | Pitch Diameter | Outside Diameter | Type | (O.L.) | (L) | (P) | (C) | (H) | (F) | (G) | (X) | (E) | Sheave Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3TC70 | Q1 | 7" | 7.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 16.8 |
| 3TC72 | Q1 | 7.2" | 7.6" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 18 |
| 3TC74 | Q1 | 7.4" | 7.8" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 19.1 |
| 3TC76 | Q1 | 7.6" | 8" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 21.3 |
| 3TC78 | Q1 | 7.8" | 8.2" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 17.4 |
| 3TC80 | Q1 | 8" | 8.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 17.8 |
| 3TC82 | Q1 | 8.2" | 8.6" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 17.9 |
| 3TC84 | Q1 | 8.4" | 8.8" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 20.4 |
| 3TC86 | Q1 | 8.6" | 9" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 19.5 |
| 3TC88 | Q1 | 8.8" | 9.2" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 22.5 |
| 3TC90 | Q1 | 9" | 9.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 20.4 |
| 3TC92 | Q1 | 9.2" | 9.6" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 22.8 |
| 3TC94 | Q1 | 9.4" | 9.8" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 23 |
| 3TC96 | Q1 | 9.6" | 10" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 25.3 |
| 3TC98 | Q1 | 9.8" | 10.2" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 24.4 |
| 3TC100 | Q1 | 10" | 10.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 27.6 |
| 3TC102 | Q1 | 10.2" | 10.6" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 24.9 |
| 3TC106 | Q1 | 10.6" | 11" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 26.9 |
| 3TC110 | Q1 | 11" | 11.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 27.4 |
| 3TC114 | Q1 | 11.4" | 11.8" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 28.3 |
| 3TC120 | Q1 | 12" | 12.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 30.3 |
| 3TC130 | Q1 | 13" | 13.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 34.9 |
| 3TC160 | Q1 | 16" | 16.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 46 |
| 3TC200 | Q1 | 20" | 20.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 54.5 |
| 3TC240 | Q1 | 24" | 24.4" | 13 | 3 17/32" | 2 1/2" | 0" | 3/4" | 4 1/8" | 3 1/4" | 3/4" | 1 3/4" | 9/32" | 71 |
Features of 3TC Series Sheaves:
* Easy Installation & remove
* Reduce wear and extend belt life
* Increase the versatility of the product * Reduce noise
V-belt Pulley Introduce:
V- belt pulley of different types ( according to type and width of belts). The material used is cast iron EN-GJL-250 UNI EN 1561, and for only a few types, it is steel C45 E UNI EN 10083-1. They have a small preborn that can be machined according to customers' requirements. Moreover, the most common types are available also with a taper lock bore.
V belt pulley specifications
(1) European standards :
a) V-belt pulley for taper bushing: SPZ, SPA, SPB, SPC
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
(2) American standard:
a) Sheaves for taper bushing: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushing: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K, and M
1. Bore: pilot bore, finish bore, taper bore, bore for QD bushing
2. Parts can be made according to drawings and/or samples
3. we can offer the rang size diameter of 62MM~2000MM
