3V Series Cast Iron Eight-Groove Sheaves with Split Taper Bushings

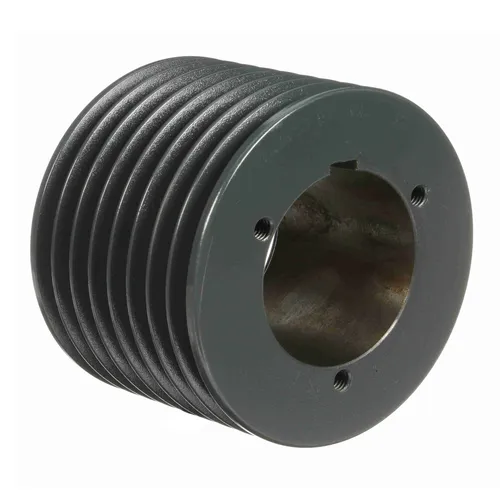

3V series eight-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 4.75″ to 33.50″ in diameter. Depending on the sheave size, they are made to use a Q2, R1, or S1 split-taper bushing, which we also stock. Most of our eight-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

3V Series Cast Iron Eight-Groove Sheaves with Split Taper Bushings

3V series eight-groove taper bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 4.75" to 33.50" in diameter. Depending on the sheave size, they are made to use a Q2, R1, or S1 split-taper bushing, which we also stock. Most of our eight-groove 3V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Eight-Groove 3V Split Taper Sheave Size Chart

Size
Bushing Type
Pitch Diameter
Outside Diameter
Type
(O.L.)
(L)
(P)
(C)
(H)
(F)
(G)
(X)
(E)
Sheave Weight (LBS)
8Q3V47 Q2 4.70" 4.75" 5 4 9/16 3 1/2 3/4 25/32 4 1/8 3 17/32 - 2 3/4 9/32 7.3
8Q3V50 Q2 4.95" 5.00" 5 4 9/16 3 1/2 3/4 25/32 4 1/8 3 17/32 - 2 3/4 9/32 8.6
8Q3V53 Q2 5.25" 5.30" 5 4 9/16 3 1/2 3/4 25/32 4 1/8 3 17/32 - 2 3/4 9/32 10.3
8Q3V56 Q2 5.55" 5.60" 15 3 25/32 3 1/2 1/32 0 4 1/8 3 17/32 3/4 2 3/4 9/32 12.3
8Q3V60 Q2 5.95" 6.00" 15 3 25/32 3 1/2 1/32 0 4 1/8 3 17/32 3/4 2 3/4 9/32 15.1
8Q3V65 Q2 6.45" 6.50" 13 4 11/64 3 1/2 23/64 25/64 4 1/8 3 17/32 3/4 2 3/4 9/32 18.3
8Q3V69 Q2 6.85" 6.90" 13 4 11/64 3 1/2 23/64 25/64 4 1/8 3 17/32 3/4 2 3/4 9/32 21.4
8R3V80 R1 7.95" 8.00" 13 3 59/64 3 1/2 7/64 49/64 5 3/8 3 17/32 7/8 2 9/32 23.3
8R3V106 R1 10.55" 10.60" 13 3 59/64 2 7/8 7/64 49/64 5 3/8 3 17/32 7/8 2 9/32 24.5
8R3V140 R1 13.95" 14.00" 13 3 59/64 2 7/8 7/64 49/64 5 3/8 3 17/32 7/8 2 9/32 39.0
8R3V190 R1 18.95" 19.00" 13 3 59/64 2 7/8 7/64 49/64 5 3/8 3 17/32 7/8 2 9/32 49.0
8R3V250 R1 24.95" 25.00" 13 3 59/64 2 7/8 7/64 49/64 5 3/8 3 17/32 7/8 2 9/32 76.0
8S3V335 S1 33.45" 33.50" 13 4 55/64 4 3/8 61/64 7/64 6 3/8 3 17/32 1 1/16 3 5/16 3/8 128.0

Matching 3V, 3VX V-Belt

(1) 3V-Series V-Belts

Classic 3V-Series V-Belts have a 0.38" top-width, 0.31" thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts and accompanying v-belt pulleys/ sheaves.

(2) 3V-Series Banded V-Belts

3V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common styles. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38" top-width per belt (band/ rib).

(3) 3VX Cogged V-Belts

3VX cogged v-belts are designated by having a 0.38" top-width and 0.31" thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves. Please contact us to get a quote on 3VX cogged v-belts or pulleys, and we will be happy to assist you.

(4) 3VX Banded Cogged V-Belts

All our v-belts are manufactured by ARPM specifications and offer superior performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs. We can also stock sheaves/ pulleys for 3VX banded belts.

Related Split Taper Bushings

Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please get in touch with our customer support team, and we will be happy to assist you.

What Are the Advantages of Pulleys over Couplings?

Much mechanical equipment must use transmission components as an intermediate medium to transmit mechanical power to terminal equipment. Couplings and pulleys are commonly used transmission components for mechanical equipment. What are the advantages of pulleys compared with collars?

Large and efficient. The coupling is used to connect the driving shaft and the driven shaft in different mechanisms to rotate together, transmitting motion and torque to mechanical parts. It is a short-distance connection between motors and equipment. But because of the direct link, the coupling speed is much lower than the speed of the pulley.

The pulley belongs to the hub-type parts, and the relative size is generally relatively large. The manufacturing process is usually based on casting and forging. It is mainly used on the occasion of long-distance transmission of power. Compared with the coupling, its application advantages are reflected in the following aspects:

1. The pulley is suitable for the transmission method of two transmission devices at a long distance.

2. The pulley drive means that the two drive shafts are in parallel and are required to be on the same horizontal line, so the pulley drive runs more smoothly, with low noise and low vibration.

3. The use of the pulley transmission has the function of buffering. When the machine equipment is stopped, it will not stop immediately but slowly stop running without driving force, thereby protecting the equipment and the motor.

Applications of V-Belt Pulleys and V-Belts

The pulley belongs to the hub-type parts. Generally, the relative size is relatively large. The manufacturing process is usually based on casting and forging. Use less cast steel (steel has poor casting performance); generally, smaller sizes can be designed for development, and the material is steel). Pulleys are mainly used for long-distance power transmissions, such as the output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, and some small horsepower motorcycles. Transmission is the transmission of agricultural machinery power, air compressors, reducers, generators, gins, etc.
