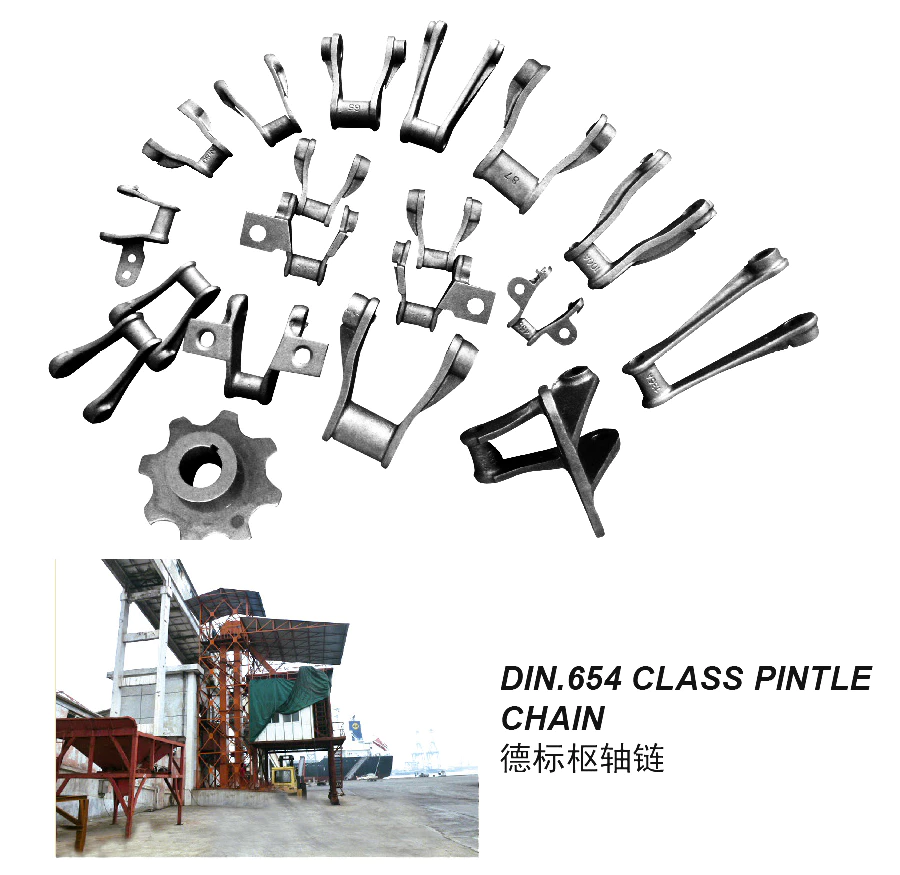

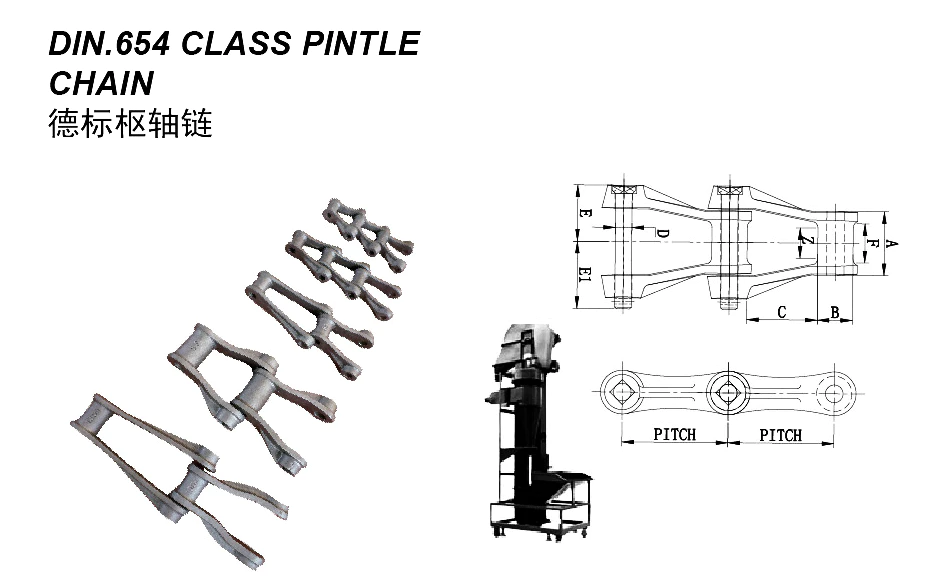

40 DIN 654 Class Pintle Chain

No.40 DIN 654 CLASS PINTLE CHAIN is a heavyweight, moderately priced chain capable of handling average loads at slow or intermediate speeds. It is proportionately cast for balance, strength and long, efficient service, and is available in cottered construction. The head of each pin is notched to fit the sidebar locking lug which keeps the pin from rotating when the chain is in use. Closed bearing construction makes DIN.654 CLASS PINTLE CHAIN useful in conveying gritty and abrasive materials.

Features and Structure of DIN 654 Class Pintle Chain

Key Features

• Heavy-duty, moderately priced chain
• Suitable for handling average loads at slow or intermediate speeds
• Good balance, strength and long service life
• Closed bearing construction makes it useful in conveying gritty and abrasive materials

Structure

• Links: The links of the DIN 654 Class Pintle Chain are composed of link plates and pins.
• Link plates: The link plates are composed of two link plate sheets and a link pin.
• Pins: The pins are the load-bearing parts of the chain and are made of cast iron or steel.

Applications of DIN 654 Class Pintle Chain

• Chain hoists: Used for lifting and moving heavy loads in industrial settings
• Chain conveyors: Ideal for moving a variety of materials across short distances within a facility
• Other applications that require heavy loads: Suitable for any application that requires a durable, reliable chain capable of handling heavy loads

Manufacturing Material and Process of Pintle Chains

Pintle chains are typically made from cast iron or steel. Cast iron pintle chains are less expensive than steel pintle chains, but they are also less strong. Steel pintle chains are stronger and more durable than cast iron pintle chains, but they are also more expensive. The manufacturing process for pintle chains is relatively simple and typically consists of the following steps:

• Material preparation: The required amount of cast iron or steel is prepared.
• Casting: The material is cast into the shape of the chain links and pins.
• Machining: The chain links and pins are machined to the desired dimensions and shape.
• Surface treatment: The chain links and pins are given a surface treatment to improve their wear resistance and corrosion resistance.

Sprockets for Malleable Casting Chains

Here are some specific types of sprockets commonly used with malleable cast iron chains:

• cast iron sprockets: Offer cost-effective durability for light-duty applications.
• Steel sprockets: More wear-resistant than cast iron, suitable for medium to heavy-duty applications.
• Ductile iron sprockets: Provide superior strength and resistance to fatigue for demanding applications.
• Double sprockets: Used for applications requiring two chains running in opposite directions on the same shaft.
• Custom sprockets: Can be specially designed to meet specific requirements like unique tooth profiles or materials.

We also offer a range of sprockets that are compatible with our DIN 654 Class Pintle Chain.

About Ever-power

Renowned for the exceptional quality, Ever-power's malleable cast iron chains undergo stringent manufacturing processes, ensuring durability and reliability in diverse industrial applications. Our malleable cast iron construction provides robustness while maintaining flexibility, offering a balance between strength and adaptability. Ever-power remains price competitive without compromising on quality. The company's commitment to providing cost-effective solutions makes our malleable cast iron chains a prudent choice for businesses seeking both value and performance.

Moreover, Ever-power is dedicated to exceptional service. Our customer-centric approach involves timely delivery, reliable support, and a responsive team ready to assist at every stage. From product inquiries to after-sales service, we prioritize customer satisfaction, fostering long-term partnerships built on trust and reliability. Ever-power's malleable cast iron chains stand out for our quality craftsmanship, competitive pricing, and unwavering commitment to superior service, making them a trusted choice in the industrial chain market.

We encourage you to explore our DIN 654 Class Pintle Chain and contact us to make a purchase.
