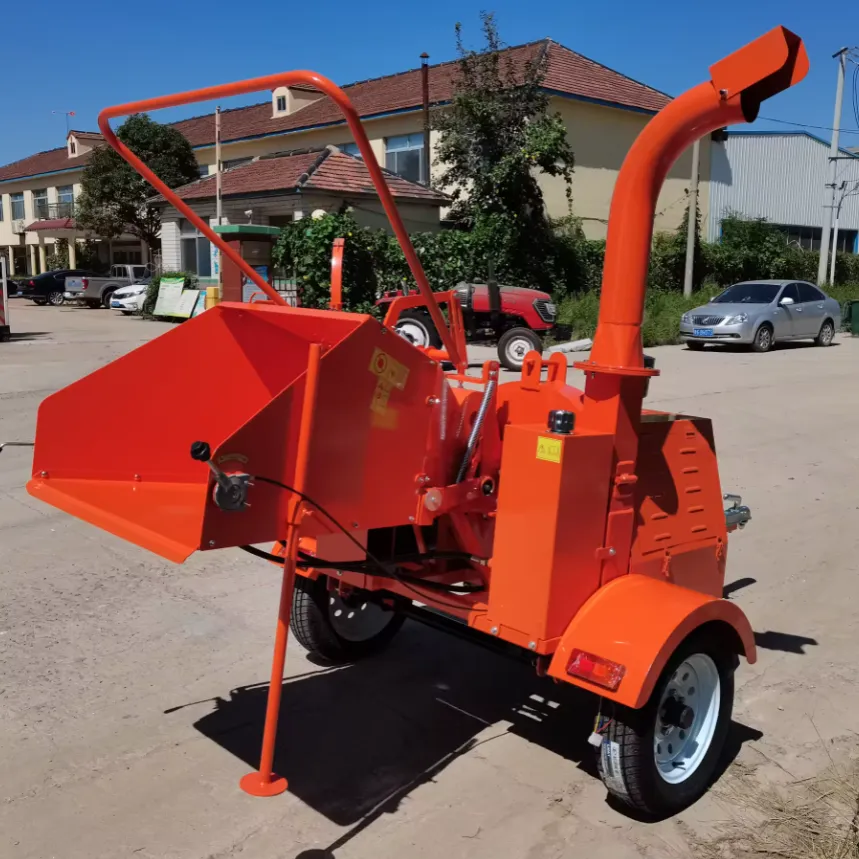

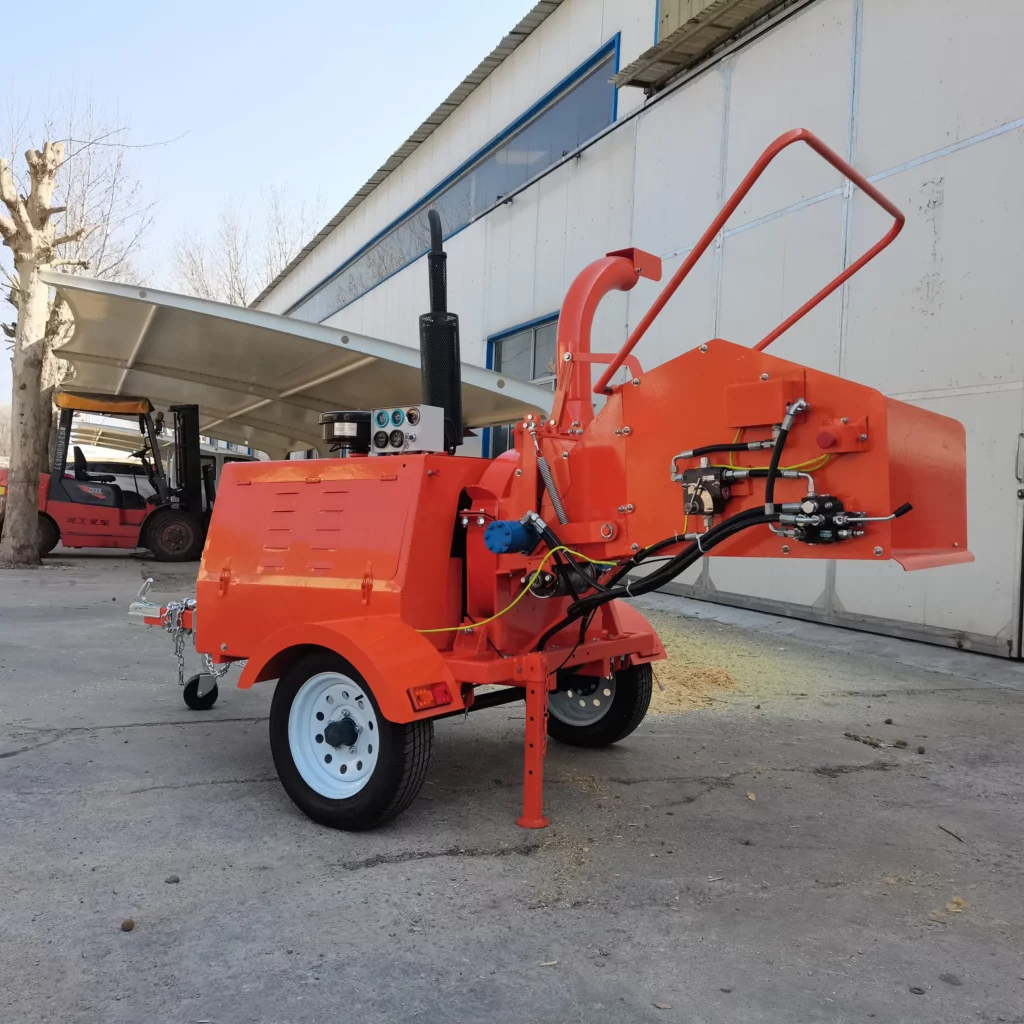

40hp Diesel Wood Chipper DWC-40 for Wood Chipping

The Diesel Wood Chipper DWC-40 is a high-capacity, heavy-duty machine designed for professional wood chipping operations. It is built to handle the rigorous demands of processing large volumes of wood, including tree branches, trunks, and other forestry waste, making it an ideal tool for arborists, forestry contractors, land clearing operations, and large-scale landscaping projects. Powered by a robust diesel engine, the DWC-40 combines durability, efficiency, and superior chipping performance.

At the heart of the DWC-40 diesel wood chipper is a powerful diesel engine that provides the high torque necessary for efficient chipping of large and tough wood materials. Diesel engines are known for their long service life, fuel efficiency, and ability to perform under demanding conditions. The diesel wood chipper DWC-40 is designed to chip wood materials of substantial diameters, often up to 8-12 inches (20-30 cm), making it suitable for a wide range of wood chipping tasks. Its high capacity ensures that large pieces of wood can be processed quickly and effectively.

This wood chipper features a heavy-duty cutting mechanism, which may include a large diameter drum or disc equipped with durable, sharp blades. This system ensures consistent, high-quality wood chips and efficient operation. Equipped with a hydraulic feeding system, the diesel wood chipper DWC-40 automates the wood feeding process, enhancing safety and operational efficiency. The system can adjust the feed rate based on the size and hardness of the wood, ensuring optimal chipping performance.

Diesel Wood Chipper DWC-40 Specifications

The 40hp Diesel Wood Chipper DWC-40 is a robust and reliable machine designed for efficient wood chipping. This powerhouse, with a diesel engine, is designed to tackle the most challenging wood chipping tasks with ease. With dimensions spanning 4200*1750*2000mm and a weight of 800 KG, this machine is perfect for agricultural and farming industries. It features core components such as a Motor and Pump and is available in the color of your choice. The machine carries a CE certification and comes with a two-year warranty.

Model		DWC-40
Engine	model	Changchai 40HP diesel engine
	type	Four cylinders, Horizontal,four-stroke
	Rated power	25.7KW/2350rpm
	Fuel consumption rate	<238g/KW.h
	Engine oil consumption	<1.5g/KW.h
	Cooled style	Water-cooled
	start	Electric start
Feeding system		hydraulic
Chipper capability		200mm
Flywheel diameter		640mm
Flywheel weight		85kgs
Blades number		1 stationary blade, 2 rotary blades
Feed Hopper inner Opening		200*220mm
Discharge Hood Height		2000mm
Rated RPM		1280
Weight		800kgs
Working efficiency		9-13cbm/h

The Advantages of the 40hp Diesel Wood Chipper DWC-40

The 40hp Diesel Wood Chipper DWC-40 brings several benefits to your wood chipping needs:

1. Powerful Performance: Powered by a 40hp diesel engine, this chipper offers superior performance and can handle heavy-duty tasks with ease.

2. Efficient Wood Chipping: It is designed for efficient wood chipping, turning large chunks of wood into small, manageable chips.

3. High Durability: The machine is built with high-quality materials to ensure longevity and durability.

4. Easy Operation: The DWC-40 is designed for easy operation, with a user-friendly interface that makes wood chipping tasks simple.

5. Low Maintenance: With a robust design and high-quality components, this machine requires minimal maintenance, saving you time and effort.

6. Customizable: Available in the color of your choice, this machine can be customized to suit your preferences and needs.

Applications of the 40hp Diesel Wood Chipper DWC-40

The 40hp Diesel Wood Chipper is versatile, making it suitable for various applications:

1. Farm Use: It is ideal for chipping wood in farms, helping to manage and recycle wood waste.

2. Forestry: It can be used for clearing and maintaining forest areas.

3. Gardening: The chipper can be used to maintain gardens by chipping branches and other garden waste.

4. Landscaping: The wood chips produced can be used for landscaping purposes.

5. Industrial Use: It is also suitable for industrial applications where large amounts of wood need to be chipped.

6. Waste Management: The machine is excellent for managing and recycling wood waste.

How Does the Diesel Wood Chipper for Wood Chipping Work?

A diesel wood chipper for wood chipping operates by using a diesel engine to power a cutting mechanism that efficiently processes wood, tree limbs, and branches into smaller, uniform wood chips. This heavy-duty machinery is favored for its durability, efficiency, and ability to handle large volumes of wood. Here’s an overview of how a diesel wood chipper works:

1. Diesel Engine: The process begins with the diesel engine, which provides the primary source of power. Diesel engines are chosen for their robust performance, reliability, and fuel efficiency, especially important for high-demand tasks like wood chipping. Once started, the engine generates mechanical power, translating fuel energy into rotational force, or torque, necessary to drive the chipper’s cutting mechanism.

2. Power Transmission: The rotational power from the diesel engine is transmitted to the chipper’s main cutting mechanism, usually through a direct drive system or through belts and pulleys. This system ensures the efficient transfer of power to where it’s needed most.

3. Cutting Mechanism: Drum or Disc: The heart of the wood chipper is its cutting mechanism, which can be either a rotating drum or a disc outfitted with blades or knives. The choice between drum and disc models depends on specific design considerations and intended use cases.

• Drum Chippers contain a large, cylindrical drum with knives attached to its surface. As the drum spins, the attached knives cut the wood fed into the machine into chips.
• Disc Chippers use a large steel disc with cutting blades mounted around its perimeter. The disc rotates at high speeds, slicing the wood into chips as it passes through the blades.

4. Feeding System

• Manual Feeding: In smaller chippers, wood is fed manually into the hopper and towards the cutting mechanism.
• Hydraulic Feeding: Larger, more advanced models often incorporate a hydraulic feeding system that automatically pulls the wood into the chipper. This system adjusts the feed rate based on the size and resistance of the wood, improving efficiency and safety.

5. Chipping Process: As the wood is introduced to the cutting area, the rapidly spinning blades or knives cut it into small chips. The size of these chips can usually be adjusted by changing the distance between the blades and the counter-knife or by using screens with different sized openings.

6. Discharge System: After the wood is chipped, the resulting wood chips are expelled from the machine through a discharge chute. The direction and angle of the chute can often be adjusted to direct the chips into a designated area or container. Some chippers also feature blowers to help eject the chips further away from the machine.

Diesel Wood Chipper Operating Precautions

Operating a diesel wood chipper requires careful attention to safety precautions to prevent accidents and ensure the well-being of the operator and those in the surrounding area. Here are some important operating precautions to follow when using a diesel wood chipper:

1. Inspection: Before starting the chipper, inspect it thoroughly for any signs of damage or wear.

2. Clear the Work Area: Remove any obstructions, such as rocks, metal, or other debris, from the work area.

3. Feed Material Carefully: Feed the wood material into the chipper cautiously and at a controlled pace.

4. Maintain Stability: Ensure that the chipper is placed on stable ground and properly secured before operation.

5. Shut Down and Maintenance: After using the chipper, wait for all moving parts to come to a complete stop before performing any maintenance or cleaning tasks.

6. Fuel Safety: Handle diesel fuel with care. Refuel the chipper in a well-ventilated area, away from open flames or sparks.

Common Troubleshooting of Diesel Wood Chipper

Troubleshooting common issues with a diesel wood chipper involves identifying and resolving problems that may hinder its performance. Here are some common problems encountered with diesel wood chippers and tips for troubleshooting them:

1. Diesel Engine Won't Start

• Fuel Issues: Check if there's enough diesel fuel in the tank, and ensure that the fuel is not contaminated. Also, verify that the fuel valve is open.
• Battery and Electrical: Ensure the battery is charged and the connections are clean and tight. Check the starter and ignition switch for faults.
• Air Intake and Filters: Blocked air filters can prevent the engine from starting. Clean or replace the air filters as necessary.

2. Engine Starts but Dies Shortly After

• Fuel Supply: Check for clogged fuel filters or lines that might be restricting fuel flow to the engine. Replace or clean as needed.
• Air in the Fuel System: Look for air leaks in the fuel system and bleed air from the fuel lines.
• Overload: Ensure the chipper is not overloaded with material, causing the engine to stall. Adjust the feed rate accordingly.

3. Reduced Chipping Efficiency

• Dull Blades: Inspect the chipper blades for dullness. Sharp blades are crucial for efficient chipping. Replace or sharpen the blades as required.
• Feeding Too Quickly: Adjust the rate at which material is fed into the chipper. Overfeeding can reduce chipping efficiency.
• Incorrect Engine Speed: Ensure the engine is running at the correct RPM for optimal chipping performance. Consult the manual for the recommended RPM settings.

4. Excessive Vibration

• Unbalanced Blades or Drum: Check for unbalanced or loose blades and drums. Rebalance or tighten as necessary.
• Damaged Bearings: Worn or damaged bearings can cause vibration. Inspect and replace bearings if they show signs of wear or damage.
• Debris Accumulation: Clear any accumulated debris around the chipper blades or drum that might be causing imbalance.

5. Overheating Engine

• Cooling System: Ensure the cooling system is functioning correctly. Check for adequate coolant levels and clear any debris from the radiator.
• Engine Load: Running the chipper at too high of a load for extended periods can cause overheating. Allow the engine to cool down periodically.
• Air Flow: Check that nothing is obstructing the airflow around the engine. Remove any obstructions and clean the air vents.

6. Wood Chipper Jams Frequently

• Incorrect Material: Avoid feeding material that is too large or tough for the chipper’s capacity. Stick to the manufacturer’s guidelines for material size and type.
• Feeding Technique: Ensure material is being fed into the chipper correctly and evenly. Twisted or tangled branches should be straightened or trimmed before chipping.
• Blade Condition: Dull or damaged blades can cause frequent jams. Ensure the blades are sharp and in good condition.

Why Choose HZPT's Diesel Wood Chipper?

HZPT Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system.

Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality.

Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services.

With our professional expertise, international certifications, customized services, state-of-the-art production facilities, and excellent after-sales services, HZPT is the ideal choice for your Diesel Wood Chipper needs.
