452 Pintle Chain

The 452 pintle chain is a lightweight, economical, and durable chain that is capable of handling average loads at slow or intermediate speeds. It is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. The 452 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling, elevator applications, and some environmental and wastewater applications. It is also commonly used in agricultural applications, such as sand spreaders, and manure spreaders.

Get a Quote

452 Pintle Chain for Manure Spreader

The 452 pintle chain is a lightweight, economical, and durable chain that is capable of handling average loads at slow or intermediate speeds. It is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain.

The 452 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and wastewater applications. It is also commonly used in agricultural applications, such as sand spreaders, manure spreaders, salt spreaders, conveyors, forage harvesters, baggers, and live bottom trailers.

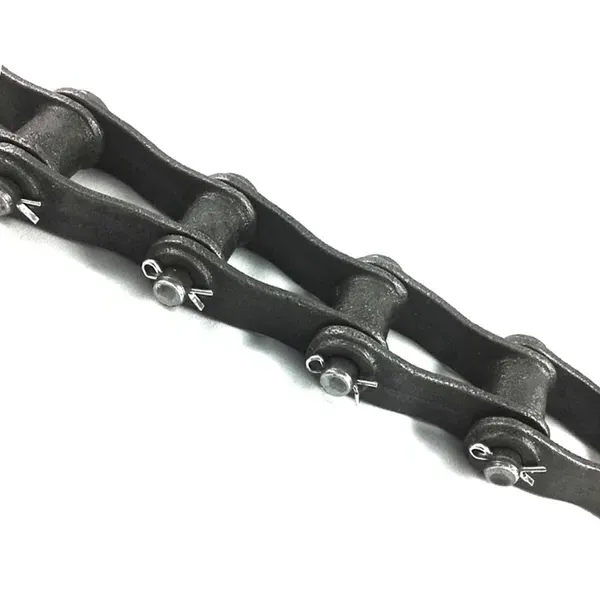

452 Pintle Chain

452 Pintle Chain Dimensions:

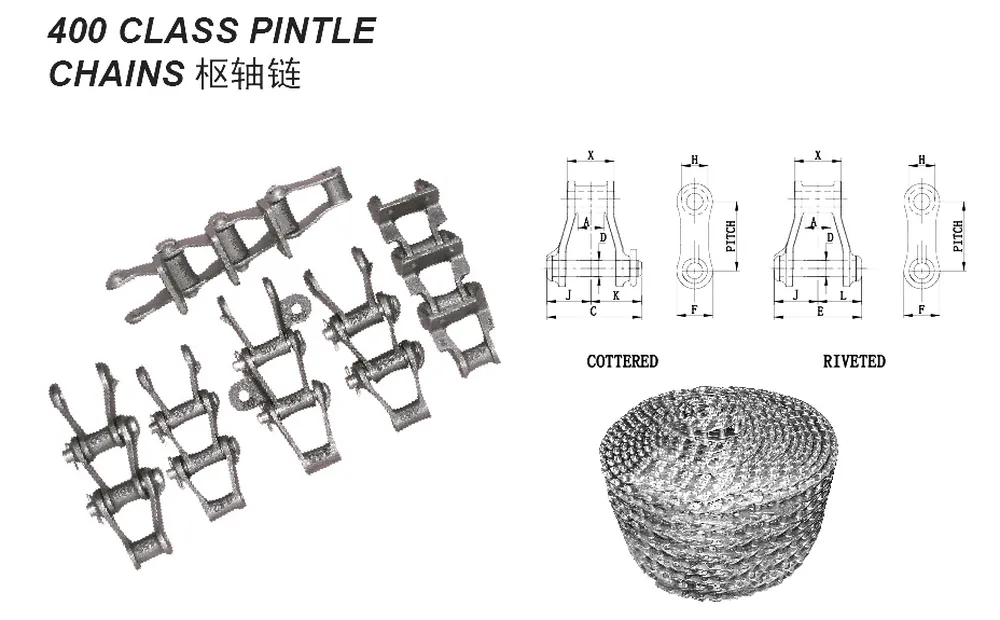

452 Pintle Chain Dimensions

452 Pintle Chain Dimensions in Inches:

Chain No. 452 Pintle Chain
Pitch In Inches 1.506
Weight Per Foot LBS 2.00
Average Ultimate Strength 7000
Maximum Working Load LBS. 1250
A 0.62
C 2.22
D 0.38
E 2.06
F 0.84
H 0.69
X 1.09
Available Attachments A88, D5, K1

452 Pintle Chain Attachments:

There are a variety of 452 pintle chain attachments available, each designed for a specific application. Some of the most common attachments include the A88 attachment, the D5 attachment, and the K1 attachment.

452 Pintle Chain A88 Attachment 452 Pintle Chain D5 Attachment
452 Pintle Chain A88 Attachment 452 Pintle Chain D5 Attachment
452 Pintle Chain K1 Attachment
452 Pintle Chain K1 Attachment

452 Pintle Chain Design Features:

The 452 pintle chain is a type of chain that consists of a barrel and links as a single casting. Each casting is then connected with a steel pin to the next forming a chain. The castings and linkage provide increased strength, compared to other chains, allowing a wider range of applications.

Here are some of the key design features of the 452 pintle chain:

1. Cast barrel and link: The barrel and link are cast as a single unit, which provides increased strength and durability.

2. Heat-treated pins: The pins are heat-treated to improve their strength and wear resistance.

3. Closed bearing construction: The pins are enclosed in a bearing, which reduces friction and wear.

4. Riveted or cottered construction: The 452 pintle chain is available in riveted or cottered construction. Riveted construction is more economical, while cottered construction is stronger and more durable.

5. Wide range of sizes and strengths: The 452 pintle chain is available in a wide range of sizes and strengths to meet the needs of a variety of applications.

The 452 pintle chain is a versatile and durable chain that is well-suited for a variety of applications. It is commonly used in agricultural, material handling, and industrial applications.

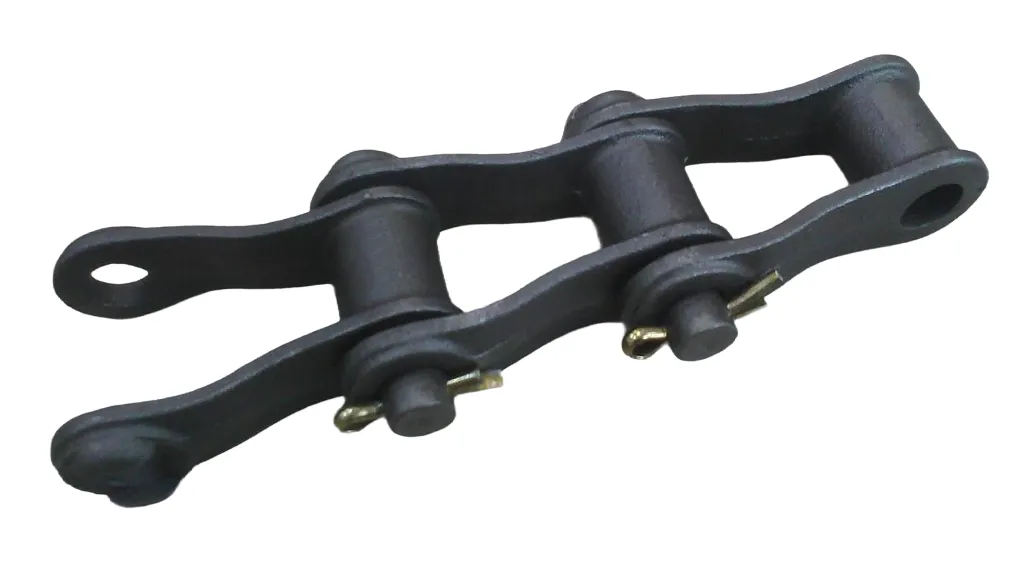

452 Pintle Chain Design Features

452 Pintle Chain Sprockets for 452 Pintle Chain:

The 452 pintle chain sprockets are designed to work with the 452 pintle chain. They are available in a variety of materials, including cast iron, steel, and aluminum, and in a variety of sizes to match the chain. The 452 pintle chain sprockets and 452 pintle chain are commonly used in agricultural, material handling, and industrial applications. They are also used in a variety of other applications, such as mining, construction, and manufacturing.

When choosing 452 pintle chain sprockets and 452 pintle chain, it is important to consider the following factors:

(1) Chain size: The sprocket must be the correct size for the chain. The pitch of the sprocket teeth must match the pitch of the chain.

(2) Number of teeth: The number of teeth on the sprocket will determine the speed of the chain. More teeth will result in a slower speed.

(3) Material: The sprocket material should be chosen to withstand the conditions in which it will be used.

(4) Load capacity: The sprocket must be able to handle the load that will be applied to it.

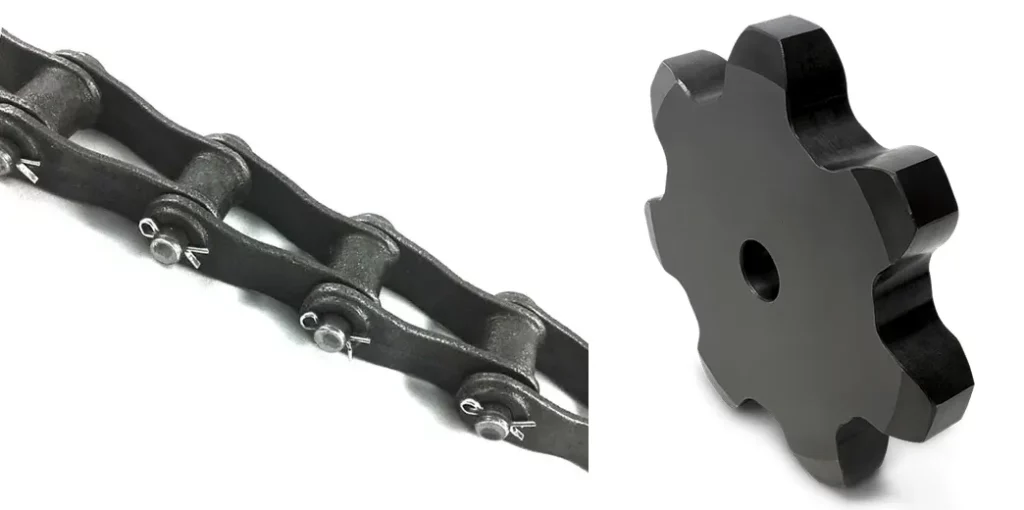

452 Pintle Chain Sprockets for 452 Pintle Chain

China 400 Class Pintle Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, “H” Class mill chain, CC Class crate conveyor chain,  “H” Class refuse drag chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.

China 400 Class Pintle Chain Manufacturers
