5C Series Cast Iron QD Sheaves for “C” Belts

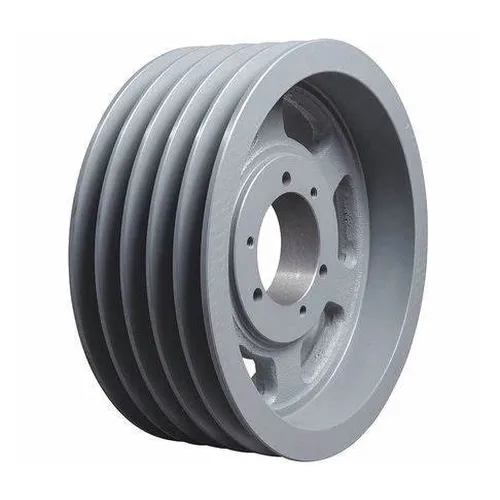

5C series five-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 6.40″ to 50.40″ in diameter. Depending on the sheave size, they are made to use SF, E, F, or J QD (quick detachable) bushings, which we also stock. Most of our 5C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

5C series five-groove QD bushed sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 6.40" to 50.40" in diameter. Depending on the sheave size, they are made to use SF, E, F, or J QD (quick detachable) bushings, which we also stock. Most of our 5C QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

5C QD Sheave Size Chart

Size Bushing Type Type Pitch Diameter Outside Diameter (E) (F) (L) (M) Sheave Weight (LBS)
5C60SF SF A 6.0" 6.40" 1-1/32" 5-1/4" 2-1/16" 2-5/32" 21
5C70SF SF A 7.0" 7.40" 1-1/32" 5-1/4" 2-1/16" 2-5/32" 26
5C75SF SF A 7.5" 7.90" 1-1/32" 5-1/4" 2-1/16" 2-5/32" 28
5C80E E A 8.0" 8.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 33
5C85E E A 8.5" 8.90" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 37
5C90E E A 9.0" 9.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 40
5C95E E A 9.5" 9.90" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 42
5C100E E A 10.0" 10.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 45
5C105E E A 10.5" 10.90" 1-5/32" 5-1/4" 2-3/4" 1-11/32." 47
5C110E E A 11.0" 11.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 50
5C120E E A 12.0" 12.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 53
5C130E E A 13.0" 13.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 58
5C140E E A 14.0" 14.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 64
5C160E E A 16.0" 16.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 73
5C180E E A 18.0" 18.40" 1-5/32" 5-1/4" 2-3/4" 1-11/32" 85
5C200F F D 20.0" 20.40" 3/32" 5-1/4" 3-3/4" 1-19/32" 98
5C240F F D 24.0" 24.40" 3/32" 5-1/4" 3-3/4" 1-19/32" 119
5C270F F D 27.0" 27.40" 3/32" 5-1/4" 3-3/4" 1-19/32" 153
5C300F F D 30.0" 30.40" 3/32" 5-1/4" 3-3/4" 1-19/32" 174
5C360J J A 36.0" 36.40" 1/16" 5-1/4" 4-5/8" 9/16" 206
5C440J J A 44.0" 44.40" 1/16" 5-1/4" 4-5/8" 9/16" 254
5C500J J A 50.0" 50.40" 1/16" 5-1/4" 4-5/8" 9/16" 274

V-belt Pulley American Stanard -- C Series

The American standard pulley is manufactured according to the American ANSI standard. Its primary material is gray iron, which is suitable for 2L, 3L, 4L, 5L, A, B, C, D, 3V, 5V, 8V belts, J, L, and M multi-ribbed belts. American standard pulley product types: AK, BK, TA, TB, TC, B, C, D, 3V, 5V, 8V, J, L, M, VP, VL, VM. Taper bushing pulleys are used with STB, QD, or TB taper bushings.

How to Choose the Right V-Belt Pulleys?

One of the ever-growing and most widely used product types in the power transmission and automotive industries is the V-belt pulley, also known as the "sheave." A V-belt pulley is an attachment that transfers energy between axles with the help of a V-belt. However, to keep this vital pair of devices functioning correctly, one must secure the appropriate V-belt pulley replacement when an older one gets worn down.

Learning to measure a V-belt pulley's size and calculate its dimensions are simple tasks; however, correctly identifying a V-belt pulley type can be complex. To do this, you need to know the size, measurements, and type of your V-belt pulley so that the replacement will operate adequately. V-belt pulleys come in various styles and options, including A-section, B-section, C-section, D-section, 3V-section, 5V-section, 8V-section, variable pitch, double groove, and metric pulleys. We stock over 8,000 different V-belt pulleys alone.
