6D Series Cast Iron QD Bushing Sheaves Pulley for “D” Belts

6D series six-groove QD bushed sheaves are manufactured for D-series classic v-belts and D-banded belts; they range from 12.64″ to 58.64″ in diameter. Depending on the sheave size, they are made to use J, M, or N QD (quick detachable) bushings, which we also stock. Most 6D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

6D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts

6D series six-groove QD bushed sheaves are manufactured for D-series classic v-belts and D-banded belts; they range from 12.64" to 58.64" in diameter. Depending on the sheave size, they are made to use J, M, or N QD (quick detachable) bushings, which we also stock. Most 6D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

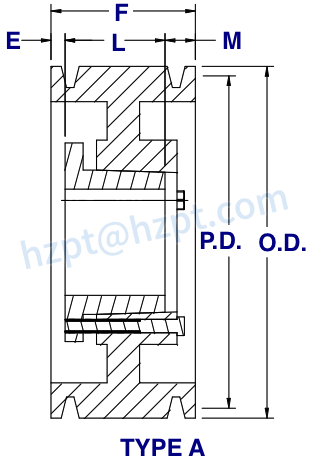

6D QD Sheave Size Chart

Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
6D120J J A 12.0" 12.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 115
6D130J J A 13.0" 13.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 125
6D135J J A 13.5" 14.14" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 135
6D140J J A 14.0" 14.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 145
6D145J J A 14.5" 15.14" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 150
6D150J J A 15.0" 15.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 160
6D155J J A 15.5" 16.14" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 165
6D160J J A 16.0" 16.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 170
6D180J J A 18.0" 18.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 180
6D200J J A 20.0" 20.64" 1-7/8" 8-15/16" 4-5/8" 2-7/16" 215
6D220M M A 22.0" 22.64" 11/32" 8-15/16" 6-3/4" 1-27/32" 250
6D270M M A 27.0" 27.64" 11/32" 8-15/16" 6-3/4" 1-27/32" 300
6D330M M A 33.0" 33.64" 11/32" 8-15/16" 6-3/4" 1-27/32" 360
6D400M M A 40.0" 40.64" 11/32" 8-15/16" 6-3/4" 1-27/32" 440
6D480M M A 48.0" 48.64" 11/32" 8-15/16" 6-3/4" 1-27/32" 560
6D580N N A 58.0" 58.64" 3/16" 8-15/16" 8-1/8" 5/8" 660

Related Matching D-Series, D-Series Banded V-Belts

(1) D-Series V-Belts

Classic D-Series V-Belts have a 1.25" top-width, 0.75" thickness, and a 40° angle. Additionally, D V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium D-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) D-Series Banded V-Belts

D-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. D-series v-belts have a 1-1/4" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request.

Bushing Type
(A)
(B)
(D)
(E)
(F)
(G)
(L)
Bolt Circle
Cap Screws Required
Min. Stock Bore
Max. Bore W/ KW
Max Bore W/ Shallow KW
Set Screw Size
Avg. Weight (LBS)
J 1.000" 5.148" 7.250" 3.500" 3.188" 0.423" 4.500" 6.250" 3 - 0.625X4.5 1.438" 3.750" 4.500" 0.625 - 11 18.0
M 1.250" 6.500" 9.000" 5.500" 5.188" 0.423" 6.750" 7.875" 4 - 0.75X6.75 1.938" 4.750" 5.500" 0.75 - 10 37.0
N 1.500" 7.000" 10.25" 6.625" 6.250" 0.423" 8.125" 8.500" 4 - 0.875X8.5 2.438" 5.125" 6.000" 0.75 - 10 57.0

D Section QD Bushing Type Pulleys

D-section QD bushing type pulleys are available with 1 to 12 sheaves. See our extensive list of D pulleys for maximum flexibility and horsepower range. The pulleys are balanced and precisely machined to minimize vibration. QD imperial bushings and metric bushing styles provide inventory flexibility by changing the bushing bore. The pulleys are flat and precisely machined to minimize vibration. The most significant product selection of any pulley manufacturer, guaranteeing the best product and most economical drive design for a specific application. The first in the industry to offer pulleys with the durability of a strong coating paint to protect the product from rusting in high humidity environments. If you have any questions or need assistance, please contact us.

Applications of QD Sheave

Products are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.

Electric machinery
Agricultural machinery
Mining machinery

Technological Processing

Company Profile

HZPT is a professional manufacturer of mechanical parts. Our main products are v belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.

Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.

Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
