710CS2 Slewing Drive Planetary Gearbox: Overview and Design

Introduction

The 710CS2 Slewing Drive Planetary Gearbox is a top-of-the-line product that offers exceptional performance and reliability. Designed and manufactured with utmost precision, this gearbox is built to meet the highest industry standards. In this article, we will explore the key features, advanced technology, and application areas of the 710CS2 Slewing Drive Planetary Gearbox.

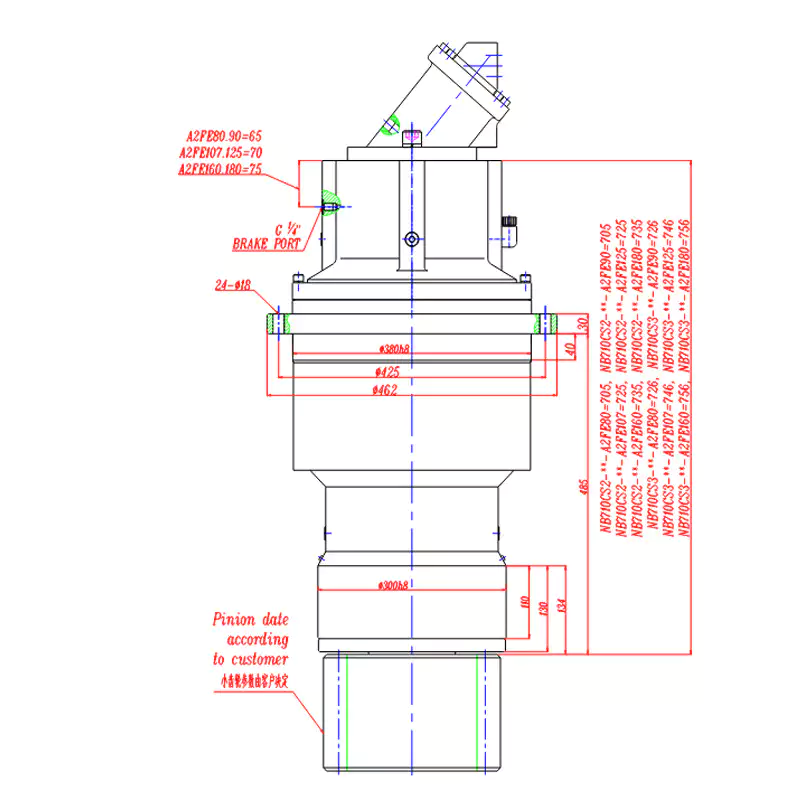

Technical specification

Type	Max.Output Torque		Ratio	Recommend Hydraulic Motor	Max. input speed	Brake torque	Brake work pressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP710CS2	27800	48500	32, 38.8	A2FE 80·90 A2FE107·125 A2FE160·180	3000	600-1100	20-50

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Product Naming and Positioning

The 710CS2 Slewing Drive Planetary Gearbox follows a systematic naming convention that reflects its unique features. The "710" represents the maximum output torque capacity in kilonewton-meters, while "CS2" signifies its compact and space-saving design. This gearbox is specifically positioned for heavy-duty applications that require high torque density and precise rotation control.

Design and Structural Features

The design of the 710CS2 Slewing Drive Planetary Gearbox incorporates advanced engineering principles, ensuring optimal performance and durability. Its key structural features include:

Planetary Gear Design

The gearbox utilizes a highly efficient planetary gear system, which offers excellent torque transmission capabilities while maintaining compact dimensions. This design ensures smooth and precise motion control, even under heavy loads.

Bearing System

Equipped with high-quality bearings, the 710CS2 Slewing Drive Planetary Gearbox ensures low friction and enhanced load-bearing capacity. These bearings are carefully selected to withstand extreme conditions, providing long-lasting reliability.

Sealing Technology

To protect the internal components from dust, moisture, and other contaminants, the gearbox incorporates advanced sealing technology. This ensures optimal performance and extends the lifespan of the gearbox, even in harsh environments.

Lubrication System

The lubrication system of the 710CS2 Slewing Drive Planetary Gearbox is designed to provide efficient and reliable lubrication to all critical components. This ensures smooth operation, reduces friction, and minimizes wear and tear, resulting in longer service life.

Performance Advantages

The 710CS2 Slewing Drive Planetary Gearbox offers several notable performance advantages, including:

High Torque Density

Thanks to its innovative design and advanced materials, this gearbox delivers a high torque density, allowing it to handle heavy loads with ease. This makes it ideal for applications that require robust and reliable power transmission.

Low Noise and Vibration

The precision engineering and careful selection of components contribute to the gearbox's low noise and vibration levels. Its smooth operation ensures quiet and comfortable working environments.

Environmental Adaptability

The 710CS2 Slewing Drive Planetary Gearbox is designed to withstand a wide range of environmental conditions. It can operate effectively in extreme temperatures, dusty environments, and even in corrosive atmospheres, making it highly adaptable to various working conditions.

Intelligent Monitoring

Equipped with advanced monitoring systems, this gearbox allows for real-time tracking and analysis of operating parameters. This ensures proactive maintenance, minimizes downtime, and enhances overall system efficiency.

Application Areas

The 710CS2 Slewing Drive Planetary Gearbox finds wide-ranging applications across various industries, including:

Construction Machinery

Commonly used in tower cranes, excavators, and other heavy construction machinery, this gearbox provides reliable and efficient power transmission for precise movement and lifting operations.

Solar Tracking Systems

In solar energy systems, the 710CS2 Slewing Drive Planetary Gearbox enables accurate tracking of solar panels, optimizing their alignment with the sun and maximizing energy generation.

Marine Engineering Equipment

This gearbox is also extensively used in marine engineering equipment, such as offshore cranes and oil rig equipment. Its robust design and corrosion-resistant properties make it well-suited for demanding maritime applications.

Military Equipment

The 710CS2 Slewing Drive Planetary Gearbox plays a crucial role in military equipment, ensuring precise movement and reliable operation in critical defense applications.

Our Company's Advantages

Our company stands out in the market for several reasons:

- Extensive Industry Experience: With years of experience in the field of power transmission, we have gained a deep understanding of customer requirements and industry trends.

- Cutting-edge Technology: We continuously invest in research and development, staying at the forefront of technological advancements in gearbox design and manufacturing.

- Premium Quality Materials: We use only the highest quality materials to ensure the durability and performance of our products, providing customers with long-lasting and reliable solutions.

- Customization Options: We offer flexible customization options to meet specific customer needs, ensuring the optimal fit of our gearboxes for diverse applications.

- Exceptional Customer Service: Our dedicated team is committed to delivering excellent customer service, providing timely assistance and support throughout the entire product lifecycle.

Author: Miya
