8V Series Cast Iron Five-Groove QD Sheaves for “8V” Belts

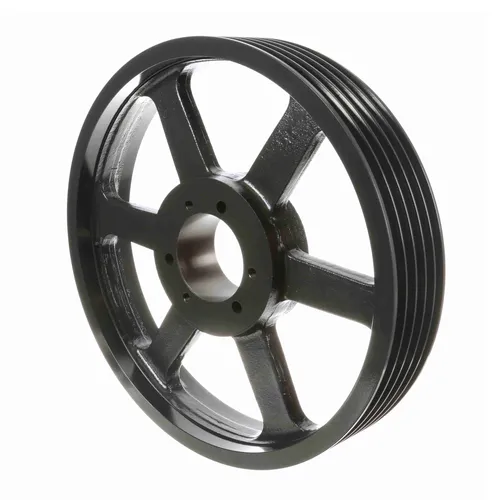

8V series five-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50″ to 53.00″ in diameter. Depending on the sheave size, they are made to use an F, J, M, or N QD bushing, which we also stock. Most of our five-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

8V Series Cast Iron Five-Groove QD Sheaves for "8V" Belts

8V series five-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50" to 53.00" in diameter. Depending on the sheave size, they are made to use an F, J, M, or N QD bushing, which we also stock. Most of our five-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Five-Groove 8V QD Sheave Size Chart

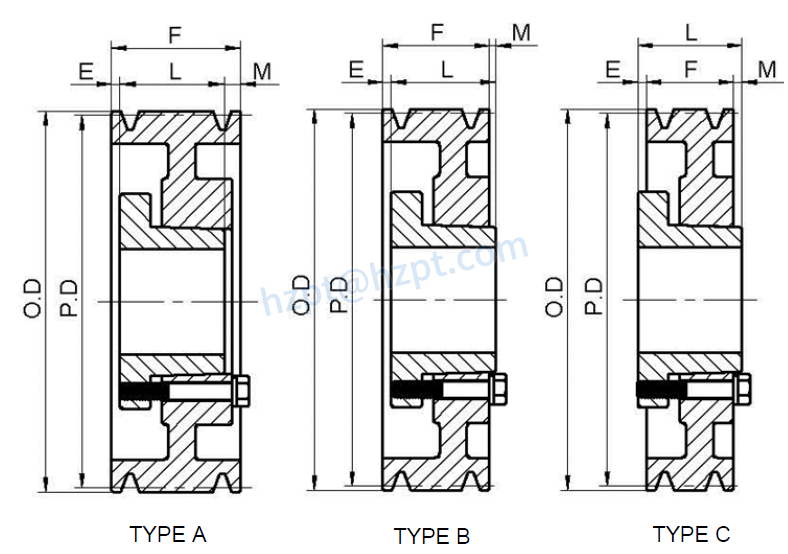

Sheave SizeBushingTypePitch Diameter (P.D.)Outside Diameter (O.D.)(E)(F)(L)(M)Weight (LBS)
58V1250FFA12.3012.5031/32"6"3-3/4"1-9/32"82
58V1320FFA13.0013.2031/32"6"3-3/4"1-9/32"89
58V1400FFA13.8014.0031/32"6"3-3/4"1-9/32"99
58V1500FFA14.8015.0031/32"6"3-3/4"1-9/32"103
58V1600FFA15.8016.0031/32"6"3-3/4"1-9/32"111
58V1700JJA16.8017.009/16"6"4-5/8"13/16"119
58V1800JJA17.8018.009/16"6"4-5/8"13/16"131
58V1900JJA18.8019.009/16"6"4-5/8"13/16"142
58V2000JJA19.8020.009/16"6"4-5/8"13/16"151
58V2120JJA21.0021.209/16"6"4-5/8"13/16"167
58V2240MMB22.2022.4011/32"6"6-3/4"1-3/32"178
58V2480MMB24.6024.8011/32"6"6-3/4"1-3/32"201
58V3000MMB29.8030.0011/32"6"6-3/4"1-3/32"243
58V3550MMB35.3035.5011/32"6"6-3/4"1-3/32"278
58V4000MMB39.8040.0011/32"6"6-3/4"1-3/32"340
58V4450NNC44.3044.501-1/8"6"8-1/8"1"418
58V5300NNC52.8053.001-1/8"6"8-1/8"1"496

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Bushing Type
(A)
(B)
(D)
(E)
(F)
(G)
(L)
Bolt Circle
Cap Screws Required
Min. Stock Bore
Max. Bore W/ KW
Max Bore W/ Shallow KW
Set Screw Size
Avg. Weight (LBS)
F0.813"4.437"6.625"2.813"2.500"0.423"3.625"5.625"3 - 0.563X3.6251.000"3.313"3.938"0.5 - 1311.5
J1.000"5.148"7.250"3.500"3.188"0.423"4.500"6.250"3 - 0.625X4.51.438"3.750"4.500"0.625 - 1118.0
M1.250"6.500"9.000"5.500"5.188"0.423"6.750"7.875"4 - 0.75X6.751.938"4.750"5.500"0.75 - 1037.0
N1.500"7.000"10.25"6.625"6.250"0.423"8.125"8.500"4 - 0.875X8.52.438"5.125"6.000"0.75 - 1057.0

How to Avoid the Problem of Over-tightening the Pulley?

Many customers are very trying in the process of disassembling the pulley, so the disassembly process is easy to damage the pulley, which is often caused by the over-tightening of the pulley, and the over-tightening of the pulley will easily affect the regular operation of the equipment, so how can we avoid the problem of over-tightening the pulley?

To solve the problem that the shaft and the pulley are too tight, it is recommended to start from the following two aspects:

1. Do not install the key first; use an emery cloth to remove the burrs and rust on the groove surface, use a file to repair the file when the burr is serious, and then install the pulley on the shaft without installing the key. Check the shaft diameter and wheel hole if it is very tight or cannot be installed. If the motor shaft is large, you can turn on the power to make the motor rotate and press it against the rotating shaft with an emery cloth (pay attention to safety), which is easy for repair electricians. Do it. In this way, the trimming will not produce an ellipse; it will save effort and then try to install it. Apply lubricating oil on the shaft each time you want to install it. The v belt pulley can be pushed in by hand or lightly driven with a hammer, but it cannot feel loose.

2. Measure the depth of the keyway. This dimension should be larger than the thickness of the key. Otherwise, the thickness of the key should be thinned until the gap between the key and the bottom of the hub groove depends on the size of the shaft. Generally, 0.2~0.6mm (check the critical standard), put the key into the wheel hub, and it should be able to slide slightly loosely. If not, repair the burr or find the reason to fix it, then gently drive the key into the shaft groove with a hammer. The key needs to be replaced. And evenly apply lubricating oil on the pulley hole, shaft, and critical during assembly.

What Are the Pulleys Used For?

The pulley is not only used on the car; it is mainly used to transmit power over long distances. It has many applications, such as the power output of small diesel engines, such as tractors, cars, etc. It is also used in mechanical transmissions, such as machining equipment, textile machinery, lathes, and forging machines.

Technological Processing
