8V Series Cast Iron Four-Groove QD Sheaves for “8V” Belts

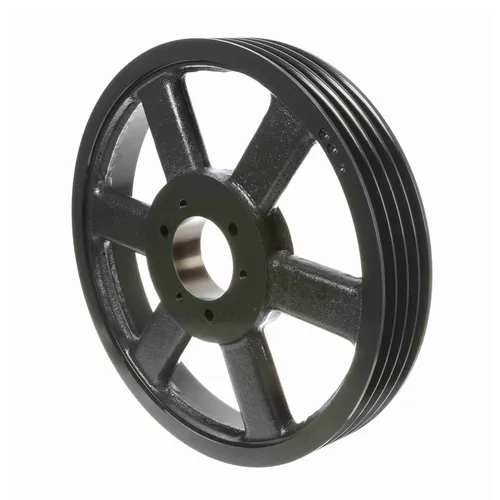

8V series four-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50″ to 53.00″ in diameter. Depending on the sheave size, they are made to use an F, J, or M QD bushing, which we also stock. Most of our four-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Get a Quote

8V Series Cast Iron Four-Groove QD Sheaves for "8V" Belts

8V series four-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50" to 53.00" in diameter. Depending on the sheave size, they are made to use an F, J, or M QD bushing, which we also stock. Most of our four-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Four-Groove 8V QD Sheave Size Chart

Sheave Size
Bushing
Type
Pitch Diameter (P.D.)
Outside Diameter (O.D.)
(E)
(F)
(L)
(M)
Weight (LBS)
48V1250F F D 12.30 12.50 5/32" 4-7/8" 3-3/4" 1-9/32" 75
48V1320F F D 13.00 13.20 5/32" 4-7/8" 3-3/4" 1-9/32" 81
48V1400F F D 13.80 14.00 5/32" 4-7/8" 3-3/4" 1-9/32" 87
48V1500F F D 14.80 15.00 5/32" 4-7/8" 3-3/4" 1-9/32" 91
48V1600F F D 15.80 16.00 5/32" 4-7/8" 3-3/4" 1-9/32" 96
48V1700F F D 16.80 17.00 5/32" 4-7/8" 3-3/4" 1-9/32" 104
48V1800F F D 17.80 18.00 5/32" 4-7/8" 3-3/4" 1-9/32" 14
48V1900F F D 18.80 19.00 5/32" 4-7/8" 3-3/4" 1-9/32" 121
48V2000J J D 19.80 20.00 0" 4-7/8" 4-5/8" 1/4" 136
48V2120J J D 21.00 21.20 0" 4-7/8" 4-5/8" 1/4" 145
48V2240J J D 22.20 22.40 0" 4-7/8" 4-5/8" 1/4" 154
48V2480M M C 24.60 24.80 25/32" 4-7/8" 6-3/4" 1/4" 176
48V3000M M C 29.80 30.00 25/32" 4-7/8" 6-3/4" 1-3/32" 224
48V3550M M C 35.30 35.50 25/32" 4-7/8" 6-3/4" 1-3/32" 267
48V4000M M C 39.80 40.00 25/32" 4-7/8" 6-3/4" 1-3/32" 310
48V4450M M C 44.30 44.50 25/32" 4-7/8" 6-3/4" 1-3/32" 363
48V5300M M C 52.80 53.00 25/32" 4-7/8" 6-3/4" 1-3/32" 437

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related QD Bushings | Quick Disconnect Bushings

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Bushing Type
(A)
(B)
(D)
(E)
(F)
(G)
(L)
Bolt Circle
Cap Screws Required
Min. Stock Bore
Max. Bore W/ KW
Max Bore W/ Shallow KW
Set Screw Size
Avg. Weight (LBS)
F 0.813" 4.437" 6.625" 2.813" 2.500" 0.423" 3.625" 5.625" 3 - 0.563X3.625 1.000" 3.313" 3.938" 0.5 - 13 11.5
J 1.000" 5.148" 7.250" 3.500" 3.188" 0.423" 4.500" 6.250" 3 - 0.625X4.5 1.438" 3.750" 4.500" 0.625 - 11 18.0
M 1.250" 6.500" 9.000" 5.500" 5.188" 0.423" 6.750" 7.875" 4 - 0.75X6.75 1.938" 4.750" 5.500" 0.75 - 10 37.0

Pulley Assembly Precautions

1. Gasoline must be used for the last cleaning before assembly to ensure that all parts are clean and dry, the mating surfaces are tightly fitted and free of oil stains, and have sufficient friction.

2. The hexagon socket head cap bolts for assembly should also be washed with gasoline and dried before assembly. Do not apply lubricating oil or grease in the bolts or screw holes to ensure sufficient frictional self-locking ability after the bolts are tightened.

3. When the three hexagon socket head bolts are about to be installed, they need to be tightened in turns to ensure that the tapered sleeve is subjected to uniform axial force and that the v belt pulley and the tapered sleeve are well positioned coaxially.

4. Before installation, check and measure the length of the hexagonal socket head bolts for assembly to ensure that the assembly bolts can withstand the bottom end of the blind hole of the taper sleeve after tightening to ensure that the tapered surface fits tightly and to ensure that the bolts are subjected to the reverse thrust at the bottom of the blind hole, resulting in The anti-loosening effect of the double nut principle is the same.

5. After the pulley is tightened, check and adjust the relative position of the primary and driven pulley by pulling the wire to ensure that the two pulleys are on the same plane and the belt tension is moderate.

6. The pulley cover should be intact and installed firmly to ensure that the belt is broken or the pulley is loosened and withdrawn during operation, resulting in a significant safety accident.

7. The tapered sleeve is a vulnerable part. It should be checked before each assembly, and the spare parts should be replaced in time if any defects are found. After a long operation, the inner hole and the chain groove may be damaged. After a long process, the internal cavity and the chain groove may be damaged.

QD Sheaves Common Applications

  • Machine tools
  • Crushers, shredders, breakers, classifiers, shaker screens
  • Material conveyor systems
  • Fans, blowers, and exhausters
  • Pumps and compressors
  • Woodworking saws, mills, planers, lathes

Technological Processing

Company Profile

HZPT is a professional manufacturer of mechanical parts. Our main products are v belt pulleys, sprockets, split taper bushings, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.

Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.

Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.

FAQ

Q1. Are you a manufacturer or a trading company?

A: We are a manufacturer and trading company.

Q2. What is your sample policy?

A: We can supply the sample if we have finished parts in stock, but customers need to pay for the sample cost and shipping fee.

Q3. Can you produce according to the samples?

A: We can produce power transmission parts according to your samples or technical drawings. We can build the molds and fixtures.

Q4. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q5. Can you customize pulleys?

A: Yes, please send us your drawing for an accurate quotation.

Q6. How long is your delivery time and shipment?

A: 1. Sample Lead-times: 10-20 days.

2. Production Lead-times: 30-45 days after the order is confirmed.

Q7. How do you make our business a long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers' benefits ;

2. We respect every customer as our friend and sincerely do business and make friends with them, no matter where they come from.

Q8: What are your advantages?

1. The most competitive price and good quality.

2. Perfect technical engineers give you the best support.
