9 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2″ Round Shaft

9 Inch Compact Post Hole Auger for Tractor 3 Point Post Hole Diggers with 2" Round Shaft

A 9 inch compact post hole auger is a tool used for drilling holes in the ground, typically for setting fence posts or planting trees and shrubs. It is a smaller version of a standard post hole digger that is designed to be more maneuverable and easier to use in tighter spaces. The 9 inch size refers to the diameter of the hole that can be drilled with the auger. It is important to use the correct size auger for the job to ensure a proper and stable installation.

▍9 Inch Compact Post Hole Auger Specifications

- 36" in Length

- Replaceable Edges

- 9" Diameter

- Designed with a shorter length for use on sub-compact tractors (Category 0)

- Connects to 2" round gearbox shaft with dual 1/2" bolts (not included)

- Works great with our Model 400 compact post hole digger, or with other brands.

- Light duty, compact auger.

- Fits tractor mounted post hole diggers that require an auger with a standard 2″ shaft.

▍A Few Best Post Hole Auger for Sale

Auger Diameter	Duty & Length	Weight	SKU
6"	Compact - 36"	21	23-033
9"	Compact - 36"	32	23-035
12"	Compact - 36"	43	23-037
6"	Standard - 48"	23	23-032
9"	Standard - 48"	34	23-034
12"	Standard - 48"	49	23-036
6"	Heavy - 48"	31	23-040
9"	Heavy - 48"	42	23-041
12"	Heavy - 48"	60	23-042
18"	Heavy - 48"	99	23-043
24"	Heavy - 48"	125	23-044

▍Post Hole Auger for Tractor 3 Point Post Hole Diggers

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

▍9 Inch Compact Tractor Post Hole Auger Characteristics

A 9 inch compact tractor post hole auger typically features a lightweight and durable design, made of high-quality materials for longevity and efficient performance. These tractor post hole augers are ideal for digging holes for fence posts, tree planting, and other similar tasks. Some common characteristics of a 9 inch compact tractor post hole auger include:

Size: The tractor post hole auger is designed to be compact, making it perfect for use with smaller tractors. Its smaller size also allows it to be maneuvered easily in tight spaces.

Power: A 9 inch compact tractor post hole auger is powered by the tractor's PTO, which provides the necessary power to turn the post hole auger and drill a hole in the ground.

Speed: The post hole auger can typically drill a hole in the ground in just a few minutes, making it a quick and efficient tool for digging holes.

Durability: Most 9 inch compact tractor post hole augers are made of high-quality steel, which makes them durable and long-lasting.

Depth: The 9 inch post hole auger is capable of drilling holes up to a depth of approximately 3 feet, making it ideal for many small-scale projects.

Compatibility: The 9 inch post hole auger is designed to be used with a variety of different tractors, making it a versatile tool for farmers, landscapers, and other professionals.

Ease of use: The 9 inch compact tractor post hole auger is easy to operate, with simple controls that can be quickly mastered by even novice tractor operators.

Maintenance: With proper care and maintenance, a 9 inch compact tractor post hole auger can last for many years, making it a wise investment for anyone who regularly needs to dig holes.

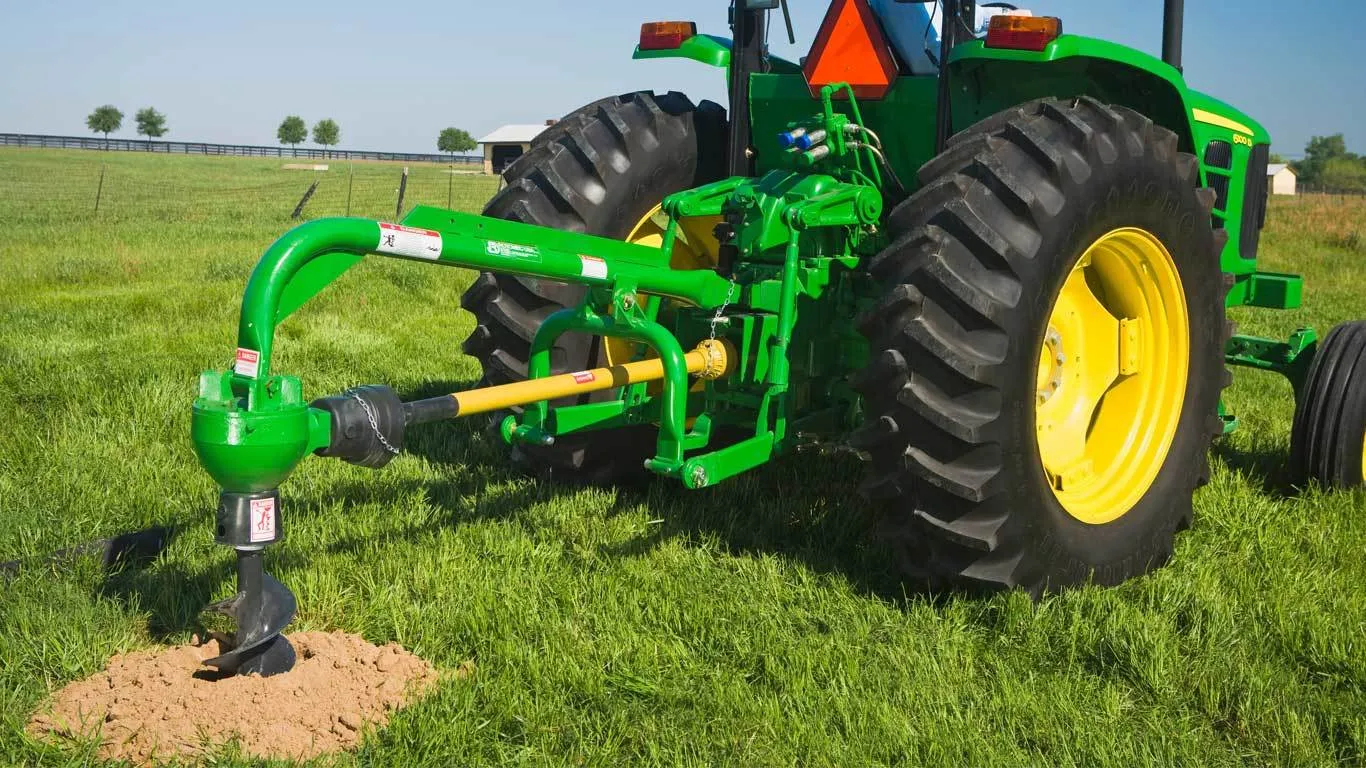

▍Operating Instructions of Post Hole Auger for Tractor

Post hole augers for tractors are useful for creating holes in the soil for fence posts, planting trees, or for other agricultural purposes. Here are the operating instructions for a post hole auger for a tractor:

1. First, attach the post hole auger to the back of the tractor. The post hole auger should be attached to the three-point hitch on the back of the tractor.

2. Start the tractor and engage the power take-off (PTO shaft). The PTO shaft is usually engaged by pulling a lever or pressing a button.

3. Position the post hole auger over the spot where you want to dig the hole. Lower the post hole auger into the soil, and engage the auger by turning it on.

4. Allow the post hole auger to dig into the soil, using the power of the tractor to push it down into the ground. As you dig, periodically stop and lift the post hole auger out of the hole to remove the dirt that has accumulated in it.

5. Continue to dig until the hole is as deep as you need it to be. Once you have reached the desired depth, stop the post hole auger and lift it out of the hole.

6. Remove the post hole auger from the tractor and set it aside. Fill the hole with soil to secure the post or to plant a tree.

7. Finally, maintain the auger by cleaning it after each use and storing it properly to prevent rust or damage.

Remember to follow all safety precautions when operating a post hole auger. Wear appropriate clothing and equipment, and always be aware of your surroundings.

▍PTO Shaft and Compact Post Hole Auger for Tractor

A PTO (Power Take-off) shaft is used to transmit power from a tractor to an attachment, such as a compact post hole auger. The auger is used to drill holes in the ground for fence posts, tree planting, and other applications.

To use a compact post hole auger with a tractor, you will need to attach the auger to the tractor's PTO shaft. The PTO shaft transmits the tractor's power to the auger, which rotates to drill into the ground.

It's important to choose a PTO shaft and post hole auger that are compatible with your tractor's specifications, including horsepower and RPM rating.

When using a post hole auger with a tractor, always follow the manufacturer's instructions for safe operation and maintenance. It's also recommended to wear personal protective equipment, such as gloves, eye protection, and sturdy footwear.

▍We Also Provide Other Sizes of Post Hole Augers

We have various sizes of post hole augers available, including 4 inch post hole augers, 6 inch post hole augers, 8 inch post hole augers, 9 inch post hole augers, 12 inch post hole augers, 18 inch post hole augers, and 24 inch post hole augers. It's worth noting that soil and surface conditions can affect the ease of digging, and different post hole auger sizes may be more suitable for different projects.

It seems that the most common sizes of post hole augers range from around 4 to 12 inches in diameter, with some larger sizes available for digging deeper or wider holes. When choosing an post hole auger size, it is important to consider the size of the post or object you are trying to install, as well as the soil type and depth. It is also important to note that larger post hole augers require more power to operate and are typically more expensive.
