Agricultural 62 Steel Detachable Chain with SFS1 Attachment

The detachable chain is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life. The links of 62 steel detachable chains can easily be assembled or disassembled by flexing the chain and tapping the link in or out. The 62 detachable chains should always be operated with the closed side of the barrel against the sprocket. The detachable steel chain is designed for moderate loads and speeds. A plain chain is used for transmission drives and with interspersed attachments for conveying applications. This type of chain is very economical and easy to install and repair.

Get a Quote

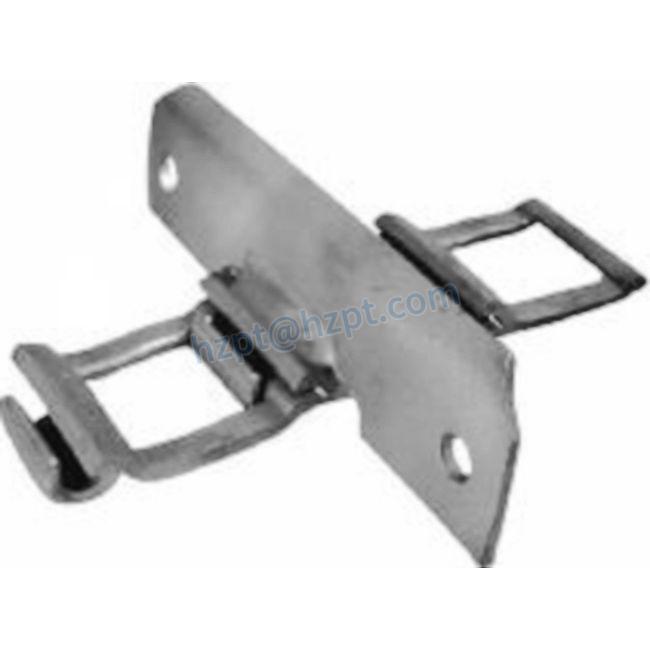

Agricultural Steel Detachable Chain 62-SFS1 With SFS1 Attachment

The agricultural detachable chain is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life.

The links of 62 steel detachable chains can easily be assembled or disassembled by flexing the chain and tapping the link in or out. The 62 detachable chains should always be operated with the closed side of the barrel against the sprocket.

The detachable steel chain is designed for moderate loads and speeds. A plain chain is used for transmission drives and with interspersed attachments for conveying applications. This type of chain is very economical and easy to install and repair.

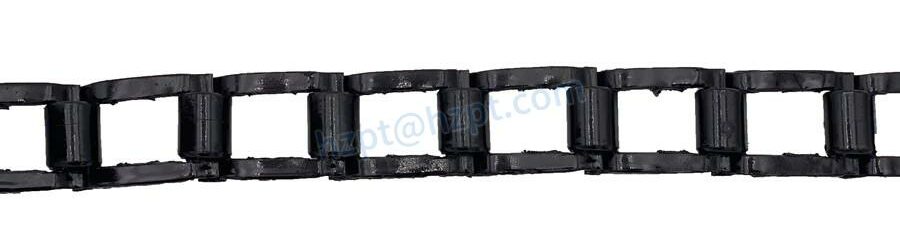

62 Detachable Chain

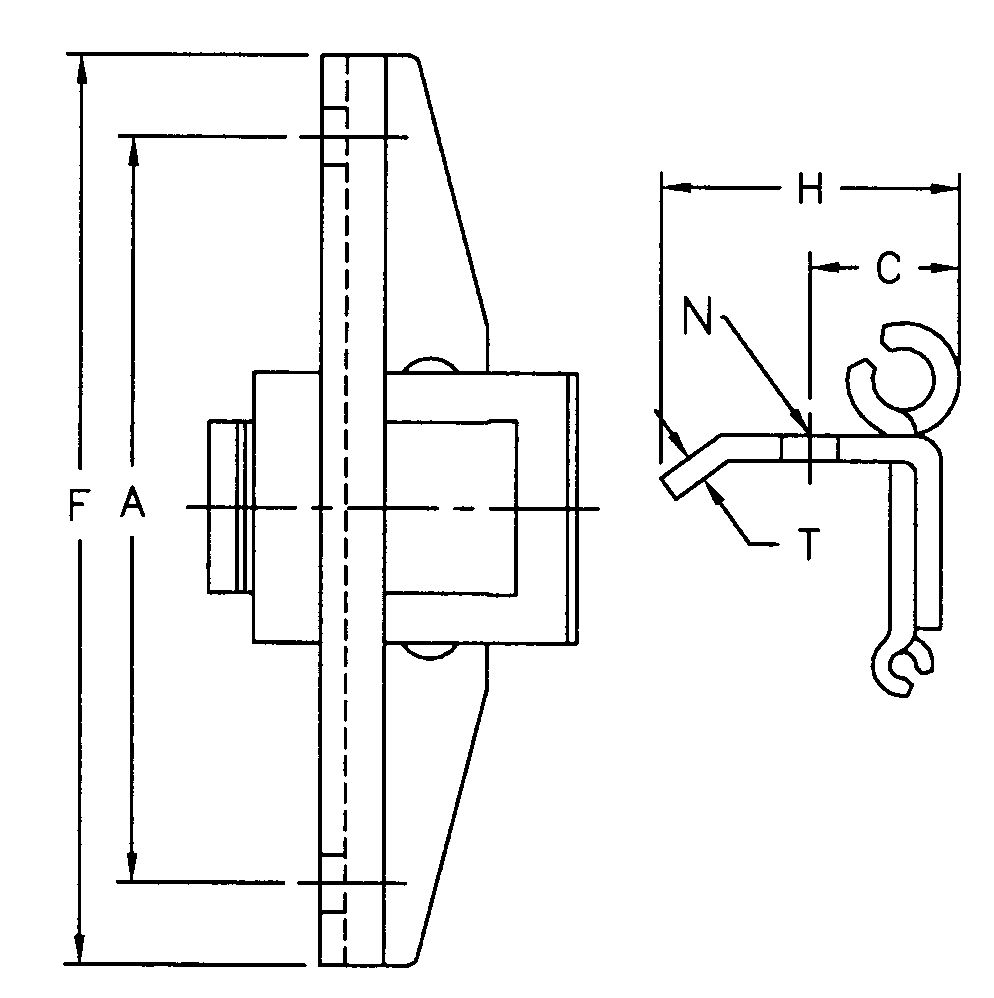

62 Steel Detachable Chain Size Chart

Agricultural applications commonly use #62 detachable chains. Made of hot-rolled steel, this chain is highly durable and easy to repair. Because of its simplicity and easy-to-install design, this chain is ideal for use in agricultural applications. The steel chain is available in both painted and unpainted varieties and is easy to maintain and repair.

62 Steel Detachable Chain
Att. No.
Chain No.
A
C
F
H
N
T
SFS1
62
4.313
.875
5.250
1.500
.328
.148

1. Material: Alloy Steel
2. Surface Treatment: Shot Peening, Electrophoretic Paint, Blackening
3. Heat treatment: Quenching
4. Hardness: HRC 40
5. Type: 25 detachable chains, 32 detachable chains, 55 detachable chain, 62 steel detachable chains,67 steel detachable chain,s etc
6. Lubrication: Light anti-rust oil
7. Package: Plastic bag and carton box for each piece, plywood case
8. Warranty Years: 12 months


62 Steel Detachable Chain Features

Detachable chains are easy to install and disassemble. They come with a number of attachments, which enable them to fit various types of equipment. They can be attached to belting, bars, and rods. The material and number of teeth determine the speed of the chain. Steel detachable chains are easy to install and repair.

Steel detachable chain is beneficial in day-to-day applications in machinery. It can be used as a drive chain on older farm equipment. It is a durable chain with few maintenance requirements. If the chain breaks, simply hammer out the links and replace them with a new one.

A detachable chain is characterized by its torus-shaped links. These links are used for pulling, lifting, and securing.

  • Extremely Durable and High Strength
  • American Standard Steel Detachable Chain
  • Easy To Maintain and Replace
  • Manufactured From Hot Rolled Heat-Treated Steel

62 Detachable Chain

62 Steel Detachable Chain Attachments

Besides the chain we also stock a complete line of attachments. These attachments below can be supplied as individual links or already assembled onto the chain in any configuration needed. Our steel detachable chain attachments are manufactured to the same standards as the chain so you don't lose tensile strength or integrity with the attachment link.

62 Detachable Chain with SH Attachment62 Detachable Chain with A1 Attachment62 Detachable Chain with SD Attachment
62 Detachable Chain with SH Attachment62 Detachable Chain with A1 Attachment62 Detachable Chain with SD Attachment
62 Detachable Chain with G27 Attachment62 Detachable Chain with C1 Attachment62 Detachable Chain with HB4 Attachment
62 Detachable Chain with G27 Attachment62 Detachable Chain with C1 Attachment62 Detachable Chain with HB4 Attachment

Agricultural 62 Steel Detachable Chain Applications

Steel detachable chains are a simple designed chain that was originally manufactured for the agricultural industry. Disassembly and repairing of steel detachable chain is easy, where a repair in the field will on take a few minutes. This detachable chain is commonly used on machines such as manure spreaders, hay bale elevators, live bottom trailers and other various farm equipment. This chain has been adopted by other industries due to the simplistic design, dependability & affordability.

Agricultural 62 Steel Detachable Chain Applications

Steel Detachable Chain Disassembly

Disassembling and assembling steel detachable chain is extremely easy unless the chain is frozen or extensively rusted. For extreme cases use our Steel Detachable Chain Breaker for assistance.

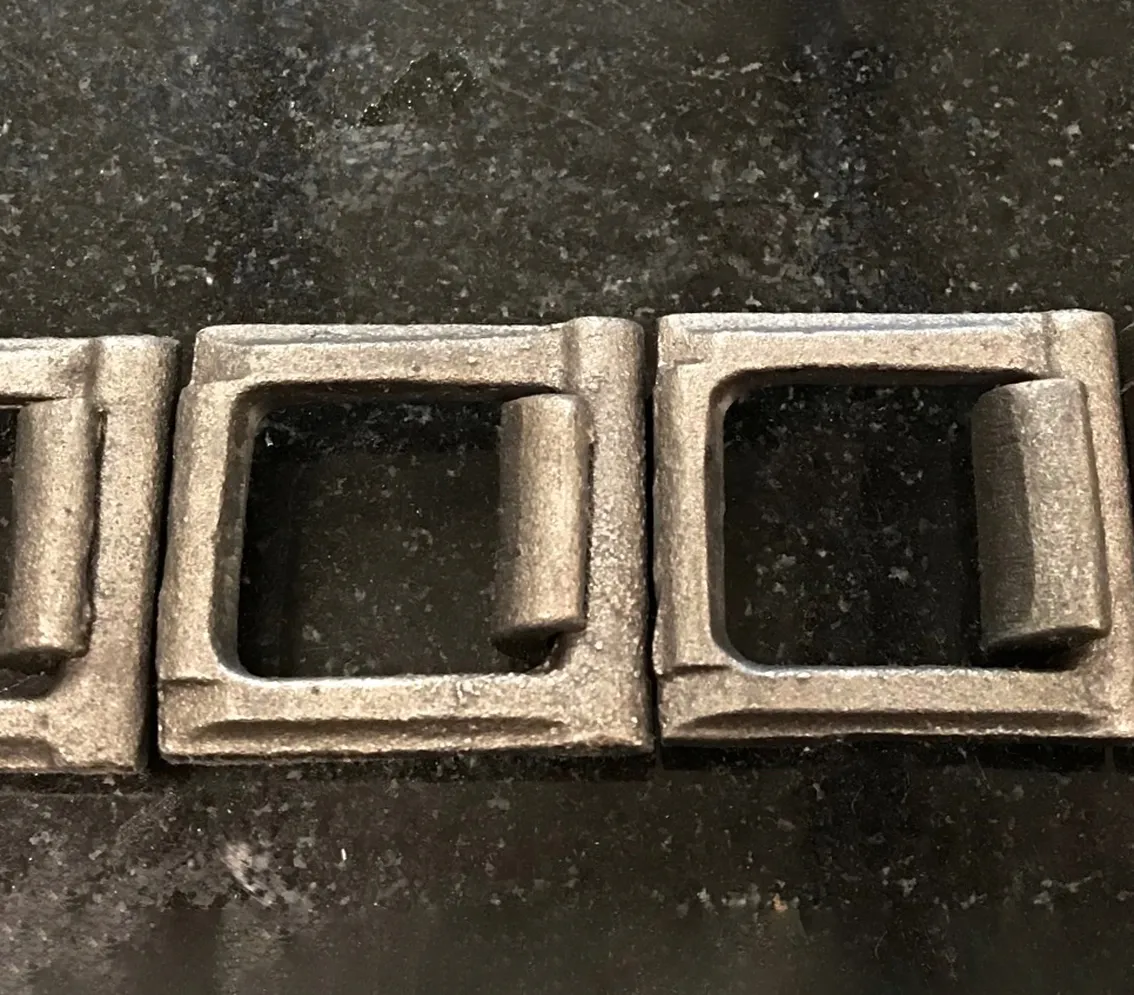

Steel Detachable Chain DisassemblySteel Detachable Chain Disassembly

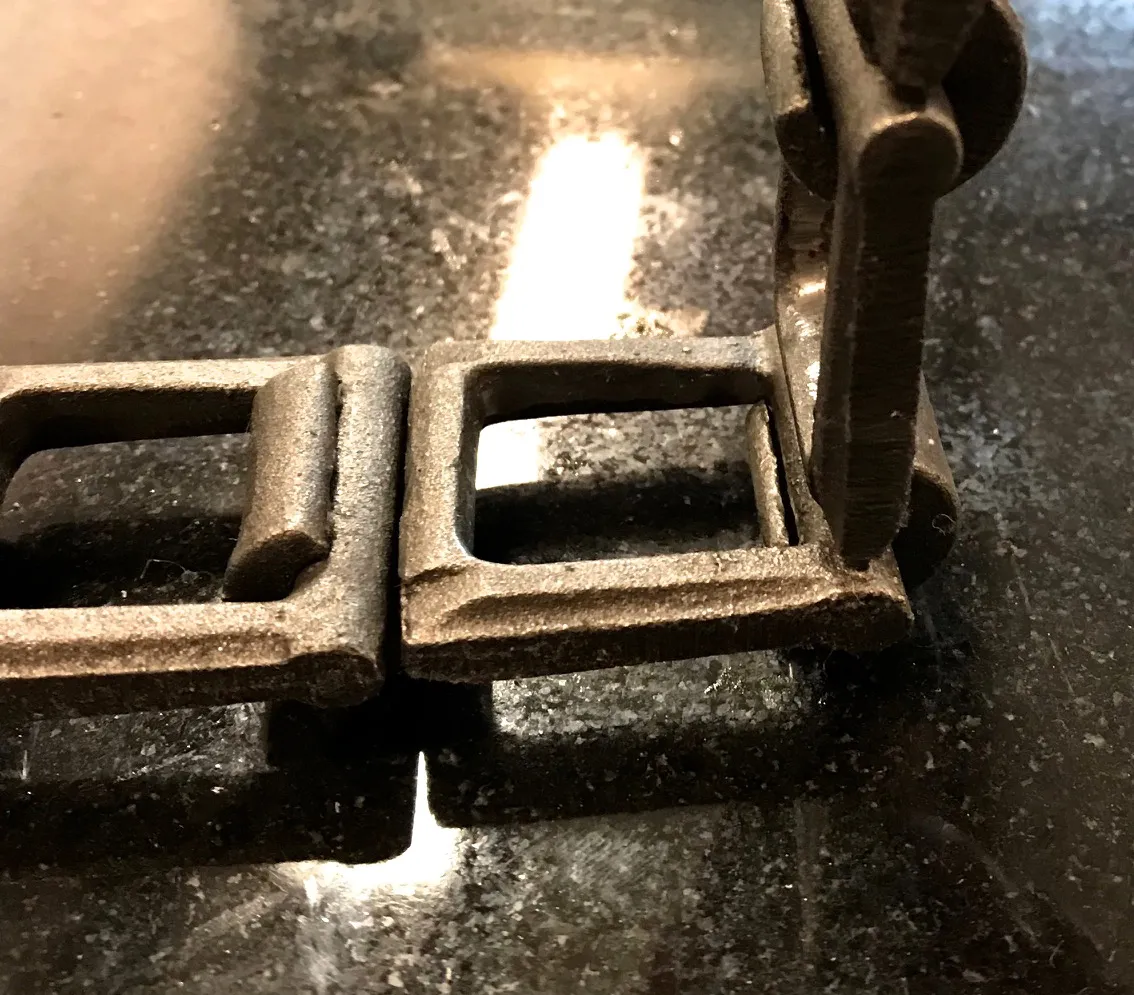

Step 1: Pick a spot to do the disassembly and release any tension and tensioning devices on the equipment, it is recommended that the chain is straight for easiest disassembly.Step 2: Rotate chain to required position to allow for the barrel it to easily slide freely out of the hook portion of the chain.

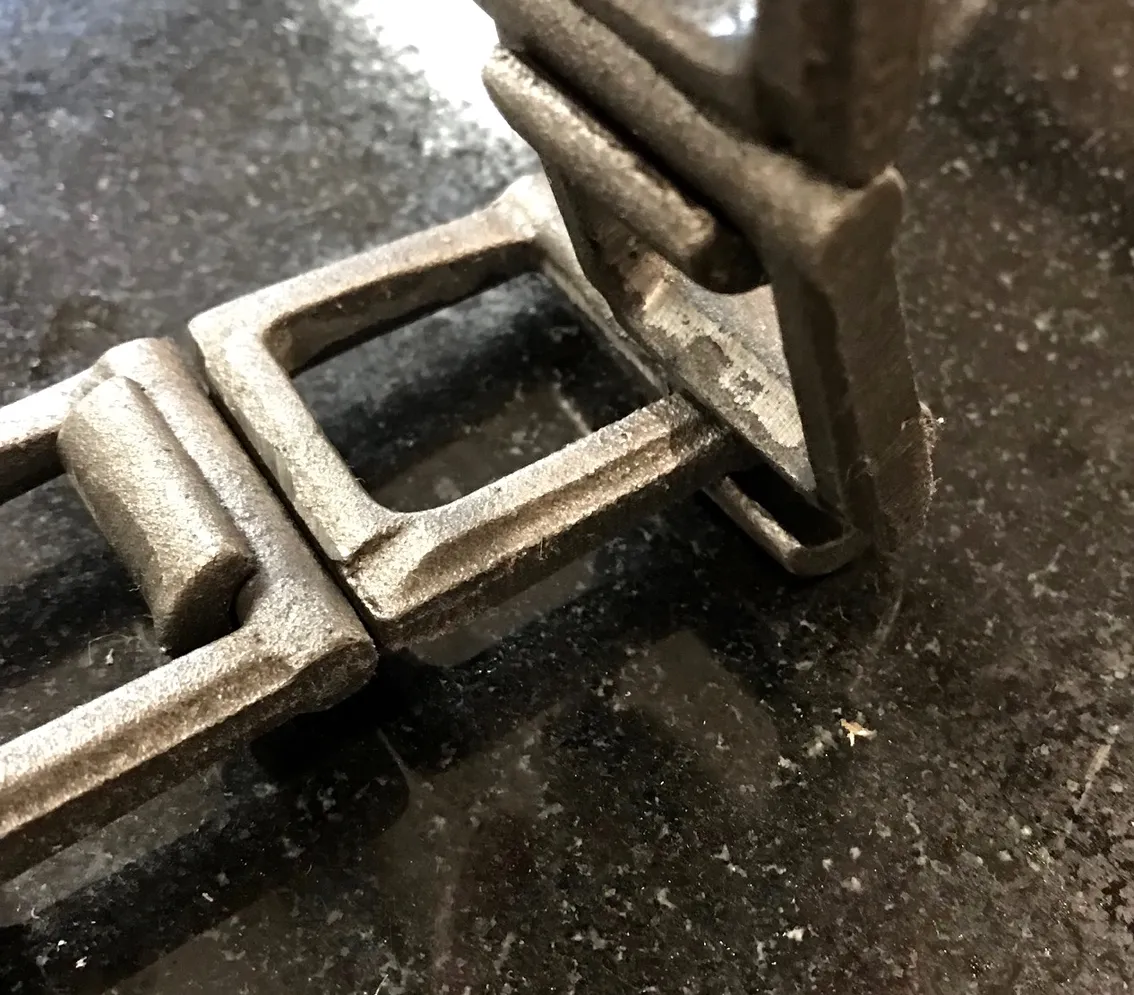

Steel Detachable Chain DisassemblySteel Detachable Chain Disassembly

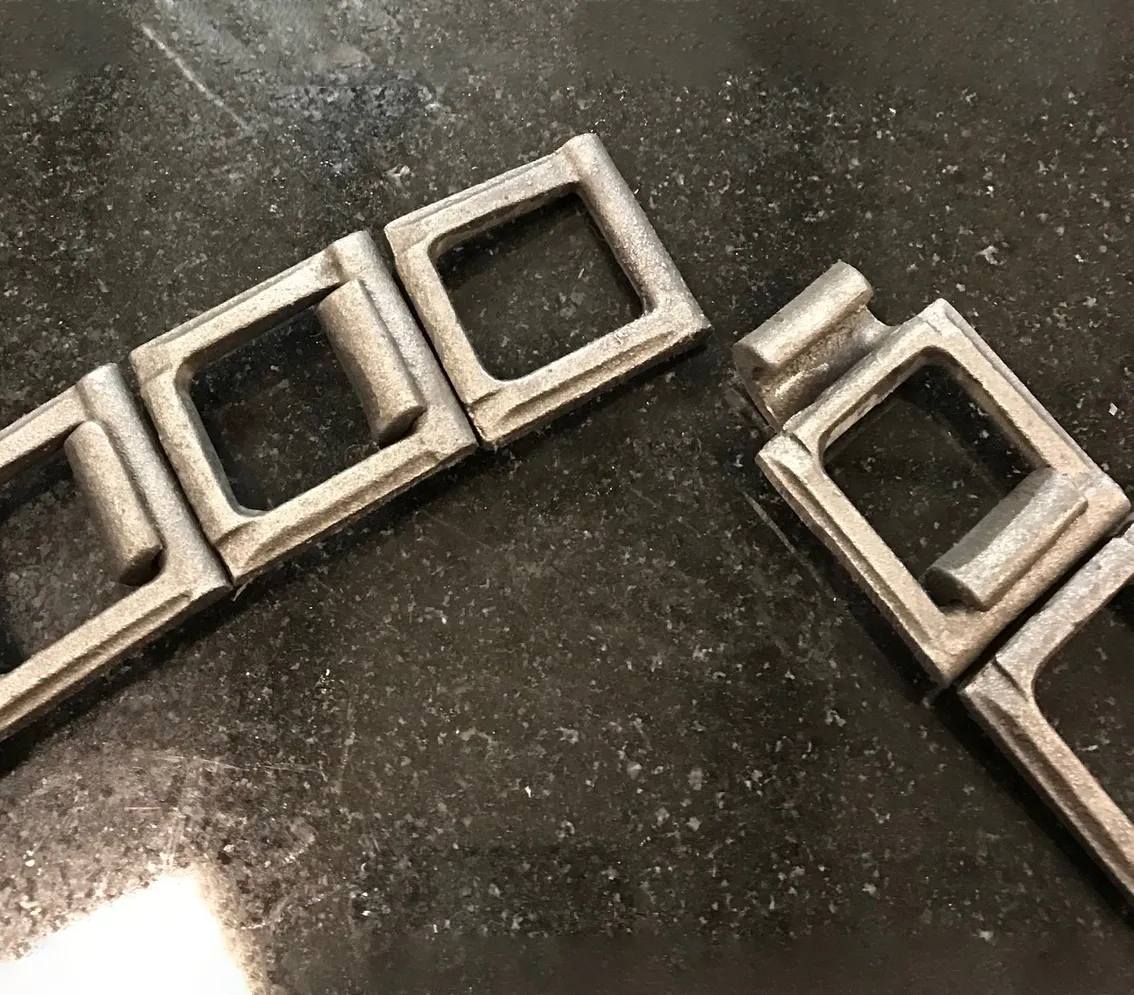

Step 3: Once the right position is reached, it should be easy to disassemble the chain by simply sliding the barrel out and off to the side.Results: Your steel detachable chain should now be disassembled and ready to be adjusted or taken off the equipment.

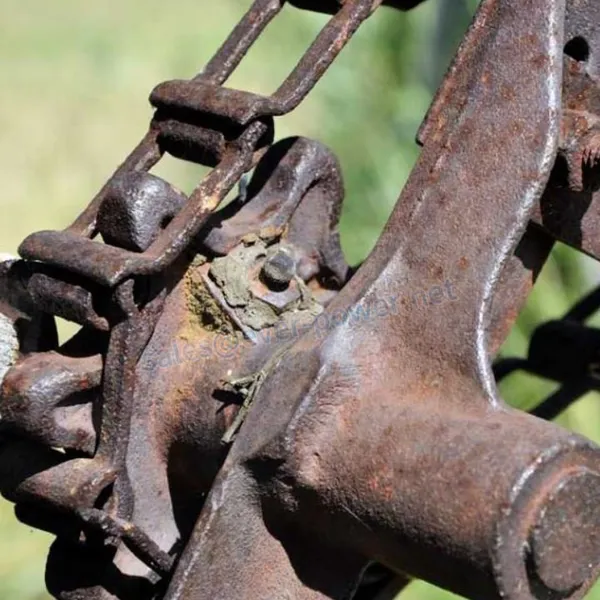

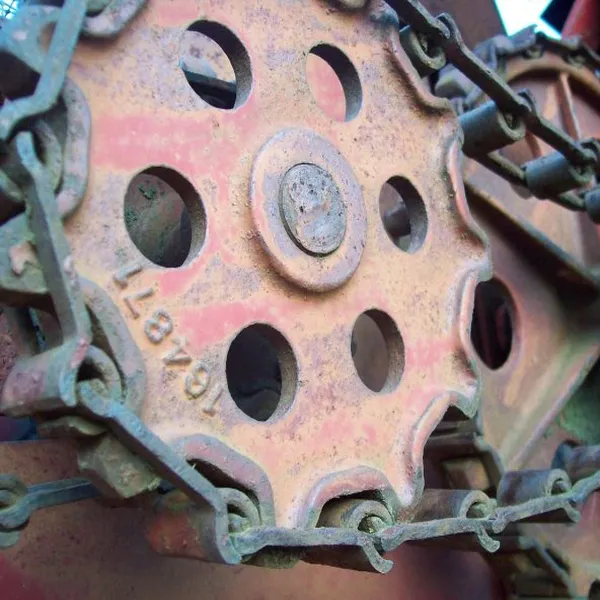

Matching Detachable Chain Sprockets

A detachable chain sprocket is a component of the drive train system. They are usually installed using standard bolts and have contoured hardened teeth that prevent wear and damage to the chain. They are easy to install and have a long service life.

Detachable chains are generally made of steel, which is a heat-treated metal. They are made for medium loads and speeds and are easily repaired if damage occurs. Since they are easy to install and repair, they are often used on farm equipment, including hay bale elevators and manure spreaders. Due to their dependability, other industries have started to use them. They are also available in a variety of sizes and pitches. You can find more at HZPT, one of the professional sprocket suppliers.

Contact us: We care about our valued buyers; if you have any questions, our Customer Service staff will be happy to help you. We will try our best to reply to your emails as soon as possible. However, due to the high volume of daily incoming emails and the time zone difference, we may not be able to reply to your emails immediately. Please allow 24 business hours for us to respond.

Matching Detachable Chain SprocketsMatching Detachable Chain Sprockets

Why Choose HZPT Detachable Chains?

HZPT detachable steel chains are a great choice for industrial applications. They're easily disassembled and can be repaired while in use. Typically, they're used on manure spreaders and hay bale elevators and are known for their dependability. They also come in various sizes and pitches. This wide range of options ensures that you can find the perfect chain for your needs.

A detachable chain's design has two parts: one that's made of steel and the other that's made of fiat sheet material. Each link has portions that project out from its plane, which overlap the adjacent link and make rolling bearing contact with like portions of the overlapped links. The chain is then secured by arcuately shaped flat sheet spring members that bridge the overlapped link portions. The end portions of the spring members are shaped to engage the teeth of drive sprockets.

Detachable chains of the prior art comprise spring members that engage adjacent link apertures and engage intersected link apertures. The spring members have high resilience, which helps them provide excellent chain load distribution and reduce the rate of wear. They also provide a large area of resilient contact with drive sprocket teeth.
