Agricultural Combine Harvester Feeder Chain
Agricultural Combine Harvester Feeder Chain
A common combine harvester feeder chain comprises an inclined conveyor shaft and a drivable sprocket. The sprockets are welded onto the upper inclined conveyor shaft and are fastened in a variety of ways. In some cases, a straw walker 32 is used in place of the multidrum threshing assembly. The multidrum threshing assembly can also include a deflector roller.
Agricultural Combine Feeder Chain Specifications
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max |
Lc max | h2 max | T max |
Pt | Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 08B-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.80 | 1.60 | - | 18.0/4091 | 19.4 | 0.69 |
| 08B-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.1 | 46.1 | 11.80 | 1.60 | 13.92 | 47.5/10795 | 57.8 | 2.03 |
| 10A-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.7 | 22.2 | 15.09 | 2.03 | - | 22.2/5045 | 29.4 | 1.02 |
| 10A-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 44.4/10091 | 58.1 | 2.00 |
| 12A-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.9 | 27.7 | 18.00 | 2.42 | - | 31.8/7227 | 41.5 | 1.50 |
| 16A-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.7 | 35.0 | 24.00 | 3.25 | - | 56.7/12886 | 69.4 | 2.60 |
| 80H-1 | 25.400 | 15.88 | 15.75 | 7.92 | 36.2 | 37.7 | 24.00 | 4.00 | - | 56.7/12886 | 71.4 | 3.10 |
Agricultural Combine Harvester Chain C210AF1 C212AF1 Combine Chains
The chain is made up of several components. The first bearing arrangement is axially movable. The other elements are fixed to the sprocket. The sprocket and belt pulley is connected to the combine harvester's drive train. In a similar way, the belt and chain are connected via the tractor's drive train. A combine harvester can be equipped with different types of feeder chains.
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Attachment dimension | Ultimate tensile strength | Average tensile strength | ||||
| P | d1 max | b1 min | d2 max | L max |
Lc max | h2 max | F | C | d4 | g | Q min |
Q0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | |
| C210AF1 | 31.75 | 10.16 | 9.40 | 5.08 | 20.7 | 23.3 | 15.0 | 35.20 | 54.0 | 7.0 | 23.0 | 21.8/4955 | 28.5 |
| C212AF1 | 38.10 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18.0 | 10.92 | 56.0 | - | - | 31.1/7068 | 38.7 |
208AF2 208AF3 208AF3A 12.7 Pitch Combine Harvester Chains
These combine chains are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Made from the steel and the up-to-date skills as well as precision procedures, the combine chains can withstand strong pressure and high temperature.
|
Chain No
|
Pitch
|
Roller diameter
|
Width between inner plates
|
Pin diameter
|
Pin length
|
Inner plate depth
|
Attachment dimension
|
Ultimate tensile strength
|
Average tensile strength
|
|
P
|
d1 max
|
b1 min
|
d2 max
|
L1
/L2 /Lc max
|
h2 max
|
C/R
|
Q
min |
Q0
|
|
|
208AF2
|
12.7
|
7.95
|
4.80
|
3.96
|
13.1/14.7/14.5
|
12.0
|
56.5/3.5
|
13.8/3136
|
16.0
|
|
208AF3
|
12.7
|
7.95
|
4.80
|
3.96
|
13.1/-/14.5
|
12.0
|
60.5/4.5
|
13.8/3136
|
16.0
|
|
208AF3A
|
12.7
|
7.95
|
7.85
|
3.96
|
16.6/-/17.8
|
12.0
|
60.5/4.5
|
13.8/3136
|
16.0
|
ZGS38 Combine Harvester Chain with Attachments
|
Chain No. |
Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max |
Lc max | h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| ZGS38 | 38.0 | 16.0 | 22.00 | 9.0 | 39.0 | 43.0 | 21.5 | 3.0 | 40.0/9091 | 55.3 | 2.00 |
| Chain No. | P | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| ZGS38F2 | 38.0 | 16.0 | 52.0 | 71.5 | 19.6 | 11.0 |
| ZGS38F6K1 | 38.0 | 16.0 | 52.0 | 74.6 | 19.6 | 8.5 |
| ZGS38F10K1 | 38.0 | 20.0 | 52.0 | 72.0 | 17.0 | 8.4 |
| ZGS38F13K1F1 | 38.0 | 20.0 | 52.0 | 80.0 | 17.0 | 8.6 |
| ZGS38HF12K1F1 | 38.0 | 25.0 | 52.0 | 72.0 | 17.0 | 8.4 |
Agricultural Combine Harvester Chain Features
- The combine harvester chain conforms to the standard of T/CAAMM 4 China agricultural machinery industry group, which mainly includes feeding chain with k-type attached plate, lifting chain with an SD-type attached plate and corn harvesting chain with CPE-type attached plate, etc., and can also be customized and developed according to user requirements.
- Using high-quality raw materials, efficient process equipment and advanced heat treatment, the product has the characteristics of high tensile strength, high fatigue strength and wear resistance; By developing special antirust grease, it can meet the working conditions of agricultural machinery outdoor operation;
- Products are widely used in the harvesting process of corn, wheat and other crops.
Agricultural Combine Harvester Chain Types
The combine harvester chain is offered in different models. The combines have 3 chain feeders with extra capacity. Combine harvesters cut crops. Then it separates the grains. It also puts the stalks of the crops into bales. The machine has special tools for mowing, forging, blending and cleaning, respectively. These are one of the combine harvester chains which may require replacement in some cases. In these cases, chains compatible with the machines are used. Rotary blades are used first in the damage process. And the crops are cut from the bottom. The cut crops are transported to the place where the elevators are, with doner bulgur. Crops arriving in this area pass to the drum section. Straws are thrown at the back of the machine. In order for all these processes to be completed without any problems, appropriate selections should be made for combine harvester chain models.
Agricultural Combine Harvester Chain Use Precautions

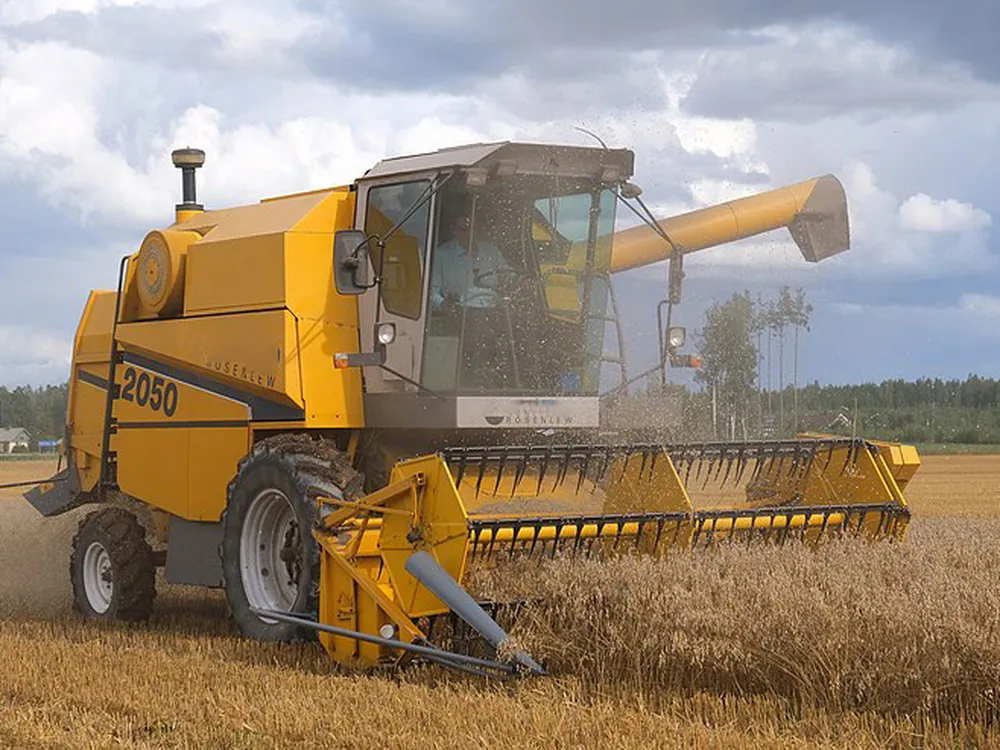

A correctly adjusted combine harvester feeder chain is essential to a productive and efficient harvest. If not adjusted correctly, the corn head cross auger may be clogged with too much material. This can lead to excessive material at the feeder house, causing a huge headache. For best results, adjust the chain as close as possible to the corn head cross auger. Ensure proper chain operation to avoid the ears piling up and damage.
 |
 |
Agricultural Sprockets for Agricultural Chain
Agricultural chains and sprockets have a wide range of applications. They are used in a variety of industries, including the agricultural industry, automobile industry, and steel industry. The chains are manufactured from durable materials and are available in different sizes, styles, and applications. These products are designed to meet the needs of agricultural machinery users.
The agricultural chains and sprockets are manufactured from high-quality materials and are designed to withstand heavy loads. A good quality chain is an important part of an agricultural machine, and it is important to ensure that it is durable and sturdy. The types of chains and sprockets used in the agricultural industry have a number of applications, and each type has its own advantages and disadvantages.
HZPT is a leading china chain munafacturer and sprocket supplier. Not only do we offer high-quality agricultural chains, but also we provide low-price agricultural sprockets for sale. Contact us now to get more info!
Other Conveyor Chains Related Products
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
We Also Provide Other Type of Chain Sprockets

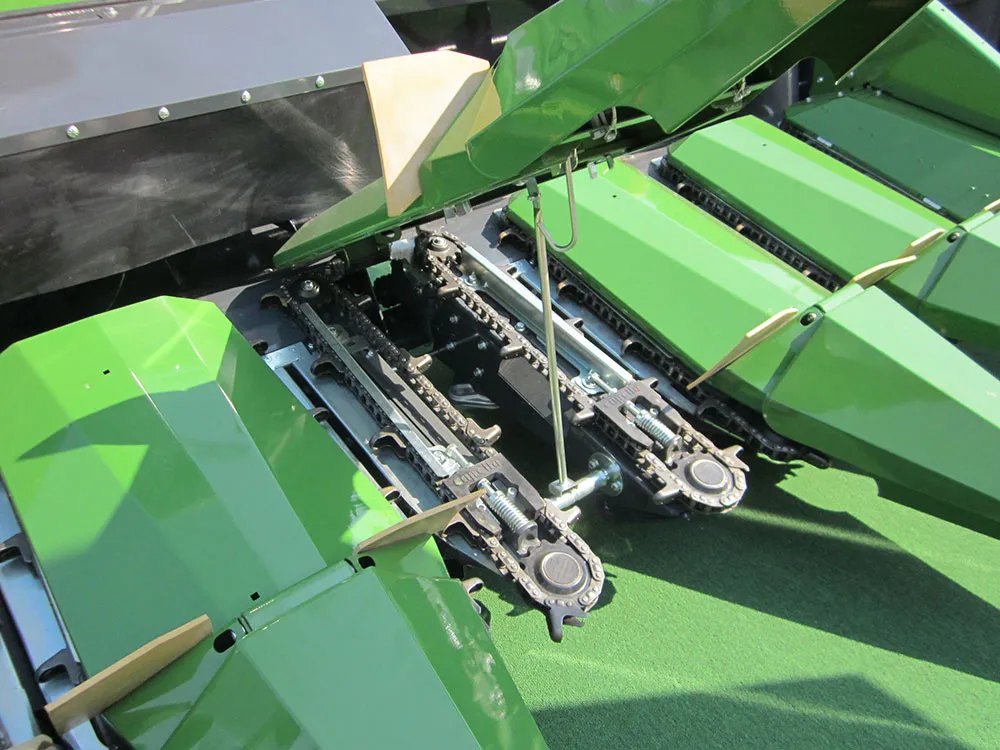

Agricultural Combine Harvester Chains Manufacturers
We are manufacturers, suppliers and exporters of Combine Harvester Chains. We are well-equipped with state of the art infrastructure and tools that are used to manufacture harvester chains in various sizes, catering to client's requirements. We have vast range for these agricultural products and spare parts for harvester combine. We ensure quality of our agriculture products, timely delivery and competitive prices to our clients. We provide Harvester Chains, which are highly beneficial for harvesting purposes in agricultural fields.
 |
 |
