Agricultural Steel Detachable Chain 55-C1 62-C1 55-C11 62-C11 62-C15 With C1 C11 C15 Attachment

Agricultural steel detachable chain is a type of chain used in the agricultural industry to facilitate the transport and movement of materials and machinery around the farm. This type of chain is detachable, which means that links can be easily removed or added to adjust the length of the chain. These chains are made of steel, which gives them strength and durability to withstand the tough conditions of the agricultural environment. They are also resistant to rust and corrosion, ensuring long-lasting use even when exposed to moisture and harsh weather.

Get a Quote

Agricultural Steel Detachable Chain 55-C1 62-C1 55-C11 62-C11 62-C15 With C1 C11 C15 Attachment

Agricultural steel detachable chain is a type of chain used in the agricultural industry to facilitate the transport and movement of materials and machinery around the farm. This type of chain is detachable, which means that links can be easily removed or added to adjust the length of the chain. These chains are made of steel, which gives them strength and durability to withstand the tough conditions of the agricultural environment. They are also resistant to rust and corrosion, ensuring long-lasting use even when exposed to moisture and harsh weather. Overall, agricultural steel detachable chain is an essential piece of equipment for farmers and agricultural workers, as it makes various tasks much easier and more efficient.

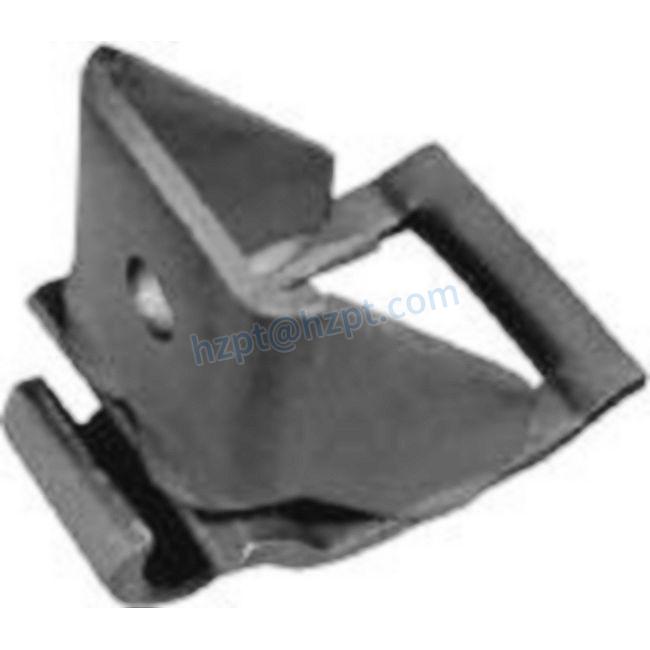

Agricultural Steel Detachable Chain C1-C15 Attachments Size Chart

Detachable Chain 55-C1 62-C1 55-C11 62-C11 62-C15Detachable Chain 55-C1 62-C1 55-C11 62-C11 62-C15
Attachments No.
Chain No.
A
C
F
H
N
T
C1
55 Detachable Chain
1.250
1.188
0.438
1.750
0.266
0.105
62 Detachable Chain
1.438
1.281
0.469
1.781
0.266
0.105
C11
55 Detachable Chain
1.250
1.188
0.438
1.750
0.328
0.105
62 Detachable Chain
1.438
1.281
0.469
1.781
0.328
0.105
C15
62 Detachable Chain
1.438
1.188
0.438
1.781
0.266
0.105

Agricultural Steel Detachable Chain Features

Agricultural steel detachable chains are primarily used in agricultural machinery to move crops during harvest or transport. Some of the features that make these chains beneficial for agricultural applications include:

1. Durability: Agricultural steel detachable chains are constructed with high-quality steel materials, making them resistant to wear and tear rust, and environmental factors such as moisture and temperature fluctuations.

2. Strength: These chains are designed to handle heavy loads of crops and materials without breaking or buckling.

3. Easy to Maintain: Agricultural steel detachable chains are structurally simple, making them easy to maintain and repair when necessary. Additionally, the detachable links allow for the quick replacement of damaged parts.

4. Versatility: These chains can be used in a variety of agricultural machinery devices such as conveyor belts, harvesters, and combines, making them versatile in function.

5. Longevity: With proper care and maintenance, agricultural steel detachable chains can last a long time, providing long-term reliability and cost savings.

Agricultural Steel Detachable Chain Applications

Agricultural steel detachable chains, also known as slat chains, are commonly used in agricultural machinery for conveying bulk materials such as grain, fertilizer, and feed. These chains are made from steel and consist of detachable slats that can be easily removed and replaced, making maintenance and repairs more manageable.

Agricultural Steel Detachable Chain Applications

Some of the common applications of agricultural steel detachable chains include:

(1) Grain elevators: Steel detachable chains are used in grain elevators to move large volumes of grain vertically between different floors. The chains are attached to buckets or cups that scoop up the grain and carry it to the desired location.

(2) Harvesting Equipment: Agricultural detachable chains are also used in harvesting equipment such as combines and threshers to carry harvested crops from the cutting platform to the storage bin.

(3) Feed mills: In feed mills, steel detachable chains are used to move animal feed and other ingredients between different machines and storage tanks.

(4) Fertilizer spreaders: Agriculture steel detachable chains are also used in fertilizer spreaders to evenly distribute fertilizer or other soil supplements on cultivated land.

(5) Animal housing systems: Agricultural steel detachable chains are used in animal housing systems such as chicken houses to move feed from storage bins to the feeding systems.

Overall, agricultural steel detachable chains are versatile and can be used for various applications in the agricultural sector.

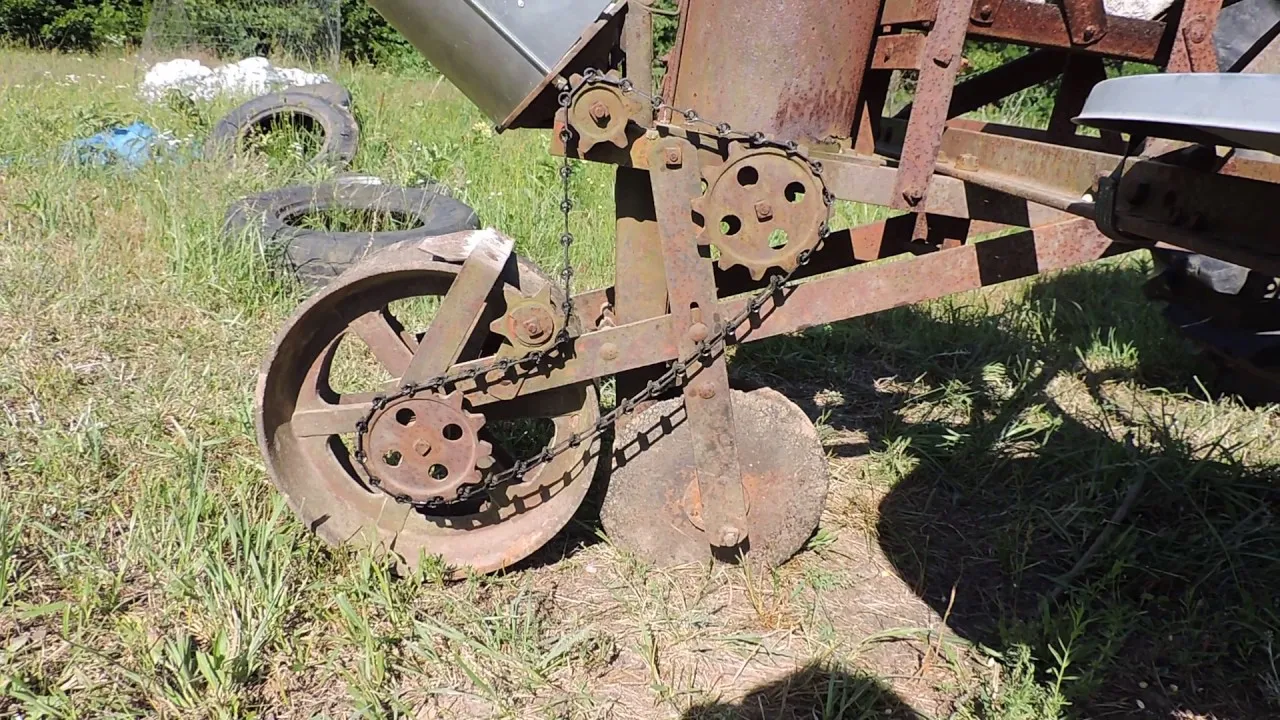

Agricultural Steel Detachable Chain Installation and Disassembly

To install or disassemble an agricultural steel detachable chain, follow these steps:

1. Clear the area: Before you begin, ensure that the work area is clear of any debris or other obstacles that may interfere with the chain.

2. Preparing the chain: If you are installing a new chain, make sure to lubricate it thoroughly to prevent wear and tear. If you are disassembling an old chain for maintenance or replacement, inspect the links and sprockets for any damage or wear.

3. Removing the old chain: If you are removing an old chain, loosen the tension on the chain by turning the adjustment bolts on the guide bar. Then, take off the chain from the sprocket and pull it out of the guide bar.

4. Installing the new chain: To install a new chain, first make sure the sprocket has the same number of teeth as the new chain. Then, place the chain on the sprocket and insert it into the guide bar. Tighten the tension bolts to the appropriate level according to the manufacturer's instructions.

5. Attaching the master link: The detachable chain will have a master link to connect the ends of the chain together. To attach the master link, first remove any excess lubricant from the ends of the chain, then follow the manufacturer's instructions to connect the link.

6. Testing the chain: Once the chain is installed, run the machine briefly to test the chain's alignment and tension. Check for any unusual sounds or vibrations that may indicate a problem.

Agricultural Steel Detachable Chain Installation and Disassembly

To disassemble the chain, reverse the process by removing the master link and then following the steps in reverse order to remove the chain from the machine. It is important to follow the manufacturer's instructions for your specific chain model, as there may be variations in the installation and disassembly process.

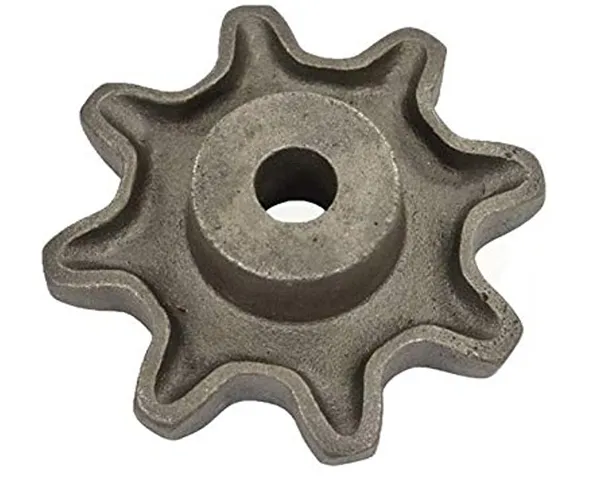

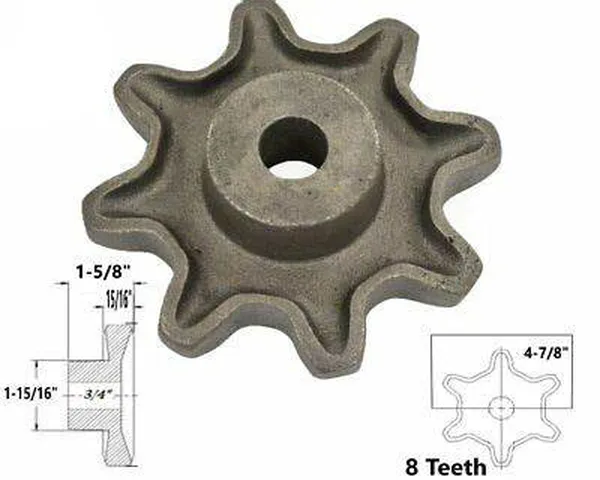

Agricultural Steel Detachable Chain Sprockets

Agricultural steel detachable chain sprockets are a type of sprocket commonly used in farming equipment such as combines, balers, and other agricultural machinery. They are designed to work in conjunction with detachable chains, which can be easily replaced when they wear out or become damaged.

These sprockets are made from high-quality steel, ensuring they are durable and able to hold up against the wear and tear of agricultural usage. They come in a wide range of sizes and configurations to accommodate the various types of detachable chains used in different types of agricultural machinery.

Using agricultural steel detachable chain sprockets helps ensure that machinery can operate reliably and efficiently, reducing downtime and maintenance costs.

Agricultural Steel Detachable Chain SprocketsAgricultural Steel Detachable Chain Sprockets

How to Use Steel Detachable Chain Breaker?

Using a steel detachable chain breaker involves the following steps:

1. First, identify the correct size breaker for your specific chain. The size of the breaker should match the pitch of the chain, which is the distance between any three consecutive rivets in the chain.

2. Next, position the chain on the breaker tool so that the rivet you want to remove is in the center of the tool.

3. Tighten the handle of the breaker tool to apply pressure to the chain and push the rivet out of the link.

4. Once the rivet has been removed, separate the link by sliding the two halves of the chain apart.

5. To install a new link, insert the pins into each half of the chain link, and then push the two halves together.

6. Finally, use the breaker tool to press the new rivet in place until it is flush with the outer edge of the link.

It is important to follow the instructions that come with your specific steel detachable chain breaker in order to use it effectively and safely. If you are unsure about how to use the tool, it may be helpful to consult with a professional or watch instructional videos online.
