American Type Axle for Heavy Duty Trailer
Understanding the components of a trailer axle is crucial for the safety and performance of your trailer. It is the central shaft for a rotating wheel or gear, providing support and transmitting load from the vehicle to the wheels. This article will delve into the components, structure, selection process, applications, and our manufacturing capabilities of American type axle for heavy duty trailers.

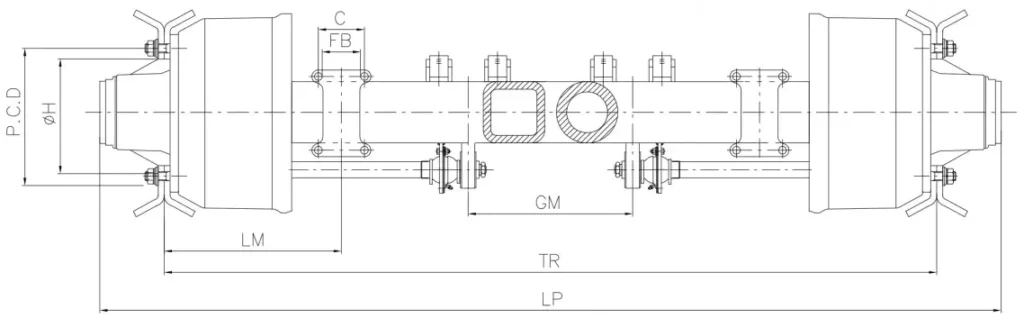

Axle specifications
| 10F10 | 13F10 | 15F10 | 16F10 | 20F10 | ||
| Max.Capacity | (kg) | 10，500 | 13，000 | 15，000 | 16，000 | 20，000 |
| "S"Cam Brake | Series φ x Width(mm) | S 420x180 | S 420x180 | S 420x180 | S 420x220 | S 420x220 |
| Track TR | (mm) | 1820 | 1840 | 1850 | 1850 | 1850 |
| Spring Seat installation | LM (mm) | ≤435 | ≤455 | ≤455 | ≤455 | ≤455 |
| Axle Beam | (mm) | 127 | 150 | 150 | 150 | 150 |
| Center DistanceOf Chamber | GM(mm) | 368 | 390 | 396 | 354 | 354 |
| Wheel Fixing | Studs ( mm) | 10xM22x1.5 | 10xM22x1.5 | 10xM22x1.5 | 10xM22x1.5 | 10xM22x1.5 |
| P.C.D(mm) | 335 | 335 | 335 | 335 | 335 | |
| Total Length | (mm) | 2165 | 2185 | 2185 | 2205 | 2270 |
Understanding the Axle for Trailers
An axle is an essential component used in trailers or semi-trailers. It is the pivotal part connecting the wheels, supporting and transferring the vehicle load, and providing suspension and steering functions.
Structure of a Trailer Axle
The trailer axle comprises several parts:
Axle Tube
The axle tube is the main body of the trailer axle, usually a hollow metal tube with enough strength to bear the vehicle's load. It connects and supports the wheels and dampens shocks through the suspension system.
Axle Ends
The axle ends, usually with axle end heads, connect the wheels. They typically have hub and bearing components supporting the wheels' rotation and ensuring safe operation on the axle.
Suspension System
The trailer axle typically works with a suspension system that provides the vehicle's suspension and damping functions. This system can include springs, shock absorbers, and suspension arms that help disperse and absorb shocks and vibrations during vehicle operation.
Steering System
Some trailer axles may also have a steering function enabling the vehicle to turn. The steering system usually includes parts connecting the axle and the steering device, like the steering arm, tie rod, and steering mechanism.
Selecting the Right Trailer Axle for Your Vehicle
When choosing the right trailer axle for your vehicle, you need to consider several parameters:
Load Capacity
Determine your vehicle's maximum load weight and ensure that the axle you choose can safely and effectively support the required load.
Wheelbase and Hub Configuration
Ensure that the axle length and hub configuration match your vehicle's tire size and wheelbase requirements to ensure compatibility in installation and operation.
Suspension Type
Common suspension types include independent suspension and rigid suspension. Independent suspension provides better damping and suspension effects, suitable for applications requiring smoother driving.
Steering Needs
If your vehicle requires steering, choose an axle with a steering system. Ensure that the chosen axle is compatible with your steering device and provides excellent steering performance and reliability.
Applications of Axles
Trailer axles find a wide range of applications:
Camping and Leisure
Camping trailers, caravans, and other recreational vehicles use trailer axles to provide support and suspension functions.
Agriculture and Farm Machinery
Farm trailers and agricultural machinery trailers use trailer axles to bear the weight of agricultural equipment, agricultural products, and other agricultural purposes.
Marine and Boat Transport
Boat trailers use trailer axles to support and transport boat hulls, making boat transportation more convenient and efficient.
Automobile Transport
For transporting cars, trucks, and other types of vehicles, automotive trailer axles usually have high load capacities and appropriate wheelbase configurations to ensure safe and stable vehicle transport.
About Our Trailer Axles Factory
Established in 1999, our factory is one of the most professional axle manufacturing companies in China. With a factory area of 20,000 square meters, we pass the ISO/TS16949 quality inspection certification annually. We can provide professional custom design services, with our products sold to over 30 countries and regions worldwide. Our product quality and services have received high praise from our users.
Our Production Equipment
We use advanced equipment in our manufacturing process, including electron beam welding machines, arc welding robots, CNC machining centers, CNC plate welding gantry cutting centers, large hydraulic presses, and large cylindrical grinders, automatic spray lines, ultrasonic detectors, three-coordinate measuring machines, and a series of the most advanced manufacturing and fatigue testing inspection equipment.
Our Main Products
We produce various standard axle assemblies such as German and American types, auto parts, various light axles, mechanical suspensions, air suspensions, single point suspensions, wheel and brake drum assemblies and their matching parts, European agricultural axle series, first-line dual-axis rigid series, torsion arm axle series, and other trailer parts.
Author: Miya
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
