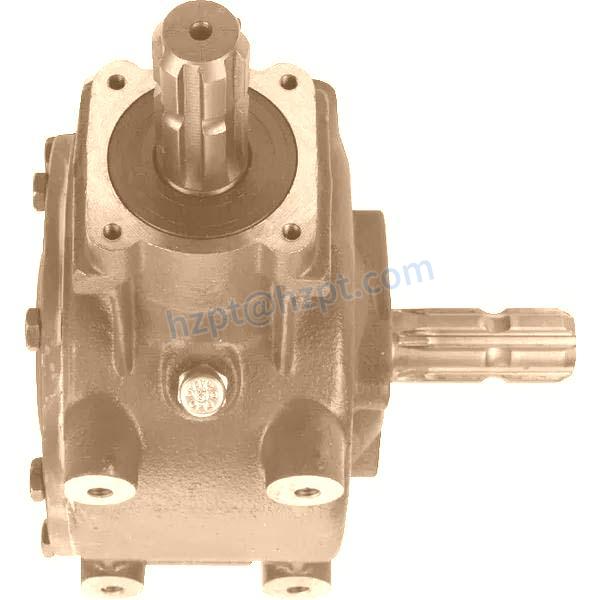

Angular Gearboxes – Replacement of Comer Code T-304A

SKU: EPT-T304A Categories: ,
Get a Quote

Angular Gearboxes, Round Balers Gearboxes, Corn Headers Gearboxes - Replacement of Comer Code T-304A

Description
Angular Gearboxes - Replacement of Comer Code T-304A
Product Details
  • All gearboxes are supplied without oil.
  • The first oil change is recommended after 50 operating hours.
  • Further oil changes approx. every 500-800 hours and/or twice per year.
Application
  • Various (agricultural) applications
  • Mowers
  • Shakers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using for the first time, replace the oil after 50 operating hours
Max. output torque
92.5 daNm
Contains oil
No
Max. oil capacity
1.1 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Weight
19 kg
Gear arrangement Increasing
25 - 26 - 27 - 28
Gear arrangement Reducing
5 - 6
Input power kW / HP Increasing
40.4 / 55 kW/HP
Input shaft Increasing
X - Y
Input shaft Reducing
Z
Input power KW / HP Reducing
27.9 / 38 kW/HP
Output Torque DaNm Increasing
35.9 daNm
Ratio Increasing
1 : 1,93
Ratio Reducing
1,93 : 1
Shaft X
1 3/8" (6) (A)
Shaft Y
1 3/8" (6) (A)
Shaft Z
1 3/8" (6) (B)
