Anti-sidebow Chains for Pushing Window P12.75

Anti-sidebow chains for pushing window can withstand curves and flexures. These chains come with a variety of special plates and attachments. Because they have a small bearing area, they are suitable for lower loads than comparable roller chains. Choose the right one here at Ever-power based on your requirements.

Get a Quote

Anti-sidebow Chains for Pushing Window P12.75

Anti-sidebow chains can withstand curves and flexures. These chains come with a variety of special plates and attachments. Because they have a small bearing area, they are suitable for lower loads than comparable roller chains. Choose the right one here at Ever-power based on your requirements.

Anti-sidebow Chains for Pushing Window

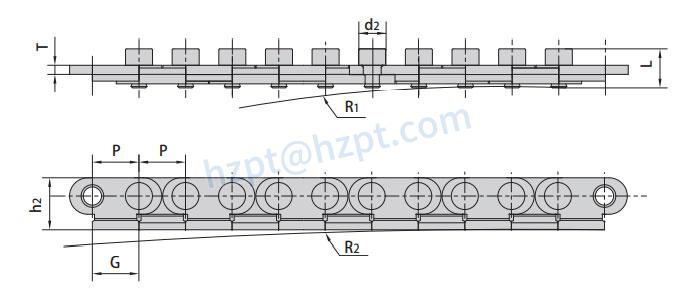

Specifications of P12.75 Anti-sidebow Chains for Pushing Window Anti-sidebow Chains for Pushing Window P12.75SB/P12.75SBF1

Anti-sidebow Chains for Pushing Window P12.75SB/P12.75SBF1

Anti-Sidebow Chains Features

One of the most important Anti-sidebow chain features is the ability of the chain to pivot. The chain can bow sideways if the chain is positioned in the appropriate position. To achieve this, the chain is made of two separate parts: the inner link plate and the outer chain links. The latter two parts are made of plastic materials. The pivot pin 7 and bolt 6 are made of steel. A groove on the inner link plate allows the centering projection to pivot further into this region.

The chain links are interconnected by a hinge. The hinge is designed to pivot about first and second axes. The hinge is formed by a pivot bolt or pin connected to the outer chain links. The inner chain links are attached to the outer chain links via lateral pivot openings, which are defined by individual support plates. The hinge is sized to allow the plate belt to pivot between the inner and outer chains. This feature is useful for counteracting side bow.

An additional feature of anti-sidebow chains is their extra clearance between pins and bushings. The chain is designed for a minimum 250-mm curve radius. It can be equipped with all of the usual roller chains' attachments, such as sprockets. However, the bearing area of side bow chains is limited. As a result, they are only suitable for lower load levels compared to a comparable roller chain.

Anti-Sidebow Chains and Sprockets

When it comes to Anti-sidebow Chains and sprockets, there are a few different types available. While they are similar to standard roller chains, they have extra clearance between the pins, bushings and link plates. They also have smaller pin diameters. These are the perfect solution for curved applications. These sprockets can be available in stainless steel or with various paint finishes.

The most important aspect to consider when choosing an Anti-sidebow chain is its design. These chains have a wider clearance between the pin and the bushing. They also have a better adjustment between the outer and inner links. This means that they can be used on curved tracks and provide greater flexibility for machinery. Ever-power is one of the professional chain and sprocket suppliers in China. We offer high-quality anti-sidebow chains and sprockets at competitive prices. Contact us now if you are interested!

Chains and Sprockets

Why Choose Our Anti-sidebow Chains for Pushing Window?

Ever-power transmission group is a professional manufacturer of particular chains with large pitches. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, particular chains, chain accessories, machinery parts, and so on. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.
