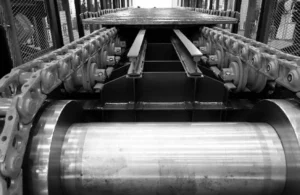

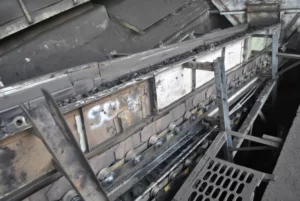

Apron Feeder Chain

In the heavy-duty world of bulk material handling, where reliable feeding under extreme loads is key to operational success, apron feeder chains serve as indispensable components for robust conveyance. These chains, crafted to manage high-impact materials in harsh environments, enable steady feeding of coal, ore, and aggregates into crushers or processors, minimizing jams and maximizing uptime in mining and industrial settings. Learn how EVER-POWER's expert-engineered solutions, informed by extensive mechanical knowledge, provide unmatched impact resistance and longevity for today's demanding applications.

Optimize your apron feeder performance with our high-strength chains, showcasing critical technical parameters: Chain Pitch: 100-200mm, Ultimate Tensile Strength: 50-200kN, Material: Alloy Steel (HRC50+ hardness for corrosion resistance), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Heavy Duty Ribbed Pans for superior impact handling, Custom Variants for specific needs. Choose sizes: small (<100mm for light feeders), medium (100-150mm for standard), large (>150mm for heavy duty). Perfect for coal feeding or ore conveyance in diverse operations.

Apron Feeder Chain Parameter:

AF-D6 Apron Feeder Chain

AF-P315 Apron Feeder Chain



Pan width	Speed	Conveyor capacity	Conveyor Length
mm	Max.m/s	Max. m^3/h	Max.m
800	0.25	15	15
1000	0.25	20	20
1200	0.2	20	20
1400	0.2	20	20
1600	0.15	20	20
1800	0.15	20	20
2000	0.15	20	20
2400	0.15	20	20
2800	0.15	20	20

Features of Apron Feeder Chains:

As a senior mechanical engineer with hands-on experience in bulk handling systems, I detail the core features of our apron feeder chains, also known as high-impact apron conveyor chains or heavy-duty feeder haulage chains. These chains are designed to perform in severe mining conditions, offering exceptional load-bearing and endurance. Key features include:

• High Impact Loading Capability: Engineered to absorb and withstand heavy impacts from bulk materials, ensuring continuous operation without failure under extreme loading conditions typical in mining feeders.
• Heavy Duty Ribbed Pans (Manganese / Cast Steel): Ribbed pans constructed from manganese or cast steel provide enhanced strength and wear resistance, ideal for handling abrasive aggregates in high-volume feeding scenarios.
• Self-Lubricated Design: Built-in self-lubrication minimizes friction and reduces maintenance requirements, extending operational intervals in dusty and humid environments.
• Sealed Design: Fully sealed structure protects internal components from contaminants like dust and moisture, preventing premature wear and ensuring reliability in corrosive mining settings.
• Drop Forged Link: Drop-forged links offer superior tensile strength and fatigue resistance, crafted for durability in repetitive stress cycles common to apron feeders.
• Made by Selected Premium Qualified Steels: Fabricated from premium steels for optimal hardness and corrosion resistance, guaranteeing consistent performance in challenging industrial applications.
• Longer Lifespan: Optimized design and materials result in an extended service life, reducing replacement frequency and overall costs in ongoing mining operations.

These attributes, rooted in engineering precision and industry analyses, address challenges like impact damage and chain wear, delivering dependable ISO-certified solutions.

Applications of Apron Feeder Chains:

Apron feeder chains are crucial in multiple bulk handling scenarios, providing dependable material feeding and support. As an engineer with practical knowledge, their applications include:

• Coal Feeding in Mining Processors: Essential for steady feeding of coal into crushers, processing 50 tons/shift in high-impact setups, preventing jams in continuous flows.
• Ore Handling in Metal Mines: Manage abrasive ores, supporting ongoing feeding cycles in dusty conditions, with durable chains reducing stops in copper/iron processing.
• Potash and Salt Feeding Operations: Corrosion-resistant models thrive in saline humidity, enabling high-volume feeding without frequent maintenance in harvesting feeders.
• Hybrid Surface-Underground Feeding Systems: Facilitate rapid material input (1m/s) in transitional feeders, optimizing flow with customizable designs for mixed equipment.

• Autonomous Feeder Integrations: Pair with sensor-fitted feeders in trials, offering real-time data for optimized input in smart 2025 projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Apron Feeder Chains:

Proper installation of these heavy-duty feeder haulage chains not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper tensioning. The following steps incorporate best practices, backed by EVER-POWER's ISO-certified quality assurance, to deliver a professional outcome.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the apron feeder and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the feeder frame, sprockets, and pans for wear, alignment, and cleanliness, as debris can compromise the installation of high-impact apron conveyor chains. From my experience, this step is crucial to avoid early failures in heavy-duty feeder haulage chains, ensuring the system is ready for optimal load distribution.
• Chain Inspection and Handling: Unpack and examine the apron feeder chains for any shipping damage, verifying specifications like pitch (100-200mm) and tensile strength (50-200kN) match your requirements. Handle with care using appropriate lifting equipment to prevent bending or scratching the alloy steel surfaces, which are coated for corrosion resistance. As an expert, I recommend laying out the chain in a straight line to identify any manufacturing anomalies, building trust in the product's reliability before integration.
• Removal of Existing Chain (If Applicable): Release tension from the old chain using hydraulic adjusters, then detach links or pins systematically, starting from the drive end. Note wear patterns on sprockets for future maintenance insights, as this informs adjustments for the new heavy-duty feeder haulage chains. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high-impact apron conveyor chains.
• Positioning and Alignment of the New Chain: Align the new chain along the feeder path, beginning at the drive sprocket and ensuring pans are oriented correctly for material flow direction. Use alignment tools to maintain straightness, avoiding twists that could lead to uneven wear in apron feeder chains. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the chain's durability and efficiency in demanding operations.
• Connection and Tensioning: Secure chain ends with compatible pins or breakers, ensuring secure fastening without over-tightening. Apply initial tension (1-2% elongation) using calibrated hydraulic tools, monitoring with tension gauges for accuracy. This step is vital for high-impact apron conveyor chains, as proper tension distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for heavy-duty feeder haulage chains, incorporating 2025 AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning tension or alignment. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the apron feeder chains operate at peak efficiency, fostering long-term trustworthiness in your mining setup.

What Are Apron Feeder Chains?

What are apron feeder chains, aka high-impact apron conveyor chains or heavy-duty feeder haulage chains, are specialized alloy steel chains for efficient bulk material feeding in apron feeders. Feature heavy-duty ribbed pans with scrapers conveying materials like coal/ore into processors, robust links for grip. Withstand high impacts in operations, tensile to 200kN, reliable. Engineering: sealed self-lubricated transport, anti-clog. Premium steels HRC50+ resist wear.

How Do Apron Feeder Chains Work?

How apron feeder chains work involves driving pans via chain motion to feed material through tension and mechanical force, with installation requiring precise adjustment for smooth operation. The process begins with chain alignment on the feeder's frame, where heavy-duty ribbed pans (manganese/cast steel) convey bulk materials forward into crushers.

Engineering details include tension for flexibility without slack, self-lubricated sealed joints reducing friction to 0.15 for efficient movement, and regular inspections to monitor wear on high-impact areas. Synchronization with feeder speeds prevents overloads, optimizing processing efficiency.

EVER-POWER's Product Inspection Process:

Our rigorous inspection ensures the highest quality for apron feeder chains. The process begins with raw material verification, where alloy steel is tested for chemical composition and purity using spectrometry to confirm compliance with ASTM standards. Next, during forging, each link undergoes dimensional checks and hardness testing (HRC50+ via Rockwell method) post-heat treatment. Assembly follows, with prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests conducted on calibrated machines. Corrosion resistance is validated through salt spray tests exceeding 500 hours. Final audits include visual inspections for defects and functional simulations on mock feeders to verify smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, providing chains that perform reliably in mining conditions.

EVER-POWER's Strengths in Apron Feeder Chains

With over 20 years of specialized manufacturing, EVER-POWER excels in the mining chain sector through innovative designs for apron feeder applications. Our strengths include advanced drop forging for 30% longer lifespan, customization for feeder models to reduce installation time, and premium steels for superior corrosion resistance in humid environments. Heavy-duty ribbed pans prevent material jamming, boosting throughput by up to 25%. Backed by in-house R&D, we integrate 2025 technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly lubricants and recyclable materials.

Premium After-Sales Service

EVER-POWER's after-sales support for apron feeder chains is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues. Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

EVER-POWER collaborates with leading entities to advance apron feeder chain technology, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring, as highlighted in 2025 industry developments. These alliances focus on sustainable innovations, such as low-emission materials. Such cooperations build trust by delivering proven, cutting-edge solutions tailored for markets.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halting quotas; our chains consistent moist conditions, extended runs/improved morale.

Sarah Jenkins, operator of Thunder Basin Mining's vast open-pit underground, highlighted struggles with abrasive loads; EVER-POWER smoother, arid, dusty, higher outputs/reduced calls.

David Ramirez, extractor Eagle Ridge Mines, shared wear high-vibration; our minimized, seamless operations safety hilly challenges.

FAQ

Q1: Lifespan coal mines? A: 5-10 years maintenance dependent.

Q2: Pitch selection? A: Power-based; guide small-large.

Q3: Corrosion materials humid? A: Alloy coatings 500+ hours.

Q4: Customized models? A: Yes, modular guide.

Q5: Warranty? A: 1-2 years defects/wear.

Q6: Installation performance? A: Tension crucial; step-guide.
