BAD Series High Precision High Speed Planetary Gearbox (Planetary Gear Reducer)

The BAD series high speed planetary gearbox is a type of gearbox that is designed to provide high speed and high torque transmission in a compact and durable package. It is typically used in applications where there is a need for precise control over the speed and torque of a rotating shaft, such as in industrial machinery, robotics, and automation equipment. Some of the key features of the BAD series high speed planetary gearbox include its high efficiency, low backlash, and high torsional stiffness. It is also designed to be quiet and smooth in operation, with minimal vibration and noise. The gearbox is made from high-quality materials, such as hardened steel and aluminum, and is built to withstand harsh operating conditions and heavy loads.

Get a Quote

BAD Series High Precision High Speed Planetary Gearbox (Planetary Gear Reducer)

The BAD series high speed planetary gearbox is a type of gearbox that is designed to provide high speed and high torque transmission in a compact and durable package. It is typically used in applications where there is a need for precise control over the speed and torque of a rotating shaft, such as in industrial machinery, robotics, and automation equipment. Some of the key features of the BAD series high speed planetary gearbox include its high efficiency, low backlash, and high torsional stiffness. It is also designed to be quiet and smooth in operation, with minimal vibration and noise. The gearbox is made from high-quality materials, such as hardened steel and aluminum, and is built to withstand harsh operating conditions and heavy loads.

The BAD series high speed planetary gearbox is a high-performance product with a wide range of applications. It is characterized by its low noise, low backlash, high efficiency, high input speed, high torque, high stability, and high reduction ratio. It is a reliable and durable product that can meet the needs of a variety of applications.

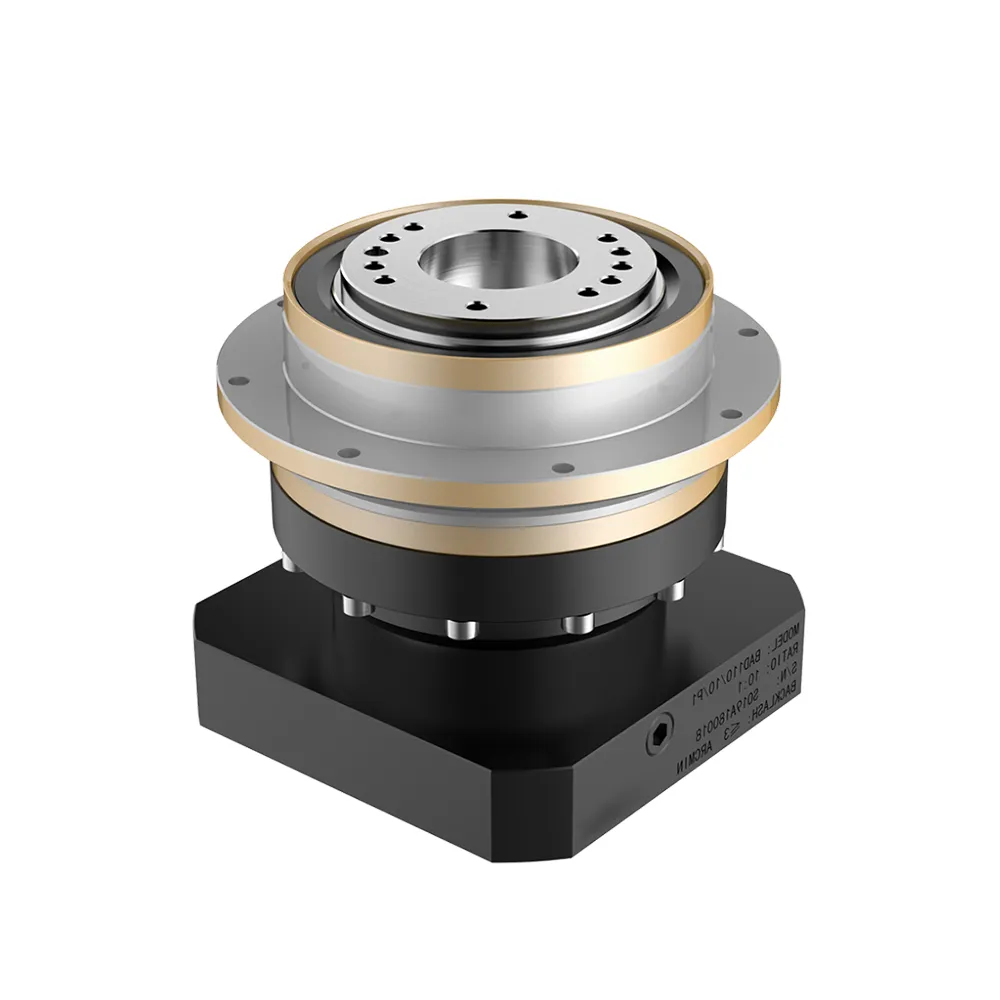

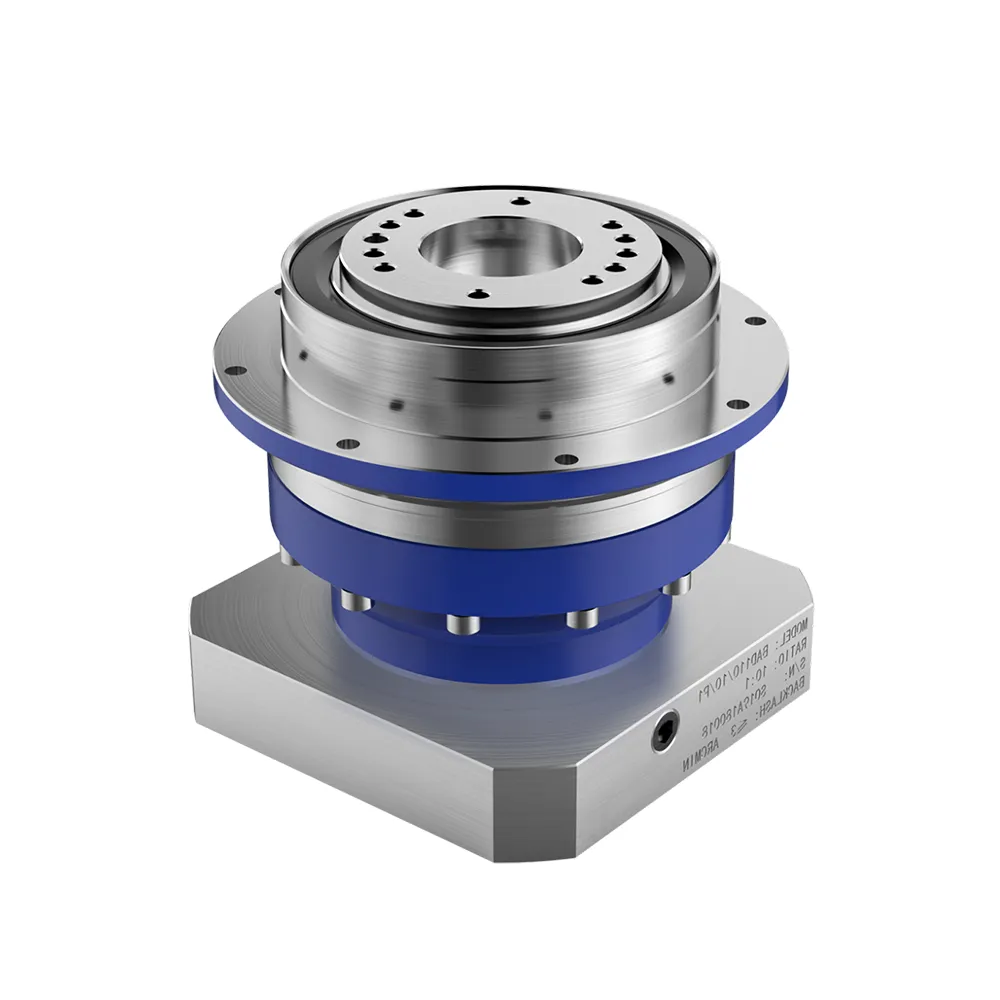

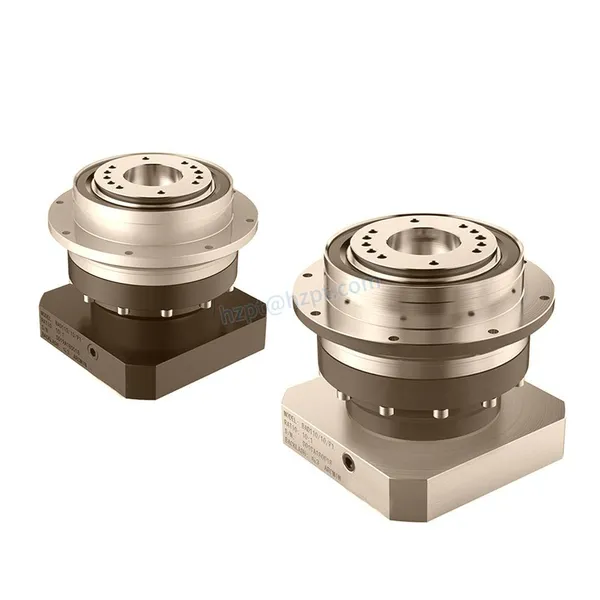

BAD Series High Precision Planetary GearboxBAD Series High Speed Planetary Gearbox

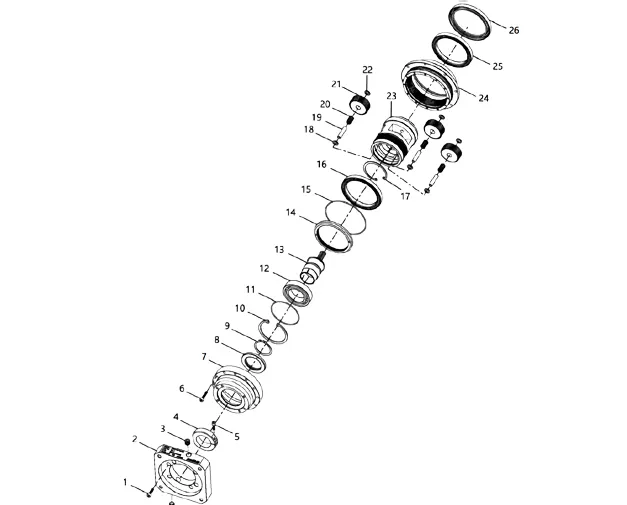

▍BAD Series High Speed Planetary Gearbox Components:

BAD Series High Speed Planetary Gearbox Components

1内六角螺钉/Inner hex screw11O型橡胶密封圈/0- ring21行星轮/Planet gear
2后盖/Back cover12轴承/Bearing22垫凿/Washer
3堵头/Plug13太阳轮/Sun wheel23行星架/Planet carrier
4锁紧环/Locking ring14锁紧螺母/Lock nut24内齿圈/Internal gear
5内六角螺钉/Inner hex screw15O型橡胶密封圈I 0- ring25轴承/Bearing
6内六角螺钉/Inner hex screw16轴承/Bearing26油封/Oil seal
7连接法兰/Connenting flange17孔用挡圈/Hole-circlip
8油封/Oil seal18垫圈/Washer
9轴用挡圈/Shaft-circlip19滚柱/Roller
10孔用挡圈/Hole-circlip20滚针/Kingpin

▍BAD Series High Speed Planetary Gearbox Specifications:

BAD Series Model No.:BAD047, BADO64, BADO90, BAD110, BAD140, BAD200, BAD255
7 Sices
47mm-255mm
Output Torque
14N.m-20OON.m
Ratio
1-stage
4/5/6/7/8/10
2-stages
20/25/30/35/40/45/50/60/70/80/100
Backlash
1-stage
≤1,≤3,≤5 arcmin
2-stages
≤3,≤5,≤7 arcmin

▍BAD Series High Speed Planetary Gearbox Outline Dimension:

1 Stage Planetary Gearbox (Ratio i =4~ 10)

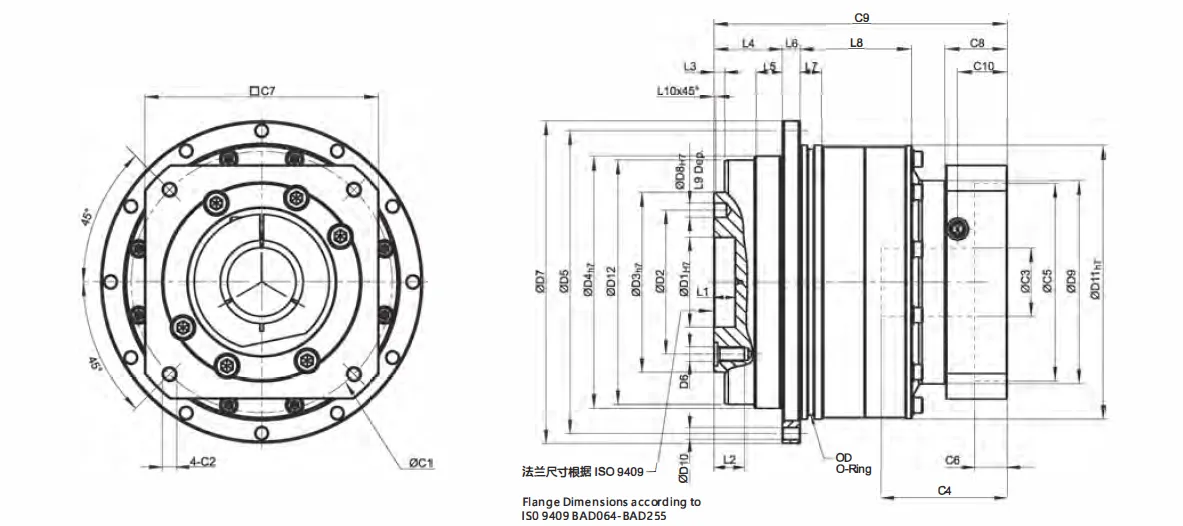

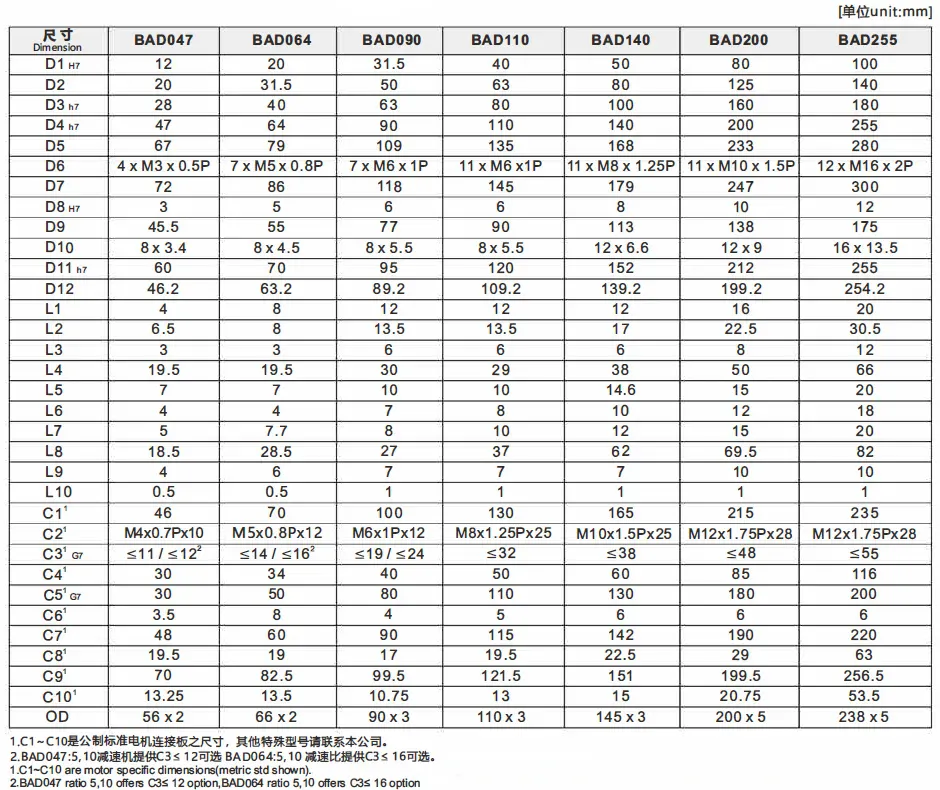

BAD Series 1 Stage Planetary Gearbox Outline Dimension BAD Series 1 Stage Planetary Gearbox Outline Dimension

2 Stage Planetary Gearbox (Ratio i =4~ 10)

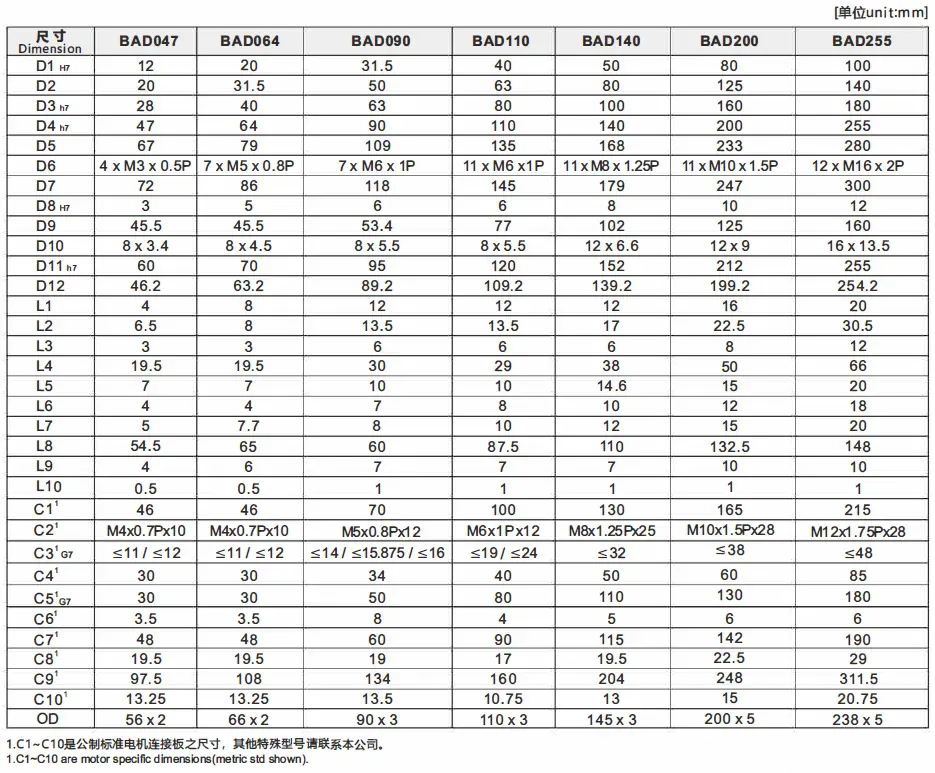

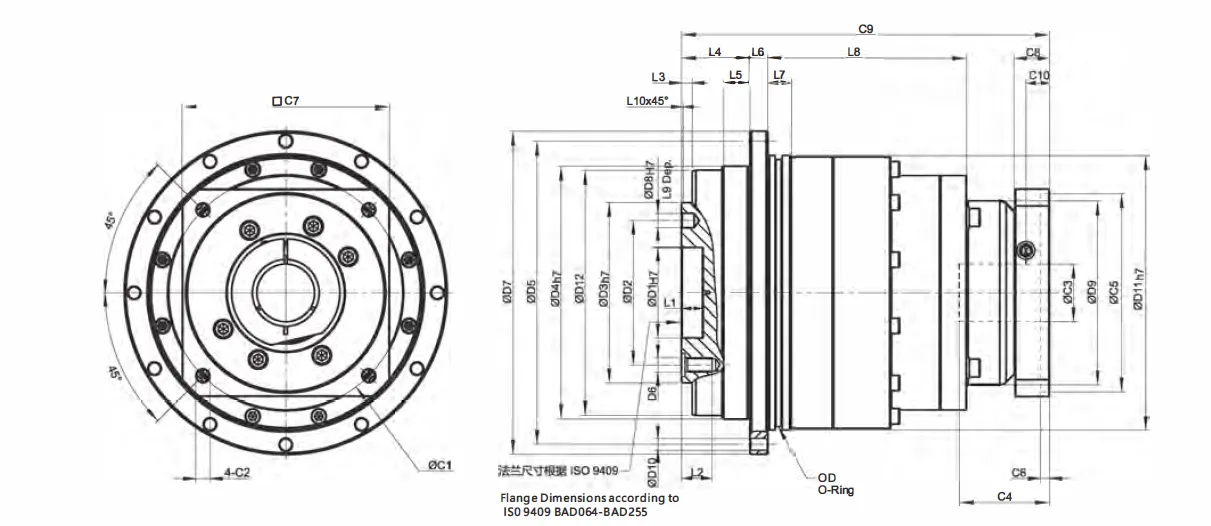

BAD Series 2 Stage Planetary Gearbox Outline Dimension BAD Series 2 Stage Planetary Gearbox Outline Dimension

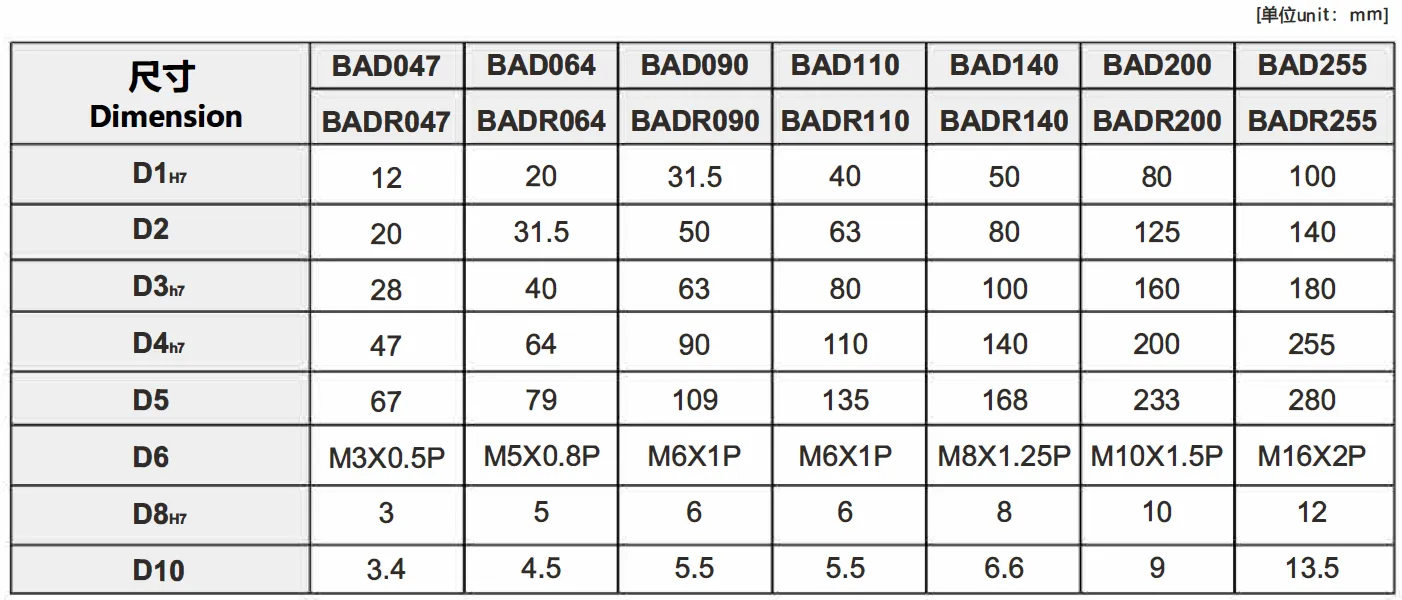

▍BAD Series High Speed Planetary Gearbox Output Shaft Dimension:

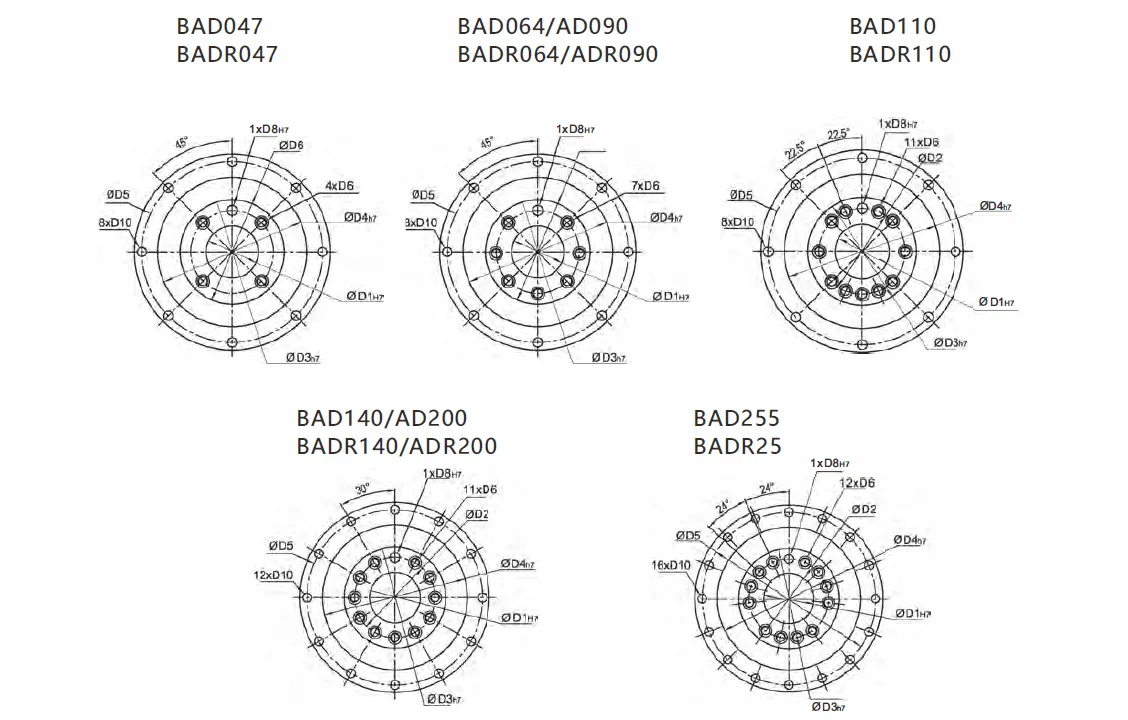

BAD Series High Speed Planetary Gearbox Output Shaft Dimension BAD Series High Speed Planetary Gearbox Output Shaft Dimension

▍BAD Series High Speed Planetary Gearbox Design Features:

The BAD series high speed planetary gearbox is designed with several key features that make it a popular choice for high speed and high torque transmission applications. Some of the design features include:

1. Planetary Gear System: The BAD series high speed planetary gearbox uses a planetary gear system that consists of multiple gears arranged around a central sun gear. This arrangement allows for high torque transmission and smooth operation, with minimal backlash and vibration.

2. High Efficiency: The BAD series high speed planetary gearbox is designed to have high efficiency, with up to 97% efficiency in some models. This means that it can transfer more power from the input shaft to the output shaft, resulting in less energy loss and lower operating costs.

3. Compact Size: The BAD series high speed planetary gearbox is designed to be compact and lightweight, which makes it easy to install and integrate into different types of machinery and equipment.

4. High Torsional Stiffness: The BAD series high speed planetary gearbox has high torsional stiffness, which means that it can transmit high torque loads without experiencing excessive deformation or deflection.

5. Low Backlash: The BAD series high speed planetary gearbox has low backlash, which means that it can provide precise control over the speed and position of the output shaft. This is important in applications where accuracy and repeatability are critical.

6. Durable Construction: The BAD series high speed planetary gearbox is made from high-quality materials, such as hardened steel and aluminum, which makes it durable and able to withstand harsh operating conditions and heavy loads.

7. Customization Options: The BAD series high speed planetary gearbox can be customized to meet the specific needs of different applications, with options for different gear ratios, input and output shaft configurations, and mounting options. This makes it a versatile solution for a wide range of motion control applications.

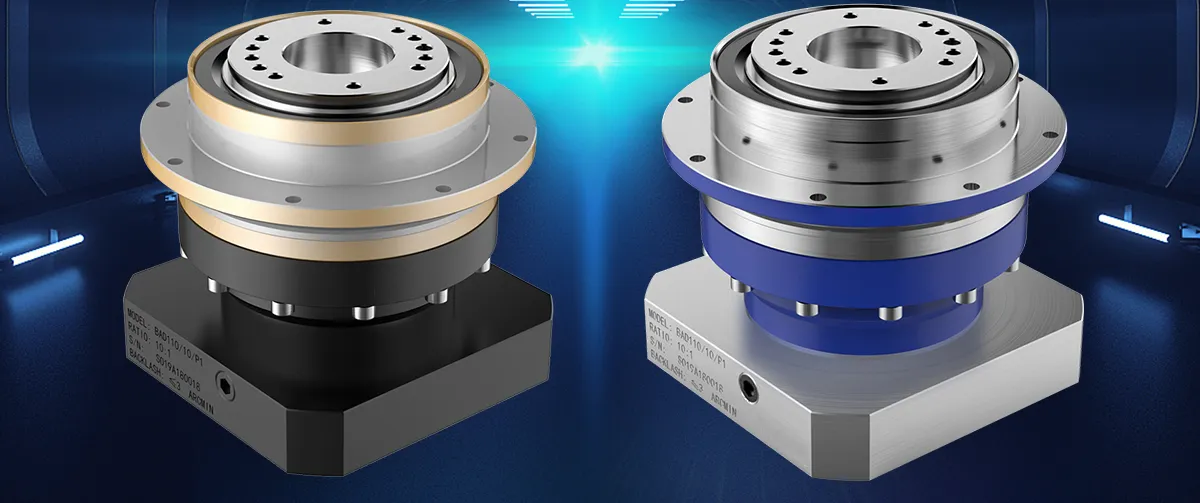

BAD Series High Speed Planetary Gearbox Design Features

▍BAD Series High Speed Planetary Gearbox Reduction Ratio:

The BAD series high speed planetary gearbox is available in a range of reduction ratios, depending on the specific model and configuration. The reduction ratio determines the relationship between the input speed and torque and the output speed and torque of the gearbox.

The BAD series high speed planetary gearbox offers a wide range of reduction ratios, typically ranging from 3:1 to 100:1, although some models can provide even higher ratios. The specific ratio options will depend on the particular model and size of the planetary gearbox.

The choice of planetary gearbox reduction ratio will depend on the specific requirements of the application, such as the desired output speed and torque, as well as the input speed and torque of the driving motor. In general, a higher reduction ratio will result in lower output speed and higher output torque, while a lower reduction ratio will provide higher output speed and lower output torque.

It's important to note that the planetary gearbox reduction ratio is just one factor to consider when selecting a gearbox for a particular application. Other factors, such as efficiency, backlash, and torsional stiffness, should also be taken into account to ensure that the gearbox meets the specific needs of the application.

▍We Also Provide Other Planetary Gearbox Products:

Other Planetary Gearbox Products Other Related Worm Gearbox Products

▍High Speed Planetary Gearbox Oil Lubrication and Maintenance

High speed planetary gearboxes require proper lubrication and maintenance to ensure their longevity and efficient operation. Here are some guidelines for the lubrication and maintenance of high speed planetary gearboxes:

Lubrication: Use the correct type and amount of lubricant recommended by the planetary gearbox manufacturer. The lubricant should have the appropriate viscosity, additives, and properties to withstand the high speeds and loads of the gearbox. Make sure to follow the manufacturer's recommendations for oil change intervals and oil analysis.

Oil level: Check the oil level regularly and maintain it at the recommended level. Overfilling or underfilling the planetary gearbox can cause damage and reduce efficiency.

Oil contamination: Monitor the oil for contamination by particles, water, and other contaminants. Use oil analysis to detect any problems early on and take corrective action as needed.

Oil temperature: Monitor the oil temperature to ensure it stays within the recommended range. High temperatures can cause accelerated wear and damage to the planetary gearbox components.

Seal maintenance: Inspect the seals regularly and replace them if needed. Leaking seals can allow contaminants into the planetary gearbox and cause premature wear.

Gearbox alignment: Ensure that the planetary gearbox is properly aligned with the driven equipment. Misalignment can cause excessive wear and premature failure.

Bearing maintenance: Monitor the bearings for wear and replace them as needed. Proper lubrication, alignment, and load distribution can help extend bearing life.

Vibration analysis: Use vibration analysis to detect any abnormal vibrations or noise in the planetary gearbox. This can help identify potential problems before they cause significant damage.

Cleaning: Regularly clean the exterior of the planetary gearbox to remove any dirt, dust, or debris that can accumulate on the surface. This can help prevent contamination of the lubricant and reduce the risk of corrosion.

Inspection: Perform regular inspections of the planetary gearbox components, including gears, shafts, and bearings, to check for signs of wear or damage. Any issues should be addressed promptly to prevent further damage.

▍High Speed Planetary Gearbox Manufacturers

HZPT Mechanical & Electrical Co., Ltd. is a professional manufacturer of planetary gearbox and electric motors. The factory covers an area of 20,000 square meters, the building area of 30,000 square meters, and the total number of staff is more than 200. We have passed the ISO9001:2015 international quality management system standard certificate, CCC national compulsory product certificate, and CE certificate. We have developed advanced management software such as ERP to keep pace with international standards. In order to serve customers better, the company actively cooperates with colleges and universities to develop new products and improve existing products.

High Precision Planetary Gearbox Manufacturers

FAQ

Q1: What is a high torque planetary gearbox?
A: A high torque planetary gearbox is a type of gearbox that uses planetary gears to provide high torque output. It is designed to handle high loads and provide precise, efficient power transmission in a compact and robust package.

Q2: What are the benefits of a high torque planetary gearbox?
A: The benefits of a high torque planetary gearbox include high torque capacity, high efficiency, low backlash, and high precision. It is also compact in size, making it ideal for use in applications where space is limited.

Q3: What applications are high torque planetary gearboxes used in?
A: High torque planetary gearboxes are used in a wide range of applications, including robotics, automation, machine tools, printing machinery, packaging machinery, and many others. They are particularly useful in applications that require high precision and high torque output.

Q4: How do high torque planetary gearboxes work?
A: High torque planetary gearboxes work by using a planetary gear system, which consists of a sun gear, planet gears, and a ring gear. The sun gear is typically driven by a motor, and the planet gears mesh with both the sun gear and the ring gear. As the sun gear rotates, it drives the planet gears, which in turn rotate the output shaft, producing high torque output.

Q5: What factors should be considered when selecting a high torque planetary gearbox?
A: Thefactors that should be considered when selecting a high torque planetary gearbox include the required torque capacity, input speed, output speed, efficiency, backlash, size, and mounting options. It is also important to consider the specific application requirements, such as the operating environment, load type, and duty cycle. Consulting with a gearbox expert or supplier can help ensure that the gearbox selected is the best fit for the specific application.
