Replacement of Bonfiglioli 313R Series Planetary Gearbox Reducer Replacement 313R2 313R3 313R4
The 313R series planetary gearbox is designed specifically for high-performance and high torque applications, with a variety of sizes and transmission ratios to choose from to adapt to various industrial applications. The 313R series gearbox adopts planetary gear transmission, providing high torque density, high efficiency, and reliability, making it a popular choice for many types of mechanical equipment.

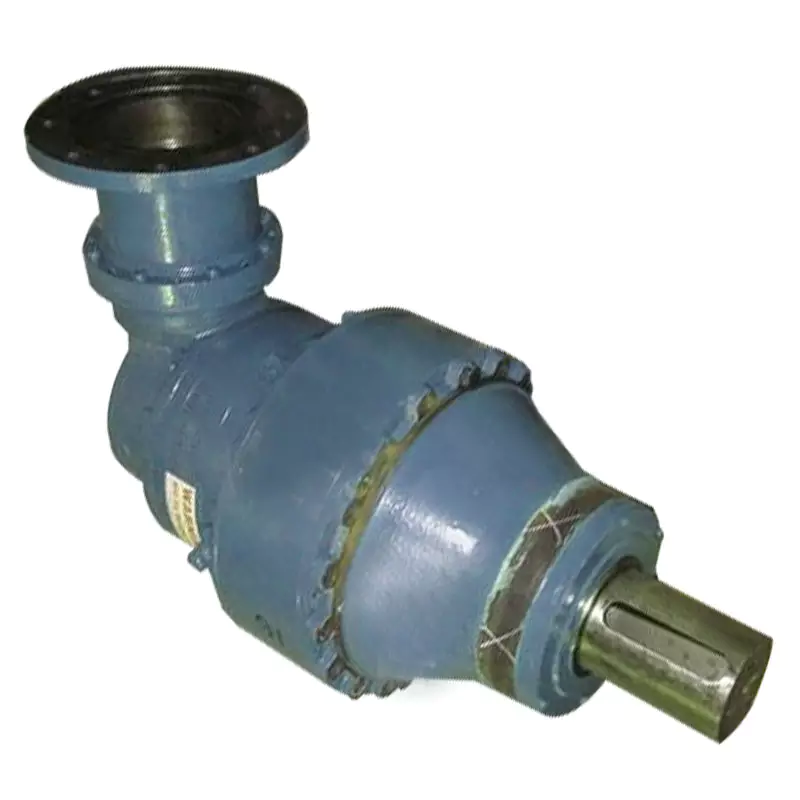

313R Series Planetary Gearbox
Replacement of Bonfiglioli's 313R series planetary gearbox is a high-performance mechanical power transmission device designed to transfer torque from one shaft to another. The working principle of the gearbox is based on planetary gear transmission, which includes the use of multiple planetary gears rotating around the central sun gear and outer ring gear.
The following is a brief overview of the working principle of the 313R series planetary gearbox:
- Input shaft: The gearbox is connected to the input shaft, which provides the initial source of rotation and torque.
Sun gear: The input shaft is connected to the sun gear, which is located at the center of the gearbox and rotates around its own axis. - Planetary gears: The sun gear is surrounded by multiple planetary gears, which are installed on a planetary carrier rotating around the sun gear.
- Ring gear: The planetary gear meshes with the outer ring gear, which is fixed in place and provides output shaft connection.
- Torque transmission: When the sun gear rotates, it causes the planetary gear to rotate around the sun gear, thereby causing the planetary carrier to rotate. This rotation transmits torque to the output shaft through the meshing of planetary gears and ring gears.
The 313R series planetary gearbox is designed specifically for high-performance and high torque applications, with a variety of sizes and transmission ratios to choose from to adapt to various industrial applications. The 313R series gearbox adopts planetary gear transmission, providing high torque density, high efficiency, and reliability, making it a popular choice for many types of mechanical equipment.
| Torque range | 1,000 ... 450.000 Nm |
| Gear ratios | 6.9 ... 9,000 |
| Transmissible Mechanical Power | up to 150 kW |
| Brake options | Hydraulic brake Hydraulically released parking brake on request Electric brake DC and AC type |
| Output | Foot and flange mounted Output shaft: solid with key, splined, splined hollow, hollow with shrink disc |
| Input | Flanged axial piston hydraulic motors Hydraulic orbit motors IEC and Nema motor adapters Solid input shaft |
| Applicable motors | Piston hydraulic motors Hydraulic orbit motors Electric motors IEC |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
|
Planetary Feed Mixer Gearbox |
Tracked Vehicle |
Winch Drive |
Wheeled Vehicle Drive |
 |
 |
 |
 |
|
Slewing Drive |
Wind Turbines Drive |
Inline Planetary gearbox |
Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Replacement of Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Replacement of Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
